CNC Machining Resin: A Comprehensive Guide to Precision and Application

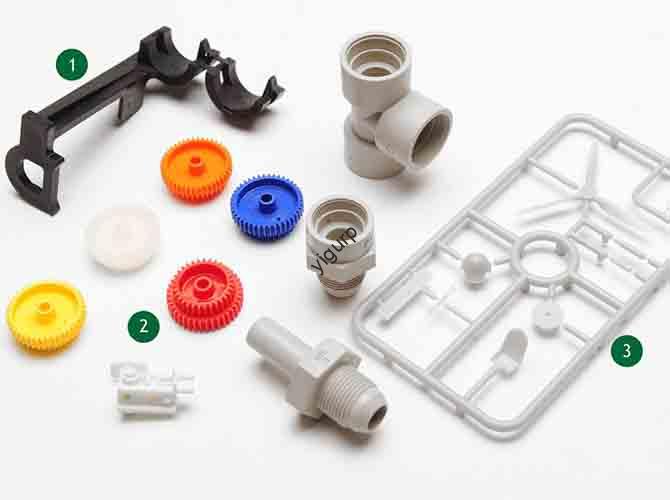

polyphenylene oxide ppo injection molding

Resin is a versatile material widely used in aerospace, automotive, electronics, and medical industries—but achieving high-quality results with CNC machining resin requires understanding its unique properties, optimizing tool selection and cutting parameters, and avoiding common pitfalls. This guide solves key pain points, from material mismatch to machining deformation, by breaking down core material traits, step-by-step workflows, and real-world applications.

1. Key Properties of Resin Materials for CNC Machining

Resin’s diverse properties make it suitable for various scenarios, but choosing the right type based on performance needs is critical. The table below highlights core traits and examples:

Property CategoryKey CharacteristicsTypical Resin ExamplesPractical Impact
Physical PropertiesModerate density (1.0–1.5g/cm³); easy to handlePolycarbonate (1.20–1.22g/cm³), Polyethylene (PE, 0.91–0.96g/cm³)Reduces strain on machining equipment; simplifies material loading/unloading
Thermal StabilityWithstands 60–300°C (varies by type); resists deformationPEEK (up to 250°C continuous use), PI (up to 300°C)Enables use in high-temperature environments (e.g., automotive engine compartments, medical sterilization)
Mechanical StrengthHigh tensile strength; customizable via reinforcementCarbon fiber-reinforced resin (5x stronger than pure resin), Nylon 66 (70MPa tensile strength)Meets structural needs (e.g., aerospace brackets, automotive load-bearing parts)
Wear ResistanceLow friction coefficient; long service life in friction scenariosPTFE (0.04 friction coefficient), UHMWPEIdeal for seals, bearings, and sliding components (e.g., industrial machine guides)
Chemical ResistanceResists acids, alkalis, and solvents; no corrosionPE, PP, PTFESuitable for chemical containers, pipes, and lab equipment
Electrical InsulationLow electrical conductivity; blocks current flowEpoxy resin, PICritical for electronics (e.g., circuit board brackets, insulated device shells)

Example: If you’re machining a part for a chemical plant’s fluid pipe, PE or PP resin is ideal—their chemical resistance prevents corrosion from acidic fluids, while their moderate density makes machining efficient.

2. CNC Machining Resin: Tool Selection & Cutting Parameters

Using the wrong tools or parameters leads to 60% of resin machining errors, such as rough surfaces or tool wear. Follow this structured approach for optimal results.

2.1 Tool Selection: Match Tools to Resin Type

Resin’s low hardness (vs. metals) requires sharp, high-wear-resistance tools. The table below simplifies selection:

Resin TypeRecommended Tool MaterialTool Coating (If Needed)Key Advantages
Pure Resins (PE, PP, PC)High-Speed Steel (HSS), CarbideNone (or TiN for extended life)Sharp edges ensure smooth cuts; low cost for high-volume runs
Reinforced Resins (Carbon fiber-reinforced, Glass fiber-reinforced)Carbide (tungsten carbide)TiAlN, CrN (reduces tool wear from abrasive fibers)Coating resists fiber-induced abrasion; maintains tool sharpness for 2–3x longer
High-Temp Resins (PEEK, PI)Fine-grain CarbideAlTiN (withstands high machining temperatures)Handles heat generated during machining; prevents tool softening

Critical Rule: Never use dull tools for resin machining—dull edges tear resin instead of cutting it, leaving rough surfaces (Ra > 3.2μm) and increasing material waste.

2.2 Cutting Parameters: Balance Speed, Feed, and Depth

Incorrect parameters cause overheating (resin melting) or deformation. Use these industry-proven ranges:

ParameterPure Resins (PE, PP)Reinforced Resins (Carbon fiber-reinforced)High-Temp Resins (PEEK, PI)
Cutting Speed1,500–3,000 RPM1,000–2,000 RPM (slower to reduce fiber-induced tool wear)800–1,800 RPM (slower to avoid overheating)
Feed Rate100–250 mm/min80–180 mm/min (lower to prevent tool chipping)50–150 mm/min (lower to maintain precision)
Cutting Depth1–5 mm per pass0.5–3 mm per pass (shallower to reduce tool stress)0.5–2 mm per pass (shallower to avoid material deformation)

Case Study: A manufacturer machining carbon fiber-reinforced resin used HSS tools with no coating. The tools dulled after 50 parts, causing rough edges. Switching to TiAlN-coated carbide tools extended tool life to 150 parts and improved surface finish (Ra from 6.3μm to 1.6μm).

2.3 Cooling & Lubrication: Prevent Overheating

Resin melts at lower temperatures than metals—effective cooling is essential.

Cooling MethodBest ForBenefitsApplication Example
Air CoolingPure resins (PE, PP); small partsNo fluid residue; easy cleanupMachining small PP electrical connectors
Water CoolingHigh-temp resins (PEEK, PI); large partsBetter heat dissipation; reduces tool temperature by 40%Machining PEEK medical implant blanks
Lubricant SelectionAll resin typesOil-based (for heavy cuts) or water-based (for precision cuts)Oil-based for carbon fiber-reinforced resin brackets; water-based for PC transparent parts

3. Key Applications of CNC Machining Resin

Resin’s versatility makes it indispensable across industries. Below are real-world use cases with tangible benefits:

3.1 Aerospace Industry

  • Interior Parts: Seats, panels, and cabin fixtures made from lightweight resin reduce aircraft weight by 15–20%, improving fuel efficiency.
  • Structural Parts: Carbon fiber-reinforced resin brackets and wing components replace metal, cutting weight while maintaining strength.

3.2 Automotive Industry

ApplicationResin TypeBenefits
Bumpers, DashboardsPP, ABS (with fillers)Impact-resistant; customizable colors
Molds (Injection, Die-Casting)Epoxy resin, Phenolic resinDimensional stability; low cost vs. metal molds
Engine Compartment PartsPEEK, PIWithstands 150–250°C; resists oil/solvent damage

3.3 Electronics & Electrical Industry

  • Device Shells: PC and ABS resin shells for mobile phones, computers, and IoT devices offer impact resistance and insulation.
  • Insulation Components: Epoxy resin circuit board brackets and PI insulated plugs prevent electrical short circuits.

3.4 Medical Industry

  • Enclosures & Packaging: Biocompatible resin (e.g., PE, PP) shells for medical devices and pharmaceutical packaging meet strict hygiene standards (FDA, CE).
  • Implants: PEEK resin artificial joints and dental implants have excellent biocompatibility (no immune rejection) and match bone density.

4. Yigu Technology’s Perspective

At Yigu Technology, we see CNC machining resin as a cost-effective, flexible solution for modern manufacturing. Many clients struggle with tool wear (especially for reinforced resins) and parameter optimization—our advice is to prioritize coated carbide tools for reinforced resins and start with mid-range cutting speeds (1,500–2,000 RPM) for pure resins. We’re integrating AI into our CNC systems to auto-adjust parameters based on resin type, cutting defects by 35% and tool costs by 20%. As industries demand lighter, more durable parts, CNC machining resin will grow in importance—and we’re committed to making it accessible for businesses of all sizes.

5. FAQ: Answers to Common Questions

Q1: Can I machine transparent resin (e.g., PC) without losing clarity?

A1: Yes—use sharp carbide tools (0.2mm cutting edge radius), water-based lubricant, and low feed rate (80–120 mm/min). Avoid overheating (use water cooling) and sand the surface with 1,000–2,000 mesh sandpaper post-machining to retain transparency.

Q2: How do I fix resin deformation during machining?

A2: Deformation usually comes from overheating or excessive cutting depth. Fixes: 1. Reduce cutting speed by 500–1,000 RPM. 2. Decrease cutting depth to 0.5–1mm per pass. 3. Use water cooling to lower material temperature.

Q3: Is CNC machining resin more cost-effective than injection molding for small batches?

A3: Yes—for batches of 1–100 parts, CNC machining avoids mold costs (\(5,000–\)50,000 for injection molds). For batches of 1,000+ parts, injection molding is cheaper—but CNC machining offers faster turnaround (1–2 days vs. 2–4 weeks for mold production).
