Introduction
A high-precision prototype is not just another sample. It is a physical model built to standards that approach or match mass production. Dimensional errors stay within ±0.05mm. Surfaces show no tool marks or blemishes. Materials match what you will use in final production. This level of accuracy lets you test assembly fit, functional performance, and even appearance with confidence. If a high-precision prototype works, the mass-produced part will work too. This article explains what makes these prototypes different, how they are made, when to use them, and how to get the most value from your investment.
What Are the Core Characteristics of High-Precision Prototypes?
Four features define a high-precision prototype. Each one aligns it with mass production standards.
Ultra-Tight Dimensional Accuracy
Standard prototypes might hold ±0.2mm or ±0.5mm. High-precision prototypes tighten that to ±0.05mm or even ±0.01mm for critical features.
- Why it matters: Parts that must fit together need this accuracy. A medical device sensor that sits in a 0.5mm wide cavity will not work if the prototype is 0.1mm oversized.
- Real example: A client developing a drone gearbox needed gears that meshed within 0.03mm. A standard CNC prototype at ±0.1mm would have told them nothing about real performance. Only a high-precision prototype with ground gear teeth confirmed the design worked.
Superior Surface Quality
High-precision prototypes have no visible machining marks, layer lines, or defects. They accept advanced finishes like mirror polishing or anodizing without showing flaws.
- Surface roughness: Target Ra values of 0.8μm or lower for cosmetic parts.
- Why it matters: A smartwatch case with a brushed finish looks wrong if the underlying surface has tool marks. The finish amplifies imperfections instead of hiding them.
Precision Assembly Matching
These prototypes simulate how mass-produced parts fit together. They include working features like snap fits, threaded holes, and bearing seats.
- Why it matters: An automotive bracket might bolt to the engine block. If the prototype’s mounting holes are off by 0.1mm, the bracket might bind or vibrate. Testing with a high-precision prototype catches this before tooling.
Mass-Production Material Consistency
High-precision prototypes use the same materials as final products. Not substitutes, not approximations.
- Why it matters: Testing a load-bearing drone arm in 6061 aluminum tells you nothing if the production part will be 7075 aluminum. The strengths are different. Only the correct material gives valid test results.
What Production Methods Create High-Precision Prototypes?
Four main methods produce high-precision prototypes. Each has strengths and limitations.
| Method | Materials | Accuracy | Cost per Unit | Best For |
|---|---|---|---|---|
| CNC precision machining | Metals (aluminum, steel, titanium), engineering plastics | ±0.01mm to ±0.05mm | 500 – 3,000 CNY | Precision metal parts, functional testing, threaded features |
| Metal 3D printing (SLM/DMLS) | Stainless steel, titanium, aluminum alloys | ±0.1mm to ±0.2mm | 2,000 – 8,000 CNY | Complex internal structures, lattice designs, organic shapes |
| Silicone duplication | Polyurethane resins | ±0.1mm to ±0.3mm | 200 – 800 CNY | Small batches (5-50) of appearance prototypes |
| Injection mold trial | Production plastics (ABS, PC, nylon) | ±0.05mm to ±0.1mm | 5,000 – 50,000 CNY (mold cost) + low unit cost | High-volume plastic prototypes, process validation |

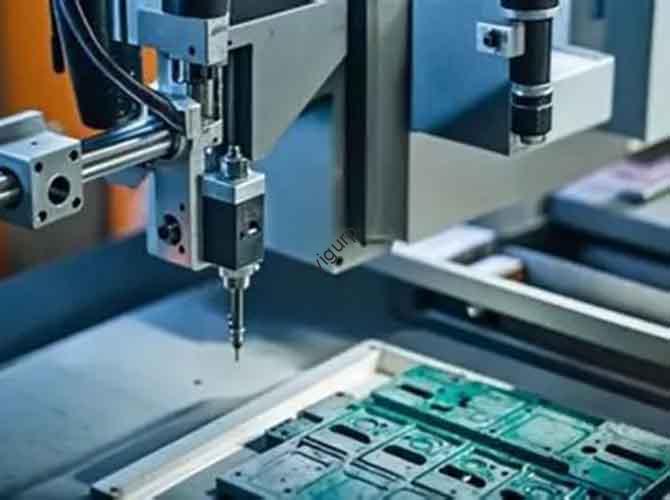

CNC Precision Machining: The Workhorse
CNC machining removes material from a solid block using computer-controlled tools. It delivers the highest accuracy and works with production materials.
- Process: A block of 6061 aluminum is clamped in a CNC mill. Tools cut away material to create the final shape. Multiple setups may be needed for complex parts.
- Accuracy drivers: Machine rigidity, tool condition, and programmer skill. A well-run CNC shop holds ±0.02mm routinely.
- Case study: A medical device company needed a titanium surgical tool prototype. CNC machining produced it in seven days with all features within ±0.03mm. Surgeons tested the tool and confirmed the ergonomics before mold construction began.
Metal 3D Printing: For Complex Geometry
Metal 3D printing builds parts layer by layer from metal powder. It creates shapes impossible to machine.
- Process: A laser melts metal powder in thin layers. Unmelted powder supports overhangs. The part is heat-treated and removed from the build plate.
- Accuracy trade-offs: Surface finish is rougher than machining. Typical Ra is 6μm to 10μm as-built. Post-processing like grinding or polishing adds cost but improves finish.
- Best use: Aerospace brackets with lattice interiors, medical implants with porous surfaces for bone ingrowth.
Silicone Duplication: Low-Cost Small Batches
Silicone duplication casts parts in flexible molds. It is ideal for five to fifty copies of complex shapes.
- Process: A master prototype is suspended in a frame. Silicone is poured around it and cures. The mold is cut open, the master removed, and liquid resin poured in to create copies.
- Limitations: Materials are polyurethane resins, not production plastics. Mechanical properties differ. Use for appearance models, not functional testing.
- Cost advantage: After the master, each copy costs 50 to 150 CNY. Great for user testing or trade show samples.
Injection Mold Trial: The Final Validation
An injection mold trial runs production material through actual production tooling. It is the last step before mass production.
- Process: A steel mold is machined. The mold is mounted in an injection molding machine. Plastic pellets melt and inject into the cavity. Parts cool and eject.
- What it validates: Mold design, gate location, cooling efficiency, and process parameters.
- When to use: After design freeze, before committing to full production. One to two hundred parts for testing and certification.
When Should You Use a High-Precision Prototype?
High-precision prototypes solve specific problems. Use them in these scenarios.
Precision Assembly Verification
When parts must fit together within tight tolerances, standard prototypes mislead.
- Situation: A gear train for a cordless drill. Gears must mesh with 0.05mm backlash. A prototype made with ±0.2mm tolerance would either bind or rattle. Only a high-precision prototype tells you if the design works.
- Outcome: CNC-machined gears in production material (nylon or POM) confirm the design. Adjustments happen before mold cutting, saving 50,000 CNY in potential rework.
Functional Performance Testing
When you need to validate strength, wear, or environmental resistance.
- Situation: A smartphone charging port that will see 10,000 insertion cycles. The production part uses a specific brass alloy with a nickel plating. A high-precision prototype replicates both material and finish.
- Outcome: The prototype survives 12,000 cycles in testing. The design is validated. No last-minute surprises during production ramp-up.
Appearance and Detail Confirmation
When surface finish and aesthetic details matter to the product’s success.
- Situation: A luxury smartwatch with a stainless steel case and black anodized finish. The production finish will cost thousands in tooling and process development.
- Outcome: A high-precision prototype with mirror polishing (Ra 0.4μm) and black anodizing lets the design team approve the look. Marketing uses the prototype for photoshoots and investor presentations.
Mold Design Validation
When you need to prove a mold design before cutting steel.
- Situation: A laptop keyboard bezel in ABS plastic. The design has thin walls and complex snap features. A mold trial with a prototype mold (sometimes called a bridge tool) reveals potential issues.
- Outcome: The trial shows sink marks near the snap bosses. Adjusting gate location and cooling channel design fixes the problem before the production mold is finalized.
What Precautions Ensure Success with High-Precision Prototypes?
Follow these best practices to avoid wasted time and money.
Prioritize Material Consistency
Do not substitute materials. Use exactly what production will use.
- Wrong: Testing a load-bearing part in 5052 aluminum when production will use 7075. The test results are meaningless because 7075 is 70% stronger.
- Right: Specify the exact alloy and temper. For plastics, specify the exact grade and any additives like glass fiber or UV stabilizers.
Optimize Processing Paths
Work with your supplier to plan the machining strategy.
- For CNC parts: Discuss toolpaths, fixturing, and setup order. For deep cavities, ask about layered cutting to reduce stress and deflection.
- For large parts: Consider splitting into multiple components that bolt together. This avoids clamping errors and reduces machining time.
Choose Surface Treatments Strategically
Match the finish to your testing goals.
- Functional parts: Use treatments that enhance performance. Electroplating for corrosion resistance. Hard anodizing for wear resistance.
- Appearance parts: Use treatments that match production. Colored anodizing for aluminum. Paint matching for plastics.
Rigorously Test and Inspect
Do not assume the prototype is correct. Verify with proper equipment.
- Dimensional accuracy: Use a Coordinate Measuring Machine (CMM) for complex parts. Check critical features against the CAD model.
- Surface quality: Use a surface roughness tester to confirm Ra values. For cosmetic parts, inspect under proper lighting.
- Functional testing: Run environmental tests if needed. Temperature cycles, humidity exposure, drop tests. Simulate real use conditions.
Conclusion
A high-precision prototype is an investment in getting mass production right the first time. It validates fit, function, and appearance with an accuracy that standard prototypes cannot match. Use CNC machining for precision metal parts, metal 3D printing for complex geometries, silicone duplication for small batches of cosmetic parts, and injection mold trials for final process validation. Match materials to production, plan processing paths carefully, and inspect results thoroughly. The cost of a high-precision prototype is small compared to the cost of mold rework, production delays, or field failures. When accuracy matters, high-precision prototypes deliver the confidence you need to move forward.
Frequently Asked Questions
Can a high-precision prototype replace mass production testing?
No, but it reduces the need for costly production tweaks. A high-precision prototype validates design and assembly. You still need small-batch production testing to confirm process consistency across hundreds or thousands of units. Mold trials, first articles, and pilot runs serve that purpose.
Which production method is best for a low-budget, high-accuracy metal prototype?
CNC machining is the most cost-effective choice for one to ten metal prototypes. It costs 500 to 3,000 CNY per part, uses production materials, and delivers ±0.05mm accuracy. For complex internal geometries that CNC cannot reach, metal 3D printing is the only option but costs more.
How long does it take to make a high-precision prototype?
Timelines vary by method:
- CNC machining: 5 to 7 days
- Silicone duplication: 3 to 5 days
- Metal 3D printing: 7 to 10 days
- Injection mold trial: 2 to 4 weeks including mold production
Add one to two days for inspection and adjustments.
What is the difference between a standard prototype and a high-precision prototype?
Standard prototypes prioritize speed and low cost. Tolerances are ±0.2mm to ±0.5mm. Materials may be substitutes. Surface finish shows tool marks or layer lines. High-precision prototypes prioritize accuracy and production relevance. Tolerances are ±0.05mm or better. Materials match production. Surfaces are finished to specification.
How do I specify a high-precision prototype to my supplier?
Provide a 3D CAD file in STEP or IGS format. Include a 2D drawing with critical dimensions and tolerances clearly marked. Specify material grade and temper. List required surface treatments. Note any functional tests the prototype must pass. Ask about the supplier’s inspection process and request a CMM report for critical features.
What industries benefit most from high-precision prototypes?
Aerospace, medical devices, automotive, and high-end consumer electronics rely on high-precision prototypes. These industries cannot tolerate assembly issues or performance surprises. A failed fit in a satellite mechanism or a surgical tool can have catastrophic consequences. High-precision prototypes eliminate those risks before production.
