In CNC machining—whether for aerospace components, medical devices, or automotive parts—the common tools used in CNC machining directly determine machining efficiency, surface quality, and production costs. These tools aren’t a random collection; they’re categorized by function (milling, drilling, turning) and tailored to material properties (soft aluminum vs. hard steel) and process needs (roughing vs. finishing). This article breaks down the core tool categories, their key features, application scenarios, and practical selection strategies, helping you avoid mismatches and optimize your machining workflow.
1. What Are the Core Categories of Common CNC Machining Tools?
CNC machining tools are mainly divided into four functional categories, each covering multiple specialized types. Below is a clear breakdown to help you quickly identify the right tool for your task:
| Tool Category | Key Functions | Typical Tool Types | Suitable Machining Processes |
| Milling Tools | Remove material from workpiece surfaces; Shape flat, curved, or grooved features | Face mills, round nose mills, flat bottom mills, ball end mills, chamfer mills | Milling (vertical/horizontal machining centers); Contour shaping; Cavity machining |
| Drilling Tools | Create holes of different diameters; Finish hole accuracy and surface quality | Standard twist drills, center drills, U-drills, reamers, taps | Drilling; Hole finishing; Thread machining |
| Turning & Boring Tools | Machine cylindrical, conical, or hole features on lathes; Achieve high-precision hole diameters | Turning tools, fine boring tools, rough boring tools | Turning (CNC lathes); Boring (for existing holes); Grooving on cylindrical parts |
| Specialized Tools | Handle unique features or materials; Reduce tool changes and improve efficiency | Thread cutters, slot milling cutters, forming tools, engraving tools | Thread machining; Keyway/T-groove cutting; Custom feature shaping; Fine engraving |
2. What Are the Key Features and Applications of Milling Tools?
Milling tools are the most versatile in CNC machining, used for everything from large-area roughing to precision contouring. Below is a detailed guide to the most common types:
2.1 Common Milling Tools: Features & Use Cases
| Milling Tool Type | Core Function | Key Characteristics | Ideal Application Scenarios | Material Compatibility |
| Face Mill | Large-area roughing/finishing of flat surfaces | – Multi-flute design (4-12 flutes)- Large diameter (φ20-100mm)- High material removal rate | – Machining automotive engine blocks (flat top surfaces)- Finishing mold bases (Ra 1.6-3.2μm) | All metals (aluminum, steel, titanium); Best for large flat parts |
| Round Nose Mill | Balanced roughing + corner clearing; Complex contour machining | – Rounded cutting edge (radius 0.5-10mm)- Avoids sharp corner damage | – Machining shallow cavities with rounded edges (e.g., electronic device housings)- Medium-area material removal (50-100cm² parts) | Aluminum alloys (soft materials); Steel (with coated blades) |
| Flat Bottom Mill | Straight wall + straight bottom machining; Sharp corner forming | – Flat cutting edge (no radius)- Subdivided into: • Aluminum mills (focus on side edge sharpness) • Tungsten steel mills (for hard materials) | – Machining straight-wall grooves (e.g., keyways in shafts)- Finishing rectangular cavities (e.g., sensor mounting slots) | Aluminum mills: Al/Mg alloys; Tungsten steel mills: 45# steel, stainless steel |
| Ball End Mill | Curved surface machining; Complex contour trimming | – Hemispherical cutting edge- Improves surface finish via step adjustment (stepover 10-20% of tool diameter) | – Machining aerospace turbine blade curves- Engraving 3D patterns on mold inserts | All metals; Best for curved surfaces (e.g., optical lens molds) |
| Chamfer Mill | Chamfer cutting; Deburring; Countersink machining | – Fixed angles (30°, 45°, 60°)- Single/multi-flute options | – Deburring hole edges (prevents part damage during assembly)- Machining countersinks for screws (e.g., furniture hardware) | All metals; Universal for post-processing |
3. How to Select Drilling Tools for Different Hole Requirements?
Drilling tools are critical for hole creation, but choosing the wrong type leads to low accuracy or broken tools. Below is a selection guide based on hole depth, precision, and material:
3.1 Drilling Tool Comparison: Precision vs. Efficiency
| Drilling Tool Type | Primary Use | Precision Level | Efficiency | Key Limitations |
| Standard Twist Drill | Universal pre-drilling | Low (diameter tolerance: ±0.1mm) | High (fast drilling speed: 100-300mm/min) | Cannot achieve high precision; Needs reaming for tight tolerances |
| Center Drill | High-precision hole positioning | High (positioning accuracy: ±0.02mm) | Medium (slow feed rate: 20-50mm/min) | Only for positioning; Cannot drill deep holes (>5mm) |
| U-Drill (Violent Drill) | Deep hole machining (depth-to-diameter ratio >5:1) | Medium (tolerance: ±0.05mm) | Very high (one-pass drilling; Center outlet cooling) | Not suitable for shallow holes (<3x diameter); Requires high-pressure coolant |
| Reamer | Hole finishing; Correcting verticality | Very high (tolerance: ±0.01mm; Ra <0.8μm) | Low (slow feed rate: 10-30mm/min) | Cannot change hole position; Requires pre-drilled holes (90-95% of final diameter) |
| Tap | Internal thread machining | Medium-high (thread tolerance: 6H/7H) | Medium | – Cutting taps: For soft materials (aluminum); Produce chips- Forming taps: For hard materials (steel); No chips (better for blind holes) |

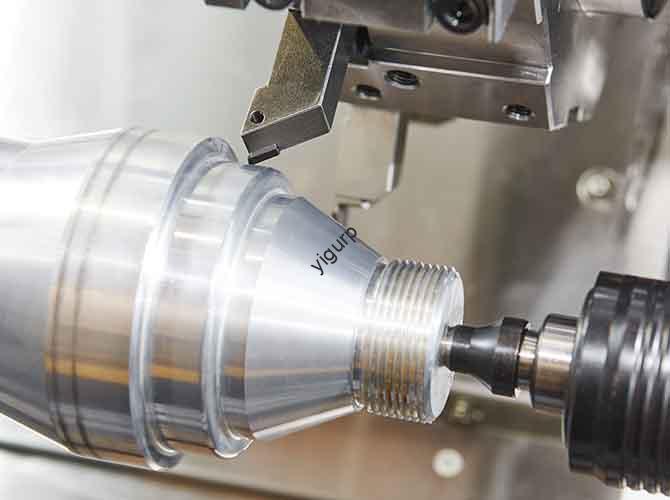

4. What Are the Must-Know Turning & Boring Tools for Lathe Machining?
Turning and boring tools are essential for cylindrical parts and hole refinement on CNC lathes. Below is a breakdown of their key roles:
| Tool Type | Function | Key Parameters | Application Examples |
| Turning Tool | Outer circle, inner circle, and grooving machining | – Cutting edge angle: 30-90°- Insert material: Carbide (for steel); PCD (for aluminum) | – Turning automotive drive shafts (outer circle diameter φ50-100mm)- Grooving for O-rings (groove width 2-5mm) |
| Fine Boring Tool | Precision hole finishing | – Adjustable edge position (±0.001mm)- Surface finish: Ra <0.4μm | – Finishing hydraulic cylinder holes (tolerance H7)- Machining bearing seats (roundness <0.005mm) |
| Rough Boring Tool | Rough boring or reaming | – Large cutting volume (depth of cut 1-3mm)- Tolerance: ±0.1mm | – Pre-processing engine cylinder bores (before fine boring)- Enlarging existing holes (from φ20mm to φ30mm) |
5. How to Choose the Right CNC Machining Tool: A Step-by-Step Guide
Choosing tools randomly leads to 30-50% higher costs (due to rework or tool breakage). Follow this 4-step process for optimal selection:
Step 1: Define Machining Requirements
Clarify core goals to narrow down tool types:
- If roughing: Prioritize tools with high material removal rates (e.g., face mills, U-drills).
- If finishing: Choose tools with sharp edges and high precision (e.g., ball end mills, reamers).
- If hole machining: Match tool to hole depth (U-drill for deep holes) and precision (reamer for tight tolerances).
Step 2: Match Tool to Material Properties
Soft and hard materials require different tool materials:
| Workpiece Material | Recommended Tool Material | Key Reason |
| Aluminum/Magnesium Alloys (Soft) | PCD (polycrystalline diamond) or high-speed steel (HSS) | PCD has ultra-sharp edges; Avoids material adhesion |
| Steel/Stainless Steel (Hard) | Tungsten carbide (with TiAlN coating) or CBN (cubic boron nitride) | Coated carbide resists wear; CBN handles high temperatures |
| Titanium Alloys (Difficult-to-Cut) | Ultra-fine grain carbide (with TaN coating) | High hardness (HRC70) and heat resistance |
Step 3: Consider Machine Tool Performance
Ensure tools match your CNC machine’s capabilities:
- Spindle speed: High-speed spindles (>15,000 rpm) work best with PCD tools (for aluminum); Low-speed spindles need carbide tools (for steel).
- Coolant system: U-drills require high-pressure coolant (30-50MPa); Micro lubrication suits ball end mills (reduces chip adhesion).
Step 4: Evaluate Cost-Efficiency
Balance tool life and price:
- High-volume production: Invest in durable tools (e.g., coated carbide) to reduce tool changes (saves 20-30% in labor time).
- Low-volume, custom parts: Use universal tools (e.g., standard twist drills) instead of expensive custom tools (cuts tool costs by 40-60%).
6. Yigu Technology’s Perspective on Common Tools Used in CNC Machining
At Yigu Technology, we see common tools used in CNC machining as the “silent efficiency drivers”—the right tool choice can cut production time by 20-40% while improving quality. Our data shows 70% of machining defects (e.g., poor surface finish, hole deviation) come from tool-material mismatches, not machine errors.
We recommend a “scenario-driven” tool selection approach: For auto part manufacturers, we pair tungsten steel flat bottom mills with 45# steel (reducing tool wear by 50%); For medical device clients, we use PCD ball end mills for titanium alloys (achieving Ra <0.2μm for implants). We also help clients build tool life trackers (via IoT sensors) to replace tools before failure—avoiding costly rework. Ultimately, tool selection isn’t just about “buying the best”—it’s about “matching the right tool to the right task.”
7. FAQ: Common Questions About CNC Machining Tools
Q1: Can I use a ball end mill for flat surface machining instead of a face mill?
Technically yes, but it’s inefficient. Ball end mills have a smaller cutting area (only the tip contacts the surface), so machining a 100mm×100mm flat surface takes 3-5x longer than a face mill. Face mills also produce smoother surfaces (Ra 1.6μm vs. Ra 3.2μm for ball end mills) and last longer—they’re the better choice for flat surfaces.
Q2: Why do forming taps work better for hard materials (e.g., stainless steel) than cutting taps?
Forming taps use cold extrusion to shape threads (no chip removal), while cutting taps remove material to create threads. For hard materials, cutting taps are prone to chip clogging (causing broken taps) and edge wear (reducing thread quality). Forming taps avoid these issues—they produce stronger threads (20-30% higher tensile strength) and last 2-3x longer than cutting taps for stainless steel.
Q3: How often should I replace common CNC tools (e.g., carbide end mills)?
It depends on tool type and material:
- Carbide face mills (for steel): Replace after 80-120 minutes of cutting (or when surface roughness worsens to Ra >3.2μm).
- PCD ball end mills (for aluminum): Last 300-500 minutes (replace when edge chipping is visible).
- Standard twist drills: Replace after 50-80 holes (or if drilling force increases suddenly, indicating dull edges).
Always track tool life with a log—don’t wait for tool breakage (which can damage workpieces).
