Introduction
If you are an engineer or product developer needing a small batch of high-quality plastic parts, you have likely come across vacuum casting. This process fills a specific need: it delivers parts that look and feel like injection-molded components, but without the high cost and long wait for steel tooling. Germany has become a go-to destination for this service, thanks to its reputation for precision engineering and strict quality standards. In this guide, we will explain how the process works, why German providers excel at it, which industries use it most, and how to find the right partner for your project.
What Is Vacuum Casting, and Why Germany?
Before diving into the German market, it helps to understand the basic process and why this country is a natural fit for it.
How Does the Vacuum Casting Process Work?
Vacuum casting, sometimes called urethane casting, is a method for making small batches of plastic parts. It starts with a master model, which is usually 3D printed using a high-resolution process like SLA (Stereolithography) . This master is then suspended in a frame, and liquid silicone is poured around it. Once the silicone cures and is cut open, you are left with a flexible, two-part mold.
The actual casting happens next. A liquid polyurethane resin is mixed, often with colorants, and poured into the silicone mold. The entire assembly is placed in a vacuum chamber. The vacuum pulls out any trapped air, ensuring the resin fills every tiny detail of the mold cavity. After the resin cures in an oven, the part is demolded. The silicone mold can typically produce 20 to 50 parts before it starts to wear out.
What Makes German Vacuum Casting Stand Out?
Germany’s strength in this field comes from three main areas:
- Strict Quality Standards: German manufacturers follow DIN (German Institute for Standardization) and ISO norms. This means they routinely hold tolerances as tight as ±0.1 mm for smaller parts, which is critical for functional prototypes.
- Advanced Materials: German suppliers offer a wide selection of high-performance resins. You can find materials that are flame-retardant, medical-grade (ISO 10993 compliant), or heat-resistant.
- Deep Process Expertise: German engineers have spent decades refining every step, from mold design to post-processing. This experience translates into fewer defects and more consistent parts.
A real-world example: A Berlin-based automotive startup needed 500 prototype dashboard components for user testing. They turned to a vacuum casting specialist in Bavaria. The parts were delivered in just 10 days with a perfect matte finish that matched their final production spec. The cost was 70% less than what they were quoted for a full injection molding tool.
Key Applications of Vacuum Casting in Germany
German industry uses vacuum casting across several high-tech sectors. Here is where you will find it most often.
Automotive and Mobility
Germany is home to automotive giants like BMW, Mercedes-Benz, and Volkswagen. These companies use vacuum casting extensively for prototyping and low-volume production. Common parts include:
- Interior components: Door handles, center console trim, dashboard elements.
- Exterior trim pieces: Prototype bumper covers, mirror housings.
- Under-the-hood parts: Sensor housings, cable organizers, and connectors.
According to the German Association of the Automotive Industry (VDA) , about 65% of automotive prototypes in Germany are made using either vacuum casting or 3D printing. Vacuum casting is the preferred choice when a high-quality surface finish is required.
Medical Technology
Germany is a leader in medical devices, with companies like Siemens Healthineers and B. Braun. Vacuum casting is popular here for several reasons:
- It uses biocompatible resins that meet ISO 10993 and FDA requirements.
- It produces smooth, sterile-friendly surfaces, which are vital for surgical tools and diagnostic equipment.
- It allows for quick design iterations during the development phase.
A Hamburg-based medical firm needed 200 prototypes of a new insulin delivery pen. They worked with a German casting provider who used a medical-grade polycarbonate-like resin. The parts passed all biocompatibility tests and were ready for clinical trials within two weeks.
Aerospace and Defense
For aerospace applications, weight and performance are everything. Vacuum casting in Germany provides:
- Parts made from high-performance resins like epoxy or PEEK, which resist extreme temperatures.
- Lightweight components with a high strength-to-weight ratio.
- Compliance with aerospace standards like EN 9100.
Consumer Electronics
Brands like Bosch and Siemens use vacuum casting for small batches of electronic parts. Examples include:
- Custom enclosures for IoT sensors or smart home devices.
- Prototype casings for new smartphones or wearables.
- Precision connectors and cable housings.
How Vacuum Casting Works in German Facilities
German manufacturers are known for their methodical approach. Here is a step-by-step look at how they handle a typical vacuum casting project.
Step 1: Master Model Preparation
Everything starts with the master model. German shops typically use high-precision SLA 3D printers that can achieve layer heights as fine as 0.025 mm. This ensures the master has no visible layer lines. If the final part needs a specific texture, like a glossy or matte finish, the master is carefully sanded and painted before the mold is made.

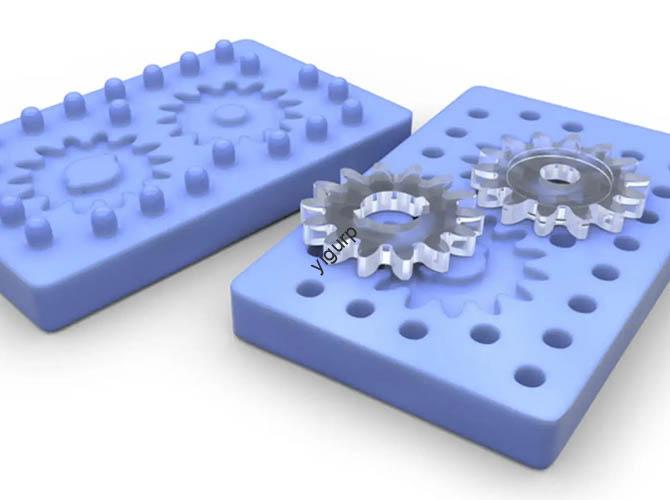

Step 2: Silicone Mold Creation
The master is placed in a mold frame. A two-part liquid silicone is then poured around it. Crucially, this step is done inside a vacuum chamber. Removing air from the silicone before it cures ensures the mold captures every microscopic detail of the master’s surface. The silicone is then cured in an oven at around 60–80°C for 2–4 hours. Once cured, the mold is carefully cut open and the master is removed. German silicones are often higher quality, allowing a single mold to last for up to 100 parts in some cases.
Step 3: Resin Pouring and Curing
The liquid resin is mixed. This is often done using automated equipment to ensure the mix ratio is perfect. Colorants or other additives can be included at this stage. The resin is then poured into the silicone mold. The mold is placed back in a vacuum chamber, typically set to -0.95 bar, to draw out any air bubbles trapped in the resin. This is especially important for parts with thin walls or tiny holes. Finally, the mold is cured, either with heat or UV light, for 1 to 4 hours.
Step 4: Post-Processing
After curing, the part is taken out of the flexible mold. Technicians then trim away any excess material (called flash). Depending on the project, parts may be sanded, painted, or fitted with metal inserts. A key difference in Germany is the emphasis on inspection. Many facilities use high-magnification cameras to perform a 100% visual check on every part, looking for any surface defects.
How to Choose the Right Vacuum Casting Partner in Germany
Finding a good partner requires looking beyond just a website and a quote. Here is a checklist of what to evaluate.
| Factor | What to Look For | Why It Matters |
|---|---|---|
| Quality Certifications | ISO 9001, ISO 13485 (medical), EN 9100 (aerospace) | Certifications prove they have a documented quality system, which is essential for regulated industries. |
| Material Range | Access to medical-grade, flame-retardant, or clear resins | Ensures they can match your part’s exact performance requirements. |
| Lead Times | Standard delivery of 5-10 business days | Fast turnaround is critical for keeping your development schedule on track. |
| Design Support | In-house engineers offering DFM (Design for Manufacturability) reviews | They can spot potential problems in your 3D model before any money is spent on tooling. |
| Volume Experience | Proven track record with runs of 10 to 1000 parts | Some shops are better at very small batches, while others are set up for larger quantities. |
| Client References | Positive feedback from companies in your specific industry | A good reputation in your sector is a strong sign they understand your needs. |
A practical tip: before placing a large order, ask the provider to make a single sample part. Most will do this for a small fee. It is the best way to verify their quality with your own eyes.
Cost of Vacuum Casting in Germany
Vacuum casting in Germany costs more than in some other regions, but the price reflects higher quality control and faster service. Here is a typical cost breakdown.
- Master Model: €150 to €500. This depends on the size and complexity of the part. An SLA-printed master is usually the most cost-effective option.
- Silicone Mold: €300 to €1,200. The price varies with the mold’s size and the grade of silicone used (medical-grade is more expensive).
- Per-Part Cost: €5 to €50 for small to medium parts. Larger or more complex parts can cost up to €100 each.
Example Calculation: Let’s say you need 100 small automotive sensor housings, each about 5cm x 3cm.
- Master model: €200
- Silicone mold: €400
- Per-part cost: €8 x 100 = €800
- Total Estimated Cost: €1,400
Compare this to injection molding. A steel mold for this part could cost €5,000 to €10,000, making vacuum casting the clear winner for low volumes.
Cost-Saving Tip: If you need several similar parts, ask about a family mold. This is a single silicone mold with multiple different cavities, which reduces the overall tooling cost.
Latest Trends in German Vacuum Casting
The industry in Germany is not standing still. Here are the key trends shaping its future.
Sustainable Materials
Driven by Germany’s Energiewende (energy transition) and strict EU regulations, providers are increasingly using eco-friendly resins. This includes:
- Bio-based resins made from plant materials like corn.
- Recycled resins derived from post-consumer plastic waste.
- Low-VOC (Volatile Organic Compound) resins that are safer for workers and the environment.
The German Federation of the Chemical Industry (VCI) reports that the use of sustainable resins in casting has jumped by 35% since 2022.
Automation and Digitalization
German shops are integrating Industry 4.0 technologies. This means:
- Digital sensors inside molds monitor temperature and pressure in real time, alerting operators to potential problems.
- AI-powered software analyzes your 3D model for manufacturability, predicting issues like thin walls that might crack.
- Robotic arms are starting to handle repetitive post-processing tasks like trimming and light sanding, ensuring consistency.
Hybrid Manufacturing
Some advanced providers are now combining vacuum casting with 3D printing. For example, they might 3D print a strong internal structure and then use vacuum casting to add a smooth, finished outer layer. This hybrid approach is ideal for parts that need both internal strength and a perfect cosmetic surface.
Conclusion
Vacuum casting in Germany offers a reliable path to high-quality, low-volume plastic parts. The process fills a critical gap between a one-off 3D print and full-scale injection molding. German providers stand out because of their strict adherence to quality standards, their access to advanced materials, and their deep technical experience. While the cost is higher than in some other markets, the investment often pays off through reduced risk, faster lead times, and parts that meet the most demanding industry requirements. By carefully vetting potential partners and understanding the process, you can leverage Germany’s expertise to move your product development forward with confidence.
Frequently Asked Questions
1. How long does vacuum casting take in Germany?
Most reputable providers can deliver parts within 5 to 10 business days. This timeline includes making the master model (1-2 days), creating the silicone mold (2-3 days), casting the parts (1-2 days), and post-processing (1 day).
2. What materials are commonly used?
The most common materials are polyurethane resins, which can be formulated to mimic many engineering plastics. Providers also offer epoxy resins for high strength, acrylic resins for clear parts, and specialty grades that are medical-grade, flame-retardant, or heat-resistant.
3. Can vacuum casting achieve tight tolerances?
Yes. German providers can typically achieve tolerances of ±0.1 mm for smaller parts (under 10cm) and ±0.2 mm for larger parts. This is achieved through precise master models and careful process control.
4. Is vacuum casting suitable for large production runs?
No, it is best suited for low to medium volumes (typically 10 to 1000 parts). For runs of 1000 parts or more, the per-part cost of injection molding usually becomes more economical once the initial tooling investment is spread across a large quantity.
5. Do German vacuum casting companies offer design help?
Yes, most offer Design for Manufacturability (DFM) reviews. Their engineers will look at your 3D model and suggest changes to avoid common issues like undercuts that are hard to mold, or walls that are too thin to cast reliably.
