Introduction
In product development, speed and cost often feel like opposing forces. You need physical samples quickly—maybe for a investor meeting, a usability study, or a quick fit check—but traditional tooling is slow and expensive. The silicone compound prototype process (also known as silicone replication) offers a smart middle ground. It uses a flexible silicone mold, made from a master prototype, to cast multiple copies in polyurethane resin. This method lets you produce 5 to 100 identical parts in about a week, without the high cost of production tooling. This guide walks you through the entire process, its best uses, and how to know if it fits your needs.
What Is the Silicone Compound Prototype Process?
At its core, this process is about copying a master part quickly and accurately. You start with a single, high-quality prototype—often made by 3D printing or CNC machining. This master becomes the template. You then build a mold around it using liquid silicone. Once the silicone cures, you cut it open, remove the master, and are left with a cavity in the exact shape of your part. From here, you pour liquid plastic, usually a polyurethane (PU) resin, into the mold. After a short cure time, you demold a perfect replica.
Think of it like baking. Your master prototype is the original cake you love. The silicone mold is the flexible baking tin you make from that cake. And the resin is the batter you pour in to create many identical, delicious copies. It’s a simple, reliable way to make small batches of parts that look and feel like the final product.
When Should You Choose This Process?
This method isn’t for every situation. It shines in specific scenarios where its strengths align with your needs.
What Are the Ideal Applications?
The table below maps common project goals to why the silicone compound process is a great fit.
| Application Scenario | Why It’s the Right Choice | A Real-World Example |
|---|---|---|
| Iterative Design Testing | You need multiple versions to test form, fit, or ergonomics. Changing the master and making a new mold is fast and cheap. | A startup testing the grip comfort of a new electric screwdriver handle. They make five variations and get user feedback in days. |
| User Research & Focus Groups | You need 10-20 identical units for a study to gather unbiased feedback on a design. | A medical device company creates 15 replicas of a new blood glucose monitor for nurses to handle and evaluate. |
| Marketing & Sales Demos | You need realistic samples to show at trade shows or to potential buyers, without a huge investment. | A furniture designer makes 30 miniature replicas of a new chair design to present at a major trade fair. |
| Small-Scale Bridge Production | You need a limited number of parts (under 100) for a product launch or to fulfill pre-orders before mass production ramps up. | A toy creator needs 50 units of a limited-edition figurine for a Kickstarter campaign backers. |
| Form/Fit Testing | You need to check how a part assembles with other components (like circuit boards or off-the-shelf parts). | An automotive engineer makes 20 replicas of a new dashboard vent to test its fit into the existing car frame. |
How Does the Silicone Compound Process Work Step by Step?
The process is linear and straightforward. Following each phase carefully ensures high-quality results.
Phase 1: Create the Master Prototype
The master is the foundation. Its quality determines the quality of every replica. A flawed master means every part will have the same flaws.
- Design the 3D Model: You start with a detailed digital file created in CAD software like SolidWorks or Fusion 360. This model must include all features you want in the final replica.
- Build the Physical Master: You turn that digital file into a physical object. The best method depends on your needs:

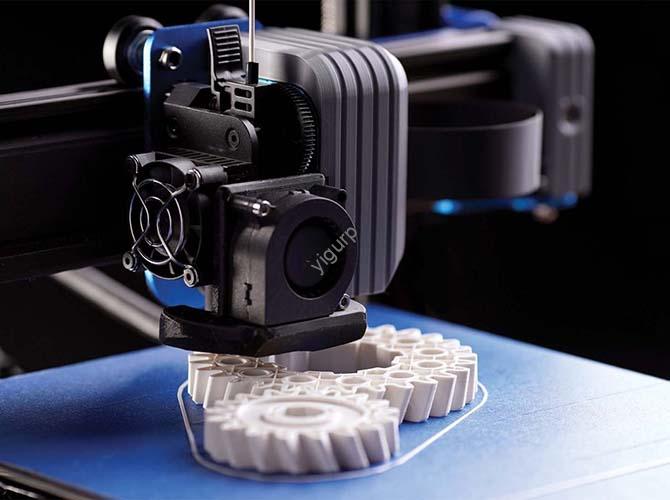

- 3D Printing (SLA/DLP): Ideal for parts with complex curves, fine textures, or small details. The smooth surface finish of SLA parts is perfect for making molds.
- CNC Machining: Best for masters requiring tight tolerances or made from materials like aluminum or tooling board. It’s a good choice for parts with precise mechanical features.
- Hand Fabrication: Possible for very simple shapes, but it’s hard to achieve the precision and surface finish needed for good mold replication.
Phase 2: Fabricate the Silicone Mold
This is where your master becomes a reusable tool. Precision here is key.
- Prepare the Master: Clean the master thoroughly. Apply a release agent so the silicone doesn’t stick to it.
- Build the Mold Box: Place the master inside a containment box, leaving space around it. This box will hold the liquid silicone.
- Mix and Pour Silicone: You carefully mix the two parts of the silicone compound (Part A and Part B) in the exact ratio, usually 10:1. To avoid bubbles, you pour the mixture slowly into a corner of the box, letting it rise and cover the master.
- Cure the Silicone: The silicone needs time to turn from a liquid into a tough, flexible solid. This can take anywhere from 6 to 24 hours at room temperature. Heat can speed this up, but must be controlled.
- Demold the Master: Once cured, you carefully cut the silicone block open along a predetermined line, remove the master, and now have a perfect, reusable mold cavity.
Phase 3: Cast the Replicas
Now you use the mold to create your parts.
- Prepare the Mold: Clean the mold cavity and apply a release agent to ensure the cast parts come out easily.
- Mix and Pour the Resin: You mix the two components of your chosen polyurethane resin according to the manufacturer’s instructions. Then, you pour this liquid mixture into the mold cavity. For complex shapes, you might tilt or rotate the mold to help the resin fill every detail before it starts to thicken.
- Cure the Resin: The resin undergoes a chemical reaction and hardens. Cure times vary by resin type, from 10 minutes to several hours.
- Demold the Part: Once fully cured, you flex the soft silicone mold and gently remove the rigid plastic part inside.
Phase 4: Finish and Inspect
The part is out of the mold, but it’s usually not ready to use immediately.
- Remove Excess Material: Most parts will have a small amount of extra material (flash) along the mold seam or at the pouring point. You carefully trim this off with a knife or sandpaper.
- Surface Finishing: You can sand the part for a smoother feel, or paint it to match your product’s exact color and texture. This step is crucial for presentation-quality prototypes.
- Quality Inspection: You check the finished part against your requirements. Does it match the dimensions? Does it assemble correctly with other parts? This validation is the whole point of making the prototype.
What Makes This Process a Better Choice?
To understand its value, compare it to other common ways of getting prototype parts.
| Feature | Silicone Compound Process | 3D Printing (SLA/FDM) | Injection Molding (Steel Tool) |
|---|---|---|---|
| Best For | 5 – 100 identical parts | 1 – 5 unique parts | 10,000+ parts |
| Cost for 20 Parts | Low (tooling is cheap) | Medium (per-part cost is high) | Extremely High (tooling cost is massive) |
| Lead Time | 5 – 10 days | 1 – 3 days | 6 – 10 weeks |
| Material Properties | Good; uses resins that mimic engineering plastics. | Varies; can be brittle (FDM) or good (SLA). | Excellent; uses the actual production plastic. |
| Part Consistency | High; every part is identical. | Medium; each part printed separately can vary slightly. | Very high; every part is perfectly consistent. |
The silicone compound process wins when you need a small batch of consistent, high-quality parts faster and cheaper than traditional molding, and with better material properties and consistency than 3D printing can offer for multiple units.
What Are the Critical Success Factors?
Getting great results isn’t automatic. Paying attention to these details makes all the difference.
Master Quality Is Everything
- No Shortcuts: The master must be flawless. A tiny imperfection on the master will be replicated in every single cast part. Invest time in making the master right.
- Surface Matters: The surface finish of the master directly becomes the surface finish of your replicas. If you need smooth, glossy parts, your master needs to be smooth and glossy.
Master Mold Design and Material Choice
- Plan for Undercuts: Silicone’s flexibility is a huge advantage. It can bend to release parts with undercuts (features that would lock a part into a rigid mold). However, very deep or complex undercuts can still tear the mold. Your mold design needs to account for this.
- Choose the Right Resin: Polyurethane resins come in a vast range of properties. You can select resins that mimic ABS, polypropylene, or even rubber. Match the resin’s flexibility, strength, and color to your testing goals. Need a part that bends? Pick a flexible resin. Need one that simulates a hard plastic? Choose a rigid one.
Control Process Parameters
- Beat the Bubbles: Air bubbles are the most common cause of failed castings. Pour resin slowly and in a thin stream. Using a vacuum chamber during the first few minutes of the resin’s cure cycle pulls out any trapped air, ensuring solid, void-free parts.
- Respect Cure Times: Don’t rush the demolding. If you take a part out before the resin is fully cured, it will warp or sag. Follow the resin data sheet for full cure times, not just demold times.
Conclusion
The silicone compound prototype process is a workhorse method for product development. It provides a fast, affordable path to get small batches of parts that are consistent and made from materials that mimic real production plastics. Whether you are testing a design with users, showing a model to investors, or fulfilling a small first run of orders, this process delivers. By understanding the workflow and respecting the importance of a perfect master, you can use silicone replication to move your project forward with confidence and speed.
FAQ
How many copies can I make from one silicone mold?
A well-made silicone mold, used with standard polyurethane resins, will typically produce 15 to 25 good-quality parts. For very simple shapes with no sharp details, you might get 30 or more. Once the mold starts to degrade, you’ll see a loss of detail or surface imperfections.
Can I use this process to make parts in different colors?
Yes, absolutely. You can buy polyurethane resins that are pre-colored, or you can add pigment pastes to the resin mixture before pouring. This is a great way to make multi-color prototypes or to match your brand colors without painting.
What’s the largest part size this process can handle?
There’s no strict limit, but practical considerations come into play with large parts. Pouring resin into a large mold without trapping air becomes harder. Also, the weight of the silicone for a very large mold can make it difficult to handle. We generally find it most effective for parts smaller than about 400mm in any dimension. For larger items, we might suggest splitting the model or using a different process.
Discuss Your Projects with Yigu Rapid Prototyping
At Yigu Technology, we’ve guided hundreds of product teams through the silicone compound prototype process. We know that the quality of the master is the secret to great replicas, and we have the in-house expertise in both precision CNC machining and high-detail 3D printing to create the perfect starting point. We also stock a wide range of polyurethane resins that mimic production plastics like ABS, PP, and PC, so your prototypes not only look right but feel and perform like the final product. Whether you need 5 parts for a quick test or 50 for a market launch, we’re here to help you get it done right, fast, and on budget. Let’s talk about your project.
