Introduction

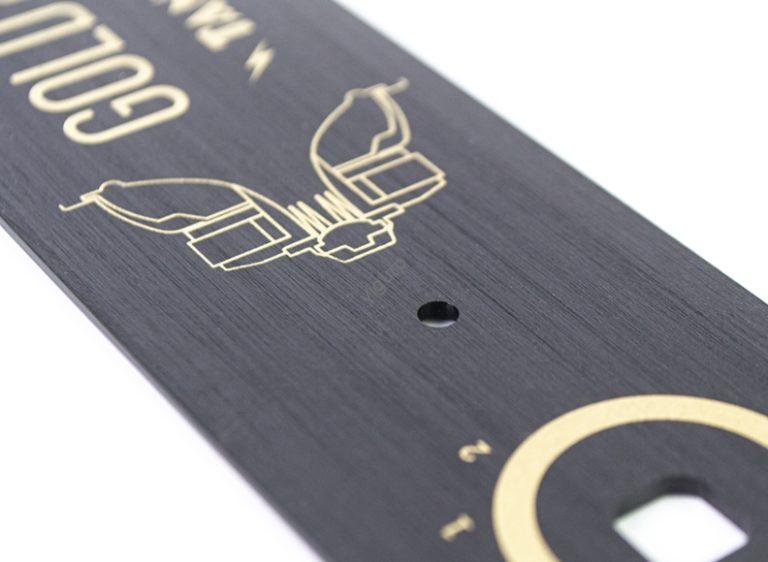

Screen printing a prototype might seem like a small detail in the grand scheme of product development. But I’ve learned that those small details often make the biggest difference.
I remember a project where we’d spent weeks perfecting a complex mold for a consumer product. The shape was right. The fit was right. But when we printed the control labels, they were slightly crooked and started peeling after minimal handling. We had to scrap the batch and start over.
That’s when I realized: screen printing isn’t just decoration. It’s a critical step for testing how your product will look and function in the real world. Clear patterns, readable text, durable logos—these matter for both aesthetics and usability.
In this guide, I’ll walk you through exactly how to screen print prototype models for rapid mold processing. You’ll learn the preparation steps, the printing process, and how to avoid the common mistakes that ruin otherwise good prototypes.
What Preparation Ensures Your Screen Print Succeeds?
Before ink ever touches your prototype, proper surface preparation determines success or failure. Skip this step, and you’re inviting trouble.
Industry data shows that 60% of screen printing failures—ink peeling, smudging, poor adhesion—trace back to inadequate surface prep. That’s a staggering number. And it’s completely avoidable.
How Do You Clean the Surface Properly?
Start with a lint-free cloth and isopropyl alcohol. Wipe the entire surface where you’ll print. You’re removing dust, oil, and debris that would otherwise create gaps between ink and material.
Even tiny impurities matter. A fingerprint’s worth of oil can prevent ink from bonding. A speck of dust creates a pinhole in your pattern. Clean thoroughly, and clean right before printing—don’t let the surface sit and collect new contaminants.
What Surface Smoothness Works Best?
The surface needs to be smooth enough for crisp printing but rough enough for ink to grip. It’s a balance.
Aim for a surface roughness of Ra 0.8 to 1.6 μm. This range gives you good adhesion without visible scratches interfering with your pattern.
Use 400 to 600 grit sandpaper to smooth rough spots. For textured prototypes, sandblasting or polishing might work better. The goal is consistent, uniform surface quality across the entire print area.
When Should You Pre-Treat the Surface?
Non-porous materials like plastic and metal need extra help. Ink doesn’t naturally stick to them the way it does to paper or wood.
Apply a primer matched to your ink type. For ABS plastic prototypes, use a plastic primer. It boosts ink bonding by about 30% , according to adhesion tests.
Metal prototypes may need etching primers that create a slightly rougher surface chemically. Your ink supplier can recommend the right primer for your specific material and ink combination.
How Do You Test Surface Readiness?
Here’s a simple shop trick: press a piece of tape onto the surface, then peel it off quickly. If the tape pulls away easily, the surface still has oil or contaminants. Clean again.
If the tape sticks firmly and requires effort to remove, your surface is ready. The ink will bond the same way.
How Do You Design the Silk Screen Pattern?
Your pattern design determines how the final print looks and functions. This isn’t just about aesthetics—it’s about making sure the pattern serves its purpose.
What Color Choices Work Best?
Contrast is everything. White ink on black plastic is readable. Yellow ink on white plastic disappears.
Choose ink colors that stand out clearly against your prototype material. If you’re testing a control panel, buttons need to be legible under various lighting conditions.
Limit yourself to 1-2 colors maximum. Each additional color increases printing time by about 50% and adds complexity. For prototype testing, simpler is better.
What Size Should Text and Patterns Be?
Small details are tempting on screen. But printing them reliably is another matter.
Aim for text at least 2mm in height. Anything smaller risks blurring during printing. The ink spreads slightly as it transfers, and fine details fill in.
For tiny details you absolutely need, use a high-mesh count screen (we’ll cover mesh counts in the next section). But know that even with the best setup, very small features are harder to reproduce consistently.
How Do You Ensure Correct Position?
Mark the exact placement on your prototype before printing. Use tape to create guides. Make a simple template from paper. Do whatever it takes to know exactly where the pattern should go.
For functional prototypes like control panels, align patterns with buttons, ports, and other features. A perfectly printed label that’s 2mm off-center looks wrong and may confuse users.
Guessing placement leads to 40% of misprinted prototypes that need rework. Take the extra minute to mark positions clearly.
What Tools Should You Use for Design?
Create your pattern in vector format using software like Adobe Illustrator or CorelDRAW. Vector files scale infinitely without losing quality, unlike JPEGs or PNGs that pixelate when enlarged.
Save the final design as a PDF or SVG for easy transfer to whoever makes your silk screen film. These formats preserve all the detail you’ve designed.
How Do You Make the Silk Screen?
The silk screen (or screen plate) is your stencil. It’s what transfers ink to the prototype. A well-made screen gives crisp, consistent prints.
What Mesh Count Should You Choose?
Mesh count refers to how many threads per inch in the screen fabric. Lower counts let more ink through. Higher counts provide finer detail.
For bold patterns like logos or large text , use 110 to 156 mesh. These screens deposit more ink, giving solid coverage.
For fine details like small text or intricate lines , use 230 to 305 mesh. The finer mesh controls ink flow precisely.
A 230-mesh screen works for about 80% of prototype screen printing needs. It’s a good starting point if you’re unsure.
How Do You Coat the Screen with Emulsion?
Emulsion is the light-sensitive coating that hardens to create your stencil. Apply it evenly to both sides of the screen.
Liquid emulsion works well. So does emulsion film. The key is uniform coverage —thin spots let ink through where you don’t want it.
Let the coated screen dry in a completely dark room. Light exposure before you’re ready ruins the emulsion. Drying time depends on humidity: 1-2 hours at 50% humidity, 3-4 hours at 70% humidity.
How Do You Expose the Screen?
Place your silk screen film (with your design printed on it) against the dry emulsion-coated screen. Then expose it to UV light for 30-60 seconds.
The light hardens the emulsion everywhere except where your design blocks it. Those unhardened areas will wash away, creating the openings where ink passes through.
Exposure time matters. Too little, and the emulsion doesn’t harden fully—your stencil washes away. Too much, and fine details get overexposed and fill in. Follow your emulsion manufacturer’s recommendations.
How Do You Wash and Dry the Screen?
After exposure, rinse the screen with water. The unhardened emulsion washes out, revealing your design in open mesh.
Let the screen dry completely before use—1-2 hours typically. Wet emulsion ruins ink transfer. The ink won’t pass through cleanly, and your pattern will look muddy.
Professional vs. Hand-Made Screens
Using a professional screen-making machine reduces stencil errors by 75% compared to hand-making. The consistency is hard to beat.
But for small-batch prototypes (1-10 pieces), hand-made screens are cost-effective —about $10-20 per screen versus $50+ for machine-made. The quality difference matters less for low volumes where you’re just testing appearance.
How Do You Actually Print the Prototype?
Now the moment of truth: transferring ink to your prototype.
How Do You Secure the Prototype?
Place your prototype on a flat, stable surface. Use clamps or double-sided tape to hold it firmly in place.
Movement during printing guarantees misalignment. Even slight shifts create blurry patterns. Make sure your prototype isn’t going anywhere.
How Do You Position the Screen?
Lay the silk screen plate over the prototype, aligning the stencil with your pre-marked positions. Hold the screen firmly to prevent shifting during printing.
Double-check alignment before adding ink. Once ink is on the screen, adjusting position gets messy.
What Ink and Squeegee Work Best?
Pour a small amount of ink —2-3 tablespoons—along the top edge of the screen’s stencil. You don’t need much.
Use a squeegee with 70-80 durometer hardness for most materials. Softer squeegees (60 durometer) work better for curved prototypes where you need more flexibility.
How Do You Pull the Squeegee?
Pull the squeegee down the screen with even pressure—10 to 15 pounds of force. Move in one smooth, continuous motion.
Stopping or backtracking causes ink buildup and uneven coverage. Commit to the stroke and follow through.
The ink transfers through the stencil openings onto your prototype. What you see on the screen is what you get on the part.
How Do You Lift the Screen?
Peel the screen away slowly at a 45-degree angle. This prevents smudging the wet ink.
Let the printed ink sit for 5-10 minutes before curing. This allows it to level out and stabilize.
How Do You Cure the Ink Properly?
Curing turns wet ink into a hard, durable layer. Without proper curing, your print won’t survive handling, testing, or environmental exposure.
What’s the Fastest Curing Method?
UV light curing is the speed champion. Expose the printed prototype to UV light at 365 nm wavelength for 2-5 minutes.
This method cures ink 5 times faster than air-drying and boosts durability by about 40% . A portable UV lamp costs $30-50 —a small investment for much faster turnaround.
When Should You Air-Dry?
For water-based inks , air-drying works fine. Let the prototype sit in a well-ventilated area for 24-48 hours.
Keep it out of direct sunlight—UV exposure during drying can cause ink fading. Room temperature, indirect light, and patience.
What About Heat Curing?
For oil-based inks , heat curing is the standard. Bake the prototype in an oven at 120-150°C (248-302°F) for 10-15 minutes.
This works well for metal or heat-resistant plastic prototypes like PC or nylon. Just make sure your prototype material can handle the temperature without deforming.
How Do You Test for Proper Cure?
After curing, rub the pattern with a damp cloth. If ink comes off, it’s under-cured. More time, higher temperature, or longer UV exposure needed.
If the ink stays put, your cure is complete. The pattern should survive normal handling without damage.
What Post-Processing and Quality Checks Matter?
After printing and curing, final steps ensure your prototype meets standards before moving to mold processing.
What Post-Processing Options Help?
Laser engraving can add fine details—serial numbers, tiny text—that screen printing can’t achieve cleanly. Useful for functional prototypes needing identification codes.
Clear coating applies a transparent protective layer over the printed pattern. Spray-on clear coats work well. Let dry 12-24 hours for full protection.
Edge trimming cleans up overprinted ink on edges. A sharp knife or fine sandpaper does the job.
What Quality Checks Catch Problems?
Check pattern clarity first. Are lines sharp? Is text readable? Blurred patterns mean screen misalignment or mesh count too low.
Verify position accuracy with a ruler. Misalignment beyond 1mm means reprinting.
Perform a tape test for adhesion. Press masking tape on the pattern, peel quickly. No ink should come off. If it does, your surface prep or curing failed.
Inspect for smudges, gaps, or bubbling. Less than 5% of prototypes should have defects. If more do, revisit your screen or ink choice.
Yigu Technology’s View on Screen Printing for Prototypes
At Yigu Technology, we’ve seen how proper screen printing transforms prototypes from rough models to production-representative samples. It’s a bridge between design and manufacturing that too many teams undervalue.
We always emphasize surface preparation —it’s the most underrated step in the process. A perfectly made screen and perfectly formulated ink mean nothing if the surface isn’t ready to accept them.
For clients in rapid mold processing, we recommend testing 2-3 small prototype pieces first. Refine your screen, your ink, and your technique before committing to larger batches. This approach catches issues when they’re cheap to fix, not after you’ve printed 50 pieces that all need rework.
We also partner with screen printing shops that use professional mesh screens and quality control processes. This ensures prototypes meet the precision needed for subsequent mold development.
Frequently Asked Questions
What ink should I use for plastic vs. metal prototypes?
For plastic prototypes like ABS or PVC, use UV-curable or acrylic-based inks—they bond well and resist peeling. For metal prototypes like aluminum or steel, use enamel or epoxy-based inks with a metal primer to handle heat and prevent rust.
Can I reuse a silk screen for multiple prints?
Yes—clean the screen immediately after use with ink remover (for oil-based inks) or water (for water-based inks). A well-maintained screen can be reused 10-15 times. When the stencil starts to wear or ink leaks, make a new screen.
Why is my printed pattern smudging?
Smudging usually comes from three issues: 1) The surface wasn’t cleaned properly; 2) The ink wasn’t cured long enough; 3) You lifted the screen too slowly. Fix by re-cleaning, extending cure time, or lifting faster.
How small can I print text?
With a high-mesh screen (230-305), you can print text down to about 1.5mm. But reliability drops as size decreases. For critical small text, consider laser engraving instead.
Do I need special ink for prototypes that will be handled a lot?
Yes. If your prototype will see repeated handling, use two-part epoxy inks that cure to a hard, durable finish. They cost more but survive much better than standard inks.
