Introduction
If you have ever wondered how new product ideas transform from digital designs into physical objects you can hold and test, the answer lies in plastic prototype production processes. These processes have evolved dramatically over the years, moving from manual craftsmanship to high-precision digital manufacturing. In this guide, we will explore the journey of plastic prototype production—from traditional methods to modern CNC machining—helping you understand how these processes work and which one might be right for your project.
1. How Has Plastic Prototype Production Evolved Over Time?
Like many manufacturing techniques, plastic prototype production has come a long way, with significant improvements in accuracy, efficiency, and quality. Understanding this evolution helps us appreciate the capabilities of modern methods.
1.1 What Were the Traditional Prototype Production Methods?
Before digital manufacturing took hold, prototype production relied heavily on manual craftsmanship. Prototypers worked from two-dimensional technical drawings, manually shaping materials to match the designs. This process required significant skill but left much room for interpretation and error. Using basic tools and handcrafting methods, workers would carve, sand, and shape plastic materials to create the first physical representation of a product, often called the “first version” or initial sample.
The limitations of these traditional methods were significant. Without digital guidance, maintaining precise measurements was challenging, especially for complex geometries. Achieving uniform, smooth surfaces was difficult with manual methods, affecting both appearance and functionality. Creating a single prototype could take weeks, slowing down the product development process. The labor-intensive nature also made it difficult to produce multiple iterations or meet tight deadlines. These limitations meant traditional prototypes were often more about basic form demonstration than accurate functional testing or design validation.
1.2 How Did the Digital Revolution Change Prototyping?
The landscape changed dramatically with the introduction of computer-aided design (CAD) and computer numerical control (CNC) technology. Three-dimensional digital modeling allowed for precise design specifications that could be directly translated into manufacturing instructions. Computer-controlled machines replaced much of the manual work, following digital designs with incredible precision. This shift transformed prototype production from an artisanal craft into a precise, repeatable manufacturing process. Suddenly, prototypes could accurately reflect the designer’s intent, with consistent dimensions and surface quality across multiple iterations.
2. How Does Modern CNC Machining Work for Plastic Prototypes?
Today, CNC machining has become the gold standard for plastic prototype production, offering unmatched accuracy and quality for new product development.
2.1 What Is the CNC Machining Workflow?
The process of creating plastic prototypes using CNC machining involves several key stages. It begins with design finalization, starting from a detailed 3D CAD model that contains all design specifications, dimensions, and material requirements. Next comes material selection, where you choose the appropriate plastic material based on the prototype’s intended use—whether for appearance testing, functional validation, or durability trials. CNC programming then converts the CAD model into machine-readable instructions called G-code that guide the CNC machine’s movements and operations. Material setup involves securing the plastic stock material in the CNC machine, ensuring stability during the machining process. During precision machining, the CNC machine uses various cutting tools to remove material from the stock, gradually shaping it into the exact form specified in the digital design. Finally, post-processing involves cleaning, finishing, and preparing the machined part for any additional treatments or assembly. This automated process ensures that each prototype precisely matches the digital design, with consistent results across multiple units or iterations.
2.2 What Are the Key Advantages of CNC Machined Prototypes?
CNC machining addresses all the limitations of traditional methods while introducing new capabilities. It offers high dimensional accuracy, with computer-controlled cutting ensuring measurements match CAD specifications within tight tolerances, often as precise as ±0.01mm for critical features. It delivers superior surface quality, with CNC machines producing smooth, uniform surfaces that require minimal additional finishing. CNC machining offers material versatility, as it can process a wide range of plastic materials, from standard polymers to high-performance engineering plastics. It enables short production cycles, with what once took weeks now completed in days, accelerating product development timelines. It also achieves design fidelity, accurately reproducing complex geometries, undercuts, and fine details that would be impossible to achieve manually. Perhaps most importantly, CNC prototypes “correctly reflect the information expressed in the drawings,” making them invaluable for design validation and stakeholder approval.
2.3 What Surface Treatment and Finishing Processes Are Available?

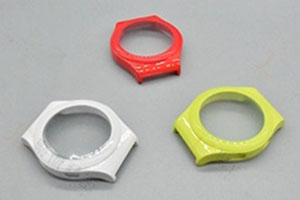

A key advantage of CNC plastic prototypes is their excellent surface quality, which serves as an ideal base for additional treatments. Surface coating involves applying specialized coatings to enhance appearance, durability, or functionality. Coatings can add gloss, texture, or protective properties. Screen printing adds logos, text, or graphics directly onto the prototype surface for branding or user interface demonstration. Polishing achieves mirror-like finishes for visual prototypes where appearance is critical. In fact, properly finished CNC prototypes often appear “more shiny than the product produced after mold opening,” making them excellent for marketing presentations and initial customer feedback.
3. What Are the Different Material Classifications in Plastic Prototype Production?
Not all plastic prototypes are created equal—different materials serve different purposes, and choosing the right one is critical for effective prototyping.
3.1 What Are Plastic Board Prototypes?
Plastic board prototypes use plastic as the primary material and are suitable for a wide range of applications. Common materials include various engineering plastics such as ABS, PC, PMMA, and PP. They offer good machinability, appropriate strength for demonstration purposes, and are available in various colors and finishes. Typical applications include consumer electronics like TVs and display screens, telephone and communication device prototypes, household appliance components, and general product concept models. Plastic board prototypes balance cost, ease of production, and appearance, making them the most common choice for initial design validation and appearance confirmation.
3.2 What Are Metal-Combined Plastic Prototypes?
For higher-end products requiring better structural performance or a premium feel, metal materials are often incorporated. Metal-combined plastic prototypes most frequently use aluminum alloys combined with plastic components where appropriate. They offer enhanced rigidity, better heat dissipation, a premium look and feel, and improved durability for functional testing. Typical applications include laptop and notebook computer prototypes, high-end standalone electronic devices, MP3 players and portable media devices, and CD players and audio equipment. These prototypes offer a more accurate representation of the final product’s weight, balance, and structural behavior, making them valuable for ergonomic testing and high-fidelity demonstrations.
3.3 What Are Silicone Molded Plastic Prototypes?

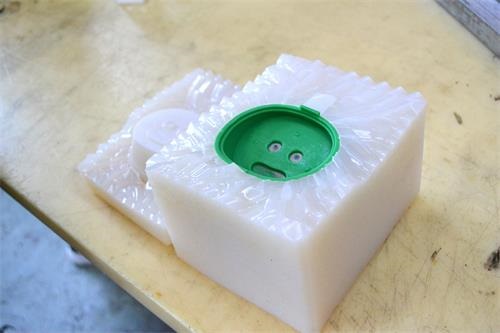

Silicone mold prototypes represent another approach to plastic prototype production. The process involves creating a silicone mold from a master model, which is often CNC machined, then using this mold to cast plastic resin parts. They offer good dimensional accuracy, the ability to produce multiple identical parts, and are suitable for complex shapes with undercuts. Silicone molds can capture fine details and reproduce them consistently in cast plastic parts. Typical applications include products requiring multiple identical prototypes, parts with complex geometries difficult to machine directly, and rubber-like components or soft-touch features. While not as common as direct CNC machining for single prototypes, silicone mold prototypes excel when multiple copies are needed or for specific geometric challenges.
4. Why Did CNC Machining Become the Mainstream Prototype Manufacturing Method?
The rise of CNC machining as the dominant prototype production method is not accidental. It offers compelling advantages that align perfectly with modern product development needs.
4.1 How Does CNC Machining Provide Accuracy for Design Validation?
In product development, identifying design flaws early saves significant time and money. CNC prototypes’ dimensional accuracy ensures that any issues discovered are actual design problems, not manufacturing inconsistencies. This reliability makes them invaluable for fit-checking between components, functional testing under realistic conditions, engineering analysis and validation, and stakeholder approval processes. When a prototype accurately represents the digital design, teams can make confident decisions about design modifications and improvements.
4.2 How Does CNC Machining Improve Efficiency in Product Development Cycles?
Modern product development moves at a rapid pace, and CNC machining keeps up with this demand. It offers quick turnaround from digital design to physical prototype in days rather than weeks. It enables rapid iteration, allowing teams to modify the CAD design and produce an updated prototype quickly. It supports parallel development, as CNC prototypes allow testing and feedback while other development activities continue. This efficiency is particularly valuable in competitive markets where time-to-market can determine commercial success.
4.3 How Does CNC Machining Provide Quality for Stakeholder Confidence?
The high quality of CNC prototypes, both in appearance and performance, inspires confidence among stakeholders. For investor presentations, professional-looking prototypes demonstrate development progress and commitment to quality. For customer feedback, potential customers can interact with a realistic representation of the final product. For internal decision making, high-quality prototypes help product teams visualize the end result and make better design choices. The superior finish achievable with CNC machining, especially after surface treatments, often makes these prototypes look better than initial production units from molds, creating a strong first impression.
Conclusion
The evolution of plastic prototype production from manual craftsmanship to modern CNC machining represents a fundamental shift in how products are developed. CNC technology delivers the accuracy, efficiency, and quality needed to validate designs effectively and bring products to market faster. By understanding the different material options and production processes available, you can choose the approach that best matches your prototype requirements—whether for initial concept validation, functional testing, or high-fidelity presentations. As product development cycles continue to accelerate, the role of precision prototyping in ensuring design success becomes increasingly critical.
FAQ
How long does CNC plastic prototype production typically take?
Depending on complexity, CNC plastic prototypes usually take 3-7 days from final design to finished part, which is significantly faster than traditional methods that could take weeks.
Can plastic prototypes accurately test functional performance?
Yes, especially when using appropriate engineering materials. CNC plastic prototypes can accurately replicate form, fit, and function for meaningful performance testing. The dimensional accuracy of CNC machining ensures that functional tests reflect actual design performance.
When should I choose silicone mold prototypes over direct CNC machining?
Silicone mold prototypes work best when you need multiple identical copies, typically 10-50 units, or when you have complex geometries with undercuts that are difficult to machine directly. For single prototypes, CNC machining is generally more efficient.
