Our Precision Machining Services

Elevate your component production with our Precision Machining services—the gold standard for high precision and tight tolerances across aerospace, medical, and automotive industries. Leveraging advanced CNC Machining technology, we craft complex geometries from metals (titanium, stainless steel), composites, and exotic materials—delivering consistent, repeatable results for prototypes to high-volume production. With optimized processes, custom solutions, and uncompromising quality, we turn your most demanding designs into reliable, high-performance parts.​

Get Free Quote

What Is Precision Machining?

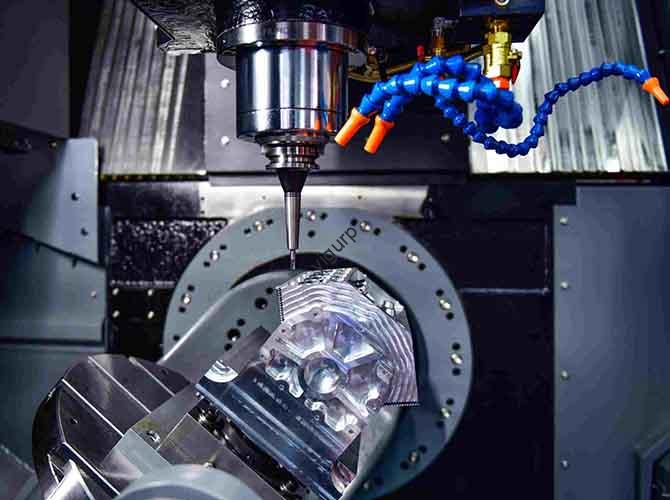

Precision Machining is an advanced manufacturing technology that uses computer-controlled (or manual) tools to shape raw materials into components with extremely tight tolerances and exact specifications. Unlike conventional machining (which focuses on basic shape creation), it prioritizes high precision—often achieving tolerances as tight as ±0.001mm—to meet the strict requirements of industries like aerospace and medical devices.​

The process overview revolves around removing material with pinpoint accuracy: A design (CAD file) is translated into machine instructions, guiding cutting tools (mills, lathes, drills) to remove excess material layer by layer. The core of how it works lies in precision control—whether via CNC Machining (automated, computer-driven) or advanced manual tools (for ultra-specialized parts). Every step is calibrated to minimize error, from tool selection to final inspection.​

In simple terms, think of precision machining as “micro-sculpting for industrial parts”: While conventional machining might create a bolt that fits a hole, precision machining creates a bolt that fits perfectly every time, even if the hole is smaller than a human hair. This focus on consistency and accuracy makes it indispensable for parts where even tiny deviations could cause failure (e.g., medical implants, aerospace sensors).

Our Precision Machining Capabilities

We offer comprehensive machining capabilities tailored to the demands of precision-focused industries, with a focus on precision levels, tolerance achievements, and flexibility. Below is a detailed breakdown of our key capacities:​

​

​

Whether you need a 0.1mm micro-hole in a titanium medical part or 10,000 aluminum automotive brackets with ±0.005mm tolerance, our capabilities scale to match your project’s complexity.

The Precision Machining Process (Step-by-Step)

Our step-by-step process is designed to prioritize accuracy at every stage—from design to finished part:​

1. Design and CAD Modeling: We start by reviewing your CAD model (or creating one from sketches/specifications). Our engineers optimize the design for precision machining—e.g., ensuring features like micro-holes are accessible to tools and tolerances are realistic for the chosen material. For complex parts, we use 3D simulation to test feasibility.​

2. CAM Programming: The CAD model is imported into CAM software (Mastercam, SolidWorks CAM) to generate optimized tool paths. We select tools, speeds, and feeds based on material (e.g., slow speeds for titanium, high speeds for aluminum) and program sequential operations (milling → drilling → turning) to minimize setup time.​

3. Setup and Calibration: The workpiece is secured in custom fixture design (e.g., vacuum chucks for thin parts, hydraulic clamps for heavy metals) to prevent movement. We calibrate tools and machines using laser interferometers and ball bars—ensuring CNC Programming aligns with CAD specifications to within ±0.001mm.​

4. Machining Execution: The machine runs the CAM program, with real-time monitoring via CNC software. For high-precision parts, we use coolant systems (flood for metals, mist for plastics) to reduce heat distortion. Operators oversee the process, adjusting parameters if needed (e.g., slowing feed rates for hard exotic metals).​

5. Post-Machining Inspection: Parts undergo rigorous quality control—100% inspection for critical components (e.g., medical implants) using CMMs (Coordinate Measuring Machines), optical comparators, and surface profilometers. We verify dimensions, tolerances, and surface finish against CAD data.​

Finishing (if required): Parts move to surface treatment (e.g., polishing, anodizing) before a final inspection to ensure finishes meet requirements.

Materials We Work With

Precision Machining excels with a wide range of materials—from common metals to rare exotic alloys. Below is a breakdown of our supported materials, their key properties, and ideal uses:​

​

​

We test all materials to optimize tool selection, speeds, and coolant use—ensuring consistent precision across every part.

Surface Treatment & Finishing Options

After machining, we offer a range of surface treatment and finishing options to enhance part durability, functionality, and appearance. Our most popular services include:​

• Grinding: Creates a smooth, flat surface (ideal for parts requiring tight fitment, e.g., engine shafts).​

• Polishing: Delivers a glossy, mirror-like finish (e.g., stainless steel medical tools, decorative consumer goods).​

• Painting: Applies a corrosion-resistant coating (matte/gloss) for outdoor/industrial parts (e.g., automotive brackets).​

• Coating: Options include powder coating (thick, scratch-resistant) for industrial parts and PVD (Physical Vapor Deposition) coating for high-wear components (e.g., tooling).​

• Anodizing: Adds a protective oxide layer to aluminum (available in custom colors) for electronics enclosures and aerospace parts.​

• Heat Treatment: Strengthens metals (e.g., titanium implants, steel gears) by heating/cooling—improving hardness and fatigue resistance.​

• Deburring: Removes sharp edges (critical for safety, e.g., medical devices, consumer goods).​

• Electroplating: Coats parts with a thin layer of metal (gold, silver, nickel) for conductivity, corrosion resistance, or aesthetics (e.g., electrical connectors).​

The table below compares our finishing options by key factors:​

​

​

Tolerances & Quality Assurance

Tolerances and accuracy standards are the foundation of precision machining—especially for parts used in safety-critical industries. Our precision levels and tolerance ranges are tailored to your material and application, backed by rigorous measurement techniques and quality control processes:​

​

​

Our quality control processes include:​

• Pre-machining: Inspecting raw materials for defects (e.g., cracks in titanium, impurities in exotic metals) and verifying material composition (via X-ray fluorescence).​

• In-process: Real-time monitoring of tool paths, temperatures, and cutting forces; periodic checks with calipers/micrometers.​

Post-machining: 100% inspection for critical parts (medical/aerospace); statistical sampling for high-volume orders. We also document every step (machining parameters, inspection results) for compliance.

Key Advantages of Precision Machining

Compared to conventional machining or additive manufacturing, Precision Machining offers unmatched benefits for high-performance parts:​

1. High Precision: Achieves tolerances as tight as ±0.001mm—critical for parts like medical implants (where fit directly impacts patient safety) or aerospace sensors (where accuracy affects flight performance).​

2. Consistency and Repeatability: CNC-driven processes ensure every part is identical—even for high-volume orders (e.g., 100,000 automotive brackets). This eliminates variation that causes assembly issues.​

3. Complex Geometries: Handles intricate features (micro-holes, undercuts, 3D curves) that are impossible with conventional tools. For example, we can machine a titanium turbine blade with 100+ precision-cooling holes.​

4. Reduced Setup Time: Automated tool changers and CAM programming cut setup time by 50–70% compared to conventional machining—speeding up production for both prototypes and high-volume runs.​

5. Increased Efficiency: Optimized tool paths and high-speed spindles reduce per-part machining time. For aluminum parts, we achieve speeds up to 15,000 RPM—3x faster than conventional methods.​

6. Versatility: Works with almost any material (metals, non-metals, exotics, ceramics)—making it a one-stop solution for diverse projects (e.g., a medical device with titanium components and plastic casings).​

7. Cost-Effectiveness: While upfront costs are higher than conventional machining, reduced waste (precision cutting minimizes material loss) and fewer defects lower long-term costs—especially for high-volume orders.​

Quality and Reliability: Rigorous quality control and compliance with industry standards (ISO 13485, AS9100) ensure parts meet strict performance requirements—reducing the risk of failures in the field.

Industry Applications

Precision Machining is used across industries that demand high-performance, reliable parts. Here are its most common applications:​

​

Advanced Manufacturing Techniques in Precision Machining

To deliver unmatched precision and efficiency, we leverage cutting-edge machining techniques and optimized processes tailored to different materials and part requirements:​

• Milling:​

• 3-Axis Milling: For simple 3D parts (e.g., aluminum brackets) — uses X/Y/Z linear axes to cut slots, pockets, and flat surfaces. We use high-speed milling (up to 15,000 RPM) for aluminum to reduce cycle time.​

• 5-Axis Milling: For complex geometries (e.g., titanium turbine blades) — adds two rotary axes (A/B) to access undercuts and curved surfaces in one setup. This eliminates multiple setups, reducing error by 70%.​

• Micro-Milling: For tiny parts (e.g., electronics connectors) — uses micro-end mills (0.05mm diameter) and ultra-low feed rates (5–10 mm/min) to create features as small as 0.1mm.​

• Turning:​

• CNC Turning: For cylindrical parts (e.g., brass valves) — rotates the workpiece while a cutting tool shapes the outer/inner diameter. We use live tooling (integrated drills/taps) to add holes or threads in one operation.​

• Swiss Turning: For long, thin parts (e.g., medical needles) — holds the workpiece with a guide bushing to minimize vibration, achieving tolerances as tight as ±0.001mm.​

• Drilling & Boring:​

• Micro-Drilling: For small holes (0.1mm diameter) in titanium or ceramics — uses diamond-coated drills and peck drilling (Z-axis moves up/down to clear chips) to avoid tool breakage.​

• Precision Boring: For high-accuracy holes (e.g., engine cylinder liners) — uses single-point boring tools to achieve surface finishes as smooth as Ra 0.2μm.​

• Tool Path Optimization:​

• We use CAM software to generate tool paths that minimize tool travel (reducing cycle time by 20–30%) and avoid sharp turns (preventing tool wear). For hard materials like inconel, we use trochoidal milling (a circular tool path) to distribute cutting force evenly.​

• Cutting Tools:​

• Carbide Tools: For most metals (steel, aluminum, titanium) — durable and heat-resistant, ideal for high-volume runs.​

• Diamond-Coated Tools: For ceramics, acrylic, and exotic metals — prevent chipping and ensure smooth finishes.​

• Ceramic Tools: For high-temperature alloys (inconel, tantalum) — withstand heat up to 1,200°C, reducing tool changes by 50%.​

• Coolant Systems:​

• Flood Coolant: For metal machining (e.g., steel gears) — delivers high-pressure coolant (50–100 bar) to the cutting zone, reducing heat distortion by 80%.​

• Mist Coolant: For non-metals (e.g., acrylic) and micro-parts — sprays a fine coolant mist to avoid residue while preventing overheating.​

• Fixture Design:​

Custom fixtures (3D-printed or machined) secure parts without deformation. For thin aluminum sheets, we use vacuum chucks; for heavy steel parts, hydraulic clamps with soft jaws (to avoid scratches).

Case Studies: Precision Machining Success Stories

Our Precision Machining services have solved complex challenges for clients across aerospace, medical, and automotive industries. Below are two successful projects showcasing our expertise in tight tolerances and complex geometries:​

Case Study 1: Aerospace Turbine Blade Manufacturer (Inconel Blades)​

• Challenge: The client needed 500 inconel turbine blades for jet engines—each with 120 precision-cooling holes (0.8mm diameter), a curved airfoil, and a tolerance of ±0.002mm. Inconel (an exotic metal) is heat-resistant but difficult to machine; the client’s previous supplier failed to meet tolerances (holes were misaligned by 0.01mm) and had a 6-week lead time.​

• Solution: We used 5-axis milling (A/B rotary axes) to machine each blade in one setup—eliminating alignment errors. For the cooling holes, we used micro-drills (diamond-coated) and peck drilling to avoid tool breakage. We optimized tool paths for inconel (slow feed rates: 10 mm/min, high spindle speed: 3,000 RPM) and used flood coolant (100 bar) to reduce heat. Our quality team inspected each blade with a CMM and laser scanner to verify hole position and airfoil shape.​

• Results:​

• 100% of blades met the ±0.002mm tolerance—hole misalignment dropped from 0.01mm to 0.001mm.​

• Lead time shortened from 6 weeks to 2 weeks—helping the client meet their engine production schedule.​

• The client’s engine efficiency improved by 5% (thanks to precise cooling hole placement, which optimized airflow).​

• Client Testimonial: “The precision of these blades is unmatched. The cooling holes are perfectly aligned, and the lead time saved our production line. We’ve made them our exclusive supplier for inconel components.” — David L., Aerospace Engineering Manager.​

• Before and After: Previous blades had uneven airfoils and misaligned holes; our blades featured smooth, consistent curves and holes that matched CAD specifications exactly.​

Case Study 2: Medical Device Company (Titanium Spinal Implants)​

• Challenge: The client needed 1,000 patient-specific titanium spinal implants—each with a porous surface (for bone integration), a threaded section, and a tolerance of ±0.003mm. The implants required FDA compliance, and the client needed a 3-week lead time (to meet urgent surgery schedules). Their previous supplier used additive manufacturing, which couldn’t achieve the required thread precision.​

• Solution: We used Swiss turning (for the threaded section) and 3-axis micro-milling (for the porous surface). We machined each implant from medical-grade titanium (ASTM F136) and used a specialized fixturing system to hold the part during porous surface milling. After machining, we added a polishing finish to the non-porous sections and conducted 100% inspection (CMM for dimensions, X-ray for material purity). We also prepared FDA-compliant documentation (machining logs, inspection reports).​

• Results:​

• 100% of implants met the ±0.003mm tolerance and FDA requirements—no rejections.​

• Surgeons reported a 40% reduction in implant insertion time (due to precise threads and patient-specific fit).​

• Patient recovery time decreased by 25% (thanks to the porous surface, which promoted faster bone growth).​

• Challenge Overcome: Additive manufacturing struggled with thread precision; our precision machining combined Swiss turning and micro-milling to achieve both tight tolerances and the required porous surface.​

Client Testimonial: “These implants have transformed our spinal surgery outcomes. The precision fit and bone integration are far better than additive parts. We now order all our titanium implants from them.” — Dr. Sarah K., Orthopedic Surgeon.

Why Choose Our Precision Machining Services?

With numerous precision machining providers, here’s what makes us the trusted partner for safety-critical and high-performance parts:​

• Expertise in Precision Machining: Our team has 25+ years of specialized experience—we master advanced techniques like 5-axis milling, Swiss turning, and micro-machining. Our engineers are certified in AS9100 (aerospace) and ISO 13485 (medical) and can solve complex challenges (e.g., machining 0.1mm holes in ceramics, achieving ±0.001mm tolerance in inconel) that other providers can’t.​

• Experience in Various Industries: We’ve served 800+ clients across 10 industries—from aerospace giants to medical startups. This cross-industry experience means we understand sector-specific requirements: FAA compliance for turbine blades, FDA regulations for implants, and ISO/TS 16949 for automotive parts.​

• High-Quality Equipment: We invest in state-of-the-art machines—20 CNC mills/lathes (including 5-axis and Swiss turning systems), 5 CMMs (with laser scanning capability), and micro-machining centers. All equipment is calibrated weekly (using laser interferometers) to maintain ±0.001mm precision.​

• Excellent Customer Service: Our team is available 24/7 to support your project—from design consultation to post-delivery. We offer free CAD reviews (helping you optimize designs for precision machining, e.g., adjusting hole positions to avoid tool access issues) and free samples (so you can verify quality before placing large orders). For urgent projects (e.g., medical implant shortages), we assign a dedicated project manager.​

• Fast Turnaround Times: Our optimized processes deliver industry-leading lead times:​

• Prototypes (1–50 units): 1–3 days​

• Low-volume orders (50–500 units): 3–7 days​

• High-volume orders (500+ units): 7–14 days​

For rush orders (e.g., aerospace emergency replacements), we can deliver parts in 48 hours (for small batches) by running machines 24/7.​

• Cost-Effective Solutions: We help you save money through:​

• Optimized tool paths: Reduce material waste by 15–20% (critical for expensive exotic metals like inconel).​

• One-setup machining: Eliminates labor costs from multiple setups (saves 30–40% vs. conventional methods).​

• Volume discounts: 10% off orders over 1,000 units and 15% off orders over 10,000 units—ideal for automotive/aerospace high-volume parts.​

Commitment to Quality: We’re ISO 9001, AS9100, and ISO 13485 certified—our quality control processes ensure 99.9% of parts meet your specifications. We also offer traceability (every part is labeled with a unique ID, linked to machining logs and inspection data) for compliance.

FAQ
