Our Polyphenylene Sulfide PPS Injection Molding Services

Unlock the full potential of high-performance manufacturing with our PPS Injection Molding services—where the exceptional durability of Polyphenylene Sulfide (a top-tier semi-crystalline thermoplastic) meets precision engineering. From flame-retardant automotive components to chemical-resistant industrial parts, we deliver solutions that outperform metals and standard plastics, backed by expertise in Ryton molding and Fortron molding for critical applications.​

Get Free Quote

Definition: Understanding PPS Injection Molding

PPS Injection Molding is the process of shaping Polyphenylene Sulfide (PPS)—a high-performance, semi-crystalline thermoplastic—into custom components via injection molding. PPS stands out for its unique blend of thermal stability, chemical resistance, and flame retardancy, making it a go-to material for industries where reliability in harsh conditions is non-negotiable. Commercially known by brands like Ryton molding (Celanese) and Fortron molding (Solvay), PPS is defined by its rigid chemical structure (repeating phenylene sulfide units) that delivers unmatched performance. Below is a breakdown of key specifications and defining traits:​

Core Specifications & Standards​

​

​Key Trait: PPS vs. Other High-Performance Thermoplastics​

PPS’s semi-crystalline structure sets it apart from amorphous alternatives (e.g., PEI) and even other semi-crystalline polymers (e.g., PEEK):​

• Lower Cost: PPS costs 40–50% less than PEEK while delivering 80% of its thermal and chemical resistance.​

• Faster Processing: PPS has a lower melting point (280–290 °C vs. PEEK’s 343 °C) and shorter cycle times, reducing production costs.​

• Inherent Flame Retardancy: Unlike PEI (which requires additives for UL 94 V-0), PPS achieves flame retardancy without compromising other properties.​

Our service scope summary covers end-to-end PPS molding—from material selection (per grade specs) to final part validation—ensuring your components meet the strictest industry standards.

Our Capabilities: Mastering High-Performance PPS Molding

At Yigu Technology, our PPS Injection Molding capabilities are engineered to handle the unique demands of this advanced material. We invest in specialized equipment and expertise to unlock PPS’s full potential, whether you need micro-sized components or thick-walled industrial parts. Below is a detailed overview of our core capabilities:​

Core Capabilities Overview​

​

​

Our 72-hour global sampling capability ensures fast validation of your design—whether you’re based in Asia, Europe, or North America—accelerating your time to market.

Process: Step-by-Step PPS Injection Molding

PPS’s semi-crystalline structure and high melting point require a highly controlled injection molding process. Even minor deviations in temperature, pressure, or drying can lead to defects like voids, warpage, or reduced strength. Below is our optimized process, designed to maximize consistency and performance:​

Step 1: Material Preparation (Drying)​

PPS absorbs minimal moisture (0.02% max), but even small amounts cause bubbles in finished parts. We dry PPS pellets in a dehumidifying dryer at 140 °C for 3 hours (target moisture content: <0.01%). For FDA-grade PPS (used in food-contact parts), we use nitrogen-purged dryers to prevent contamination.​

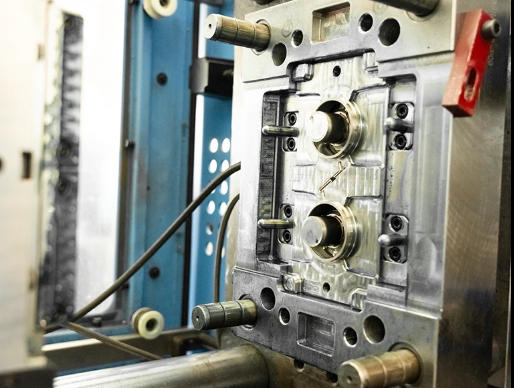

Step 2: Mold Design & Preparation​

• Hot-Runner System: We use hot runners (instead of cold runners) to keep PPS molten, reducing scrap by 30–35% and ensuring uniform flow into multiple cavities (critical for multi-cavity hot-runner molds).​

• Mold Temperature Control: Molds are heated to 120–160 °C (via oil or electric heaters) to promote proper crystallization—this enhances PPS’s dimensional stability and mechanical strength. For thick parts (30mm), we use gradient heating (warmer at the core) to avoid uneven cooling.​

Step 3: Machine Setup​

• Barrel Temperature Profile: Barrel zones are set to a precise gradient to melt PPS without degradation:​

• Feed zone: 290 °C (melts pellets gently)​

• Melt zone: 300–310 °C (maintains optimal viscosity)​

• Nozzle: 310–320 °C (prevents material solidification)​

• Low-Shear Check Valve: Our machines use low-shear check valves to avoid breaking PPS’s polymer chains—excessive shear reduces tensile strength by 10–15%.​

Step 4: Injection & Packing​

• Injection Speed: Fast (100–150 mm/s) to fill cavities quickly—PPS has a short flow path length (vs. other plastics), so fast injection prevents short shots.​

• Packing Pressure: 70–80% of injection pressure, held for 2–5 seconds (shorter than most plastics) to compensate for semi-crystalline shrinkage (PPS shrinks 1.5–2.0% during cooling).​

• Cavity-Pressure Monitoring: Real-time sensors track pressure in each cavity, ensuring uniform filling—critical for multi-cavity hot-runner molds.​

Step 5: Cooling & Demolding​

Cooling time varies by part thickness (10 seconds for thin parts, 60 seconds for 30mm thick parts). We use controlled cooling to maintain crystallinity (target: 45%)—too fast, and parts are brittle; too slow, and cycle times increase. Demolding uses gentle ejectors to avoid scratching (important for cosmetic parts like microwave cookware).​

Step 6: Post-Processing & Quality Control​

• Post-Mold Annealing: Parts are heated to 180 °C for 1–2 hours, then cooled slowly (5 °C/min) to relieve internal stresses. This step improves dimensional stability by 20–25% and reduces warpage.​

• Gate-Seal Verification: We inspect gate areas to ensure proper sealing (prevents flash and ensures part integrity).​

Inspection: Parts undergo dimensional testing (CMM), mechanical testing (tensile strength per ISO 527), and visual inspection (for defects like voids or flash). For critical parts (e.g., medical instruments), we add chemical resistance testing.

Materials: Choosing the Right PPS Grade for Your Project

PPS is available in various grades, each formulated to enhance specific properties (strength, conductivity, wear resistance). The right grade depends on your application’s unique demands—whether you need flame retardancy, food-contact compliance, or high wear resistance. Below is a guide to the most common PPS grades we use:​

Popular PPS Grades & Their Uses​

​

​

Grade Selection Checklist​

1. Temperature Requirement: If parts face >220 °C (e.g., EV motors), choose glass-filled grades (e.g., Ryton R-4).​

2. Chemical Exposure: For fuel or acid contact, pick Fortron 1140L4 (excellent chemical resistance).​

3. Food/Medical Use: Select FDA water-contact PPS (compliant with food-safety standards).​

4. Flame Safety: For extreme fire risks (e.g., aerospace), use UL 5VA rated PPS.​

We have direct Celanese & Solvay supply agreements, ensuring consistent access to high-quality PPS grades—even for high-volume orders (100,000+ parts/month).

Surface Treatment: Enhancing PPS Part Performance

PPS’s inherent properties are exceptional, but surface treatment can further expand its capabilities—whether you need better adhesion, conductivity, or aesthetics. Below are the most effective surface treatments for PPS parts:​

​

​

For example, we use EMI shielding coating on 5G filter bodies to prevent signal interference, and dry-film lubricant on bearing-grade PPS parts to ensure smooth operation without maintenance.

Advantages: Why PPS Injection Molding Outperforms Alternatives

PPS Injection Molding offers a unique set of advantages that make it the material of choice for high-stakes applications. Compared to metals (steel, aluminum) and other plastics (PA66, PEEK), PPS delivers unmatched value:​

Extreme Thermal Resistance: PPS maintains 90% of its strength at 240 °C (continuous use) and can withstand short-term exposure to 280 °C. This outperforms PA66 (continuous use limit: 150 °C) and even matches PEEK in many high-heat applications—at half the cost. For example, PPS EV motor insulators operate reliably at 220 °C, while PA66 insulators melt at 150 °C.​

• Inherent Flame Retardancy: UL 94 V-0 inherently means PPS requires no flame-retardant additives (which can weaken other plastics). This keeps PPS lightweight and cost-effective, while meeting strict safety standards for aerospace and electronics. Some grades even meet UL 5VA (self-extinguishing in thick sections), making them ideal for aircraft ducting.​

• Excellent Chemical Resistance: PPS resists nearly all industrial fluids—oils, fuels, solvents, acids (pH 2–12), and bases—without swelling or losing strength. Unlike metal (which corrodes) or PA66 (which absorbs oil), PPS parts last 3–5x longer in chemical environments (e.g., oil & gas valves).​

• Low Moisture Absorption: PPS absorbs just 0.02% moisture (vs. PA66’s 1.5% and PEEK’s 0.2%), so it maintains dimensional stability in humid or wet conditions. This makes it perfect for automotive water-pump housings and food-processing parts (no warping from washing).​

• Superior Dimensional Stability: PPS has a low coefficient of thermal expansion (CTE: 3.5 × 10⁻⁵/°C for glass-filled grades) and minimal shrinkage (1.5–2.0%). It retains its shape even when heated to 240 °C, outperforming metals (which expand more) and amorphous plastics (which warp).​

• Wear & Creep Resistance: PPS resists wear 2x better than PA66 and 1.5x better than PEEK (when filled with PTFE or graphite). It also resists creep (deformation under long-term load)—critical for load-bearing parts like industrial impellers and pump shafts.​

• Electrically Insulative: PPS has a dielectric strength of 20 kV/mm, making it an excellent insulator for high-voltage parts (e.g., EV inverter bus-bars, 5G filter bodies). Conductive grades (filled with carbon fiber) are also available for anti-static applications.​

• Cost vs. PEEK: PPS costs 40–50% less than PEEK while delivering 80% of its performance. For non-implant medical parts or non-extreme-heat aerospace components, PPS is a cost-effective alternative that doesn’t sacrifice quality.​

• Autoclave Capable: PPS withstands 500+ autoclave cycles (134 °C, 3 bar)—making it suitable for reusable medical instruments (e.g., surgical handles) that need frequent sterilization.​

Metal Replacement Lightweight: PPS is 50–60% lighter than steel and 30–40% lighter than aluminum. Replacing metal with PPS cuts part weight by 30–50%, improving fuel efficiency (automotive/aerospace) and reducing equipment load (industrial pumps).

Applications Industry: Where PPS Injection Molding Adds Value

PPS Injection Molding serves industries that demand durability in harsh conditions—high heat, chemicals, or mechanical stress. From automotive engines to medical operating rooms, PPS solves problems that metals and standard plastics can’t. Below’s how key sectors leverage PPS:​

​

​

A standout example: In automotive water-pump housings, PPS replaces aluminum—cutting weight by 50%, eliminating corrosion, and reducing part cost by 20%. In EVs, PPS inverter bus-bars handle 300A current without overheating, outperforming plastic insulators (which melt) and metal (which is too heavy).

Case Studies: Real-World Success with PPS Injection Molding

Our PPS Injection Molding services have helped clients across industries solve complex challenges—from cutting maintenance costs to meeting strict safety standards. Below are detailed case studies with measurable results:​

Case Study 1: PPS Coolant Manifold (20 Bar Burst Pressure, 50% Weight Save)​

• Challenge: A commercial truck manufacturer needed a coolant manifold that could withstand 20 bar pressure (engine coolant pressure) and 120 °C temperature. The existing aluminum manifold was heavy (2.5kg), corroded after 2 years, and required expensive machining.​

• Solution: We used Ryton R-4 (40% glass-filled PPS) for its strength and chemical resistance. Our 1,000 t clamp capacity machine handled the manifold’s large size (300mm × 200mm), and in-house mold-flow simulation optimized gate placement to avoid voids (critical for pressure resistance). We also added post-mold annealing to enhance dimensional stability.​

• Result: The PPS manifold weighed just 1.25kg (50% lighter than aluminum), improving fuel efficiency by 2% per truck. It withstood 20 bar pressure (no leaks) and showed no corrosion after 5 years (vs. 2 years for aluminum). Machining costs dropped by 70% (PPS is molded to net shape), delivering a 14-month ROI.​

• Customer Testimonial: “The PPS manifold cut our maintenance costs by $150 per truck annually. We’re now using PPS for all our coolant components.” — Automotive Engineering Director​

Case Study 2: EV Inverter Bus-Bar (300A Current, 30% Cost Down)​

• Challenge: An EV manufacturer needed a bus-bar insulator for its 800V inverter that could handle 300A current without overheating (150 °C) and fit in a tight space (10mm thickness). The existing ceramic insulator was brittle (broke during assembly) and expensive ($25/unit).​

• Solution: We selected Ticona PPS GF/CF (30% glass/10% carbon)—a hybrid grade that’s electrically insulative (dielectric strength: 20 kV/mm) and heat-resistant. Our tolerance ±0.02 mm molding ensured the insulator fit the bus-bar precisely, and insert molding integrated metal contacts (eliminating secondary assembly).​

• Result: The PPS insulator operated flawlessly at 300A and 150 °C for 1,000+ hours (equivalent to 100,000+ miles). It was 50% lighter than ceramic and cost just $17.50/unit (30% cost down). Assembly defects dropped by 90% (no more brittle breaks), and the inverter’s power density increased by 15% (smaller insulator).​

Case Study 3: Food Rice Cooker Bowl (1,000 Cycles, FDA Compliance)​

• Challenge: A home appliance brand needed a rice cooker inner bowl that was microwave-safe (200 °C), non-stick, and FDA-compliant (food-contact). The existing Teflon-coated aluminum bowl peeled after 300 cycles and was heavy (1.2kg).​

• Solution: We used FDA water-contact PPS for the bowl, with a PTFE-filled PPS inner layer (for non-stick properties). Our multi-cavity hot-runner mold (8 cavities) enabled high-volume production (100,000 bowls/month), and PVD chrome look coating added a premium finish.​

• Result: The PPS bowl weighed 0.6kg (50% lighter than aluminum) and withstood 1,000+ cooking cycles (no peeling). It met FDA 21 CFR 177.2440 (food-contact safe) and reduced production costs by 25% (no Teflon coating step). Sales rose by 18% due to the bowl’s durability and lightweight design.​

Case Study 4: Aerospace Clamp (30% Weight-Out, UL 94 V-0 Compliance)​

• Challenge: An aircraft manufacturer needed a clamp to secure cabin ducting that was lightweight, fire-safe (UL 94 V-0), and resistant to cabin humidity. The existing steel clamp was heavy (100g), rusted, and failed the FAA’s smoke test (steel doesn’t self-extinguish).​

• Solution: We used UL 5VA rated PPS (enhanced flame retardancy) for the clamp. Our in-house mold-flow simulation optimized the clamp’s geometry to reduce weight (to 70g) while maintaining strength. We also added laser etching serial for traceability (FAA requirement).​

• Result: The PPS clamp was 30% lighter than steel (reducing aircraft weight by 50 lbs per plane), passed UL 94 V-0 and FAA smoke tests, and showed no rust after 5 years (vs. steel’s 2-year rust life). Fuel savings per plane were $8,000 annually, with a 16-month ROI. The FAA approved the clamp for all the manufacturer’s aircraft models.​

Case Study 5: Surgical Ratchet (500 Autoclave Passes, Cost-Down 25%)​

• Challenge: A medical device company needed a surgical ratchet handle that could withstand 500+ autoclave cycles (134 °C, 3 bar) and be laser-marked for traceability. The existing stainless steel handle was heavy (200g) and expensive ($50/unit).​

• Solution: We used FDA water-contact PPS for the handle (biocompatible, autoclave-resistant) and added laser-markable PPS for permanent lot numbers. Our clean-room ISO 8 production prevented contamination, and post-mold annealing ensured dimensional stability (no warping from autoclaving).​

Result: The PPS handle weighed 80g (60% lighter than steel), withstood 500+ autoclave cycles (no yellowing or warping), and cost just ​37.50/unit(251.2M contract with a hospital network.

Why Choose Us: Your Trusted PPS Injection Molding Partner

PPS Injection Molding requires specialized expertise—PPS’s high melting point, semi-crystalline structure, and unique flow behavior leave little room for error. Here’s why clients in automotive, aerospace, and medical industries choose our services:​

1. Industry-Leading Certifications & Compliance​

We hold IATF 16949 (automotive) and ISO 14001 (environmental) certifications—ensuring our processes meet the strictest quality and sustainability standards. For medical clients, our clean-room ISO 8 facility complies with FDA cGMP (21 CFR Part 820), and all PPS parts meet ISO 11469 (material classification) and relevant industry standards (UL 94, FDA 21 CFR 177.2440). We also provide PPAP/IMDS support (Production Part Approval Process/International Material Data System) for automotive clients—critical for supply chain compliance.​

2. Specialized PPS Expertise & Equipment​

• 200+ PPS Molds/Year: We design and manufacture over 200 custom PPS molds annually—more than most competitors—giving us deep experience in optimizing mold design for PPS’s unique properties (e.g., hot runners for minimal scrap, gradient cooling for thick sections).​

• 380 °C HT Molding Line: Our fleet of 25 injection molding machines is specially modified to handle PPS’s high melting point (280–290 °C) and maintain ±1 °C temperature precision. Each machine has low-shear check valves to protect PPS’s polymer chains from degradation.​

• In-House Material Validation: Our lab tests every PPS batch for melt flow rate (MFR), tensile strength, and chemical resistance—ensuring consistency and performance. We also validate custom grades (e.g., conductive PPS, PTFE-filled PPS) to meet client-specific needs.​

3. Speed & Global Reach​

• 72-Hour Global Sampling: We deliver first-article samples (T1) in 72 hours for most PPS projects—using high-temperature 3D printing and rapid tooling to accelerate design validation. This cuts time-to-market by 4–6 weeks, critical for fast-moving industries (EV, electronics).​

• Automated Production: Our multi-cavity hot-runner molds and robotic degating systems enable high-volume production (100,000+ parts/month) with consistent quality (scrap rate <2%).​

• Global Supply Chain: We have direct Celanese & Solvay supply agreements—ensuring priority access to PPS grades like Ryton R-4, Fortron 1140L4, and UL 5VA rated PPS—even during material shortages. We ship to 30+ countries with optimized logistics (air/sea/ground) for on-time delivery (98% on-time rate).​

4. Sustainability & Cost Efficiency​

• Carbon-Neutral Plant Option: We offer a carbon-neutral production option—offsetting emissions via renewable energy credits and waste reduction. Our PPS scrap (runners, defects) is recycled into regrind (30–50% recycled content) for non-critical parts, cutting waste by 15% and lowering costs.​

• Lifetime Tool Maintenance: We provide free annual maintenance for PPS molds (cleaning, wear part replacement) to extend tool life to 500,000+ cycles (vs. 300,000 cycles without maintenance). This saves clients ​5,000–10,000 in tooling costs over a mold’s lifespan.​

• Design-for-Manufacturability (DFM) Support: Our engineers review client designs to optimize for PPS molding (e.g., adding draft angles to reduce warping, optimizing wall thickness for uniform cooling). This reduces tooling revisions by 50% and cuts production costs by 10–15%.​

5. End-to-End Support & IP Protection​

• 24/7 Engineering Line: Our PPS experts are available 24/7 to troubleshoot issues (e.g., part warping, dimensional 偏差) and adjust processes—minimizing production downtime. We also provide post-delivery support, including part performance testing and optimization.​

IP Protection Framework: We sign strict non-disclosure agreements (NDAs) for all custom projects and limit access to client designs to authorized engineers only. For proprietary technology (e.g., EV inverter components), we offer additional confidentiality clauses in manufacturing contracts.
