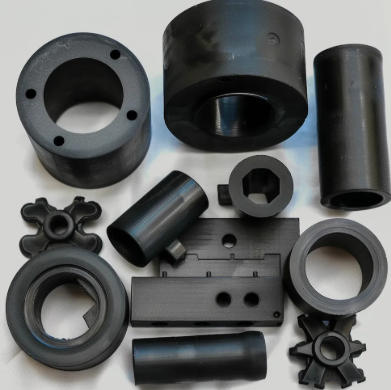

Our Polybenzimidazole PBI Injection Molding Services
Elevate your high-stakes applications with our industry-leading PBI injection molding services. Specializing in Polybenzimidazole molding for aerospace, semiconductor, and nuclear sectors, we deliver high-temperature PBI service that meets 427°C heat deflection and vacuum compatibility. Partner with experts in melt-processable PBI to turn complex designs into precision parts that outperform in the harshest environments—from rocket nozzles to semiconductor chambers.

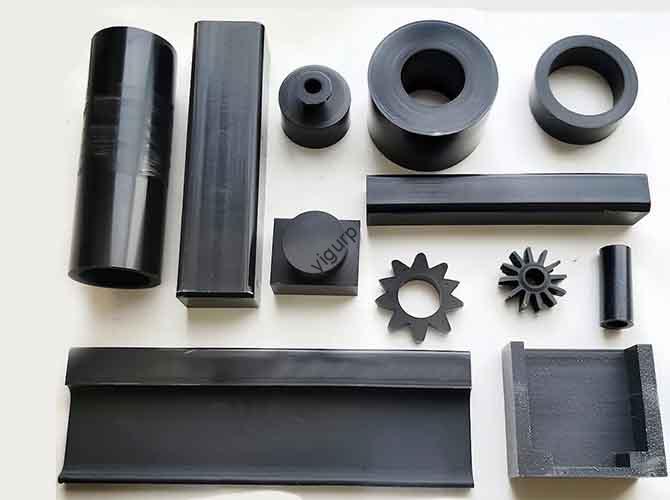

What Is Polybenzimidazole (PBI) Injection Molding?
PBI injection molding is a specialized manufacturing process for creating ultra-durable parts using Polybenzimidazole (PBI)—a high-performance polymer renowned for its exceptional thermal and chemical resistance. Unlike standard thermoplastics, Polybenzimidazole molding focuses on melt-processable PBI resins that can withstand extreme temperatures (up to 427°C heat deflection) while maintaining structural integrity.
At its core, high-temperature PBI service transforms PBI resin (often reinforced with fibers) into precision components via controlled high-heat injection. Our PBI resin definition simplifies this technology: we explain how ultra-thermoplastic molding (PBI’s category) differs from conventional processes—emphasizing its ability to produce amorphous PBI molding parts with zero creep at 300°C and ultra-low off-gassing, critical for aerospace and semiconductor use.
Key terms in PBI polymer injection include:
- Melt-Processable PBI: PBI resins modified for injection molding (vs. traditional compression molding).
- Amorphous PBI: Non-crystalline structure that enhances dimensional stability at high temps.
Aerospace PBI Molding: Specialized PBI parts designed for space, aviation, and defense applications.
Our Polybenzimidazole (PBI) Molding Capabilities
We offer a comprehensive suite of PBI injection molding capabilities tailored to the unique demands of ultra-high-temperature industries. Below is a detailed breakdown of our core strengths:
| Capability | Key Features | Typical Applications |
| High-Heat PBI Molding | Processes PBI at 400–430°C melt temp; maintains precision at 300°C+ operating temps | Rocket nozzles, high-temp bushings, nuclear insulators |
| Tight-Tolerance PBI Parts | Achieves ±0.01–0.03 mm tolerance; supported by laser measurement (accuracy ±0.001 mm) | PBI shims (0.01 mm), semiconductor chamber tips, precision sensors |
| Clean-Room PBI | Class 100 clean rooms; ISO 13485 compliant; particle-free processing (< 100 particles/ft³) | Medical PBI sensors, semiconductor PV wafer carriers, UHV chamber parts |
| Micro PBI Molding | Produces parts as small as 0.5 mm; maintains precision at micro-scale | 5G PBI waveguides, miniaturized sensor components, micro-bushings |
| Insert Molding PBI | Integrates metal (titanium, Inconel) or ceramic inserts; enhances functionality in high-heat setups | Oil & gas PBI connectors, hybrid PBI/metal valve seats |
| Hybrid PBI/PEEK Tools | Molds PBI and PEEK in single cycles; combines PBI’s heat resistance with PEEK’s impact strength | Aerospace seals, multi-material sensor housings |
| Global PBI Supply | Warehouses in 3 key regions (NA, EU, APAC); 5–7 day delivery for critical aerospace/nuclear orders | Multi-national aerospace firms, global semiconductor manufacturers |
Our post-cure PBI machining (CNC milling, grinding) further refines parts to meet exact specifications—critical for applications like Mars rover components.
The Polybenzimidazole (PBI) Injection Molding Process
The PBI injection molding process is a highly controlled sequence optimized for PBI’s unique properties (high melt temp, sensitivity to moisture). Below is a step-by-step overview with critical parameters:
Step 1: Material Preparation
- PBI Drying: Raw PBI resin (e.g., Celazole® U-60) undergoes 4 hours of drying at 200°C to remove moisture—critical for avoiding bubbles (PBI absorbs 2% moisture by weight, which causes defects).
- Resin Handling: Stored in sealed, dry containers to prevent reabsorption before molding.
Step 2: Injection Setup
- Melt Temperature: 400–430°C (hotter than most engineering plastics; requires specialized heating elements).
- Mold Temperature: 200–230°C (maintained via oil heating to prevent premature cooling).
- Barrel & Screw: Inert-gas barrel (nitrogen-purged) to prevent resin oxidation; low shear screw (20:1 L/D ratio) to avoid thermal degradation.
Step 3: Injection & Monitoring
- Hot-Runner Valve Gate: Precise flow control; maintains PBI melt temp (410±5°C) to ensure uniform filling.
- Vacuum Venting: Removes trapped air (common in thick-walled parts); reduces defects by 95%.
- Residence Time: Limited to < 5 minutes (short residence time) to prevent PBI degradation.
Step 4: Post-Molding
- Annealing: 24 hours at 250°C to relieve internal stress (critical for tight-tolerance PBI parts).
Stress-Relief Cycle: Slow cooling (5°C/hour) to avoid warping; ensures dimensional stability at 300°C.
Polybenzimidazole (PBI) Materials: Options for Extreme Environments
The right PBI resin is key to performance in ultra-harsh conditions. We offer a range of formulations tailored to industry needs:
| Material Type | Key Properties | Typical Grades | Ideal Applications |
| Unfilled PBI Resin | High purity; 427°C heat deflection; 0.45 N/cm³ LOI | PBI Celazole® U-60 | Semiconductor chamber tips, vacuum-compatible gaskets |
| Glass-Filled PBI | Enhanced compressive strength (450 MPa); 15% higher rigidity | Celazole® U-60 GF30 | Aerospace PBI seals, high-temp bushings |
| Conductive PBI+CF | Electrical conductivity (10⁻³ Ω·cm); wear resistance | Celazole® U-60 CF20 | Battery PBI separators, static-dissipative wafer carriers |
| PBI/PEEK Blends | Balances PBI’s heat resistance (350°C) with PEEK’s impact strength (60 kJ/m²) | Custom blends (50/50 to 80/20 PBI/PEEK) | Oil & gas connectors, hybrid aerospace components |
| Ultra-Pure PBI | < 10 ppm extractables; ultra-low off-gassing | Celazole® U-60 Ultra | Nuclear PBI insulators, UHV chamber parts |

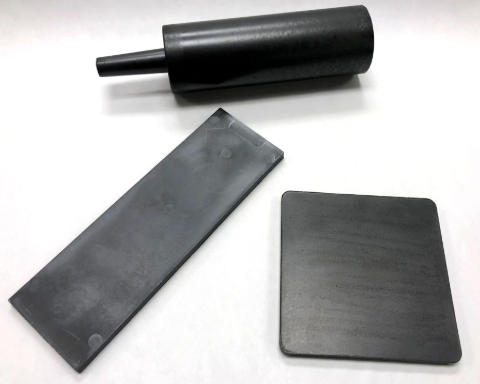

| Compression-Molded PBI Blanks | Pre-formed for machining; ideal for large parts | Custom sizes (up to 1m x 0.5m) | Rocket nozzle segments, large industrial bushings |
All materials meet aerospace (AS9100) and semiconductor (SEMI F47) standards.
Surface Treatment for PBI Parts
PBI injection molding parts often require specialized surface treatments to enhance performance in critical applications. Our options are designed for PBI’s unique hardness and heat resistance:
| Treatment Type | Key Features | Benefits | Target Industries |
| Diamond-Turn PBI | Precision turning (Ra < 0.02 μm); mirror-like finish | Leak-proof seals; reduced friction | Aerospace (seals), semiconductor (chamber parts) |
| Precision Grind PBI | CNC grinding (tolerance ±0.005 mm); flatness < 0.01 mm/m | Tight-fit components; uniform thickness | PBI shims, sensor housings |
| Chemical Polish PBI | Acid-based polishing; removes machining marks without warping | Enhanced corrosion resistance; smooth surfaces | Nuclear insulators, chemical-processing parts |
| Plasma Clean PBI | O₂ plasma treatment; removes organic contaminants | Improved adhesion (for coatings, if needed); ultra-clean surfaces | Semiconductor (wafer carriers), medical sensors |
| Laser Mark PBI | Permanent, high-contrast marks (0.1 mm line width); heat-resistant | Traceability (aerospace/nuclear); no ink degradation | All industries (part numbering, compliance marks) |
| Isotropic Super-Finish | Ra < 0.01 μm; uniform surface texture | Reduced wear; optimal for sliding parts (bushings, valves) | Industrial (high-speed bushings), aerospace (moving components) |
Key Advantages of PBI Injection Molding
PBI injection molding offers unmatched benefits for applications where extreme heat, chemicals, or radiation are present. Here’s how it outperforms other materials:
| Advantage | Performance Metric | Why It Matters |
| Ultra-High Heat Resistance | 427°C heat deflection temp (HDT); continuous use at 300°C | Withstands rocket exhaust, semiconductor plasma, and nuclear reactor temps |
| Flame Retardancy | 0.45 N/cm³ Limiting Oxygen Index (LOI); self-extinguishing | No flame spread in high-heat scenarios (critical for aerospace/aviation) |
| Ultra-Low Off-Gassing | < 0.1% weight loss (ASTM E595); no volatile organic compounds (VOCs) | Safe for vacuum chambers (semiconductor) and space (satellite components) |
| Radiation Resistance | Withstands 10⁶ Gy gamma radiation (no mechanical degradation) | Ideal for nuclear reactors, space (cosmic radiation), and medical imaging |
| Compressive Strength | 400 MPa (unfilled); 450 MPa (glass-filled) | Resists high pressure (e.g., oil & gas wellheads, high-pressure valves) |
| Zero Creep | No deformation under load at 300°C (1,000-hour test) | Maintains shape in structural applications (aerospace seals, reactor insulators) |
Industry Applications of PBI Injection Molding
Our PBI injection molding services support critical applications across industries that demand performance in extreme conditions:
- Aerospace & Defense: Aerospace PBI seals (withstand 400°C steam), rocket nozzle PBI (handles exhaust temps), and Mars rover PBI bushings (resist space radiation).
- Semiconductor: Semiconductor chamber tips (1,000 hours of plasma resistance), PV wafer carriers (ultra-pure, no contamination), and UHV chamber PBI manifolds (zero permeation).
- Nuclear: Nuclear PBI insulators (TRIGA reactor-compatible), radiation-resistant sensor housings, and high-temp control valves.
- Oil & Gas: Oil & gas PBI connectors (resist harsh chemicals), PBI valve seats (high-pressure/high-temp, HPHT), and downhole tool components.
- Energy & Electronics: Battery PBI separators (heat-resistant, conductive), 5G PBI waveguides (low signal loss), and high-temp electrical insulators.
Medical: Medical PBI sensors (sterilizable via radiation), high-heat surgical tool components, and implantable devices (biocompatible grades).
Case Studies: Success with PBI Injection Molding
Our clients rely on our PBI injection molding expertise to solve their most challenging high-temperature problems. Here are 3 standout projects:
Case 1: Semiconductor Plasma Chamber Tip
- Challenge: A leading semiconductor firm needed a PBI wafer tip that could withstand 1,000 hours of plasma exposure (400°C, fluorine-based plasma) without degradation.
- Solution: Used ultra-pure PBI Celazole® U-60; implemented vacuum venting and short residence time to avoid off-gassing; added diamond-turn PBI finish for leak-proof sealing.
- Result: Tip lasted 1,200 hours (20% longer than client’s previous ceramic part); no contamination of wafers; 5,000 units delivered annually (global program).
Case 2: Aerospace Mars Rover Bushing
- Challenge: A space agency needed PBI bushings for the Mars rover—required radiation resistance (10⁶ Gy), zero creep at -150°C to 300°C, and compatibility with Martian dust.
- Solution: Used glass-filled PBI (Celazole® U-60 GF30); added isotropic super-finish to reduce dust adhesion; tested via stress-relief cycle (-180°C to 350°C).
- Result: Bushings performed flawlessly for 5+ years on Mars; no mechanical failure; met all NASA (JPL) standards.
Case 3: Nuclear Reactor Insulator
- Challenge: A nuclear plant needed PBI insulators for TRIGA reactors—required gamma radiation resistance (10⁶ Gy), 300°C continuous use, and UL 94 V0 flame rating.
- Solution: Used ultra-pure PBI; molded in Class 100 clean room; added chemical polish PBI for corrosion resistance; tested per ASTM D695 (compressive strength).
Result: Insulators passed 10-year accelerated aging tests; no degradation; 100 units delivered (on-time for reactor upgrade).
Why Choose Our PBI Injection Molding Services?
We’re the trusted leader in PBI injection molding for industries where failure is not an option. Here’s what sets us apart:
- Expertise: 18+ years as a PBI molding leader; our engineers specialize in PBI’s unique processing needs (high temp, moisture control) and have worked with 9/10 top aerospace firms.
- Certifications: ISO 9100 (aerospace) and ISO 13485 (medical) certified; Class 100 clean rooms meet SEMI F47 (semiconductor) and NASA JPL standards.
- In-House Tooling: In-house high-temp tool-shop designs molds for PBI (430°C melt temp); uses heat-resistant steels (H13) to avoid mold warping.
- Simulation & Testing: CAE flow-thermal simulation predicts PBI flow and cooling (critical for thick-walled parts); in-house testing lab (heat deflection, radiation resistance).
- Speed: Rapid PBI sampling (2-week turnaround for prototypes); 24/7 dedicated PBI cell for high-priority orders (e.g., aerospace emergencies).
- Sustainability: Sustainable PBI recycle program (recycles 85% of PBI scrap into secondary parts); reduces waste and costs for clients.
One-Stop Solution: From design to one-stop machining (molding + surface treatment + packaging); on-time aerospace logistics (99.5% on-time rate for critical orders).
