How Is a Plastic Car Prototype Model Made Step by Step?

Introduction

Creating a plastic car prototype model is a careful process that turns digital designs into real physical parts you can hold and test. Automotive companies rely on these prototypes to check if a car dashboard fits properly, if a door panel feels right, or if an engine cover can handle heat—all before spending millions on mass production. This guide walks you through every stage of the plastic car prototype model processing process, from picking the right materials to shipping the finished part. You will learn how engineers actually build these models, what choices they face, and why each step matters for making better cars.

What Makes Plastic the Right Choice for Car Prototypes?

Cars need parts that do different jobs. Some parts sit inside the cabin where temperatures stay cool. Others live near the engine where heat soars. Some parts must bend slightly in a minor crash. Others need to stay perfectly rigid for years. Plastic works for all these cases because you can pick exactly the right type for each job.

Which Plastic Properties Matter Most for Automotive Parts?

When engineers choose a plastic for a car prototype, they look at four main things:

Heat resistance matters for parts near the engine or exhaust. A plastic that softens at 80°C will fail in an engine bay that reaches 120°C. Polycarbonate handles this well.

Impact resistance matters for bumpers and door panels. These parts must absorb energy without shattering. Polypropylene and ABS both do this job well.

Transparency matters for headlight covers or instrument clusters. If you need to see through the part, PMMA acrylic gives you optical clarity.

Wear resistance matters for moving parts like gear covers or window regulators. Nylon and POM survive repeated friction without wearing down.

What Are the Common Plastics Used in Car Prototypes?

Here is a breakdown of the most popular materials for automotive prototyping and exactly where they work best:

How Do You Pick the Right Material for Your Part?

A real example helps make this clear. A European automaker needed a prototype for a new dashboard design. The dashboard had to hold airbags, house climate controls, and match the interior styling exactly. The team chose ABS for three reasons.

First, ABS machines beautifully. The dashboard had complex curves and deep pockets for the instrument cluster. CNC tools cut ABS cleanly without melting or leaving rough edges. Second, ABS offers enough impact resistance for testing. Engineers pushed on the dashboard hundreds of times to check for flex near the airbag door. The ABS prototype survived 500+ push tests without cracking. Third, ABS paints easily. The team sprayed the dashboard with a textured gray coating that matched the production intent perfectly. This let executives see exactly how the final car interior would look.

How Do You Ensure the Prototype Matches the Design Exactly?

Before any cutting starts, you need perfect data. A prototype is useless if it does not match the digital design. Even a 0.5mm error can make a door panel misalign with the window frame.

Why Are 3D CAD Files the Foundation of Accuracy?

The design team provides 3D CAD files in formats like STEP or IGES. These files contain every dimension, every curve, and every hole location. Engineers import these files into CAM software, which plans how the cutting tools will move.

A recent project for a door panel prototype required a STEP file with 0.02mm tolerances. That is thinner than a human hair. Why such precision? The door panel had to fit against the car’s metal frame with a consistent gap all around. If the gap varied, wind noise would enter the cabin. The CAM software used that tight tolerance to plan tool paths that held exactly to the design.

What Role Does a Gypsum Sample Play?

Before machining expensive plastic, many teams first cut a gypsum sample. Gypsum is a plaster-like material that costs very little and cuts quickly. You run the same CAM program on a block of gypsum that you will later use on plastic. This gives you a physical model to check three things:

Shape accuracy – Does the sample match the car part’s curves? A dashboard should have smooth flowing lines without flat spots.

Curvature consistency – Are all surfaces smooth and continuous? Any bump or dip will show up on the gypsum.

Standard compliance – Does the part meet size requirements? A dashboard that is 119cm long when it should be 120cm will not fit the car.

Here is why this matters. A team prototyping a bumper cover found a 0.3mm error in the gypsum sample’s curvature near the fog light pocket. The CAD file had a small mistake. Fixing the file before cutting polypropylene saved (1,500 in wasted material and 3 days of rework. The gypsum sample paid for itself many times over.

What Manufacturing Methods Create Plastic Car Prototypes?

Three main methods dominate automotive prototyping. Each serves a different purpose based on how many parts you need, how fast you need them, and how complex the shapes are.

When Should You Use CNC Machining?

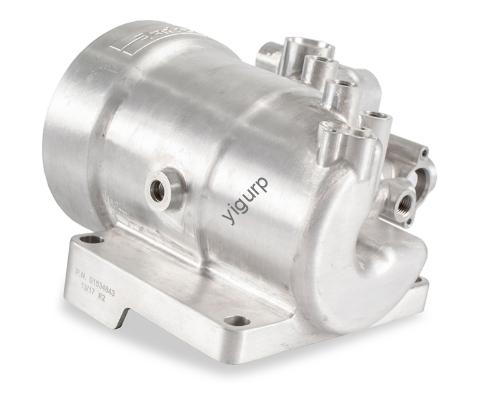

CNC machining uses computer-controlled cutting tools to carve plastic sheets or blocks into shape. Think of it like a robotic sculptor that follows digital instructions exactly.

CNC works best for high-precision parts where every millimeter counts. A dashboard with mounting brackets needs accuracy of 0.01mm to bolt up correctly. CNC delivers that precision reliably.

The process starts with a solid block of plastic. The CAM software tells the machine which tools to use and what paths to follow. Roughing tools remove most of the material quickly. Finishing tools take light passes to create smooth surfaces. For a center console prototype, CNC machining created crisp edges around the cupholders and precise holes for the shifter mechanism.

Lead time for CNC parts runs 2 to 4 days depending on size and complexity. Cost per prototype ranges from (100 to )350, with larger parts costing more.

When Does 3D Printing Make More Sense?

3D printing builds parts layer by layer from liquid resin or powder. An ultraviolet laser cures each thin layer before adding the next. This method excels at complex geometries that CNC cannot reach.

Consider a car grille prototype with a intricate mesh pattern. CNC tools cannot cut inside those tiny openings. A 3D printer builds the entire grille in one piece, mesh and all. The printer creates the grille in 1 to 2 days with no setup time.

But 3D printing has limits. Most printed resins lack the strength of machined plastics. A printed bumper would crack in impact testing. For visual prototypes or fit checks, printing works well. For functional parts that face stress, CNC is better.

Cost per printed prototype ranges from (60 to )220, making it economical for complex one-off parts.

Why Choose Silicone Molding for Small Batches?

Sometimes you need more than one prototype but not enough for production tooling. Silicone molding fills this gap perfectly.

The process starts with a master pattern, usually CNC machined from ABS. Technicians build a silicone mold around this pattern, then cut the mold open to remove the pattern. Now they have a flexible cavity that can cast multiple copies.

They pour liquid plastic into the mold, let it cure, and demold a perfect copy. One mold can produce 5 to 50 identical parts before wearing out.

A team needed 15 prototypes of a new center console design for user testing. They CNC machined one master console, created a silicone mold from it, and cast 15 copies in 4 days. This cost 40% less than machining 15 separate consoles. Every copy matched exactly, giving test users identical experiences.

Lead time for silicone molding runs 3 to 5 days for the first part, then 1 day per batch. Cost per part drops significantly as quantity increases, from (150 for one part to )40 each for 20 parts.

How Do You Refine the Prototype’s Appearance and Durability?

Fresh from the machine, a plastic prototype looks rough. Tool marks cover the surface. Sharp edges could cut someone. The color is whatever plastic you started with, not the final car color. Post-processing fixes all this.

What Steps Make the Surface Smooth?

Deburring comes first. Technicians use 400-grit sandpaper or a deburring tool to remove tool marks and soften sharp edges. For a door panel prototype, deburring the edges where hands will touch prevents scratches during testing.

For parts that need optical clarity, like a PMMA sunroof mockup, technicians sand progressively with finer grits up to 2000-grit, then polish with plastic compound. This restores the transparency that machining dulled.

How Do You Match Production Colors and Textures?

Painting transforms a raw plastic part into something that looks production-ready. Automotive-grade paints match exactly to the car’s color codes. A dashboard prototype might receive a low-gloss gray paint to reduce windshield glare. An exterior trim piece gets glossy black like the production car.

Silk screening adds labels and graphics. The “Airbag” warning on a dashboard must be readable. Brand logos on interior trim need crisp edges. Silk screening deposits ink exactly where needed.

Electroplating gives plastic a metal look. For door handle mockups, a thin chrome coating makes the prototype feel like the real part. The process deposits metal ions onto the plastic surface, creating a durable metallic finish.

What Quality Checks Confirm the Part Is Right?

Every prototype undergoes rigorous inspection before shipping.

Dimensional accuracy gets checked with a coordinate measuring machine. This device touches multiple points on the part and compares their locations to the 3D model. A dashboard that should be 120cm long must measure within ±0.03mm of that target. If it is off by more, the dashboard will not fit the car.

Appearance inspection happens under bright lights. Inspectors look for cracks, paint chips, bubbles, or uneven texture. For customer-facing parts like interior trim, appearance matters as much as fit.

How Do You Verify the Prototype Works in Real Conditions?

A prototype that looks perfect but fails when installed is worthless. Assembly testing puts the part through realistic conditions to catch problems early.

What Does Fit Testing Involve?

Technicians install the prototype with actual car components. A dashboard prototype gets bolted to the car’s frame with the real airbag module and HVAC unit attached. They check:

Fit accuracy – Does the dashboard align with the A-pillars? Are gaps consistent around the glovebox? For a center console, it must fit precisely between the seats without rocking.

Structural stability – Does the dashboard support its own weight plus any loads? Engineers place a 5kg weight on the console lid to simulate an arm resting. The prototype should not bend or creak.

What Functional Tests Simulate Real Use?

Heat testing matters for engine bay parts. A PC engine cover sits inside an oven at 120°C for 24 hours. After cooling, technicians check for warping, softening, or color change. If the cover fits the engine exactly as before, it passes.

Impact testing validates safety-related parts. A PP bumper prototype gets dropped from 1 meter onto concrete, simulating a low-speed collision. The bumper should flex and return to shape without cracking. If it shatters, the material or design needs work.

A PMMA sunroof prototype underwent both tests. First, it survived 80°C heat without deforming. Then it cycled open and closed 100+ times using the actual motor mechanism. The mechanism operated smoothly, and the glass-like panel showed no wear at the contact points. The prototype confirmed the design worked before any production tools were built.

How Do You Deliver Prototypes Safely to Customers?

Car prototypes are often large, heavy, or fragile. A PMMA sunroof can crack if dropped. A dashboard might get scratched in transit. Proper packaging prevents damage.

What Packaging Methods Protect Car Prototypes?

Foam inserts custom-cut to the part’s shape cushion against impacts. The prototype sits inside a foam cradle that holds it securely. Double-walled cardboard boxes provide rigid outer protection. For large parts like dashboards, a wooden frame adds extra support and prevents bending during shipping.

Every box gets labeled “Fragile – Plastic Car Prototype” so handlers know to treat it carefully.

How Do You Choose a Shipping Partner?

Not all carriers handle automotive parts well. Choose a provider with experience shipping large, delicate items. DHL and UPS both offer specialized services for prototypes.

For international shipments, include a “Prototype Only – No Commercial Value” label on customs forms. This prevents customs delays and unexpected duties that could hold up delivery.

What Timeline Should Customers Expect?

A simple CNC-machined door panel ships in 3 to 5 days from order. A complex 3D-printed grille takes 4 to 7 days plus 1 to 2 days for post-processing. Silicone molding adds a few days for mold making but then delivers batches quickly.

Always confirm delivery dates with the client before shipping so they know when to expect the parts.

Conclusion

The plastic car prototype model processing process transforms digital ideas into physical parts that engineers can touch, test, and refine. It starts with choosing the right material for the job—ABS for dashboards, PC for engine parts, PP for bumpers. Accurate CAD data ensures the prototype matches the design perfectly. CNC machining delivers precision for critical parts, 3D printing handles complex geometries, and silicone molding creates small batches economically. Post-processing adds production-realistic appearance through painting, silk screening, and plating. Assembly testing verifies fit and function under real conditions. Careful packaging delivers the prototype safely. Each step builds on the last, creating prototypes that help automakers catch flaws early, save development costs, and bring better cars to market faster.

Frequently Asked Questions

Q: How long does the entire plastic car prototype process take from start to finish?
A: A simple CNC-machined interior part takes 3 to 5 days. A complex 3D-printed grille takes 4 to 7 days. Adding post-processing like painting adds 1 to 2 days. Silicone molding for small batches takes 4 to 6 days total.

Q: Which plastic works best for engine bay prototypes that face high heat?
A: Polycarbonate works best. It resists heat up to 130°C and handles vibration well. It also machines cleanly for precise engine cover shapes and mounting points.

Q: Can I get a transparent plastic prototype for a headlight cover?
A: Yes, use PMMA acrylic. It transmits 92% of light and polishes to optical clarity. Machine it carefully with sharp tools and fine finishes to maintain transparency.

Q: Is 3D printing strong enough for functional car parts?
A: Not usually. Most 3D printing resins have low impact strength and will crack under stress. For functional parts, use CNC-machined ABS, PP, or PC. Reserve 3D printing for visual models and fit checks.

Q: How many prototypes can I get from silicone molding?
A: One silicone mold typically produces 5 to 50 copies before wearing out. For larger quantities, make multiple molds or switch to production tooling.

Q: What tolerances can CNC machining hold for car prototypes?
A: CNC machining holds ±0.01mm to ±0.05mm easily, depending on part size and material. Critical mounting points can achieve the tightest tolerances.

Q: How do I ensure my prototype matches the production color exactly?
A: Use automotive-grade paint matched to the car’s color code. Apply it with professional spray equipment in a clean booth. Provide a color chip from the production car for exact matching.
