Why Is Medical Device CNC Machining Vital for Healthcare?

In the modern medical field, “good enough” is never actually enough. The healthcare industry demands components that are ultra-precise, reliable, and completely biocompatible. These are standards that traditional manual machining often fails to meet. When a patient’s life depends on a heart stent or a surgical tool, there is no room for human error.

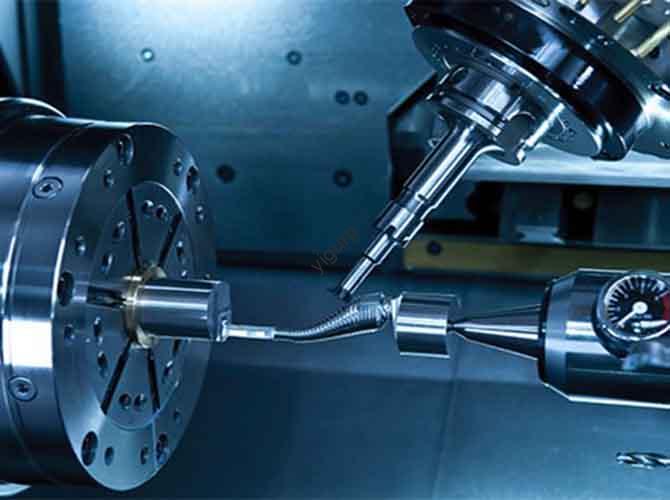

Medical Device CNC Machining solves these critical problems. By using digital control systems, manufacturers can produce parts with microscopic accuracy. This technology is now the backbone of life-saving equipment production. This guide explores the core value of CNC machining in medicine, the step-by-step process, and how to overcome common manufacturing hurdles.

1. Core Value: Why Is Precision Non-Negotiable?

Medical devices directly impact patient safety. CNC machining addresses three major pain points that traditional methods simply cannot handle.

1.1 Unmatched Precision to Avoid Errors

Medical parts, such as implant screws or surgical tips, require tolerances as tight as ±0.001mm. This margin is thinner than a single human hair. Manual milling usually tops out at ±0.01mm, which is a dangerous gap. Inconsistent tools can lead to:

• Implant Misfits: A hip replacement that does not align perfectly causes chronic pain and eventual surgery failure.
• Tool Malfunctions: A scalpel with a slightly uneven edge can cause unnecessary tissue damage during surgery.

CNC machining uses computer-controlled movements to eliminate human error. It offers a repeatability rate of 99.9%. This means every part is identical, which is vital for high-volume items like insulin pump components. For example, a cardiac stent has tiny pores only 0.1mm wide to control blood flow. CNC machining creates these uniformly, whereas traditional drilling would risk creating blood clots due to inconsistent hole sizes.

1.2 Versatility for Complex 3D Designs

Many modern medical devices have intricate shapes. Think of a knee implant that must mimic the natural curves of a human joint. Traditional machining often requires multiple assembly steps, which adds “seams” to a part. CNC machining creates one-piece parts. This reduces the risk of leakage in fluid-carrying devices like catheters or IV tubes. Furthermore, machining complex geometries in a single setup can save up to 50% of production time.

1.3 Adaptability to Medical-Grade Materials

Healthcare devices use specialized materials to ensure biocompatibility—meaning the human body won’t reject them. CNC machining is highly compatible with the following materials:

2. Step-by-Step: The Medical CNC Workflow

In this industry, cutting corners leads to non-compliant parts. You must follow a structured workflow to ensure safety and quality.

2.1 Process Design and Programming

This is your “digital blueprint.” If the code is wrong, the part is scrap.

• Analyze Drawings: Confirm the dimensional tolerances and the surface finish (often Ra ≤ 0.8μm for tissue-contact parts).
• Write CNC Code: Use CAD/CAM software to convert designs into G-code. Optimize the tool path to reduce “air cuts,” which can save 20% of your cycle time.

Case Study: A manufacturer once used a generic tool path for a 316L stainless steel surgical clamp. This inefficiency led to 15% material waste. By optimizing the G-code to account for specific material hardness, they cut waste down to 5% and improved speed by 8%.

2.2 Material Setup and Clamping

A loose part vibrates, and vibration ruins precision.

• Small Implants (≤50mm): Use a vacuum chuck. This applies even pressure and leaves no physical marks on the delicate part.
• Long Instruments: Use a vise with soft jaws. This provides a secure grip without bending the slender metal.
• Alignment: Use laser aligners to position the part within ±0.002mm of the machine’s origin point.

2.3 Machining Execution and Supervision

While the machine is automatic, a technician must monitor the “vitals.”

• Check Tool Wear: Replace tools every 200–300 parts for titanium. A dull tool creates friction, which ruins the surface smoothness.
• Monitor Temperature: Keep the material below 150°C. This is critical for plastics like PEEK, which warp easily under heat.

2.4 Post-Processing and Quality Inspection

This final stage ensures the part is ready for the operating room.

• Deburring: Use an ultrasonic cleaner to remove sharp microscopic edges. This prevents injury to both doctors and patients.
• Cleaning: Use isopropyl alcohol to remove all oils and debris. This is mandatory for sterile surgical tools.
• Inspection: Use a Coordinate Measuring Machine (CMM) to verify every dimension against the original drawing.

3. Key Applications in Modern Healthcare

CNC machining is used in almost every corner of the hospital.

• Surgical Instruments: Scalpels and hemostats need razor-sharp, precise edges that can survive repeated sterilization.
• Implantable Devices: Dental implants and cardiac stents rely on the ultra-tight ±0.001mm tolerances that only CNC can provide.
• Diagnostic Equipment: MRI coils and ultrasound probe tips use CNC-machined lightweight materials to ensure accurate imaging.
• Patient Care: Even simple items like inhaler nozzles or IV poles are produced via CNC for high-volume consistency.

4. Yigu Technology’s Perspective

At Yigu Technology, we believe Medical Device CNC Machining is more than just manufacturing; it is a lifeline for innovation. Many of our clients struggle to balance extreme precision with rising costs. Our advice is simple: prioritize material-machine matching. For example, using high-speed tools for titanium significantly reduces waste.

We are currently developing AI-driven programming tools that auto-adjust cutting parameters for medical-grade alloys. This has already helped some partners reduce error rates by 30% and save 15% on production time. As medical tech moves toward smaller, more complex implants, CNC machining will only become more essential.

5. FAQ: Answers to Common Questions

What certifications do medical CNC parts need? Global standards include FDA (U.S.), CE (EU), and ISO 13485. For implants, ISO 10993 biocompatibility testing is also mandatory. You cannot legally sell or use parts without these approvals.

Can CNC machining handle small-batch medical parts? Yes. CNC is perfect for small runs of 10–50 units. Unlike traditional molding, which requires expensive steel molds, CNC uses digital code. This makes small-batch setup 30–40% cheaper than other methods.

How long does it take to machine a single medical part? It depends on complexity. A small dental implant might take 15–20 minutes. A complex knee replacement with multiple curved surfaces can take 1.5 hours. Post-processing and cleaning usually add another 30–60 minutes per part.

Why is PEEK plastic often used in medical CNC? PEEK is incredibly strong, biocompatible, and does not interfere with MRI machines. It is an excellent alternative to metal for many internal medical applications.

How does CNC machining ensure the sterility of a part? While the machine doesn’t “sterilize,” it produces parts with high-quality surface finishes that lack deep scratches or pores where bacteria can hide. This makes the parts much easier to clean in an autoclave.
