Introduction
An electric heat thawing wrench is a specialized tool used in industrial and automotive maintenance. Its job is to gently and safely heat frozen bolts and nuts until they expand and can be loosened. The tool needs to heat up quickly and evenly, while the handle must stay cool and comfortable in your hand. Before you invest in production, you need a prototype to prove your design works. The CNC machining electric heat thawing wrench prototype process is the ideal way to create an accurate, functional model. But how do you actually conduct it? This article walks you through the entire process. We will cover the essential design steps, the core machining work, how to integrate the heating system, and how to test your prototype to ensure it is safe, efficient, and durable.
What Pre-Machining Design and Material Choices Are Needed?
A great prototype starts with a solid plan. The design and material selection stage is the foundation for everything that follows.
Analyzing Demands and Creating 3D Models
Before you start modeling, you need to be clear about what your wrench will do. This prevents costly rework later.
| Requirement Type | Key Details | Impact on CNC Machining |
|---|---|---|
| Heating Function | What is the target temperature range (e.g., 40°C to 80°C)? How fast must it heat up (e.g., reach 60°C in ≤ 5 minutes)? What heating method will you use (electric film or PTC sheet)? | This determines the size and position of the cavity for the heating element, with a tight tolerance of ±0.05mm. |
| Structural Design | What is the size of the wrench head (e.g., 50mm x 30mm for an M16 bolt)? What is the handle length for good ergonomics (e.g., 150-200mm)? What type of grip texture will it have? | This influences your toolpath planning. You need to machine the heating cavity and create anti-slip textures (about 0.2mm deep). |
| Safety Standards | The handle surface must stay cool (≤45°C) to prevent burns. The tool may need to be water-resistant (IPX4) for use in wet environments. | This requires precise machining of a thermal insulation gap (1-2mm between the hot head and the handle) and sealed cavities for the electronics. |
When modeling in software like SolidWorks, use a modular approach. Split your wrench into three core parts:
- Wrench Head: The heating zone.
- Handle: The insulation zone that you hold.
- Circuit Cavity: The space inside the handle for the temperature control electronics.
Two critical design notes:
- Always reserve a tiny bit of extra space (0.5mm) in the heating element cavity. This accounts for the slight expansion of the heating film when it gets hot.
- Design small honeycomb heat dissipation holes (3mm diameter, spaced 8mm apart) in the handle. These allow air to circulate and prevent the handle from overheating. Their positions must be accurate, within ±0.1mm.
Comparing Materials for Core Components
Material selection directly affects how well the tool heats, how long it lasts, and how easy it is to machine.
| Component | Optional Materials | Advantages | Disadvantages | Machining Recommendations |
|---|---|---|---|---|
| Wrench Head (Heating Zone) | Aluminum Alloy (6061) | Excellent thermal conductivity (167 W/m·K), lightweight. | Lower corrosion resistance. | Use carbide tools. Coolant is required to prevent burrs. |
| Stainless Steel (304) | High corrosion resistance, very strong. | Poor thermal conductivity (16 W/m·K), heavy. | Use a very slow feed speed (80-120 mm/min) to avoid breaking tools. | |
| Handle (Insulation Zone) | Engineering Plastic (PC) | Good insulation, heat resistant (up to 120°C). | Lower impact resistance. | Use high-speed steel tools. Use compressed air cooling to prevent melting. |
| Nylon 66 | Very tough, naturally anti-slip. | Lower heat resistance (≤80°C). | Finish by sanding with 800-grit paper for a smooth feel. | |
| Thermal Insulation Layer | Silicone Pad (FDA-grade) | High temperature resistance (up to 200°C), flexible. | Not a structural material. | Cut to size from a sheet; it is not machined by CNC. |
What CNC Machining Setup and Execution Is Required?
This is where your digital design starts to become a physical object. Careful setup and execution are key.

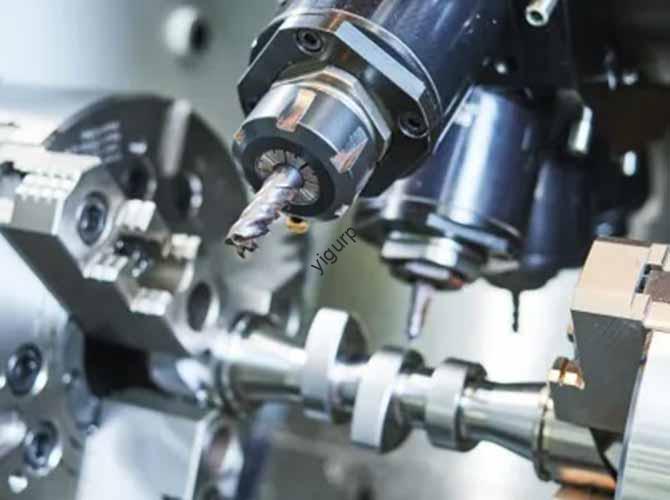

Selecting the Machine and Tools
The right machine and tools depend on the component.
| Component | Recommended Machine Type | Suitable Tools |
|---|---|---|
| Aluminum Alloy Wrench Head | Vertical Machining Center (e.g., DMG MORI) | Flat end mill (Φ8-10mm) for roughing. Ball-nose cutter (Φ3-5mm) for finishing the heating cavity. |
| Stainless Steel Wrench Head | High-Torque Machining Center | Tungsten carbide end mill (Φ6-8mm) for cutting and ensuring cavity flatness. |
| PC Handle | 3-Axis CNC Engraving Machine (e.g., 3018 Pro) | Spiral end mill (Φ4-6mm) for machining the grip texture and drilling holes for the circuit cavity. |
Setting Key Machining Parameters
Different materials need different cutting speeds and feeds.
| Material | Rotational Speed (RPM) | Feed Speed (mm/min) | Depth of Cut (mm) | Special Requirements |
|---|---|---|---|---|
| Aluminum Alloy (6061) | 8,000 – 12,000 | 150 – 250 | 1.0 – 1.5 | Use emulsion coolant. This prevents chips from building up. |
| Stainless Steel (304) | 5,000 – 8,000 | 80 – 120 | 0.5 – 1.0 | Apply cutting oil. Use very shallow cuts to avoid breaking the tool. |
| PC Plastic | 10,000 – 15,000 | 200 – 300 | 0.8 – 1.2 | Use compressed air cooling only. Never use liquid coolant, as it can damage the plastic. |
Optimizing Toolpaths and Key Precautions
- Rough Machining: For the wrench head’s heating cavity, use a zigzag toolpath. This removes material quickly and can reduce machining time by 30% compared to simple back-and-forth paths.
- Finishing the Grip: For the handle’s anti-slip texture, use a spiral toolpath. This ensures every groove is cut to a uniform depth (e.g., 0.2mm ±0.02mm), which is important for a consistent feel.
- Circuit Cavity Holes: When drilling holes for wires, use a peck drilling cycle. This means the drill pulls back frequently to clear out chips, preventing them from clogging and ensuring the hole is straight.
- Fixing & Positioning: For metal parts, use a vise with precision locating pins (tolerance ±0.01mm) to stop any vibration. For plastic sheets, use high-temperature resistant double-sided tape to hold them down without scratching.
- Precision Control: The heating cavity in the wrench head must be very flat (flatness ≤0.1mm). This ensures the heating element will have perfect contact and transfer heat efficiently.
How Do You Integrate the Heating System and Assemble the Prototype?
Machining gives you the parts. Now you need to turn them into a functional heating tool.
Installing the Heating Element
There are two common ways to install the heating element. The table below compares them.
| Solution | Installation Steps | Advantages | Disadvantages |
|---|---|---|---|
| Electric Heating Film | 1. Clean the wrench head cavity with alcohol. 2. Apply a very thin layer (0.1mm) of thermal conductive silicone grease. 3. Press the heating film firmly into place for 5 minutes. | Very fast to install, provides uniform heating. | The film itself is not very strong and can be torn. |
| PTC Heating Sheet | 1. Machine 4 small fixing holes (2mm diameter) around the cavity. 2. Apply thermal grease to the PTC sheet. 3. Secure the sheet with small M2 screws (torque very lightly, 0.2 N·m). | Very durable, maintains a stable temperature. | Heating uniformity depends on how evenly the grease is applied. |
Integrating the Temperature Control System
This system makes the tool safe and easy to use.
- Temperature Sensor: Embed an NTC thermistor in the wrench head, very close (about 1mm) to the heating element. Secure it with a dab of high-temperature glue.
- Controller: Install a small PID controller module inside the handle’s circuit cavity. Isolate it from the hot zone with a piece of the silicone pad.
- Display: If your design includes a screen, mount it on the handle, ensuring a small air gap (0.5mm) behind it for cooling.
- Wiring: Use high-temperature silicone-insulated wire. Route it through the pre-drilled holes and wrap it with fiberglass tape for extra protection.
Step-by-Step Assembly
- Install Thermal Insulation: Paste the silicone insulation pad (about 1mm thick) between the wrench head and the handle. Make sure there are no gaps, as this is what keeps the handle cool.
- Connect the Heating Element: Solder the heating film or PTC sheet to the controller wires. Test the resistance with a multimeter; it should be within the expected range (e.g., 50-100Ω). This confirms there are no short circuits.
- Assemble the Handle: Join the handle to the wrench head with small M3 screws (torque 0.3 N·m). If you need the tool to be water-resistant, add a small rubber O-ring at the joint.
- Final Checks: Make sure all wires are neatly tucked inside. If you have a display, check that it is perfectly aligned with the window in the handle.
What Testing and Optimization Steps Prove the Prototype?
Key Test Items and Standards
| Test Category | Test Method | Pass Standard |
|---|---|---|
| Heating Performance | Set the controller to 60°C. Use an infrared thermometer to measure the temperature at 5 points on the wrench head. | The temperature difference between points should be ≤ ±3°C. It should reach 60°C in ≤ 5 minutes. |
| Temperature Control | Set the controller to 70°C and monitor the actual temperature with a data logger for 1 hour. | Temperature fluctuation should be ≤ ±1°C. The system should automatically shut down if it exceeds 80°C. |
| Safety | 1. Measure the handle temperature after 1 hour of continuous operation. 2. Conduct an IPX4 water splash test (simulating rain). | Handle temperature ≤ 45°C. No short circuits or malfunctions after water splashing. |
| Durability | Simulate 500 heating and cooling cycles (heat to 60°C, then let it cool to room temperature). | No screws should loosen. The heating performance should remain unchanged. |
Optimization Directions
- Heating Uniformity: If the temperature difference across the head is more than 3°C, you may need to re-apply the thermal grease, ensuring it covers the entire surface evenly. You might also need to adjust the position of the heating film.
- Handle Comfort: If the grip texture feels too rough, you can lightly sand it with 1000-grit paper. If it feels too smooth and slippery, you may need to re-machine the grooves a little deeper (e.g., from 0.2mm to 0.3mm).
- Weight Reduction: If the tool feels too heavy, you can machine a few small lightening holes (e.g., 6mm diameter) in non-critical areas of the handle. This can reduce weight by about 15% without affecting strength.
Conclusion
Conducting a successful CNC machining electric heat thawing wrench prototype is a process that focuses on thermal management and user safety. It starts with a design that separates the hot head from the cool handle using a thermal insulation layer and includes features like heat dissipation holes. You select materials like aluminum alloy for its excellent heat transfer in the head, and PC plastic for its insulating properties in the handle. The CNC process then precisely machines the heating cavity with tight flatness tolerances (≤0.1mm) to ensure perfect contact with the heating element. Careful integration of the heating system, followed by rigorous testing for heating speed, temperature control, and handle temperature, proves your design. This entire process allows you to identify and fix issues long before mass production, ensuring the final tool is safe, efficient, and ready for tough jobs.
FAQ
What CNC machine is best for machining the aluminum alloy wrench head’s heating cavity?
A vertical machining center (like a DMG MORI) is ideal. These machines are rigid and precise (down to ±0.005mm), which is necessary to machine the heating cavity to the required flatness (≤0.1mm). This flatness is critical for ensuring the heating element makes full contact for efficient heat transfer.
How to prevent the PC handle from warping during CNC machining?
Warping is caused by heat buildup. To prevent it, use high rotational speeds (10,000-15,000 RPM) combined with moderate feed speeds (200-300 mm/min) . Most importantly, use a constant stream of compressed air directed at the cutting area. This cools the plastic instantly and prevents localized melting or warping.
Why is thermal conductive silicone grease necessary between the heating element and wrench head?
On a microscopic level, even a machined surface has tiny hills and valleys. If you pressed two metal surfaces together, only the high points would touch, leaving air gaps. Air is a poor conductor of heat. The thermal grease fills all these microscopic gaps, creating a continuous path for heat to flow from the heating element into the wrench head. Without it, heating would be slow and uneven.
