Essential Precautions for High-Quality Plastic Injection Molded Parts: What Must You Get Right?

Introduction

Plastic injection molding is a remarkable process. It can produce thousands of complex parts quickly and consistently. But achieving high quality every time is not automatic. It requires careful attention to detail at every single step. A mistake in material choice, a small oversight in design, or a wrong machine setting can lead to defects, delays, and wasted money. This guide walks you through the essential precautions for each stage of producing high-quality plastic injection molded parts. From the initial material selection to the final finishing touches, we will cover what you need to watch out for, why it matters, and how to get it right. Real-world examples and practical checklists will help you avoid common pitfalls and ensure your parts meet the highest standards.

Material Selection: What Precautions Should You Take First?

The material you choose is the foundation of your part. If you start with the wrong material, nothing else you do later can fully fix it. Here are the critical precautions to take when selecting a resin.

Match the Resin to the Part’s Job

You cannot pick a plastic based on cost alone. You must match its properties to what the part will experience.

• Consider the mechanical loads. Will the part be dropped? Does it need to hold a weight? For high-impact parts like tool housings, ABS or PC are good choices. For flexible parts like living hinges, polypropylene (PP) is often the answer.
• Consider the thermal environment. Will the part get hot? A car dashboard needs a material like PC-ABS that can handle heat. A part near an engine might need a high-performance plastic like PEEK.
• Consider chemical exposure. Will the part touch oils, solvents, or cleaning agents? HDPE and Nylon (PA) offer good chemical resistance for different substances.

Check the Material’s Processing Needs

A material might have perfect final properties but be difficult to mold. This can lead to defects.

• Moisture absorption is a hidden danger. Materials like Nylon (PA) and PC are hygroscopic. They absorb moisture from the air. If you do not dry them properly before molding, that moisture turns to steam in the barrel. This creates bubbles, splay marks, and weak parts. The precaution is simple: always dry these materials according to the supplier’s data sheet.
• Melt flow index (MFI) matters. This tells you how easily the plastic flows when molten. A material with a very low MFI (thick, viscous flow) might be hard to push through thin walls. A material with a very high MFI might be too runny and cause flash.

Be Careful with Recycled Content

Using recycled plastic is great for the environment and can lower costs. But it comes with a risk.

• Recycled material properties can be inconsistent. You do not always know the exact history of the plastic. It might have degraded from previous processing.
• The precaution: Limit the percentage of recycled content, especially for critical parts. A common practice is to use a blend of 70-80% virgin material with 20-30% recycled content. Test the blend thoroughly before full production.

Design for Manufacturing: What Design Rules Prevent Defects?

A smart design makes molding easy. A problematic design makes defects almost certain. These precautions during the design phase save enormous trouble later.

Keep Wall Thickness Uniform

This is one of the most important rules in plastic part design.

• Why it matters: Plastic shrinks as it cools. If one area of your part is thick and another is thin, they will cool and shrink at different rates. This creates internal stress, which leads to warping and sink marks.
• The precaution: Aim for a single, consistent wall thickness throughout the part. If you must change thickness, make the transition gradual with a taper, not a sudden step. A good rule of thumb is to keep the transition slope at 3:1 (length to change in thickness).

Always Add Draft Angles

• Why it matters: As the plastic cools, it shrinks slightly onto the mold core. Without a small angle, or draft, on the vertical walls, the part will be very difficult to eject. It might get stuck, or the ejector pins might push through and damage it.
• The precaution: Add a draft angle of 1 to 3 degrees to all surfaces parallel to the mold opening direction. A general rule is 1 degree per 25mm of depth. More texture on the part surface requires more draft.

Design Ribs and Bosses Correctly

These features add strength and provide assembly points, but they are common sources of defects.

• Ribs: Use ribs to add stiffness instead of making the whole wall thicker. The rib’s base should be 50-70% of the nominal wall thickness. If the rib is too thick, it will create a sink mark on the opposite side of the part.
• Bosses: These are used for screw holes. They are another common spot for sink marks. The wall thickness around the screw hole should not be more than 60% of the nominal wall thickness. It is often better to design the boss as a hollow cylinder supported by small ribs.

Plan the Parting Line and Gate Location

These decisions are made by the mold maker, but you must understand their impact.

• Parting line: This is the seam where the two mold halves meet. It will always be visible, even if just a faint line. The precaution: Design your part so the parting line falls on a hidden edge or a natural break line, not on a prominent cosmetic surface.
• Gate location: The gate is where the plastic enters the cavity. Its location affects everything from flow patterns to weld lines. The precaution: Work with your mold engineer to place the gate in a thick section, away from cosmetic surfaces and areas of high stress. Mold flow analysis software can help predict the best location.

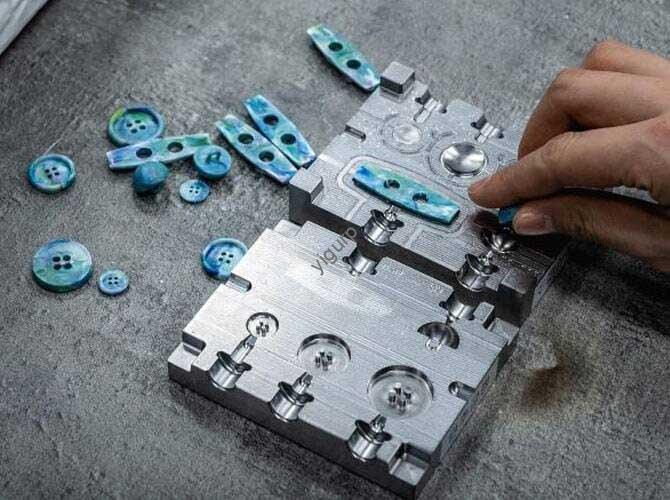

Mold Maintenance: What Precautions Keep the Tool in Top Shape?

The mold is a precision tool worth thousands or even tens of thousands of dollars. Treating it poorly guarantees poor parts.

Clean the Mold Regularly

• Why it matters: Plastic residues and gases can build up in the mold cavity and on the vents. This build-up acts like an insulator, slowing cooling. It can also block the tiny exhaust channels, trapping air and causing burn marks.
• The precaution: Implement a cleaning schedule. After every production run, or every 8-12 hours during a long run, open the mold and clean the cavity surfaces with a soft cloth and a proper mold cleaner. Never use hard or sharp tools that could scratch the steel.

Check and Lubricate Moving Parts

• Why it matters: Ejector pins, slides, and cores are constantly moving. If they become dry or dirty, they can stick, bind, or wear down. A worn ejector pin can leave a raised mark on your part. A stuck slide can crash and destroy the mold.
• The precaution: Lubricate ejector pins and moving components daily with high-temperature grease. Inspect them for signs of wear or damage.

Monitor the Cooling System

• Why it matters: The mold uses water channels to control its temperature. If these channels get clogged with scale or debris, cooling becomes uneven. Uneven cooling is a primary cause of warping.
• The precaution: Periodically check the flow rate and temperature of the water entering and leaving the mold. A significant drop in flow indicates a blockage. Use a water treatment system and flush the channels regularly.

Schedule Regular Inspections

Do not wait for a problem to happen.

Processing Parameters: What Machine Settings Need Precise Control?

The best mold and material will fail if the machine is not set up correctly. These are the key parameters to watch.

Temperature Control Is Critical

• Melt temperature: If the melt is too cold, it won’t flow well, leading to short shots and flow lines. If it is too hot, the material can degrade, causing burn marks and weak parts. Always follow the resin supplier’s recommended temperature range.
• Mold temperature: This controls how fast the part cools. A mold that is too cold can cause premature freezing and flow lines. A mold that is too hot increases cycle time and can cause sink marks. Use a mold temperature controller to maintain a consistent temperature, usually within +/- 5°C.

Get Pressure and Speed Right

• Injection speed: This is how fast the screw pushes plastic into the mold. Too slow, and the part may not fill. Too fast, and you can get jetting (snake-like flow marks) or trap air, causing burn marks.
• Injection pressure: This is the force used to push the plastic. It must be high enough to fill the cavity, especially the last 5-10%.
• Holding pressure: After the mold is 95-99% full, the machine switches to holding pressure. This packs more plastic into the cavity to compensate for shrinkage as the part cools. Without enough holding pressure, you get sink marks.

Manage the Cooling Time Precisely

The part must stay in the mold long enough to become solid enough for ejection. If ejected too early, it will warp. The required cooling time depends on the material and the part’s thickest wall section. A good rule is that cooling time makes up about 50-80% of the total cycle time.

Quality Control: What Checks Ensure Consistent Quality?

You cannot inspect quality into a part; you have to build it in. But you also need a system to catch problems before they become a flood of scrap.

First Article Inspection (FAI)

This is the most important check. Before full production begins, take the first few parts from the mold and measure every critical dimension. Compare them to the CAD model and the engineering drawing. This verifies that the mold was made correctly and that the process settings are basically right.

In-Process Checks

Once production is running, you need a schedule for ongoing checks.

• Dimensional checks: Use calipers, micrometers, or a CMM to check key dimensions. A typical plan is to check 5 parts per hour at the start of a run, and then 2 parts per hour once the process is stable.
• Visual inspection: Check every part, or a high sample rate, for surface defects like sink marks, flow lines, flash, and burn marks. Train operators on what is acceptable and what is not.
• Functional testing: If the part has a specific function, like a snap fit or a hinge, test it periodically to ensure it works correctly.

Document Everything

Keep a log of all machine settings and inspection results. If a defect suddenly appears, this log helps you trace what changed. It might be a temperature drift, a different batch of material, or something else.

Post-Processing: What Final Steps Need Care?

Even after the part is molded, there are steps that require caution.

Deburring and Deflashing

If there is minor flash on the part, it needs to be removed.

• The precaution: Use the correct tools. For delicate parts, use a fine deburring tool or cryogenic deflashing. Be careful not to gouge or deform the part. For high-volume parts, this operation should be automated.

Assembly

If your part is assembled with others, like in ultrasonic welding or snap-fitting:

• The precaution: Ensure the parts are clean and dry before assembly. For ultrasonic welding, control the time, pressure, and amplitude precisely to create a strong bond without damaging the parts.

Surface Finishing

If the part is painted, plated, or printed on:

• The precaution: Clean the surface thoroughly to remove any mold release agents or oils. The surface may also need a pretreatment, like a flame treatment for polypropylene, to help the paint or ink adhere properly.

Conclusion

Producing high-quality plastic injection molded parts is a process of careful control and attention to detail. It starts with the right material selection, ensuring the resin’s properties match the part’s needs. It continues with smart design for manufacturing, following rules for wall thickness, draft, and rib design to prevent defects. It relies on diligent mold maintenance to keep the precision tool in perfect condition. It demands precise control of processing parameters like temperature, pressure, and cooling time. And it finishes with thorough quality control and careful post-processing. By taking these essential precautions at every stage, you can avoid costly mistakes, reduce scrap, and consistently deliver parts that meet the highest standards of quality and performance.

Frequently Asked Questions

1. What is the most common cause of injection molding defects?
   While it varies, a very common cause is inconsistent processing parameters, especially temperature and pressure variations. However, many persistent defects can be traced back to the part design, such as non-uniform wall thickness leading to warpage and sink marks.
2. How important is drying the plastic before molding?
   For many materials, it is absolutely critical. Hygroscopic resins like Nylon (PA), Polycarbonate (PC), and PET will absorb moisture from the air. If this moisture is not removed by drying, it turns to steam in the hot barrel, causing bubbles, splay marks (silver streaks), and a loss of mechanical properties. Always follow the resin supplier’s drying recommendations.
3. What is a safe draft angle for my part?
   A good general rule is 1 to 2 degrees per side. For textured surfaces, you need more draft, sometimes as much as 3 to 5 degrees. The deeper the texture, the more draft you need to allow the part to release from the mold without being scratched.
4. How can I reduce the cost of my injection molded parts?
   The biggest cost driver is often the part design. You can reduce costs by: simplifying the part (fewer undercuts), designing for uniform wall thickness (faster cooling), and using standard, readily available materials. Also, working with your molder on a DFM review early can identify cost-saving changes before the mold is made.
5. What should I do if my parts are warping after ejection?
   First, ensure the part is staying in the mold long enough to cool completely. If it is ejected too warm, it will warp. Next, check that the mold temperature is uniform across the part. If one area is warmer, it will cool slower and cause stress. Finally, review the part design for uniform wall thickness and consider adding ribs for stiffness.
