Our Fused Deposition Modeling (FDM) Services
Unlock fast, cost-effective, and flexible 3D printing with Fused Deposition Modeling (FDM)—the backbone of modern additive manufacturing processes. Whether you need custom prototypes, end-use parts, or scalable production, our in-house FDM services combine expert technical skills, diverse material options (from PLA to high-performance composites), and strict tolerance control to turn your ideas into reality. Trust Yigu Technology for reliable FDM solutions that meet industry demands across automotive, medical, and aerospace sectors.
What Is Fused Deposition Modeling (FDM)?

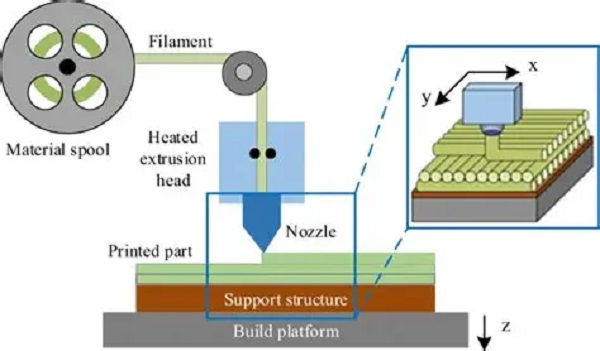

Fused Deposition Modeling (FDM) is a leading 3D printing technology and additive manufacturing process that builds parts layer by layer. The core FDM principle (or FDM mechanism) involves melting thermoplastic filaments and extruding them through a nozzle, which deposits the material onto a build platform following a pre-programmed path. Over time, these layers bond to form a solid, three-dimensional object.
At its heart, the FDM concept is simple yet powerful: it transforms digital designs into physical parts without the need for molds or tooling, making it ideal for rapid iteration and low-to-medium volume production. Unlike other 3D printing methods, FDM stands out for its accessibility, material variety, and ability to create large or complex geometries—all at a lower cost.
Our FDM Capabilities & Service Offerings
At Yigu Technology, we leverage decades of FDM expertise to deliver tailored solutions that align with your project goals. Our FDM printing capabilities cover everything from prototyping to end-use manufacturing, supported by in-house resources that ensure speed, quality, and consistency.
| Capability Area | Key Offerings | Technical Strengths |
| Custom Solutions | Custom FDM solutions for unique part designs (e.g., automotive brackets, medical devices) | Ability to adapt to complex geometries and tight deadlines |
| In-House Services | On-site FDM printing, design consultation, and post-processing | Reduced lead times (3–7 business days for standard orders) and quality oversight |
| Capacity | 24/7 production with 15+ industrial FDM machines | Monthly output of 5,000+ parts (varies by size and complexity) |
| Technical Skills | Toolpath optimization, material selection guidance, and tolerance calibration | Team of 8+ certified FDM engineers with 5+ years of industry experience |
Our FDM service offerings don’t end at printing—we also provide pre-production design reviews and post-processing support to ensure your parts meet your exact specifications.
The FDM Printing Process: Step-by-Step Workflow
The FDM printing process follows a structured, repeatable workflow that ensures consistency across every part. Below is a breakdown of the key FDM production steps (or FDM build process):
- Design Preparation: Convert a 3D CAD model into a printable file (STL format) and use slicing software to define parameters like layer height, infill density, and print speed. This step is critical for optimizing FDM toolpath and ensuring part strength.
- Machine Setup: Load the chosen FDM filament (e.g., PLA, ABS) into the printer, calibrate the nozzle height and build platform, and preheat the system to the filament’s melting temperature.
- Layer-by-Layer Printing: The printer’s nozzle moves horizontally while extruding melted filament, depositing one layer at a time. Each layer cools and bonds to the one below it—this FDM layer-by-layer process is what gives FDM its Iconic flexibility.
- Post-Processing: Once printing is complete, remove the part from the build platform and perform FDM post-processing (e.g., sanding, painting) to enhance its surface finish and functionality.
This FDM operation process (or FDM manufacturing procedure) is highly automated, reducing human error and making it easy to scale production.
FDM Materials: Options, Properties, and Uses
Choosing the right FDM materials is key to achieving optimal part performance. FDM filaments range from common thermoplastics to high-strength composites, each with unique properties suited for specific applications.
| Material | Key Properties | Typical Applications |
| PLA (Polylactic Acid) | Biodegradable, low melting point (180–220°C), easy to print | Prototypes, consumer products (e.g., toys, household items), educational models |
| ABS (Acrylonitrile Butadiene Styrene) | High impact resistance, heat-resistant (80–100°C), durable | Automotive parts (e.g., interior trim), electronic enclosures, tool handles |
| PETG (Polyethylene Terephthalate Glycol) | Transparent, chemical-resistant, strong | Food-safe containers, display cases, mechanical parts (e.g., gears) |
| TPU (Thermoplastic Polyurethane) | Flexible, elastic, resistant to oil and grease | Gaskets, seals, phone cases, medical devices (e.g., prosthetic components) |
| Nylon | High tensile strength, wear-resistant, lightweight | Aerospace parts (e.g., brackets), industrial components (e.g., bearings) |
| Composite materials for FDM (e.g., carbon fiber-reinforced PLA) | Extra strength, stiffness, and heat resistance | High-performance parts (e.g., drone frames, racing components) |
Understanding FDM material properties (e.g., strength, temperature resistance, flexibility) helps us match your project to the best filament—ensuring your parts perform as intended.
FDM Surface Treatment: Enhancing Finish and Function
While FDM parts are functional right off the printer, FDM surface finishing (a key part of FDM post-processing) can improve their appearance, durability, and usability. Common FDM surface treatment techniques include:
- Sanding FDM prints: Using fine-grit sandpaper (200–800 grit) to smooth layer lines. This is ideal for parts where a matte finish is desired (e.g., prototypes, decorative items).
- Painting FDM parts: Applying acrylic or spray paint to add color or protect the surface. Priming the part first helps the paint adhere better and hides remaining layer lines.
- Coating FDM surfaces: Using epoxy resin or polyurethane coatings to create a glossy, waterproof finish. This is useful for parts exposed to moisture (e.g., outdoor fixtures).
- Polishing FDM models: Using compounds (e.g., rubbing alcohol for PLA) or heat guns (carefully!) to melt and smooth the surface. This technique works best for small, detailed parts.
Our team specializes in FDM surface enhancement—we’ll recommend the right method based on your material choice and end-use requirements.
FDM Tolerances: Ensuring Accuracy and Precision
FDM tolerances (or FDM dimensional tolerances) refer to the acceptable variation between a part’s designed dimensions and its actual printed dimensions. For most industrial applications, tight tolerance control is critical to ensure parts fit and function correctly.
At Yigu Technology, we adhere to strict FDM tolerance specifications to deliver high-quality results. Below are typical FDM tolerance limits for common materials:
| Material | Standard Tolerance (±) | Tight Tolerance (±) | FDM Accuracy Notes |
| PLA | 0.1–0.3 mm | 0.05–0.1 mm | Best for non-load-bearing parts; minimal warping |
| ABS | 0.2–0.4 mm | 0.1–0.2 mm | May require heated enclosures to reduce warping |
| PETG | 0.15–0.35 mm | 0.08–0.15 mm | Balances accuracy and flexibility |
| Nylon | 0.2–0.4 mm | 0.1–0.2 mm | Absorbs moisture, so pre-drying filaments is critical |
FDM precision is influenced by factors like machine calibration, layer height, and filament quality. Our engineers perform regular FDM machine calibration to maintain consistent accuracy—ensuring your parts meet even the most demanding specs.
Key Advantages of Fused Deposition Modeling (FDM)
FDM remains a top choice for 3D printing because of its unique advantages and benefits of FDM:
- Cost-effective FDM: No expensive molds or tooling required, making it ideal for small-batch production and prototyping. Compared to traditional manufacturing (e.g., injection molding), FDM can reduce upfront costs by 50–70%.
- Rapid prototyping with FDM: Turn digital designs into physical parts in hours (not weeks), accelerating product development cycles. This is especially valuable for testing and iterating on new ideas.
- FDM ease of use: Industrial FDM machines are user-friendly, with intuitive software that simplifies setup and monitoring. Even complex parts can be printed with minimal operator intervention.
- FDM material variety: As highlighted earlier, FDM supports a wide range of filaments—from biodegradable PLA to high-performance composites. This flexibility lets you match materials to your part’s needs.
- FDM sustainability: Many FDM filaments (e.g., PLA) are made from renewable resources, and leftover material can be recycled into new filaments. This reduces waste compared to subtractive manufacturing methods.
FDM accessibility: FDM machines are widely available at different price points, and the technology is well-documented—making it easy to integrate into existing workflows.
FDM Applications Across Industries
FDM applications span nearly every sector, thanks to its versatility, cost-effectiveness, and material flexibility. Below are key use cases in major industries:
- FDM in manufacturing: Production of jigs, fixtures, and custom tooling that speed up assembly lines. For example, a car manufacturer might use FDM to print lightweight, durable fixtures for holding parts during welding.
- FDM in automotive: Prototyping of interior components (e.g., dashboard knobs) and end-use parts like sensor housings. FDM’s ability to print with heat-resistant materials (e.g., ABS) makes it ideal for under-hood parts.
- FDM in aerospace: Creation of lightweight, high-strength parts (e.g., brackets, cable organizers) using composite materials. FDM reduces part weight by up to 30%, improving fuel efficiency for aircraft.
- FDM in medical: Production of custom medical devices (e.g., orthopedic insoles, surgical guides) and patient-specific models for pre-surgery planning. Biodegradable PLA is often used for temporary implants.
- FDM in consumer products: Manufacturing of personalized items like phone cases, jewelry, and home decor. FDM’s low cost lets brands offer custom designs without high price tags.
- FDM in education: Hands-on 3D printing projects for students, from engineering prototypes to art models. FDM teaches design thinking and manufacturing principles in a tangible way.
- FDM in architecture: Creation of detailed scale models of buildings and urban plans. FDM lets architects test spatial relationships and present ideas to clients more effectively.
FDM in electronics: Printing of custom enclosures for sensors, routers, and other electronic devices. Materials like PETG provide chemical resistance to protect sensitive components.
Advanced FDM Manufacturing Techniques
To maximize part quality and efficiency, we use cutting-edge FDM manufacturing techniques and FDM 3D printing techniques:
- FDM toolpath optimization: Using software to adjust the nozzle’s path, reducing print time by up to 20% while maintaining part strength. For example, we use “spiral vase mode” for hollow parts to eliminate layer seams.
- FDM print settings customization: Tuning parameters like layer height (0.1–0.3 mm), infill density (10–100%), and print speed (30–100 mm/s) to balance speed and quality. Higher infill density (e.g., 80–100%) is used for load-bearing parts.
- FDM machine calibration: Regularly adjusting nozzle height, extruder flow rate, and build platform level to ensure consistent layer adhesion and dimensional accuracy. We calibrate our machines daily for optimal performance.
- Support structure optimization: Using soluble supports (e.g., PVA) for complex parts with overhangs, eliminating the need for manual support removal and reducing post-processing time.
FDM Case Studies: Real-World Success
Our FDM case studies demonstrate how we’ve helped clients solve complex challenges and achieve their goals. Here are two examples:
Case Study 1: Automotive Prototyping for a Global Brand
A leading automotive company needed to prototype a new dashboard component quickly to test fit and functionality. Using FDM in manufacturing, we printed 10 ABS prototypes in 5 days (compared to 4 weeks with traditional methods). The parts met tight FDM tolerances (±0.2 mm) and were used to identify design flaws early—saving the client $50,000 in rework costs.
Case Study 2: Medical Device Production for a Local Clinic
A small medical clinic required custom surgical guides for orthopedic procedures. We used TPU (a flexible FDM material) to print 20 guides, each tailored to a patient’s anatomy. The guides improved surgical precision and reduced operation time by 30%. Post-processing (including sanding FDM prints and coating FDM surfaces) ensured the parts were sterile and durable.
These successful FDM projects highlight our ability to deliver FDM application examples that drive value for clients across industries.
Why Choose Our FDM Services?
When you partner with Yigu Technology for FDM services, you get more than just 3D printing—you get a reliable partner committed to your success. Here are the top reasons to choose our FDM services:
- Our FDM advantages: Decades of expertise, state-of-the-art machines, and a focus on quality control. We meet ISO 9001 standards for manufacturing, ensuring consistent results.
- Unique FDM offerings: Custom design support, rapid turnaround times (3–7 days for standard orders), and end-to-end post-processing. We also offer material testing to help you select the best filament for your project.
- Quality FDM solutions: Strict FDM tolerance control, regular machine calibration, and thorough quality checks for every part. We guarantee your parts will meet your specifications—or we’ll reprint them for free.
- Reliable FDM partners: A dedicated account manager who will guide you through every step of the process, from design to delivery. We’re available 24/7 to answer questions and address concerns.
FDM customer satisfaction: 98% of our clients report being “very satisfied” with our services, and 85% return for future projects. Our FDM value proposition is simple: deliver high-quality parts on time and within budget.
