Our Engineering Plastics Injection Molding Services
Unlock the full potential of your products with our premium engineering-plastics injection molding services. We specialize in high-performance polymer molding for automotive, medical, aerospace, and electronics—delivering precision technical thermoplastics molding with multi-shot capability, clean-room standards, and global supply reliability. Partner with experts in engineering resin injection to turn complex designs into durable, high-strength components that outperform traditional materials.
What Is Engineering Plastics Injection Molding?
Engineering-plastics injection molding is a specialized manufacturing process focused on creating high-performance, load-bearing parts using advanced thermoplastics—known as engineering plastics. Unlike commodity plastics (e.g., polyethylene), these technical thermoplastics molding materials offer superior mechanical, thermal, and chemical properties, making them ideal for structural and critical applications.
At its core, engineering resin injection transforms raw polymer pellets (often reinforced with fibers or additives) into precision parts via high-pressure injection into custom molds. Our advanced polymer service simplifies this technology for clients: we explain how structural plastic molding differs from standard injection molding—emphasizing its focus on dimensional accuracy, thermal stability, and long-term performance in harsh environments (e.g., automotive under-hood heat or medical sterilization).
Key terms in engineering-grade injection include:
- Technical Thermoplastics: Polymers designed for high-performance (e.g., PA, PC, PEEK) rather than basic uses.
- Structural Molding: Creating parts that bear loads, resist stress, or function in critical systems.
Precision Engineering: Achieving tight tolerances (down to ±0.05 mm) for fit-and-function reliability.
Our Engineering Plastics Molding Capabilities
We offer a comprehensive range of engineering-plastics injection molding capabilities to meet the demands of diverse industries—from micro-components to large structural parts. Below is a detailed breakdown of our core strengths:
| Capability | Key Features | Typical Applications |
| Multi-Shot Engineering Molding | 2–4 shot cycles; bonds different materials (e.g., PC + TPE); reduces assembly steps by 40% | Power-tool grips, automotive interior trims, consumer electronics casings |
| Insert/Over-Molding Technical Resins | Integrates metal inserts (threads, pins) or over-molds soft-touch materials; enhances functionality | Electrical connectors, medical device handles, industrial gear hubs |
| High-Tolerance Molding | Achieves ±0.02–0.05 mm tolerance; supported by in-line laser measurement | LCP 5G connectors, POM precision gears, aerospace sensor housings |
| Clean-Room Molding | Class 8 (100,000) clean rooms; ISO 13485 compliant; particle-free processing | Medical devices (dialysis components, surgical tools), pharmaceutical packaging |
| Micro Molding Engineering | Produces parts as small as 0.1 mm; maintains precision at micro-scale | Miniature sensors, micro-electrical contacts, hearing aid components |
| Large-Part Engineering Molding | Molds parts up to 2 meters in length; uses 1,000+ ton presses | Automotive radiator tanks, industrial pump housings, lighting fixtures |
| Gas-Assist Molding | Injects nitrogen gas to create hollow sections; reduces material use by 25% | Large structural parts (automotive door panels), thick-walled components |
| Global Engineering Supply | Warehouses in 6 regions (NA, EU, APAC, MEA, SA, Oceania); 2–5 day delivery | Multi-national automotive/electronics brands, global medical device firms |
Our in-mold assembly further streamlines production—combining multiple parts into one during molding to cut lead times and costs.

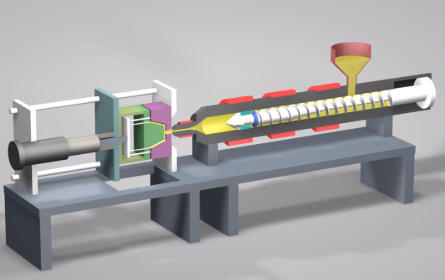

The Engineering Plastics Injection Molding Process
The engineering plastic injection cycle is a precise, data-driven sequence optimized for high-performance materials. Below is a step-by-step overview, with critical parameters that ensure part quality:
Step 1: Material Preparation
We start with high-grade engineering resins (e.g., PA 66, PEEK) that undergo drying engineering resins (8–24 hours at 80–120°C) to remove moisture—critical for avoiding defects like bubbles in hygroscopic materials (e.g., PC, PA).
Step 2: Injection
Resin is melted and injected into the mold using:
- High-Pressure Molding: 1,500–3,000 bar pressure (vs. 500–1,000 bar for commodity plastics) to fill complex cavities.
- Hot-Runner System: Maintains resin temperature (180–400°C, depending on material) for consistent flow; reduces waste by 30% vs. cold runners.
- Sequential Valve Gating: Controls flow into multiple cavities; ensures uniform filling for large or multi-cavity parts.
Step 3: Processing & Monitoring
We use scientific molding process principles to optimize every stage:
- Cavity Pressure Monitoring: Real-time sensors track pressure (±0.1 bar accuracy) to detect variations and reduce defects (99.7% defect-free rate).
- Fiber-Orientation Control: Adjusts injection speed to align glass/carbon fibers; enhances part strength by up to 20%.
- Residence Time Control: Limits resin exposure to heat (3–5 minutes) to prevent degradation (critical for high-temperature resins like PEEK).
Step 4: Cooling & Demolding
Molds are cooled to 40–80°C (material-dependent) to ensure low-warpage molding—critical for parts requiring tight dimensional stability (e.g., automotive sensors). Demolding uses robotic arms for precision, especially in clean-room environments.
Engineering Plastics Materials: Options for Every Application
The right engineering resin injection material is key to performance. We offer a full range of high-performance polymers, each tailored to specific industry needs:
| Material Type | Key Properties | Typical Grades | Ideal Applications |
| Nylon (PA) | High tensile strength (60–90 MPa); impact-resistant; heat-resistant (up to 150°C) | PA 6, PA 66, PA 46, PA 12; glass-filled (30–50%) | Automotive radiator tanks, industrial gears, electrical connectors |
| Polycarbonate (PC) | Transparent (90% light transmission); shatter-resistant; heat-resistant (up to 130°C) | Unfilled, PC+ABS blends | Headlamp bezels, lighting optics, consumer electronics casings |
| Acetal (POM) | Low friction (0.2 coefficient); high rigidity; dimensionally stable | Homopolymer, copolymer | Precision gears, fluid-handling components, door locks |
| Polyphenylene Sulfide (PPS) | Extreme heat resistance (up to 200°C); chemical-resistant; flame-retardant | Unfilled, glass-filled (40%) | Automotive thermostat housings, electrical switchgear, industrial pumps |
| PEEK/PEK | Ultra-high heat resistance (up to 260°C); biocompatible; chemical-resistant | 10–30% carbon-fiber reinforced | Medical implants, aerospace components, high-temperature sensors |
| LCP (Liquid Crystal Polymer) | High flow; ultra-low warpage; heat-resistant (up to 300°C) | Unfilled, glass-reinforced | 5G connectors (0.2 mm pitch), micro-electronics, optical components |
| PSU/PES/PEI | Sterilizable; chemical-resistant; heat-resistant (up to 180°C) | Medical-grade, food-contact | Dialysis manifolds, pharmaceutical equipment, food-processing parts |
All materials meet global standards: ISO 10993 (medical), IATF 16949 (automotive), and FDA 21 CFR 177 (food-contact).
Surface Treatment for Engineering Plastic Parts
Surface treatments enhance both functionality and aesthetics of engineered plastic parts. Our options are tailored to industry requirements:
| Treatment Type | Key Features | Benefits | Target Industries |
| Engineering Plastic Painting | UV-curable or solvent-based paints; 50+ color options | Scratch-resistant (3H pencil hardness); chemical-resistant | Automotive, consumer electronics |
| Pad-Printing Technical Resins | High-resolution (up to 600 DPI); adheres to low-surface-energy plastics (e.g., POM) | Durable branding/logos; withstands heat/vibration | Power tools, medical devices |
| Laser-Etching Engineering | Permanent, precise marks (0.1 mm line width); no ink required | Tamper-proof; FDA-compliant for medical parts | Electronics, medical, aerospace |
| EMI Shielding Coating | Nickel, copper, or graphite-based coatings; 30–60 dB shielding effectiveness | Blocks electromagnetic interference; critical for 5G/electronics | 5G antenna parts, electrical enclosures |
| Plasma Treatment | Improves adhesion of paints/inks; no chemical solvents | Eco-friendly; enhances bond strength by 50% | All industries (pre-treatment for coating) |
| Metallization PVD | Thin, durable metal layers (aluminum, chrome); mirror-like finish | Aesthetic appeal; corrosion-resistant | Consumer electronics, automotive trim |
Key Advantages of Engineering Plastics Injection Molding
Engineering-plastics injection molding offers unmatched benefits over traditional materials (metal, commodity plastics) and processes. Here’s how it delivers value:
| Advantage | Performance Metric | Why It Matters |
| High Strength-to-Weight | 50–70% lighter than steel; same strength (e.g., PA66+GF50 = 150 MPa tensile strength) | Reduces fuel consumption (automotive) or device weight (aerospace/medical) |
| Thermal Stability | Continuous use temp: -40°C to 260°C (varies by material; PEEK = up to 260°C) | Withstands harsh environments (automotive under-hood, industrial ovens) |
| Chemical Resistance | Unaffected by oils, fuels, acids, and sterilization (e.g., PPS resists engine oil) | Longer part life; no corrosion (vs. metal) |
| Dimensional Accuracy | Tolerances as tight as ±0.02 mm; shrinkage < 0.5% (e.g., LCP parts) | Consistent fit; no assembly issues (critical for electronics/medical) |
| Creep Resistance | Maintains shape under long-term load (e.g., POM gears show < 1% creep after 1,000 hours) | Reliable performance in structural applications (gears, brackets) |
| Recyclable Thermoplastics | 70–90% of scrap material is recyclable; closed-loop systems reduce waste | Sustainable; cuts material costs by 15% |
Industry Applications of Engineering Plastics Injection Molding
Our engineering-plastics injection molding services support critical applications across industries, leveraging material versatility and precision:
- Automotive: Automotive under-hood parts (PA66+GF50 radiator tanks, PPS thermostat housings) that withstand heat and chemicals; interior trims (multi-shot ABS/PC grips) for comfort.
- Electronics: Electrical connectors (LCP 0.2 pitch for 5G), EMI-shielded PC enclosures, and consumer electronics casings (PC+ABS) that balance durability and aesthetics.
- Medical: Medical devices (PSU dialysis manifolds, PEEK surgical tools) made in clean rooms; biocompatible materials meet ISO 10993.
- Aerospace: Aerospace interiors (flame-retardant PA parts) and sensor housings (high-tolerance POM) that meet strict weight and safety standards.
- Industrial: Industrial gears (POM with ±0.05 mm tolerance), fluid-handling pumps (chemical-resistant PPS), and power-tool housings (impact-resistant PA).
Lighting: Lighting optics (transparent PC) with high light transmission and UV stability for outdoor use.
Case Studies: Success with Engineering Plastics Molding
Our clients trust us to solve complex challenges with engineering-plastics injection molding. Here are 3 standout projects:
Case 1: High-Temperature Automotive Radiator Tank
- Challenge: A global automaker needed a lightweight alternative to metal for radiator tanks—required heat resistance (120°C), pressure resistance (1.5 bar), and compatibility with coolant.
- Solution: Used PA66+GF50 resin; optimized hot-runner system and cavity pressure monitoring to prevent warpage; integrated metal inserts via insert molding engineering plastics.
- Result: Part weight reduced by 40% vs. metal; 99.9% defect-free rate; 1 million units delivered annually (global roll-out); cost cut by 25%.
Case 2: 5G LCP Connector for Electronics
- Challenge: A telecom firm needed LCP connector with 0.2 mm pitch (ultra-fine) for 5G devices—required ultra-low warpage and high dimensional stability.
- Solution: Used 30% glass-reinforced LCP; implemented fiber-orientation control and high-tolerance molding (±0.02 mm); validated with CAE mold-flow simulation.
- Result: Connector passed 5G signal tests; warpage < 0.01 mm; 500k units delivered in 8 weeks; client’s device launch accelerated by 1 month.
Case 3: Clean-Room Medical Dialysis Manifold
- Challenge: A medical device maker needed a PSU dialysis manifold with 8 fluid channels—required sterility (autoclave-compatible), no leaks, and ISO 13485 compliance.
- Solution: Molded in Class 8 clean room; used medical-grade PSU; added laser-etching engineering for part tracing; tested for 1,000 autoclave cycles.
Result: Manifold passed FDA inspection; no leaks (100% pressure-tight); 100k units delivered annually; client’s production time reduced by 30%.
Why Choose Our Engineering Plastics Injection Molding Services?
We’re more than a supplier—we’re a partner in engineering excellence. Here’s what sets us apart:
- Expertise: 20+ years in engineering-material expertise; our engineers specialize in matching resins to applications (e.g., PEEK for high heat, LCP for micro-electronics).
- Certifications: ISO 13485 (medical) and IATF 16949 (automotive) certified—critical for regulated industries; clean rooms meet Class 8 standards.
- In-House Tool-Room: Our in-house tool-room designs and maintains molds; uses CAD/CAM for precision; reduces lead times by 30% vs. outsourcing.
- Simulation & Design: CAE mold-flow simulation predicts part behavior before production; DFM/DFX support optimizes designs for cost and performance.
- Speed: Rapid tooling (10-day turnaround for prototypes); 24/7 molding lines ensure fast time-to-market for high-volume orders.
- Sustainability: We offer sustainable resins (recycled PA/PC) and closed-loop scrap systems; help clients reduce their carbon footprint.
One-Stop Solution: From design to one-stop assembly (molding + surface treatment + packaging); on-time global logistics (98% on-time rate).
