Introduction

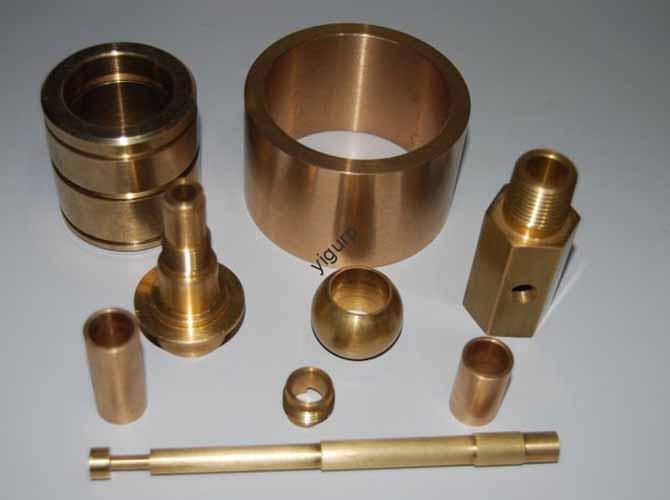

Copper die casting delivers what modern electronics and electric vehicles demand: exceptional thermal and electrical conductivity combined with complex, precision shapes. While aluminum and zinc dominate most die casting applications, they hit limits when components face extreme heat or high electrical loads. Copper’s conductivity exceeds 97% IACS —compared to aluminum’s 27% —making it the only choice for parts like EV motor rotors, high-power LED heat sinks, and IGBT coolers. But casting copper is hard. Its melting point at 1085°C stresses tooling, and standard steel dies last only thousands of cycles without special materials. This guide covers copper’s advantages, the casting process, applications, challenges, and cost trade-offs to help you decide when copper is worth the investment.
Why Use Copper in Die Casting?
The choice to use copper for a die-cast part almost always comes down to performance that other common casting metals—aluminum or zinc—simply cannot provide. Copper’s natural properties give it a clear engineering advantage for critical applications where failure is not acceptable.
Superior thermal and electrical conductivity
This is the main reason for choosing copper. Pure copper offers conductivity over 97% IACS . Common die-cast aluminum alloys like A380 are typically around 27% IACS . This huge difference directly impacts component performance.
Efficient heat removal: For high-power electronics, advanced LED modules, and server CPUs, the ability to quickly pull heat away from the source is critical. Copper’s high thermal conductivity prevents overheating, ensuring parts work reliably and last longer.
Low electrical resistance: In high-current applications, reducing energy loss as heat is extremely important. Copper’s low resistance makes it ideal for electrical connectors, terminals, busbars, and EV motor rotors, maximizing system efficiency.
High strength and durability
Copper alloys offer significant mechanical advantages over aluminum and zinc. Properties like tensile strength, yield strength, and hardness are much higher. Copper die-cast parts withstand greater mechanical stress, shock, and vibration without bending or breaking. Superior wear resistance means longer service life for components that experience friction or contact.
Excellent corrosion resistance
Copper naturally forms a stable, protective oxide layer that protects it from further corrosion. This built-in resistance to rust and chemical attack is far superior to many other non-ferrous metals. For parts used in harsh industrial environments, automotive under-hood applications, or marine settings, this property ensures long-term reliability and reduces the need for protective coatings that can block heat transfer.
Performance at high temperatures
A crucial advantage of copper is its ability to maintain mechanical properties at high temperatures. Aluminum alloys soften and lose significant strength above 200°C . Many copper alloys maintain their strength at much higher temperatures. This makes copper die casting essential for components operating in high-power systems, internal combustion engines, and other environments where sustained high temperatures are normal.
| Property | Copper (Pure) | Aluminum (A380) | Why It Matters |
|---|---|---|---|
| Electrical conductivity | >97% IACS | ~27% IACS | Copper minimizes energy loss in high-current applications |
| Thermal conductivity | ~380 W/m·K | ~113 W/m·K | Copper pulls heat away faster, preventing overheating |
| Melting point | 1085°C | 660°C | Copper maintains strength at temperatures that soften aluminum |
| Tensile strength | >450 MPa (alloys) | ~324 MPa | Copper provides greater durability under load |
| Corrosion resistance | Excellent (natural oxide) | Good | Copper’s oxide layer protects without coatings |
How Does the Copper Die Casting Process Work?
Turning molten copper into a precise, solid component is technically demanding, requiring specialized equipment and deep expertise. Unlike casting lower-temperature alloys, copper die casting pushes the limits of tooling materials and process control. The process is a variation of the cold-chamber high-pressure die casting method.
Step 1: Tooling creation
The foundation of any die casting program is the die itself. Due to the extremely high temperature of molten copper, standard tool steels like H-13 have a very limited lifespan. To achieve commercial viability, dies for copper casting must be built from high-strength, temperature-resistant materials. Molybdenum alloys like TZM and other heat-resistant metals are often used for inserts in critical, high-wear areas like gates and cores. The die also includes complex internal cooling and heating channels to precisely manage the extreme heat load.
Step 2: Alloy melting and preparation
Pure copper or a specified copper alloy is melted in a separate furnace or crucible. The melting point of pure copper is approximately 1085°C —significantly higher than aluminum’s 660°C . This requires furnaces and handling equipment capable of safely managing these extreme temperatures. Maintaining melt purity and temperature is critical for final part quality.
Step 3: High-pressure injection
A carefully measured “shot” of molten copper is ladled from the furnace into the shot sleeve of the die casting machine. A hydraulic plunger then forces this molten metal into the sealed die cavity at extremely high speeds and pressures—often exceeding 10,000 psi . This rapid fill ensures the entire cavity is filled before any part of the metal begins to solidify.
Step 4: Solidification
Once inside the die, the molten copper rapidly cools and solidifies, taking the shape of the cavity. The die’s sophisticated thermal management system works to extract the immense amount of heat from the copper as quickly as possible. Even with advanced cooling, cycle times for copper die casting are naturally longer than for aluminum due to the higher heat load that must be removed.
Step 5: Part ejection
After solidification is complete, the two halves of the die open. A series of ejector pins then push the solidified casting, along with its attached runner and gating system, out of the die.
Step 6: Secondary operations
The raw casting is not yet a finished part. It must undergo several post-casting processes. Trimming removes excess material like flash, runners, and overflows. Depending on design tolerance requirements, precision machining may be used to create features like threaded holes or achieve tighter dimensional accuracy on critical surfaces. Finally, various surface finishing operations can be applied if needed.
| Step | Key Operation | Critical Factor |
|---|---|---|
| 1 | Tooling creation | Molybdenum inserts, complex cooling channels |
| 2 | Melting | 1085°C, melt purity |
| 3 | Injection | >10,000 psi, rapid fill |
| 4 | Solidification | Thermal management, longer cycles |
| 5 | Ejection | Remove casting with runner system |
| 6 | Secondary | Trimming, machining, finishing |
What Are the Key Applications in Electronics and Automotive?
The theoretical benefits of copper die casting translate into real performance gains in advanced industries. The process is not a replacement for aluminum but an enabling technology for applications where aluminum falls short.
Electronics and power systems
The constant drive for smaller size and increased power density in electronics has made thermal management a primary design challenge. Copper die casting provides an effective solution.
High-power LED heat sinks: For industrial, automotive, and stadium lighting, LEDs generate intense, localized heat. Copper die-cast heat sinks pull this heat away far more effectively than extruded aluminum, allowing for brighter, more compact designs and ensuring LED long-term light output and lifespan.
IGBT coolers and base plates: Insulated-Gate Bipolar Transistors (IGBTs) are the heart of power conversion systems in motor drives, solar inverters, and uninterruptible power supplies. Copper die-cast base plates provide a thermally efficient and structurally robust platform for these modules, ensuring reliable operation under high electrical loads.
High-frequency RF components: In telecommunications and radar systems, components like waveguides and filter housings require excellent electrical conductivity for signal integrity and efficient heat dissipation to maintain thermal stability—both of which copper provides.
Computer and server cooling solutions: For extreme overclocking and high-density data centers, high-performance CPUs and GPUs generate more heat than traditional aluminum heat sinks can manage. Copper die-cast vapor chambers or complex heat sinks offer a significant improvement in cooling performance.
Automotive and EV applications
The automotive industry, particularly with the transition to electric vehicles, has become a major driver for copper die casting. The demands for electrical efficiency, power density, and durability align perfectly with copper’s strengths.
EV motor rotors: The “squirrel cage” in an AC induction motor can be made using die-cast copper instead of traditional aluminum. A copper rotor significantly reduces electrical resistance (I²R losses), leading to a more efficient motor. This translates directly to increased vehicle range and higher performance, giving automakers a critical competitive edge.
Inverter and converter housings: EV power electronics operate at high voltages and currents, generating significant heat. A copper die-cast housing can serve multiple functions: providing a rigid, protective enclosure, dissipating heat from internal components, and offering excellent EMI/RFI shielding to prevent interference with other vehicle systems.
High-current connectors and busbars: The safe and efficient transmission of power from the battery pack to the inverter and motor is critical. Complex, near-net-shape copper die-cast connectors and busbars handle immense electrical currents with minimal energy loss, providing a more integrated and reliable solution than fabricated assemblies.
Advanced Driver-Assistance Systems (ADAS) housings: The powerful processors running ADAS and autonomous driving software generate considerable heat. Robust copper die-cast housings protect these sensitive electronics while acting as an effective heat sink to ensure system stability.
| Industry | Application | Key Benefit |
|---|---|---|
| Electronics | LED heat sinks | Efficient heat removal for brighter, more compact designs |
| Electronics | IGBT coolers | Thermal management for power conversion systems |
| Electronics | RF components | Signal integrity and thermal stability |
| Automotive | EV motor rotors | Reduced losses, increased range |
| Automotive | Inverter housings | Heat dissipation + EMI shielding |
| Automotive | High-current connectors | Minimal energy loss, integrated design |
What Challenges Exist and How Are They Solved?
Despite its clear performance benefits, copper die casting has significant technical and commercial hurdles. Understanding these challenges is the first step toward overcoming them with modern technology and process expertise.
Inherent process difficulties
Extremely high melting temperature: The 1085°C melting point of copper places immense thermal stress on every piece of equipment it touches, most notably the expensive steel die.
Accelerated die wear: This is the single greatest challenge. The combination of high heat and chemical reactivity between molten copper and tool steel causes rapid erosion, soldering—welding of cast metal to the die—and heat checking (thermal fatigue cracking). A standard H-13 steel die may last only a few thousand cycles, compared to over 100,000 for aluminum , dramatically increasing tooling cost per part.
Porosity and gas entrapment: Molten copper has a high tendency to absorb gases like oxygen and hydrogen from the atmosphere. If not controlled, these gases are released during solidification, creating internal porosity that weakens mechanical properties and creates leak paths.
Longer cycle times and lower productivity: A larger thermal load means more time is needed to cool the part in the die before safe ejection. This results in longer cycle times and lower production rates compared to aluminum or zinc casting, impacting throughput and cost.
Advanced mitigation strategies
The industry has developed sophisticated solutions to make copper die casting commercially viable for high-volume production.
Advanced tooling materials: To combat rapid die wear, superior materials are used for the most vulnerable areas of the tool. Inserts made from molybdenum-based alloys like TZM or other heat-resistant metals are placed in the gate area and around complex cores. These materials have much higher melting points and better resistance to the erosive effects of molten copper, dramatically extending tool life.
Sophisticated die thermal control: Modern dies are engineered with highly complex, computer-modeled cooling and heating channels. Using pressurized water or hot oil systems, temperature can be precisely controlled across the die face. This helps maintain a stable thermal balance, reducing thermal shock and fatigue on the tool steel.
Vacuum-assisted die casting: One of the most effective ways to combat gas porosity is to remove air from the die cavity before injection. A vacuum system is integrated to evacuate the cavity to a near-vacuum state just milliseconds before molten copper enters. This eliminates the source of most trapped gases, resulting in denser, higher-integrity parts with superior mechanical properties.
In a recent project for an EV rotor, initial trials with standard H-13 steel resulted in severe die-check cracking after just 2,000 cycles , making the project commercially unfeasible. By re-engineering the tool to include TZM inserts in the main gate area and optimizing thermal control channels, functional tool life extended to over 20,000 cycles . This engineering solution was the key to making the high-performance copper rotor a viable mass-produced component.
| Challenge | Impact | Solution |
|---|---|---|
| High melting point | 1085°C stresses equipment | Molybdenum inserts, advanced cooling |
| Die wear | Standard H-13 dies last 2,000 cycles | TZM inserts extend life to 20,000+ cycles |
| Porosity | Gas absorption weakens parts | Vacuum-assisted casting removes air before injection |
| Long cycles | Lower productivity | Optimized thermal control reduces cooling time |
What Alloys and Alternatives Exist?
While pure copper is often the focus, a range of copper alloys can be die-cast to achieve specific properties. It is also crucial to understand when a more conventional material like aluminum is the more appropriate choice.
Common copper alloys
Beryllium copper (BeCu) : These alloys are specified for applications requiring the absolute highest strength, hardness, and wear resistance, combined with good conductivity. They are often used for demanding connectors and non-sparking tools. However, beryllium content requires strict health and safety protocols during melting and machining.
Brass (copper-zinc alloys) : Brass is easier to die cast than pure copper due to its lower melting temperature. It offers good strength, excellent corrosion resistance, and a fine surface finish. However, its thermal and electrical conductivity are significantly lower than pure copper, making it a trade-off between castability and performance.
Considering aluminum alternatives
Aluminum die casting remains the industry standard for a vast range of components for good reason. It is often the more sensible and cost-effective choice when the extreme performance of copper is not a strict requirement. Aluminum should be the preferred option:
- When cost and high-volume production speed are the primary drivers
- When thermal and electrical conductivity requirements are moderate
- For lightweighting, as aluminum’s density is approximately one-third that of copper
- When operating temperatures are not extreme and will not cause the alloy to soften
| Alloy | Key Properties | Best Applications |
|---|---|---|
| Pure copper | Highest conductivity >97% IACS | EV rotors, high-power heat sinks |
| Beryllium copper | Highest strength, wear resistance | Demanding connectors, non-sparking tools |
| Brass | Good castability, corrosion resistance | Decorative parts, moderate conductivity needs |
| Aluminum | Lower cost, lighter weight | General-purpose when copper’s extreme performance not required |
What Does the Cost-Benefit Analysis Show?
The decision to use copper die casting ultimately comes down to a cost-benefit analysis. While the upfront piece price and tooling costs are undeniably higher than for aluminum, the value is realized in enabling performance that would otherwise be impossible. You are not just buying a part—you are buying thermal capacity, electrical efficiency, and long-term reliability.
Copper vs aluminum comparison
| Feature / Metric | Copper Die Casting | Aluminum Die Casting (A380) | Key Takeaway |
|---|---|---|---|
| Thermal conductivity | Excellent ~380 W/m·K | Good ~113 W/m·K | Copper is the only choice for extreme heat dissipation |
| Electrical conductivity | Excellent ~97% IACS | Good ~27% IACS | For high-current, low-loss applications, copper is superior |
| Tensile strength | High >450 MPa with alloys | Moderate ~324 MPa | Copper provides greater durability under load |
| Tooling life / cost | Lower life, higher cost—requires heat-resistant metals | Higher life, lower cost—standard tool steel | The single largest cost driver for copper. Must be justified by performance gains |
| Raw material cost | High | Low | A significant factor in total part price |
| Cycle time / productivity | Slower | Faster | Impacts production capacity and cost-per-part |
| Best-fit application | Mission-critical parts where performance cannot be compromised—EV rotors, high-power electronics | General-purpose parts needing balance of cost, weight, and performance | Use copper when aluminum physically cannot meet thermal or electrical requirements |
Industry Experience: Copper Die Casting in Action
An EV manufacturer needed motor rotors with maximum efficiency to extend vehicle range. Aluminum rotors had I²R losses that cost 3% efficiency. Switching to die-cast copper rotors reduced losses, increasing range by 5% —a critical competitive advantage. Initial tooling challenges with H-13 steel lasting only 3,000 cycles were solved with TZM inserts , extending life to 25,000 cycles .
A high-power LED lighting company required heat sinks for stadium lights. Extruded aluminum couldn’t remove enough heat, limiting brightness. Copper die-cast heat sinks with complex fin geometries pulled heat away effectively. Lights ran 20°C cooler at same power, or could run 30% brighter at same temperature.
A power electronics manufacturer needed IGBT base plates that could handle 200°C operation without softening. Aluminum softened at 200°C, risking failure. Copper die-cast base plates maintained strength, passed 10,000 thermal cycles, and improved module life by 3× .
Conclusion
Copper die casting delivers what aluminum and zinc cannot: exceptional thermal and electrical conductivity for components facing extreme heat or high electrical loads. With conductivity over 97% IACS , tensile strength exceeding 450 MPa , and ability to maintain properties above 200°C , copper enables EV motor rotors that increase range, LED heat sinks that run brighter, and IGBT coolers that last longer. The process uses cold-chamber die casting with molten copper at 1085°C . Challenges include rapid die wear—standard H-13 steel lasting only thousands of cycles—solved with molybdenum inserts like TZM extending life to over 20,000 cycles . Vacuum assist reduces porosity for denser parts. While tooling life is lower and raw material cost higher than aluminum, the performance gains justify copper for mission-critical applications. Choose copper when aluminum physically cannot meet thermal or electrical requirements—the value is in enabling performance otherwise impossible.
Frequently Asked Questions
Why is copper die casting so much more expensive than aluminum?
Higher costs come from three factors: 1) Raw material—copper costs significantly more than aluminum. 2) Tooling life—standard H-13 steel dies last only thousands of cycles vs 100,000+ for aluminum, requiring expensive molybdenum inserts. 3) Cycle times—longer due to higher heat load, reducing productivity.
Can copper die casting replace aluminum for all heat sink applications?
No—only when extreme heat dissipation is required. For most consumer electronics, aluminum heat sinks are sufficient and far more cost-effective. Use copper when thermal loads exceed aluminum’s capacity, such as high-power LEDs, IGBTs, or server CPUs.
What is the typical tooling life for copper die casting?
With standard H-13 steel, 2,000-5,000 cycles is typical before die-check cracking or erosion makes parts unacceptable. With molybdenum inserts like TZM in critical areas, life can extend to 15,000-25,000 cycles —still far less than aluminum but commercially viable.
Does copper die casting require special equipment?
Yes—cold-chamber machines capable of handling 1085°C molten metal, with robust cooling systems. Standard machines for aluminum cannot handle copper’s temperature without significant modification. Vacuum assist is strongly recommended to reduce porosity.
What causes porosity in copper die castings?
Molten copper readily absorbs oxygen and hydrogen from the atmosphere. During solidification, these gases form pores. Vacuum-assisted casting removes air before injection, reducing porosity. Proper degassing of the melt also helps.
Can copper die castings be heat treated?
Yes—many copper alloys respond well to heat treatment. Beryllium copper can be precipitation-hardened to achieve very high strength. However, the as-cast porosity must be low enough that heat treatment doesn’t cause blistering—another reason vacuum assist is valuable.
