Our CNC Plasma Cutting Services

Power up your metal fabrication projects with our top-tier CNC Plasma Cutting services—the perfect blend of high cutting speeds, precision cutting, and cost-effectiveness. Whether you’re cutting thick carbon steel for shipbuilding or intricate stainless steel for architectural designs, we deliver consistent results across diverse metals, backed by fast setup times, minimal distortion, and tailored solutions for industries like automotive, aerospace, and metal fabrication. Experience the efficiency of plasma technology to boost your production today!​

Get Free Quote

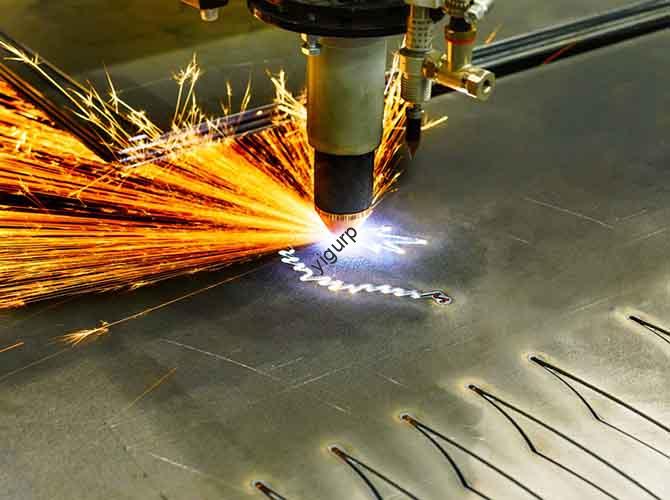

What Is CNC Plasma Cutting?

CNC Plasma Cutting is a dynamic technology that uses a high-temperature plasma arc to cut through conductive materials—primarily metals. Unlike water jet or laser cutting, it relies on ionized gas (plasma) to melt and blow away material, making it ideal for thick metal cutting while maintaining speed.​

At its core, the process overview is straightforward: A plasma torch ionizes a gas (like compressed air or nitrogen) into plasma—a superheated, electrically conductive gas (reaching 20,000–30,000°C). This plasma arc is focused through the torch’s nozzle, melting the material, while a high-velocity gas stream blows away the molten metal to create a clean cut.​

To explain “how it works” simply: Imagine a tiny, ultra-hot flame guided by a computer. The CNC (Computer Numerical Control) system follows pre-programmed designs, moving the plasma torch with precision to slice through metal—even thick sheets. This is the essence of plasma basics: using ionized gas’s extreme heat to cut conductive materials quickly and efficiently.

Our CNC Plasma Cutting Capabilities

We offer robust cutting capabilities to meet the demands of heavy-duty and precision-focused projects. Below is a detailed breakdown of our key capacities, including maximum material thickness, material size limits, precision levels, custom cutting, and tolerance achievements:​

​

​

Whether you need to cut a single thick carbon steel plate or mass-produce aluminum components, our capabilities scale to match your project’s unique needs.

The CNC Plasma Cutting Process (Step-by-Step)

Our step-by-step process is designed to ensure speed, accuracy, and consistency—from design to finished part. Each phase is optimized to minimize waste and meet your specifications:​

1. Design and Preparation: We start by reviewing your design files (or helping you create one from a sketch). Our team checks for feasibility—ensuring the design aligns with the material’s thickness, conductivity, and your precision requirements. For non-metals (like some plastics), we confirm compatibility (plasma cutting works best with conductive materials).​

2. Programming the CNC: Once the design is finalized, our engineers convert it into a CNC-compatible program. The program defines the torch’s path, cutting speed, gas type, and arc voltage—tailored to your material (e.g., higher speed for mild steel, lower speed for copper to avoid heat buildup).​

3. Setup and Calibration: The material is secured to the cutting bed (to prevent movement during cutting). We calibrate the plasma torch height (critical for consistent cut quality), select the appropriate torch type (e.g., drag torch for thin metals, mechanized torch for thick metals), and test gas flow rates. A trial cut on scrap material ensures all settings are correct.​

4. Cutting Execution: The CNC system takes control—moving the torch along the programmed path. The plasma arc melts the material, while the gas stream (e.g., oxygen for mild steel, nitrogen for stainless steel) blows away molten metal. For thick materials, we adjust cutting speed to ensure full penetration without excessive Heat Affected Zone (HAZ).​

Post-Cutting Inspection: After cutting, each part undergoes inspection. We check dimensions (using calipers, micrometers, and CMMs), edge quality (looking for dross—molten metal residue), and adherence to tolerances. Parts with dross move to deburring or grinding for finishing.

Materials We Work With

CNC Plasma Cutting excels with conductive materials—primarily metals—though it can handle some non-metals (with limitations). Below is a breakdown of our supported materials, their key properties, and ideal uses:​

​

​

We always test non-metal materials first to ensure optimal results—contact our team to confirm if your material is suitable for plasma cutting.

Surface Treatment & Finishing Options

After cutting, we offer a range of surface treatment and finishing options to enhance part durability, appearance, and functionality. Our most popular services include:​

• Grinding: Removes dross (molten metal residue) and smooths rough edges—critical for parts that require assembly or visible placement (e.g., architectural trim).​

• Polishing: Creates a smooth, shiny surface for stainless steel or aluminum parts—ideal for decorative applications (e.g., art sculptures, kitchen equipment).​

• Painting: Applies a durable, corrosion-resistant coating (available in matte, gloss, or textured finishes) to protect metal parts from rust (especially for outdoor use).​

• Coating: Options include powder coating (thick, scratch-resistant) and galvanizing (zinc coating for carbon steel parts used in harsh environments like shipbuilding).​

• Heat Treatment: Strengthens metal parts (e.g., carbon steel) by heating and cooling—improving hardness for high-stress applications (e.g., machinery components).​

• Deburring: Removes sharp edges or burrs—essential for safety (e.g., electrical enclosures) and easy assembly.​

The table below compares our finishing options by key factors:​

​

​

Tolerances & Quality Assurance

Tolerances and accuracy standards are critical for ensuring parts fit and perform as intended. Our precision levels and tolerance ranges are tailored to your material and application, backed by rigorous measurement techniques and quality control processes:​

​

​

Our quality control processes include:​

• Pre-cut material inspection: Checking thickness, flatness, and conductivity to ensure it meets project requirements (e.g., no impurities in stainless steel that could affect cut quality).​

• In-process monitoring: Real-time tracking of arc voltage, torch height, and cutting speed via CNC software—adjusting settings automatically if deviations occur.​

• Post-cut inspection: 100% of parts are measured; critical parts (e.g., aerospace components) undergo additional testing (e.g., stress tests, corrosion resistance checks).​

Documentation: We provide a detailed quality report with every order, including measurement data, inspection results, and compliance with industry standards.

Key Advantages of CNC Plasma Cutting

Compared to other cutting methods (like oxy-fuel, laser, or water jet), CNC Plasma Cutting offers unique benefits that make it a top choice for metal fabrication. Below are its core advantages:​

1. High Cutting Speeds: It’s 3–5x faster than oxy-fuel cutting for thin-to-medium metals (e.g., 10mm mild steel) and 2x faster than water jet cutting for thick carbon steel (e.g., 80mm). This reduces lead times for high-volume orders.​

2. Precision Cutting: With tolerances as tight as ±0.15mm, it produces parts that fit together seamlessly—reducing assembly time and rework. For most metal fabrication projects, its precision matches laser cutting (at a lower cost).​

3. Ability to Cut Thick Materials: Unlike laser cutting (which struggles with metals over 25mm), plasma cutting handles thick metals up to 100mm (carbon steel)—ideal for heavy-duty applications like shipbuilding and construction.​

4. Versatility: It works with all conductive metals (stainless steel, aluminum, mild steel, carbon steel, copper) and some non-metals (thick plastics). This means you can use one service for multiple material types.​

5. Cost-Effectiveness: Lower upfront costs than laser cutting (plasma machines are more affordable) and lower operating costs than oxy-fuel (less gas consumption). Minimal waste (kerf width: 1–3mm) also reduces material costs.​

6. Fast Setup Times: CNC programming and setup take 1–2 hours (vs. 3–4 hours for oxy-fuel), so we can start cutting your parts quickly—perfect for urgent projects.​

Minimal Material Distortion: Advanced CNC systems and optimized gas flow reduce warping (common with oxy-fuel cutting). The Heat Affected Zone (HAZ) is smaller than oxy-fuel (5–10mm vs. 15–20mm), preserving material strength.

Industry Applications

CNC Plasma Cutting is widely used across industries that rely on metal fabrication—thanks to its speed, ability to cut thick materials, and precision. Here are its most common applications:​

​

​

For example, in shipbuilding, our plasma-cut carbon steel plates (up to 100mm thick) meet maritime safety standards—ensuring hulls are strong and durable. In architecture, our precision cuts for stainless steel facades create visually striking designs that withstand harsh weather.

Advanced Manufacturing Techniques

To deliver optimal results, we use cutting-edge plasma cutting techniques and cutting methods, tailored to your material and project goals. Here are the key techniques we employ:​

• Types of Plasma Cutting:​

• Conventional Plasma Cutting: For thick metals (≥25mm) like carbon steel—uses high gas flow to blow away molten metal, ideal for heavy-duty applications.​

• Precision Plasma Cutting: For thin-to-medium metals (≤25mm) like stainless steel—uses a narrower plasma arc (0.5–1mm) to achieve tighter tolerances (±0.15mm).​

• High-Definition Plasma Cutting: Our top-tier technique—uses advanced torch design and higher arc density to produce laser-like precision (±0.1mm) for critical parts (e.g., aerospace components).​

• Torch Types:​

• Drag Torch: For thin metals (≤10mm)—the torch “drags” along the material surface, ensuring consistent height and speed.​

• Mechanized Torch: For thick/medium metals (≥10mm)—mounted on a CNC gantry, it adjusts height automatically for uneven material surfaces.​

• Gas Types and Mixtures:​

• Oxygen: For mild steel—oxidizes the material to speed up cutting and reduce dross.​

• Nitrogen: For stainless steel/aluminum—prevents oxidation (no rust) and produces clean edges.​

• Argon-Hydrogen Mixture: For copper—reduces heat buildup (copper absorbs heat quickly) and improves cut quality.​

• Cutting Speeds: Speed varies by material and thickness—e.g., 15m/min for 5mm mild steel, 5m/min for 25mm stainless steel, 2m/min for 80mm carbon steel.​

Heat Affected Zone (HAZ) Management: We optimize gas flow and cutting speed to minimize HAZ—e.g., lower speed for aluminum (heat-sensitive) to keep HAZ under 5mm.

Case Studies: Success Stories

Our CNC Plasma Cutting services have helped clients across industries overcome challenges and achieve their production goals. Below are two successful projects highlighting our expertise:​

Case Study 1: Shipbuilding Company (Thick Carbon Steel Hulls)​

Challenge: The client needed 500 carbon steel hull plates (80mm thick, 4000mm x 2000mm size) for cargo ships—with tight tolerances (±0.30mm) and minimal distortion. Their previous supplier used oxy-fuel cutting, which caused excessive Heat Affected Zone (HAZ) (15–20mm), leading to warping and costly rework. The client also needed the plates delivered in 4 weeks to meet shipyard deadlines.​

Solution: We used conventional plasma cutting (80,000 PSI arc pressure) with oxygen gas (to speed up cutting and reduce dross) and a mechanized torch (to handle the thick material evenly). We optimized the cutting path to minimize torch movement, reducing distortion, and added a post-cut grinding step to remove any remaining dross. Our team ran 3 plasma machines 24/7 to meet the tight timeline.​

• Results:​

• 100% of hull plates met the ±0.30mm tolerance—no warping, and HAZ was reduced to 5–8mm (well below the client’s 10mm limit).​
• Rework costs dropped by 70% compared to the client’s previous supplier.​
• The order was delivered 3 days early, allowing the shipyard to stay on schedule.​
• Client Testimonial: “The plasma-cut hull plates fit perfectly—no more reworking warped parts. The fast delivery kept our project on track, and the quality is far better than oxy-fuel cutting.” — Sarah K., Shipyard Production Manager.​

Case Study 2: Architectural Firm (Custom Stainless Steel Facades)​

• Challenge: The firm needed 200 custom stainless steel facade panels (5mm thick) with intricate geometric patterns—requiring precision cutting (±0.15mm tolerance) and a polished finish. The client wanted the panels to be identical for a uniform building appearance and needed them in 3 weeks for a commercial project launch.​

• Solution: We used high-definition plasma cutting (our top-tier technique) with nitrogen gas (to prevent oxidation and keep edges clean) and a drag torch (for precise control over the intricate patterns). We programmed the CNC system to replicate the pattern exactly across all panels and added a post-cut polishing step to achieve the desired high-gloss finish. Our quality team inspected each panel with a CMM to ensure consistency.​

• Results:​

• All 200 panels were identical—matching the geometric pattern within ±0.12mm (exceeding the client’s ±0.15mm requirement).​

• The nitrogen gas cutting left edges so clean that polishing time was reduced by 40% compared to standard methods.​

• The order was delivered on time, and the facade received positive feedback for its sleek, uniform design.​

• Before and After: Raw stainless steel sheets were plain; after high-definition plasma cutting and polishing, they became eye-catching facade panels that elevated the building’s aesthetic.​

Challenge Overcome: Intricate patterns often lead to uneven cuts with conventional methods, but our high-definition plasma technology ensured sharp, consistent lines across every panel.

Why Choose Our CNC Plasma Cutting Services?

With countless plasma cutting providers, here’s what makes us the trusted partner for businesses across aerospace, automotive, shipbuilding, and architecture:​

• Expertise in Plasma Cutting: Our team of engineers has 18+ years of specialized experience in CNC Plasma Cutting—we master all types of plasma cutting (conventional, precision, high-definition) and can tailor techniques to your material (e.g., using argon-hydrogen mixtures for copper, nitrogen for stainless steel). We solve complex challenges like minimizing HAZ for heat-sensitive aluminum or achieving tight tolerances for aerospace parts that other providers can’t match.​

• Experience in Various Industries: We’ve served 600+ clients across 10+ industries—from small metal fabricators to Fortune 500 aerospace companies. This cross-industry experience means we understand sector-specific requirements: FDA compliance for food processing equipment (stainless steel parts), maritime safety standards for shipbuilding (thick carbon steel), and aesthetic precision for architecture (custom metal facades).​

• High-Quality Equipment: We invest in state-of-the-art plasma cutting machines—including 5 high-definition plasma systems (capable of ±0.1mm tolerance) and 8 conventional/precision systems. Our torches (drag and mechanized) are replaced every 500 hours to ensure consistent performance, and we use advanced CNC software (with real-time monitoring) to track every cut. All equipment is calibrated monthly by certified technicians.​

• Excellent Customer Service: Our team is available 24/7 to support your project—from design consultation to post-delivery follow-up. We offer free design reviews (helping you optimize your design for plasma cutting, e.g., adjusting hole sizes to avoid dross) and free samples (so you can test our quality before placing a large order). We also provide regular order updates (via email or phone) so you always know your project’s status.​

• Fast Turnaround Times: With 13 plasma cutting machines (running 24/7) and optimized production processes, we deliver industry-leading lead times:​

• Prototypes (1–50 units): 1–3 days​

• Low-volume orders (50–500 units): 3–7 days​

• High-volume orders (500+ units): 7–14 days​

For urgent projects (e.g., shipbuilding delays or emergency machinery repairs), we offer rush services—delivering parts in as little as 48 hours (for small orders) without compromising quality.​

• Cost-Effective Solutions: We help you save money at every stage:​

• Material savings: Our nesting software optimizes part placement on sheets, reducing waste by 12–18% compared to competitors (e.g., fitting 10 facade panels per stainless steel sheet instead of 8).​

• Operational savings: Plasma cutting uses 30% less gas than oxy-fuel cutting, and our high-efficiency machines reduce electricity costs by 20%.​

• Volume discounts: We offer 10% off orders over 1,000 units and 15% off orders over 5,000 units—perfect for mass production (e.g., automotive chassis parts).​

• Innovative Techniques: We stay ahead of industry trends by adopting cutting-edge methods:​

• Automated nesting software: Uses AI to maximize material usage (reducing waste further).​

• HAZ management technology: Customizes gas flow and cutting speed for each material to minimize heat impact (critical for aluminum and copper).​

3D plasma cutting: For complex parts (e.g., aerospace brackets with beveled edges) that require multi-angle cuts—eliminating the need for secondary machining.
