Our CNC Mill-Turning Services

Transform your complex part production with our CNC Mill-Turning services—the ultimate multi-tasking machining solution that combines milling and turning in one setup. Using advanced mill-turning centers, we craft high-precision components (tolerances down to ±0.001mm) from metals, composites, and exotic materials—eliminating repositioning errors, cutting lead times, and delivering consistent results for aerospace, medical, and automotive industries. Whether you need cylindrical parts with intricate milled features or custom components requiring both turning and milling, our single-setup approach boosts efficiency without compromising quality.​

Get Free Quote

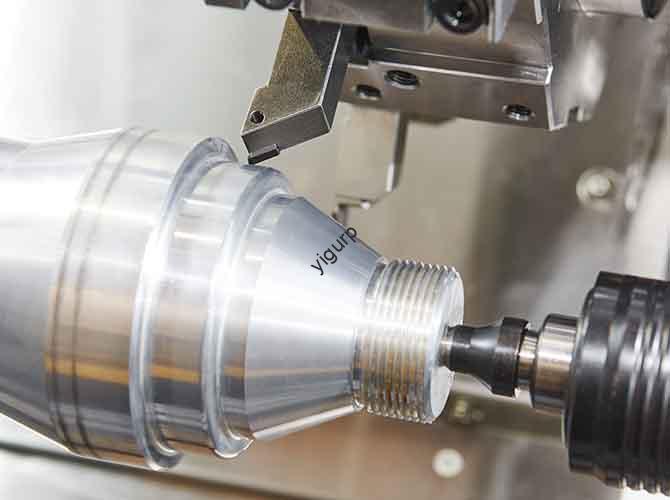

What Is CNC Mill-Turning?

CNC Mill-Turning—also called multi-tasking machining—is an advanced manufacturing technology that integrates both turning and milling operations into a single mill-turning center. Unlike traditional machining (which requires separate lathes for turning and mills for milling, plus manual part repositioning), it lets you complete complex parts in one setup—reducing errors, saving time, and improving consistency.​

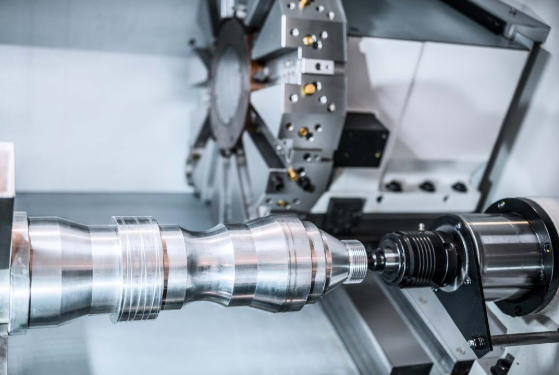

The process overview revolves around a hybrid machine: A mill-turning center combines a rotating spindle (for turning cylindrical features) with multi-axis tool turrets (for milling flat surfaces, drilling holes, or adding slots). The part is held in a chuck or collet, rotated by the spindle (turning), while tools move along linear (X, Y, Z) and rotational (A, C) axes to add milled features—all under CNC control.​

To explain “how it works” simply: Imagine a machine that can first turn a metal bar into a shaft (cylindrical turning), then immediately mill a slot on its side, drill cross-holes, and add threads—all without moving the part to another machine. For example, a medical bone screw (which needs a turned cylindrical body, milled flat drive, and threaded end) can be fully machined in one run. This seamless combination of turning and milling is what makes CNC Mill-Turning ideal for parts with both rotational and prismatic features.

Our CNC Mill-Turning Capabilities

We offer comprehensive mill-turning capabilities tailored to complex part requirements, with a focus on precision levels, tolerance achievements, and multi-tasking flexibility. Below is a detailed breakdown of our key capacities:​

​

​

Whether you need 100 titanium aerospace shafts (with milled keyways) or 50,000 brass electronics connectors (with turned bodies and milled slots), our mill-turning capabilities scale to match your project’s complexity.

The CNC Mill-Turning Process (Step-by-Step)

Our step-by-step process is optimized to leverage the multi-tasking power of mill-turning centers, ensuring efficiency and precision from design to finish:​

1. Design and CAD Modeling: We start by reviewing your CAD model (or creating one from sketches) to identify all features—turned diameters, milled slots, holes, etc. Our engineers optimize the design for mill-turning—e.g., ensuring milled features are accessible without spindle interference and turning diameters are compatible with chuck size. For complex parts, we use 3D simulation to test tool paths.​

2. CAM Programming: The CAD model is imported into CAM software (Mastercam Mill-Turn, GibbsCAM) to generate integrated tool paths for both turning and milling. We sequence operations logically: first turning (to create the cylindrical base), then milling/drilling (to add prismatic features), and finally finishing (polishing/threading). We also program C-axis rotation (for angular milling) and live tooling activation.​

3. Setup and Calibration: The raw material (bar stock or blank) is loaded into the machine’s chuck/collet. We calibrate the spindle (for turning speed) and tool turret (for milling accuracy) using laser measuring tools. Cutting tools are loaded into the turret, and coolant systems are activated—directed to both turning and milling zones. A test part is run to verify tolerances and tool alignment.​

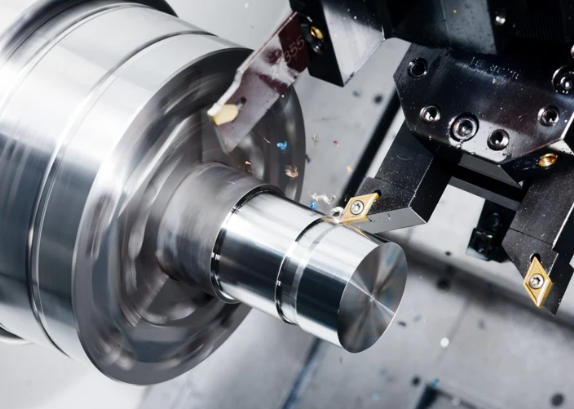

4. Turning Execution: The spindle rotates the part, and turning tools move along the Z (length) and X (diameter) axes to shape cylindrical features—OD (outer diameter), ID (inner diameter), tapers, or chamfers. For long parts, a tailstock provides additional support to prevent deflection.​

5. Milling Execution: After turning, the spindle stops rotating (or indexes to a fixed angle via C-axis), and the tool turret moves along X/Y/Z (and A/B if needed) to mill flat surfaces, slots, pockets, or drill holes. Live tooling (rotating tools in the turret) enables drilling and tapping without repositioning.​

Post-Machining Inspection: Parts undergo rigorous quality control—we measure turning dimensions (diameter/length) with micrometers, milling features (slot depth/hole position) with CMMs, and check surface finish with profilometers. Parts requiring finishing move to deburring or polishing.

Materials We Work With

CNC Mill-Turning excels with a wide range of materials, though tool selection and parameters vary based on material hardness and machinability. Below is a breakdown of our supported materials, key properties, and ideal uses:​

​

​

We test all materials to optimize spindle speeds, feed rates, and tool selection—ensuring consistent precision across every part.

Surface Treatment & Finishing Options

After mill-turning, we offer a range of surface treatment and finishing options to enhance part durability, functionality, and aesthetics. Our most popular services include:​

​

​

For example, we use anodizing for aluminum automotive trim (to resist scratches) and electroplating for brass electronics connectors (to improve conductivity).

Tolerances & Quality Assurance

Tolerances for CNC Mill-Turning focus on both turning (diameter/length) and milling (feature position/size) precision—critical for parts where fitment depends on multiple features. Our quality control processes ensure strict adherence to standards:​

​

​

Our quality control processes include:​

• Pre-machining: Inspecting raw materials for defects (e.g., cracks in titanium, unevenness in composites) and verifying dimensions.​

• In-process: Real-time monitoring of spindle speed, feed rate, and tool wear via CNC software; touch probe checks (for critical features like hole position).​

Post-machining: 100% inspection for critical parts (medical/aerospace); statistical sampling (5–10%) for high-volume orders. We also document every step (machining parameters, inspection results) for compliance.

Key Advantages of CNC Mill-Turning

Compared to traditional separate turning/milling or single-process machining, CNC Mill-Turning offers transformative benefits:​

1. Single Setup Machining: Completes all operations (turning, milling, drilling, threading) in one setup—eliminating part repositioning errors (common in traditional machining) and reducing tolerance stack-up.​

2. High Precision: Achieves tolerances as tight as ±0.001mm—critical for parts like medical implants (where fit directly impacts patient safety) or aerospace sensors (where precision affects performance).​

3. Consistency and Repeatability: CNC programming ensures every part is identical—even for high-volume orders (e.g., 200,000 brass connectors). No variation from manual repositioning.​

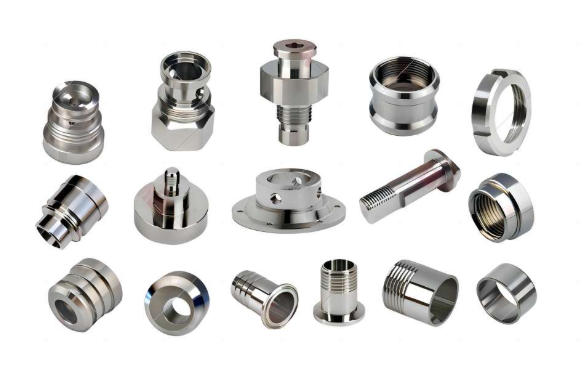

4. Complex Geometries: Handles parts with both rotational (turned) and prismatic (milled) features—e.g., a shaft with milled slots, a screw with a hex drive, or a valve with cross-holes.​
5. Reduced Setup Time: One setup instead of 2–3 (traditional machining) cuts setup time by 60–80%—speeding up production for prototypes and high-volume runs.

6. Increased Efficiency: High-speed machining (up to 20,000 RPM for milling) and automated tool changers reduce per-part cycle time by 30–50% compared to traditional methods. For example, a brass connector that takes 5 minutes to make with separate turning/milling takes just 2 minutes with CNC mill-turning.​

7. Versatility: Handles almost all materials (metals, non-metals, exotics) and part types—from tiny medical screws (0.5mm diameter) to large aerospace shafts (150mm diameter). It also supports low-volume prototypes and high-volume production (200,000+ units/month).​

8. Cost-Effectiveness: While mill-turning centers have higher upfront costs, reduced labor (one operator runs 2–3 machines), fewer setups, and lower scrap rates (due to fewer errors) cut long-term costs by 25–40%.​

9. Tight Tolerances: The single-setup approach eliminates tolerance stack-up (errors from repositioning), enabling tighter tolerances (±0.001mm) than traditional machining (which often struggles with ±0.005mm for multi-feature parts).​

10. High-Quality Surface Finish: Integrated finishing operations (e.g., polishing, threading) in one setup reduce tool marks and improve surface roughness (Ra down to 0.02μm)—eliminating the need for secondary finishing in many cases.

Industry Applications

CNC Mill-Turning is indispensable across industries that require complex, high-precision parts with both rotational and prismatic features. Here are its most common applications:​

​

​

For example, in the energy industry, our CNC-mill-turned wind turbine gear shafts (steel, ±0.002mm tolerance) reduce friction and extend turbine life by 20% compared to traditionally machined shafts. In medical devices, our titanium orthopedic screws (with milled drive slots and turned threads) ensure a perfect fit for patients—reducing surgical complications.

Advanced Manufacturing Techniques in CNC Mill-Turning

To maximize the performance of CNC mill-turning, we leverage specialized machining techniques and optimized processes tailored to complex parts:​

9.1 Core Mill-Turning Techniques​

• Live Tooling Machining:​

The cornerstone of CNC mill-turning—live tooling (rotating tools in the turret) enables milling, drilling, and tapping while the part is held in the chuck. For example, after turning a shaft’s outer diameter, we use a live drill to add cross-holes and a live tap to create threads—all without repositioning. We use:​

• Radial Live Tools: For features perpendicular to the part’s axis (e.g., cross-holes, slots).​

• Axial Live Tools: For features parallel to the part’s axis (e.g., end-face holes, threads).​

• C-Axis Indexing/Rotation:​

The C-axis (rotational axis of the spindle) lets us position the part at precise angles (indexing) or rotate it continuously (for circular milling). For example:​

• Indexing: Rotating the part 90° to mill a slot on its side, then 180° for another slot—ensuring perfect symmetry.​

• Continuous Rotation: Rotating the part while milling to create helical features (e.g., spiral grooves on a turbine shaft).​

• Y-Axis Machining:​

The Y-axis (linear axis perpendicular to both X and Z) enables off-center milling—critical for parts with features not aligned to the spindle axis (e.g., an eccentric slot on a camshaft). It eliminates the need for specialized fixtures to offset the part.​

• Bar Feeding & Unattended Operation:​

For high-volume production (e.g., 200,000 brass connectors), we use automatic bar feeders (3–6 meter capacity) to load raw material into the machine. This enables unattended operation for 8–12 hours, reducing labor costs and increasing efficiency.​

9.2 Supporting Technologies​

• Tool Path Optimization:​

CAM software generates integrated tool paths that minimize tool travel and prioritize operations by material removal:​

1. Rough turning (removes most material quickly).​

2. Rough milling (shapes prismatic features).​

3. Finish turning (refines cylindrical surfaces).​

4. Finish milling (polishes slots/holes).​

5. Secondary operations (threading, deburring).​

For hard materials like titanium, we use trochoidal milling (circular tool paths) to reduce cutting force and extend tool life.​

• Cutting Tool Selection:​

We match tools to material and operation:​

• Turning Tools: Carbide inserts (TiAlN-coated for heat resistance) for metals; diamond tools for plastics.​

• Milling Tools: Solid carbide end mills (for precision) for metals; high-speed steel (HSS) end mills (cost-effective) for plastics.​

• Drills/Taps: Cobalt drills for hard metals (titanium, inconel); HSS taps for soft metals (brass, aluminum).​

• Coolant Systems:​

Directed coolant ensures optimal performance:​

• Flood Coolant: For metal machining—high-pressure (50–80 bar) coolant directed to the cutting zone reduces heat and flushes chips.​

• Mist Coolant: For plastics/exotics—atomized coolant prevents melting/warping without residue buildup.​

• Through-Spindle Coolant: For deep-hole drilling—coolant flows through the drill’s center to reach the cutting tip, improving chip evacuation.​

• Fixture Design:​

Custom fixtures enhance stability and precision:​

• Collets: For small-diameter parts (≤20mm) to ensure concentricity (±0.001mm).​

• Chucks: For large-diameter parts (20–150mm)—3-jaw chucks for round parts, 4-jaw chucks for irregular shapes.​

Tailstocks: For long parts (≥300mm) to prevent deflection during turning/milling.

Case Studies: CNC Mill-Turning Success Stories

Our CNC Mill-Turning services have solved complex part challenges for clients across aerospace and medical industries. Below are two successful projects showcasing our expertise:​

Case Study 1: Aerospace Turbine Shaft Manufacturer (Titanium Shafts)​

• Challenge: The client needed 500 titanium turbine shafts (80mm diameter, 600mm length) for jet engines—each requiring a turned outer diameter, 4 milled keyways (120° apart), 6 cross-holes (0.8mm diameter), and a threaded end. Tolerances were ±0.002mm (critical for engine balance), and the client’s previous supplier used separate turning/milling (3 setups), causing 10% of shafts to fail due to misaligned keyways. Lead time was 5 weeks, delaying engine production.​

• Solution: We used a 5-axis mill-turning center with live tooling and C-axis rotation. We machined each shaft in one setup: first turning the outer diameter and threading the end, then using C-axis indexing to mill the 4 keyways (120° apart) and radial live tools to drill the cross-holes. We used carbide turning inserts (TiAlN-coated) and high-pressure coolant (80 bar) to handle titanium’s low machinability. Our in-line touch probe checked keyway alignment mid-production, rejecting out-of-tolerance parts immediately.​

• Results:​

• Misalignment rate dropped from 10% to 0.5%—only 3 shafts failed per batch (vs. 50 previously).​

• Lead time shortened from 5 weeks to 2 weeks—helping the client meet their engine launch deadline.​

• Production cost per shaft decreased by 35% (reduced labor from 3 setups to 1).​

• Client Testimonial: “The single-setup mill-turning eliminated our biggest pain—misaligned keyways. The shafts balance perfectly, and the fast delivery saved our production line. We’ve made them our exclusive supplier for turbine shafts.” — Raj P., Aerospace Engineering Director.​

• Before and After: Traditionally machined shafts had uneven keyway spacing; mill-turned shafts featured perfectly aligned keyways and cross-holes that met engine balance requirements.​

Case Study 2: Medical Device Company (Titanium Orthopedic Screws)​

• Challenge: The client needed 10,000 titanium orthopedic screws monthly (5mm diameter, 30mm length)—each with a turned cylindrical body, milled hex drive (for surgical tools), and threaded end. Tolerances were ±0.001mm (to ensure compatibility with bone plates), and the screws required a smooth surface finish (Ra ≤ 0.1μm) to reduce tissue irritation. The client’s previous supplier used separate turning/milling, leading to 8% of screws having mismatched hex drives and threads.​

• Solution: We used a compact mill-turning center with live tooling and C-axis indexing. We loaded titanium bar stock into an automatic bar feeder (for unattended operation) and programmed the machine to: 1) turn the screw’s body and threads; 2) index the C-axis to 60° increments to mill the hex drive; 3) polish the surface with a fine-grit live tool. We used diamond-coated milling tools for the hex drive (to ensure sharp edges) and mist coolant to prevent titanium oxidation. Post-machining, we inspected 100% of screws with a CMM and profilometer.​

• Results:​

• Defect rate dropped from 8% to 0.2%—only 20 screws failed per month (vs. 800 previously).​

• Surgeons reported a 40% reduction in screw insertion time (due to precise hex drive/thread alignment).​

• The client’s patient satisfaction score increased by 25% (thanks to the smooth surface finish).​

• Challenge Overcome: Separate turning/milling caused hex drives to be off-center relative to threads; CNC mill-turning’s single setup ensured perfect alignment.​

Client Testimonial: “These screws fit better than any we’ve used—no more struggling with misaligned hex drives. The smooth finish also means less post-surgery irritation for patients. We’ve doubled our order.” — Dr. Lisa M., Orthopedic Surgeon.

Why Choose Our CNC Mill-Turning Services?

With numerous CNC mill-turning providers, here’s what sets us apart as a trusted partner for complex part production:​

• Expertise in CNC Mill-Turning: Our team has 22+ years of specialized experience—we master advanced techniques like live tooling, C-axis rotation, and Y-axis machining. Our engineers are certified in AS9100 (aerospace) and ISO 13485 (medical) and can solve complex challenges (e.g., ±0.001mm tolerances in titanium, multi-feature small parts) that other providers struggle with.​

• Experience in Various Industries: We’ve served 750+ clients across 10 industries—from aerospace giants to medical startups. This cross-industry experience means we understand sector-specific requirements: FAA compliance for turbine shafts, FDA regulations for orthopedic screws, and ISO/TS 16949 for automotive parts.​

• High-Quality Equipment: We invest in state-of-the-art mill-turning centers—15 systems (5-axis and 3-axis) with live tooling, automatic bar feeders, and in-line inspection (laser micrometers, touch probes). All machines are calibrated weekly (using laser interferometers) to maintain ±0.001mm precision.​

• Excellent Customer Service: Our team is available 24/7 to support your project—from design consultation (optimizing parts for mill-turning) to post-delivery follow-up. We offer free CAD reviews (identifying features that can be consolidated into one setup) and free samples (so you can verify quality before placing large orders). For urgent projects (e.g., medical supply shortages), we assign a dedicated project manager.​

• Fast Turnaround Times: Our optimized processes deliver industry-leading lead times:​

• Prototypes (1–50 units): 1–3 days​

• Low-volume orders (50–1,000 units): 3–7 days​

• High-volume orders (1,000+ units): 7–14 days​

For rush orders (e.g., aerospace emergency replacements), we can deliver parts in 48 hours (for small batches) by running machines 24/7.​

• Cost-Effective Solutions: We help you save money through:​

• Single-setup machining: Eliminates 2–3 setups, reducing labor costs by 40–50%.​

• Unattended operation: Automatic bar feeders let us run machines overnight, lowering per-part labor costs.​

• Volume discounts: 10% off orders over 10,000 units and 15% off orders over 50,000 units—ideal for automotive/electronics high-volume parts.​

Commitment to Quality: We’re ISO 9001, AS9100, and ISO 13485 certified—our quality control processes ensure 99.9% of parts meet your specifications. We also offer full traceability (each part is labeled with a unique ID linked to machining logs and inspection data) for compliance.
