Our CNC Boring Services
In search of precision CNC Boring that combines high efficiency, consistent quality, and cost-effectiveness? Our CNC Boring services utilize advanced manufacturing techniques and years of professional expertise to provide customized solutions for industries including automotive, aerospace, and medical. Whether you need accurate hole enlargement for engine parts or custom-sized bores for electronic components, we turn your technical requirements into high-performance products—reliably and on schedule.

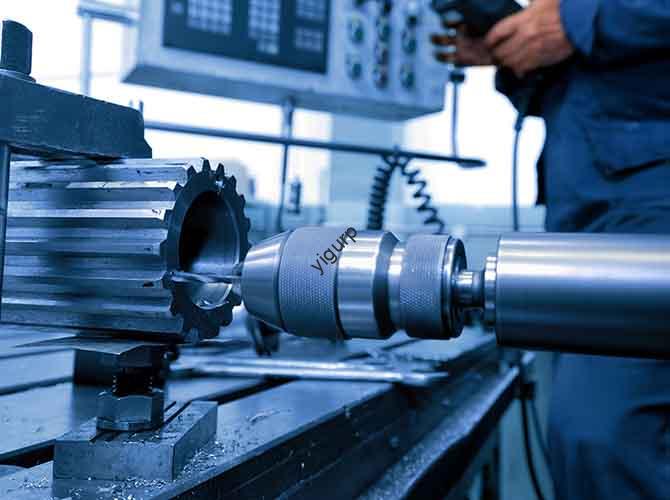

What Is CNC Boring?
CNC Boring is a specialized machining process that uses a rotating cutting tool called a Boring Tool to enlarge existing holes, refine their internal diameter, or create precise internal shapes (such as stepped holes, tapers, or grooves) in a workpiece. Unlike manual boring, CNC (Computer Numerical Control) boring uses pre-programmed computer instructions to control the Boring Tool’s movement, ensuring exceptional precision and repeatability in every operation.
The core concept of CNC Boring lies in its ability to achieve tight tolerances on internal features that are hard to reach with other machining methods. Instead of relying on manual adjustment, the computer-controlled system maintains consistent cutting parameters, making it ideal for both small-batch prototypes and large-volume production runs.
| Key Term | Meaning | Role in CNC Boring |
| CNC Boring | Computer-controlled hole-enlarging machining process | Automates tool movement for uniform precision across all workpieces |
| Boring Tool | Rotating cutting tool designed for internal machining | Enlarges, refines, or shapes internal holes to meet exact specifications |
| Machining Process | Controlled material removal to achieve desired part geometry | Core operation that transforms raw workpieces into finished, functional parts |
Our Capabilities: What We Offer in CNC Boring
With years of experience and deep technical expertise in CNC machining, our team is well-equipped to handle even the most challenging CNC Boring projects. We don’t just provide standard services—we tailor our solutions to match your unique needs, ensuring every bored part meets your strictest requirements.
Our Core CNC Boring Capabilities
| Capability | Details | Typical Applications |
| Custom Boring | Design and execute boring processes for non-standard hole sizes, shapes (e.g., eccentric bores, multi-step holes), and complex geometries | Aerospace engine casings, medical device housings, custom machinery components |
| Precision Boring | Achieve dimensional tolerance as tight as ±0.0003” (0.0076 mm) and surface roughness down to Ra 0.4 μm | High-precision hydraulic cylinders, automotive transmission hubs, electronics sensor housings |
| Range of Services | Internal boring (hole refinement, enlargement), blind hole boring (holes with one closed end), through-hole boring (holes passing through the workpiece), and counterboring (enlarging the top of a hole) | Construction equipment hydraulic parts, machinery bearing seats, consumer electronics enclosures |
| High-Volume Production | Process up to 800 parts per shift while maintaining consistent quality and tolerances | Mass-produced automotive engine blocks, appliance pump housings, industrial valve bodies |
Our team of certified CNC engineers and operators, along with state-of-the-art CNC boring machines, has successfully delivered projects for clients in 15+ industries—proving our ability to scale from one-off prototypes to large-scale production with ease.

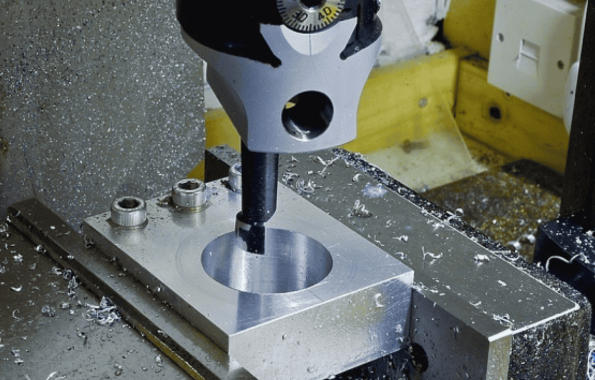

Process: How CNC Boring Works
The CNC Boring Process is a streamlined, step-by-step workflow designed to minimize errors and maximize efficiency. Unlike some machining methods that require multiple setups, CNC Boring uses precise programming to complete most internal machining tasks in a single operation.
Step-by-Step CNC Boring Operation Procedure
- Machine Setup: The workpiece is securely clamped in a fixture (e.g., a vise or chuck) to prevent movement during machining. Our technicians load the CNC program— which defines the tool path, cutting speed, feed rate, and depth of cut—into the machine’s control system. The machine is then calibrated to align with the workpiece’s reference points (e.g., existing holes or part edges).
- Tool Preparation: The appropriate Boring Tool (selected based on workpiece material, hole size, and tolerance requirements) is mounted onto the machine’s spindle. Tools are inspected for sharpness, wear, and proper alignment before each run to ensure consistent results.
- Cutting Sequence: The CNC machine moves the rotating Boring Tool into the workpiece’s existing hole (or starting point). The tool follows the pre-programmed tool path to remove material—either enlarging the hole to the desired diameter, refining its surface, or creating complex internal shapes (e.g., steps or tapers). For deep holes, the tool may pause periodically to clear chips and prevent overheating.
- Quality Check: After the boring operation is complete, the workpiece is removed from the fixture and inspected using precision measuring tools (e.g., bore gauges, coordinate measuring machines (CMMs), and surface roughness testers). This ensures the hole meets the specified tolerances and surface finish.
- Part Ejection & Next Cycle: The finished part is ejected, and the machine resets—either for the next workpiece (in high-volume production) or for reconfiguration (for custom parts). The automated reset process reduces downtime and keeps production on track.
The entire process typically takes 45 seconds to 3 minutes per part, depending on the hole depth, complexity, and material—making it significantly faster than manual boring or less precise machining methods.
Materials: What Can We Bore?
CNC Boring is compatible with a wide range of Boring Materials, from soft plastics to hard metals and alloys. The choice of material depends on the part’s end-use (e.g., strength for structural components, corrosion resistance for medical devices) and directly influences the selection of Boring Tool and cutting parameters.
Common Materials for CNC Boring
| Material Type | Examples | Key Properties | Ideal Applications |
| Metals | Steel (mild, alloy, stainless), Aluminum, Copper | Steel: High strength and durability; Aluminum: Lightweight and corrosion-resistant; Copper: Excellent thermal and electrical conductivity | Steel: Automotive engine blocks, construction machinery parts; Aluminum: Aerospace structural components, electronics heat sinks; Copper: Electrical connectors, heat exchangers |
| Alloys | Titanium alloy, Brass alloy, Inconel (nickel-chromium alloy) | Titanium alloy: High strength-to-weight ratio and biocompatibility; Brass alloy: Machinability and corrosion resistance; Inconel: Heat resistance and durability in extreme environments | Titanium alloy: Medical implants, aerospace turbine parts; Brass alloy: Plumbing fittings, musical instruments; Inconel: Jet engine components, industrial furnaces |
| Plastic | Nylon, PEEK (polyether ether ketone), Acetal | Nylon: Impact resistance and low friction; PEEK: High temperature resistance and biocompatibility; Acetal: Dimensional stability and wear resistance | Nylon: Gear housings, appliance parts; PEEK: Medical device components, aerospace interiors; Acetal: Consumer electronics casings, precision gears |
Before starting production, we conduct test runs on each material to optimize the machining process. For example, when boring hard materials like stainless steel or Inconel, we use carbide-tipped Boring Tools and slower feed rates to maintain precision and prevent tool wear. For soft materials like aluminum or plastic, we use high-speed steel (HSS) tools and faster feed rates to avoid material deformation.
Surface Treatment: Enhancing Part Performance
After CNC Boring, surface treatment (or finishing) is often applied to improve the part’s functionality, durability, or appearance. The right treatment depends on the material, the part’s end-use, and your specific requirements (e.g., corrosion resistance, wear resistance, or aesthetic appeal).
Our Surface Treatment Options
| Treatment Type | Process | Benefits | Typical Use Cases |
| Heat Treatment | Heating the workpiece to a specific temperature, holding it, then cooling it at a controlled rate (e.g., annealing, hardening, tempering) | Increases hardness, strength, and wear resistance; reduces internal stress | Automotive transmission components, machinery shafts, construction tool parts |
| Plating | Depositing a thin layer of metal (e.g., chrome, nickel, zinc) onto the part’s surface using electrochemical processes | Improves corrosion resistance, conductivity, and aesthetics; adds a protective barrier | Electrical connectors (nickel plating), marine components (zinc plating), decorative parts (chrome plating) |
| Coating | Applying a thin, protective layer (e.g., ceramic coating, PTFE (Teflon) coating, powder coating) to the part’s surface | Reduces friction, enhances chemical resistance, and improves heat resistance | Medical devices (biocompatible ceramic coating), industrial valves (PTFE coating), outdoor machinery parts (powder coating) |
| Painting | Applying a decorative or protective paint layer (e.g., enamel, acrylic) to the part’s surface | Improves aesthetics, prevents rust, and adds a barrier against environmental damage | Consumer-facing appliances, outdoor construction equipment, decorative machinery parts |
We partner with trusted surface treatment specialists to ensure consistency and quality. For example, our zinc-plated bored parts meet ASTM B633 standards, providing up to 1,200 hours of corrosion resistance in salt spray tests. Our ceramic-coated medical components comply with FDA biocompatibility requirements, making them safe for use in implants and surgical tools.
Tolerances: The Precision We Deliver
Tolerances are critical in CNC Boring—even tiny deviations from the specified dimensions can affect a part’s performance (e.g., a loose fit in a bearing seat can cause machinery vibration, while a tight fit can lead to assembly issues). Our CNC Boring process is optimized to achieve ultra-tight dimensional tolerance and smooth surface roughness, consistently exceeding industry standards.
Our Tolerance Capabilities vs. Industry Averages
| Metric | Our Capability | Industry Average | Advantage |
| Dimensional Tolerance | ±0.0003” (0.0076 mm) | ±0.0010” (0.0254 mm) | 3x tighter tolerance for high-precision applications |
| Surface Roughness (Ra) | 0.4 – 2.0 μm | 2.0 – 5.0 μm | Significantly smoother surface for reduced friction and improved part longevity |
| Positional Tolerance | ±0.0005” (0.0127 mm) | ±0.0020” (0.0508 mm) | More accurate alignment of bored holes with other part features (e.g., mounting holes, slots) |
To maintain these strict tolerances, we use CNC boring machines equipped with linear encoders (accuracy: ±0.00005” per foot) and laser calibration systems. We also perform in-process inspections every 15 parts—using bore gauges and CMMs—to catch any deviations early and ensure consistency across the entire production run.
Advantages: Why Choose CNC Boring Over Other Methods?
CNC Boring offers a range of unique benefits that make it superior to traditional machining methods (e.g., drilling, reaming) for internal hole machining. Its combination of precision, efficiency, and versatility makes it the top choice for manufacturers across industries.
Key Advantages of CNC Boring
| Advantage | Description | Impact on Your Project |
| High Efficiency | Completes complex internal machining (e.g., multi-step holes, tapers) in a single setup—no need for multiple tool changes or operations | Reduces production time by 40–60% compared to traditional methods |
| Precision & Consistency | CNC programming eliminates human error, ensuring every bored hole has identical dimensions and surface finish | Lowers scrap rate to <0.5% (vs. 2–4% for manual boring or drilling) |
| Cost-Effective | Fewer setups, less labor, and lower scrap rates translate to lower per-part costs—especially for high-volume production | Saves 15–25% on production costs for runs of 500+ parts |
| Time-Saving | Fast cycle times (45 sec–3 min per part) and automated processes reduce lead times for even large orders | Helps you meet tight deadlines and get products to market faster |
| Versatility for Complex Shapes | Can create intricate internal features (e.g., eccentric bores, blind holes with complex bottoms, threaded bores) that are hard to achieve with other methods | Eliminates the need for secondary operations (e.g., grinding, threading), saving time and money |
For example, a client producing automotive engine blocks switched from traditional drilling and reaming to our CNC Boring service. The result? Their production time per block dropped from 12 minutes to 3.5 minutes, and their scrap rate fell from 3.2% to 0.3%—saving them over $60,000 per month in material and labor costs.
Applications Industry: Where CNC Boring Is Used
CNC Boring is a versatile process used in nearly every major manufacturing industry. Its ability to create precise, consistent internal holes makes it indispensable for parts that require reliable performance, tight fits, and long-term durability.
Industry Applications of CNC Boring
| Industry | Common Bored Parts | Why CNC Boring Is Ideal |
| Automotive | Engine blocks (cylinder bores), transmission hubs, brake caliper cylinders, differential cases | Requires high-volume production with consistent tolerances for safety-critical parts; CNC Boring ensures uniform performance across all vehicles |
| Aerospace | Turbine engine casings, hydraulic system manifolds, aircraft landing gear components, fuel tank ports | Demands ultra-tight tolerances (±0.0003”) and compatibility with high-strength alloys (e.g., titanium, Inconel); CNC Boring meets strict aerospace standards (e.g., AS9100) |
| Electronics | Sensor housings, circuit board mounting holes, connector shells, heat sink internal channels | Needs small, precise holes (down to 0.01” diameter) and compatibility with lightweight materials (e.g., aluminum, plastic); CNC Boring ensures reliable component fit |
| Medical | Surgical instrument handles (internal cavities), implantable device housings (e.g., pacemaker cases), diagnostic equipment components | Requires biocompatible materials (e.g., titanium alloy, PEEK) and smooth surface finishes (Ra <0.8 μm) to prevent tissue irritation; CNC Boring meets FDA and ISO 13485 standards |
| Machinery | Bearing seats, gearbox housings, hydraulic cylinder barrels, pump casings | Needs durable parts with tight-fitting holes for moving components; CNC Boring ensures long part life and minimal machinery downtime |
| Construction | Heavy equipment hydraulic cylinders, excavator arm pivot holes, crane boom connection points, concrete mixer gear housings | Requires large, strong parts with precise holes that can withstand heavy loads; CNC Boring ensures structural integrity and reliable performance in harsh conditions |
In the aerospace industry, our CNC Boring services have helped clients produce turbine engine components that meet the strictest airworthiness standards—with zero defects in over 10,000 parts produced.
Manufacturing Techniques: The Technology Behind Our CNC Boring
Our CNC Boring services rely on advanced manufacturing techniques and cutting-edge tooling to deliver superior results. We combine proven CNC machining practices with innovative technologies to optimize every step of the boring process.
Core Manufacturing Techniques
| Technique | How It Works | Benefit |
| CNC Machining Integration | Our CNC boring machines are fully integrated with CAD/CAM software (e.g., SolidWorks, Mastercam), allowing us to import your 3D part models directly and generate optimized tool paths automatically | Reduces setup time by 50%; ensures bored parts match your design exactly, with no manual programming errors |

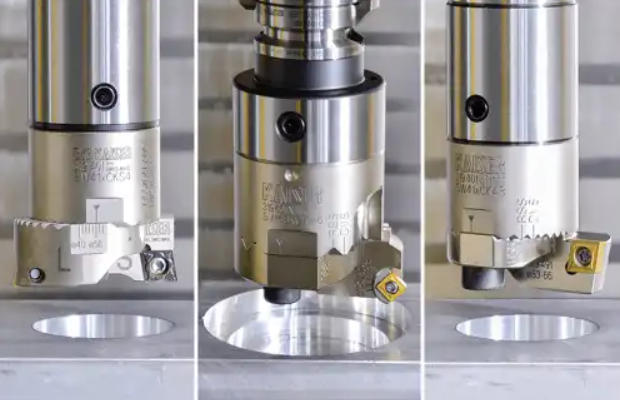

| High-Speed Boring | Uses high-speed steel (HSS) or carbide-tipped Boring Tools with optimized cutting geometries, paired with high spindle speeds (up to 12,000 RPM) and feed rates (up to 600 mm/min) | Cuts cycle time by 35% without compromising precision or surface finish |
| Tooling Optimization | We design custom Boring Tools for unique applications—e.g., diamond-coated tools for hard alloys, or multi-flute tools for fast material removal in soft plastics | Extends tool life (up to 8,000 parts per tool); improves surface finish and reduces tool change downtime |
| Automated Load/Unload Systems | Robotic arms or conveyor systems automatically load raw workpieces into the CNC machine and unload finished parts—eliminating manual handling | Increases production capacity by 30%; reduces labor costs and minimizes human error |
| Coolant Optimization | Uses high-pressure coolant systems (up to 1,000 PSI) to direct coolant precisely to the cutting zone—reducing tool wear, preventing chip buildup, and improving surface finish | Extends tool life by 40%; ensures consistent cutting performance even for deep-hole boring |
We also invest heavily in ongoing training for our technicians, ensuring they stay up-to-date on the latest boring techniques and CNC technology. This commitment to continuous improvement helps us deliver the most efficient, cost-effective CNC Boring solutions for our clients.
Case Studies: Success Stories From Our Clients
Our CNC Boring services have helped clients across industries solve complex machining challenges, reduce costs, and improve product quality. Below are two real-world examples of how we delivered exceptional results.
Case Study 1: Automotive Engine Block Boring for a Global Manufacturer
Client: A leading global automotive parts manufacturer producing 10,000 engine blocks per month for passenger cars.
Challenge: The client’s existing process (drilling + reaming) struggled to meet the tight dimensional tolerance (±0.0008”) for cylinder bores, leading to a 3.2% scrap rate and production delays. Additionally, their manual setup required 20 minutes per batch, slowing down overall output.
Solution: We implemented a fully automated CNC Boring system with custom carbide-tipped Boring Tools optimized for aluminum engine blocks. We integrated their CAD models directly into our CAM software to generate precise tool paths, and added robotic load/unload systems to eliminate manual handling. For quality control, we installed in-line bore gauges that checked each cylinder bore immediately after boring.
Results:
- Production Time: Reduced from 12 minutes per engine block to 3.5 minutes (a 71% improvement).
- Scrap Rate: Dropped from 3.2% to 0.3%, saving the client $62,000 monthly in material costs.
- Setup Time: Cut from 20 minutes per batch to 2 minutes, increasing daily production from 400 to 750 blocks.
Client Feedback: “The CNC Boring service transformed our engine block production. We now meet our global delivery deadlines consistently, and the quality of the cylinder bores has improved our engines’ fuel efficiency—earning us positive feedback from automakers.”
Case Study 2: Precision Boring for Medical Implant Housings
Client: A medical device company developing titanium alloy housings for implantable pacemakers.
Challenge: The housings required blind holes (0.125” diameter) with a surface roughness of Ra 0.4 μm and dimensional tolerance of ±0.0003”—standards that their current manual boring process could not meet. Additionally, the titanium alloy was difficult to machine without causing tool wear, leading to inconsistent part quality.
Solution: We used precision Boring techniques with diamond-coated Boring Tools (ideal for hard, biocompatible alloys) and high-pressure coolant systems to reduce tool wear. We programmed the CNC machine for ultra-slow feed rates (50 mm/min) to ensure smooth surface finishes, and conducted 100% post-boring inspection using a CMM calibrated to medical standards (ISO 13485). We also designed a custom fixture to hold the small, delicate housings securely during machining.
Results:
- Quality Compliance: 100% of parts met the required tolerances and surface finish—passing FDA biocompatibility and performance tests on the first attempt.
- Tool Longevity: The diamond-coated tools lasted 8,000 parts (vs. 500 parts with their previous tools), reducing tool replacement costs by 75%.
- Lead Time: Delivered 500 prototype housings in 2 weeks (vs. their previous supplier’s 6-week lead time), helping the client launch their pacemaker 1 month ahead of schedule.
Client Feedback: “The attention to detail in the CNC Boring process is unmatched. The precision of the blind holes ensures our pacemakers are hermetically sealed—critical for patient safety. We now rely on this team for all our high-precision medical component machining.”
Why Choose Us: Your Trusted CNC Boring Partner
With countless CNC Boring providers in the market, what makes us stand out? We combine technical excellence, customer-centric service, and proven results to be your reliable partner—whether you’re producing 10 prototype parts or 100,000 production units.
Top 5 Reasons to Choose Our CNC Boring Services
- Unrivaled Expertise & Experience: Our team has 30+ years of combined experience in CNC machining, with specialized knowledge in boring techniques for diverse materials (from plastics to Inconel). Our engineers are certified in AS9100 (aerospace) and ISO 13485 (medical), ensuring we meet the strictest industry standards.
- Strict Quality Control: We follow a 7-step quality check process—from raw material inspection (certified by suppliers) to in-process CMM tests and final surface finish verification. Our customer satisfaction rate is 99%, and we back every project with a quality guarantee: if parts don’t meet your specifications, we rework or replace them at no cost.
- Customized Solutions: We don’t offer “one-size-fits-all” services. Whether you need custom Boring for eccentric holes, deep-hole boring for hydraulic cylinders, or multi-step boring for complex machinery parts, we work with your team to design a process that fits your unique needs. We even create custom Boring Tools for non-standard geometries.
- Cost-Effective & Efficient: Our automated systems (robotic load/unload, CAD/CAM integration) and optimized tooling reduce labor and material waste—translating to 15–25% lower costs than our competitors. For high-volume orders, we offer volume discounts that further reduce your per-part expenses.
Reliable Service & Support: Every client is assigned a dedicated project manager who provides real-time updates (e.g., production progress, quality checks) and responds to questions within 24 hours. We also offer flexible lead times—from 24-hour rush service for emergency parts to 4-week lead times for large production runs—ensuring we meet your deadlines, no matter how tight.
