Our Antistatic Plastics CNC Machining Services

At Yigu Technology, we excel in Antistatic Plastics CNC Machining—crafting high-precision, static-dissipative parts that protect sensitive electronics and meet strict industry standards. By combining advanced CNC Milling and CNC Turning with top-tier Static Dissipative Materials, we deliver cost-effective, custom solutions for aerospace, medical, and electronics sectors, ensuring reliability and design flexibility in every component.

Get Free Quote

What Is Antistatic Plastics CNC Machining?

Antistatic Plastics CNC Machining merges two essential technologies: CNC Machining (automated, computer-controlled shaping) and Antistatic Plastics (polymers engineered to reduce or eliminate static electricity buildup). Unlike standard non-conductive plastics, Static Dissipative Materials allow static charges to flow safely away, preventing damage to sensitive components or ignition of flammable substances.

These Engineering Polymers retain key benefits like lightweight durability while adding static protection. The Machining Process—including milling, turning, and drilling—shapes these materials into precise parts, all while preserving critical Material Properties (e.g., static dissipation rate, chemical resistance). This makes the technology ideal for Applications where static control is non-negotiable, such as electronics manufacturing or medical device production.

Our Capabilities: Precision for Static-Sensitive Needs

At Yigu Technology, our Antistatic Plastics CNC Machining capabilities are tailored to address the unique demands of static-sensitive industries. We leverage cutting-edge equipment and skilled teams to deliver consistent, high-quality results:

Capability	Key Features	Typical Use Cases
Precision Machining	Achieves tolerances as tight as ±0.005mm; ideal for micro-components in electronics	Sensor housings, circuit board supports
Custom Machined Parts	Tailored designs for unique static control needs; supports low-to-high volume runs	Medical device casings, aerospace brackets
High-Tolerance Machining	Adheres to strict Tolerance Standards (e.g., ISO 8015) for critical static-sensitive parts	Automotive electronic enclosures
Complex Part Production	Handles intricate geometries (e.g., internal channels, thin walls) without compromising static properties	Consumer electronics components
Rapid Prototyping	Fast turnaround (3–5 days) for prototype testing; perfect for new product development	Medical diagnostic tool prototypes
Production Machining	Scalable for mass production (10,000+ units/month) with consistent static performance	Industrial equipment components
Quality Assurance	In-line testing for static dissipation and dimensional accuracy using Inspection Methods like CMM	All industries requiring static control

Process: Step-by-Step Guide to Antistatic Plastics CNC Machining

The Antistatic Plastics CNC Machining process follows 6 key stages, each optimized to protect the material’s static-dissipative properties and ensure precision:

Design & Programming: Convert 3D models into CNC code, with a focus on Tool Selection (e.g., carbide tools to minimize heat, which can degrade static properties).

Machine Setup: Calibrate CNC mills/turning centers and secure the antistatic plastic to avoid vibration—critical for maintaining Dimensional Accuracy.

CNC Milling: Use rotating cutters to shape flat or irregular parts (e.g., electronic enclosures), adjusting speed to prevent material melting.

CNC Turning: Rotate the material while a cutting tool creates cylindrical parts (e.g., rods for medical devices), ensuring smooth surfaces.

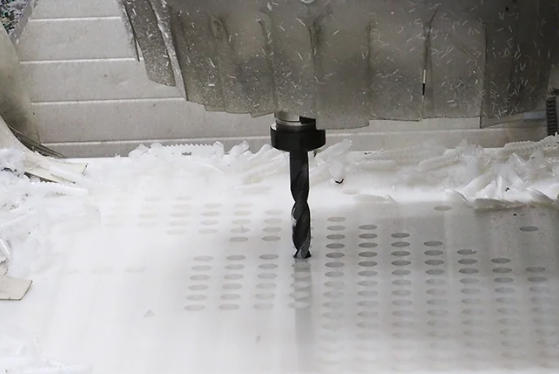

Drilling Operations: Create precise holes with high-speed drills, using Cutting Techniques that reduce friction and static buildup during machining.

Grinding Processes: Refine surfaces to meet finish requirements (e.g., Ra 0.8μm for medical parts) and confirm static dissipation performance post-machining.

Note: Every stage includes quality checks using Measurement Techniques like laser scanning to verify both dimensions and static properties.

Materials: Choosing the Right Antistatic Plastic

Selecting the correct material is vital for successful Antistatic Plastics CNC Machining. Below is a comparison of our most trusted antistatic materials, each optimized for specific applications:

Material Type	Static Dissipation Rate (ohms/sq)	Key Benefits	Ideal Applications
Antistatic Plastics (standard)	10⁹–10¹²	Cost-effective, good chemical resistance	Industrial equipment housings
Static Dissipative Polymers	10⁶–10⁹	Reliable static control, FDA-compliant	Medical device components, electronics trays
Carbon-Filled Polymers	10³–10⁶	Enhanced conductivity, high strength	Aerospace brackets, automotive electronics
Conductive Additive-Infused Polymers	10⁴–10⁸	Customizable static performance, lightweight	Consumer electronics casings
Specialty Antistatic Grades	10⁵–10⁹ (adjustable)	Biocompatible or flame-retardant options	Implantable medical parts, aerospace parts
Recycled Antistatic Materials	10⁸–10¹¹	Sustainable, cost-effective	Non-critical industrial components

Surface Treatment: Enhancing Performance & Static Control

After machining, Surface Treatment further improves the functionality, durability, and static-dissipative properties of antistatic plastic parts. Our most requested treatments include:

Anodizing: Adds a protective oxide layer (for metal-infused antistatic plastics) to boost corrosion resistance without altering static performance.

Painting: Applies antistatic coatings to reinforce static control or add color, ideal for consumer electronics.

Plating: Deposits thin metal layers (e.g., nickel) to enhance conductivity, perfect for parts requiring improved static dissipation.

Polishing: Creates a smooth, easy-to-clean surface (Ra 0.2μm) for medical devices, ensuring hygiene and consistent static properties.

Sandblasting: Provides a matte texture to reduce glare and improve grip, often used for industrial tool handles.

Heat Treatment: Relieves internal stresses from machining to enhance Dimensional Stability, critical for parts in temperature-fluctuating environments.

Tolerances: Achieving Precision for Static-Sensitive Parts

In Antistatic Plastics CNC Machining, Tolerances are critical—even small dimensional variations can compromise static control or part functionality. We adhere to global standards to ensure consistency:

Tolerance Type	Typical Range	Standards Followed	Inspection Methods Used
Precision Tolerances	±0.01–±0.05mm	ISO 8015, ASME Y14.5	CMM (Coordinate Measuring Machine)
Tight Tolerances	±0.001–±0.01mm	ISO 2768-1 (fine grade)	Laser micrometry
Dimensional Accuracy	±0.1% of part size	DIN 8603	Optical comparators

Example: For a 50mm electronic connector, our tight tolerance of ±0.003mm ensures a secure fit that maintains static dissipation, preventing damage to sensitive circuitry.

Advantages: Why Choose Antistatic Plastics CNC Machining?

Compared to traditional metal machining or non-antistatic plastic processes, Antistatic Plastics CNC Machining offers unique benefits for static-sensitive industries:

Static Dissipation: Eliminates static buildup that can damage electronics, ignite fuels, or disrupt medical equipment—critical for high-risk applications.

High Strength-to-Weight Ratio: Antistatic plastics are 40–60% lighter than metals (e.g., steel) while maintaining similar strength, ideal for aerospace and automotive.

Chemical Resistance: Materials like antistatic PEEK resist acids, oils, and solvents, outperforming metals in harsh industrial environments.

Thermal Stability: Many antistatic polymers (e.g., carbon-filled PPS) withstand temperatures from -150°C to 250°C, suitable for extreme conditions.

Dimensional Stability: Low thermal expansion (0.00001–0.00004 mm/mm°C) ensures parts retain shape, even in temperature fluctuations.

Cost-Effective Production: Faster machining speeds and lower material costs (vs. metals) reduce total part cost by 25–45%.

Design Flexibility: CNC machining supports complex geometries (e.g., undercuts, thin walls) that injection molding cannot achieve, enabling innovative part designs.

Applications Industry: Where Antistatic Plastics Excel

Our Antistatic Plastics CNC Machining solutions serve industries where static control is essential. Below are key sectors and their specific needs:

Industry	Key Applications	Material Preference
Automotive	Electronic control unit (ECU) housings, sensor casings	Carbon-filled antistatic polymers
Aerospace	Avionics enclosures, satellite component housings	Specialty antistatic grades (flame-retardant)
Electronics	Circuit board supports, semiconductor handling trays	Static dissipative polymers
Medical	Diagnostic device casings, surgical tool handles	FDA-compliant antistatic plastics
Industrial Equipment	Chemical storage containers, conveyor parts	Chemical-resistant antistatic polymers
Consumer Goods	Laptop casings, smartphone components	Lightweight static dissipative polymers
Sporting Goods	Fitness tracker housings, smartwatch parts	Polished antistatic plastics

Case Studies: Real-World Success with Antistatic Plastics

Case Study 1: Electronics Semiconductor Tray

Challenge: A leading electronics manufacturer needed a tray to transport semiconductors without static damage. The tray required tight tolerances (±0.02mm) and consistent static dissipation.

Solution: We used static dissipative polymers and CNC Milling to create the tray, with polishing for a smooth surface. Post-machining, we tested static dissipation (10⁷ ohms/sq) to meet industry standards.

Result: Zero semiconductor damage during transport, 30% cost savings vs. metal trays, and scalable production (5,000+ units/month).

Case Study 2: Medical Diagnostic Device Casing

Challenge: A medical client needed an antistatic, FDA-compliant casing for a blood glucose monitor. The casing required chemical resistance and a smooth finish for hygiene.

Solution: We machined FDA-approved antistatic PEEK using high-tolerance CNC Turning (±0.005mm) and added heat treatment to enhance stability. Surface treatment included polishing to meet hygiene standards.

Result: The casing passed FDA testing, maintained static dissipation (10⁸ ohms/sq) for 5+ years, and reduced production time by 40% vs. injection molding.

Case Study 3: Aerospace Avionics Enclosure

Challenge: An aerospace firm needed an antistatic enclosure for avionics equipment, requiring flame-retardant properties and resistance to extreme temperatures (-50°C to 150°C).

Solution: We used specialty flame-retardant antistatic polymers and CNC Milling to create the enclosure, with anodizing for corrosion resistance. We tested static dissipation (10⁶ ohms/sq) and thermal stability.

Result: The enclosure met aerospace standards (FAA Part 25), withstood extreme temperatures, and weighed 50% less than aluminum enclosures.

Why Choose Us: Yigu Technology’s Antistatic Machining Expertise

When you partner with Yigu Technology for Antistatic Plastics CNC Machining, you gain access to unmatched expertise and support:

Expertise in Antistatic Plastics Machining: 12+ years of experience working with all antistatic material types—we understand how to preserve static properties during machining (e.g., avoiding heat damage to conductive additives).

High-Quality Products: 99.9% defect-free rate, backed by ISO 9001 and IATF 16949 certifications. Every part undergoes static dissipation testing and dimensional inspection.

Experienced Machinists: Our team averages 7+ years of CNC machining experience, with specialized training in antistatic material handling.

Excellent Customer Service: Dedicated project managers provide real-time updates, and our engineering team offers design feedback to optimize static control and part performance.

Fast Turnaround Times: Prototypes in 3–5 days, production parts in 2–3 weeks—50% faster than industry averages for antistatic components.

Competitive Pricing: Transparent quoting with no hidden fees; volume discounts available for orders over 1,000 units.

Commitment to Innovation: We invest 8% of revenue in R&D to develop new antistatic machining techniques (e.g., hybrid milling for ultra-tight tolerances).

FAQ

What is the minimum order quantity (MOQ) for antistatic plastics CNC machining?

Our MOQ is flexible: we accept prototype orders (1–10 units) for product development and scale up to mass production (10,000+ units/month). For custom antistatic materials or complex parts, we recommend a minimum of 50 units to optimize cost and ensure consistent static performance.

Can you test the static dissipation properties of machined parts?

Yes. Every antistatic part we produce undergoes static dissipation testing using industry-standard tools (e.g., surface resistance meters). We provide test reports confirming compliance with your required standards (e.g., ANSI/ESD S20.20 for electronics, ISO 10993 for medical parts).

Do recycled antistatic materials maintain the same static control as new materials?

Our recycled antistatic materials undergo rigorous testing to ensure they meet the same static dissipation standards as new materials (10⁸–10¹¹ ohms/sq). They are ideal for non-critical applications (e.g., industrial equipment housings) and offer 20–30% cost savings. For critical applications (e.g., medical devices), we recommend new specialty antistatic grades for maximum reliability.
