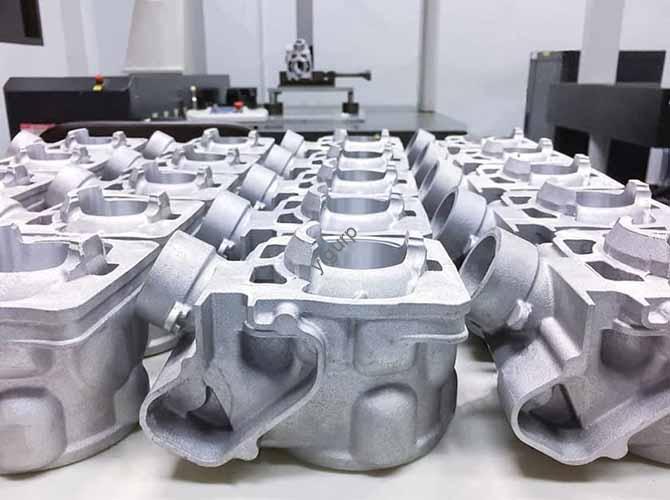

How Do You Choose the Right Aluminum Alloy for Die Casting and Machining?
The alloy you choose determines castability, machinability, and final performance.
| Alloy | Key Properties | Best Applications |
|---|---|---|
| A380 | High strength, excellent castability, good machinability | Automotive brackets, power tools |
| ADC12 | Low cost, high fluidity, smooth surface finish | Electronic housings, small components |
| AlSi10Mg | High fatigue resistance, good weldability, heat-treatable | Structural parts, drone frames |
Critical Alloy Characteristics to Consider
Liquidus and solidus temperatures: For A380, liquidus is ~610°C and solidus ~565°C. Control these temperatures during melting to avoid incomplete filling.
Shrinkage ratio: Aluminum shrinks 1.5–2% during solidification. Account for this in mold design—otherwise, parts come out undersized.
Thermal conductivity: High conductivity (e.g., 120 W/m·K for ADC12) helps with cooling but requires faster machining to prevent heat-related distortion.
Corrosion resistance: AlSi10Mg resists corrosion better than ADC12. Choose it for parts exposed to moisture (outdoor equipment, marine applications).
Castability index: Aim for an index of 8–10 (10 = best). A380 has a 9/10 index, making it ideal for complex shapes.
How Do You Design a Mold That Works for Machining?
A well-designed mold minimizes machining requirements and ensures consistent parts.
Critical Mold Design Elements
Mold cavity insert design: Use interchangeable inserts for multi-variant parts. Saves time when switching between designs.
Draft angle optimization: Add 1–3° draft to all vertical surfaces. Too little causes sticking; too much requires extra machining to reach dimensions.
Runner and gate layout: Position gates to fill the cavity evenly. Edge gates for flat parts, pinpoint gates for small features. Avoid long runners—they let metal cool before filling.
Cooling channel configuration: Space channels 20–30 mm apart and 10–15 mm from the cavity. Uniform cooling reduces warpage—a major machining headache.
Vacuum venting: Use vents 0.2–0.3 mm wide and vacuum (≤50 mbar) to remove air. Cuts porosity 60% and reduces machining time spent on filling defects.
Shot sleeve sizing: Match sleeve diameter to part weight. For parts under 2 kg, use 50 mm diameter. Oversized sleeves waste material and increase cycle time.
Mold flow simulation: Run simulations (SolidWorks Flow Simulation, MAGMA) to test filling. Fix issues like air traps before building the mold.
What Machine Parameters Produce Consistent Castings?
High-pressure die casting (HPDC) turns molten aluminum into castings. Wrong parameters create defects that ruin machining.
| Parameter | Target Range (A380) | Why It Matters |
|---|---|---|
| Clamping force tonnage | 200–500 tons per 1 kg part | Prevents mold opening during injection—avoids flash that needs extra machining |
| Injection speed profile | 2–5 m/s (fast shot) | Fills cavity before aluminum solidifies—critical for thin-wall parts |
| Intensification pressure | 80–120 MPa | Packs metal tightly to reduce porosity—improves machining surface quality |
| Biscuit thickness control | 15–25 mm | Uniform biscuit ensures consistent pressure |
| Cycle time | 30–60 seconds | Balances cooling (prevents warpage) and productivity |
Pro Tips
- Use die spray release agent sparingly. Too much leaves residue that gums up machining tools.
- Apply plunger tip lubrication every 5–10 cycles. Reduces wear and ensures smooth metal flow.
How Do You Control Defects Before Machining?
Defects in the casting mean more work (and cost) in machining. Fix them at the source.
| Defect | Cause | Fix |
|---|---|---|
| Porosity | Trapped air during solidification | Use vacuum venting; increase intensification pressure |
| Gas holes | Moisture in alloy or mold | Dry alloy at 200–250°C; use mold sealant |
| Cold shut | Molten metal streams don’t fuse | Increase injection speed; raise mold temperature to 180–220°C |
| Hot tearing | Uneven cooling causes stress | Optimize cooling channels; use directional solidification (cool from thick to thin areas) |
Other Key Steps
Microstructure refinement: Add 0.01–0.05% titanium to the alloy. Produces fine grains that are easier to machine.
Eutectic silicon modification: Use strontium (Sr) to modify silicon particles. Improves ductility and reduces tool wear during machining.
What Machining Strategy Works Best for Aluminum Castings?
Machining aluminum castings requires a strategy that accounts for their unique properties—softness, potential porosity, and thermal conductivity.
Core Machining Principles
Datum surface planning: Choose a flat, stable surface (like the base of a housing) as the primary datum. Machine this first—it becomes the reference for all other cuts.
Minimum stock allowance: Leave only 0.5–1.0 mm of stock for machining. Too much wastes time; too little risks hitting porosity.
Distortion compensation: If the casting warps after cooling, adjust the tool path. Remove more material from the warped side to bring it back to spec.
Roughing vs. finishing passes:
- Roughing: High feed rates (1000–1500 mm/min) to remove stock quickly. Use carbide tools (WC-Co grade) for durability.
- Finishing: Slow feed rates (200–500 mm/min) to achieve tight tolerances. Use sharp tools for smooth surfaces.
Coolant choice: For most aluminum alloys, flood coolant works best—prevents heat buildup. For hard-to-reach areas, use MQL (Minimum Quantity Lubrication) —reduces waste and keeps chips clean.
How Do You Keep Parts Stable During CNC Machining?
Aluminum is soft and prone to movement during machining. Good fixture design prevents this.
Key Fixture and CNC Tips
5-axis machining center: Ideal for complex parts (curved automotive components). Machines multiple sides in one setup, reducing error from repositioning.
Custom hydraulic fixture: Uses hydraulic pressure to clamp parts evenly. Perfect for thin-wall parts—avoids distortion.
Clamping force distribution: Apply 20–30% of the part’s yield strength (e.g., 60–90 MPa for A380). Too much force bends the part.
Vibration damping pads: Place under the fixture. Reduces chatter that causes rough surfaces.
Probing and in-cycle gauging: Use a CNC probe to measure parts mid-machining. Adjust tool paths if dimensions drift—cuts scrap 30% .
Zero-point pallet system: Swap parts quickly (under 2 minutes) between setups. Ideal for small batches.
Quick-change jaws: Change jaws in 5–10 minutes for different part sizes. Saves time in low-volume production.
How Do You Verify Dimensional and Geometric Accuracy?
Precision is non-negotiable. Inspection verifies your parts meet specs.
| Tool/Metric | Purpose | Target for Aluminum Parts |
|---|---|---|
| CT scanning inspection | Finds internal defects (small pores); checks dimensions | Detect pores ≤0.1 mm; dimension accuracy ±0.05 mm |
| CMM aluminum fixturing | Measures complex geometries (3D profiles) | Repeatability ±0.005 mm |
| GD&T callouts | Defines geometric requirements (flatness, perpendicularity) | Follow ASME Y14.5—e.g., flatness ≤0.1 mm per 100 mm |
| Capability index Cpk | Measures process consistency | Cpk ≥ 1.33 (capable process) |
Statistical process control (SPC) : Track dimensions over time on control charts. If values drift toward tolerance limits, adjust machining parameters immediately.
What Surface Finishes and Treatments Are Available?
Final finishing protects the part and enhances appearance.
| Process | Purpose | Best For |
|---|---|---|
| De-gating and de-burring | Removes gate marks and sharp edges | All parts—prevents injury, improves fit |
| Shot blasting (aluminum oxide media) | Creates uniform matte finish | Parts needing non-reflective surface (camera housings) |
| Vibratory tumbling (ceramic media) | Polishes small parts | Screws, connectors |
| Anodizing Type II and III | Adds protective oxide layer (Type II: 5–20 μm; Type III: 25–100 μm) | Type II: cosmetic; Type III: high-wear (handles, gears) |
| Powder coating | Durable colored coating; test adhesion with cross-hatch | Outdoor parts—resists UV, moisture |
| E-coat | Full coverage even in crevices | Complex parts (automotive frames) |
FAQ About Aluminum Alloy Die Casting Machining Parts
Why is H13 tool steel preferred for aluminum die casting molds?
H13 steel has high heat resistance (withstands 500–600°C) and wear resistance—critical for aluminum die casting, where molds face repeated high temperatures. It also machines well, making it easy to create complex cavity inserts.
How do I choose between flood coolant and MQL for machining aluminum castings?
Use flood coolant for large parts or high-volume runs—it cools the tool and flushes chips effectively. MQL is better for small, complex parts (hard-to-reach areas) or eco-friendly operations, using just 5–50 mL/h of lubricant vs. liters of flood coolant.
What is the best way to reduce porosity before machining?
Combine three steps:
- Vacuum venting during casting removes air
- Increase intensification pressure to pack metal tightly
- Dry the alloy at 200–250°C to remove moisture
These steps cut porosity 60–70% , reducing machining time spent on filling defects.
How much stock should I leave for machining?
0.5–1.0 mm is ideal. Less than 0.5 mm risks hitting porosity. More than 1.0 mm wastes time and risks tool deflection on thin walls.
What surface finish can I expect after machining?
With proper finishing passes, Ra 0.8–1.6 μm is achievable. For comparison:
- Ra 0.8 μm = cosmetic surface, ready for anodizing
- Ra 1.6 μm = good for most functional surfaces
- Ra 3.2 μm = acceptable for hidden surfaces
Conclusion
Aluminum alloy die casting machining parts require mastery of every step:
- Choose the right alloy: A380 for strength/castability, ADC12 for cost/fluidity, AlSi10Mg for fatigue resistance
- Design the mold well: H13 steel, 1–3° draft, uniform cooling, vacuum venting
- Control casting parameters: 80–120 MPa pressure, 2–5 m/s injection, 30–60 second cycles
- Fix defects at the source: Vacuum venting, proper drying, directional cooling
- Machine strategically: 0.5–1.0 mm stock, rough then finish, flood coolant
- Hold parts securely: 5-axis setups, hydraulic fixtures, zero-point pallets
- Inspect thoroughly: CMM, CT scanning, SPC charts
- Finish appropriately: Anodize, coat, or polish as needed
Get each step right, and you produce parts that meet tight tolerances, look good, and perform reliably—batch after batch.
