Why Is ABS the Preferred Material for Electronic Product Prototypes?

Introduction

If you’re developing new electronic products—whether smartphones, smartwatches, industrial controllers, or consumer gadgets—you know that prototyping is where your design becomes real. But here’s the challenge: your prototype needs to look right, feel right, and function well enough for meaningful testing, all while staying on schedule and within budget.

That’s where ABS electronic product prototype development comes in. ABS (Acrylonitrile Butadiene Styrene) has become the industry workhorse for electronic product prototyping. Why? Because it delivers the perfect balance of mechanical properties, machinability, surface finish quality, and cost-effectiveness.

In this comprehensive guide, we’ll walk you through the complete ABS prototype proofing process for electronic products. You’ll learn how to move from concept to a functional prototype that you can test, present to stakeholders, and eventually scale to production. We’ve included real cases from actual product development, industry data, and practical tips at every step.

What Makes ABS Ideal for Electronic Product Prototypes?

Understanding ABS Material Properties for Electronics

Before we dive into the process, let’s understand why ABS plastic dominates electronic product prototyping. The material’s properties align perfectly with what electronic devices need:

These numbers translate directly to real electronic product performance. A ABS smartphone prototype can be dropped during user testing and protect the internal dummy components. A ABS smartwatch casing maintains its shape even when warm from the processor.

How ABS Compares to Other Electronic Prototyping Materials

Many engineers wonder if they should use something else. Here’s the honest comparison:

Real Case: A consumer electronics company developing a wireless earbud charging case prototype started with pure ABS. During drop testing from 1.5 meters, the case cracked at the hinge area. They switched to an ABS/PC blend (80/20) for the second iteration. The blend improved impact resistance by 35%, and the prototype passed all drop tests. The material cost increased by only 15%, which was acceptable for the project timeline.

How Do You Select the Right ABS Grade for Electronics?

Matching ABS Type to Electronic Product Function

Not all ABS is the same. Your choice depends on what your electronic product needs:

For Smartphone and Tablet Casings:

• High-flow ABS grades for thin walls
• Impact-modified grades for drop protection
• Example: A ABS smartphone prototype needs good flow for thin sections and high impact resistance for corner drops

For Wearable Devices:

• Skin-contact safe grades
• Good surface finish for comfort
• Example: A ABS smartwatch prototype must be smooth against skin and resist sweat

For Industrial Controllers:

• UL94 V-0 rated grades for flammability
• Heat-resistant grades for enclosed electronics
• Example: A ABS industrial control panel prototype needs flame retardance for safety certification

For Remote Controls and Consumer Gadgets:

• Standard injection grades
• Good paint adhesion
• Example: A ABS TV remote prototype needs smooth surface for branding and button printing

When to Use ABS Blends and Complements

Smart prototyping rarely uses ABS alone. Here’s when to consider blends and complementary materials:

Real Case: A company developing a ABS tablet prototype needed the main body in ABS for cost reasons, but the area near the processor generated more heat than standard ABS could handle. They designed the prototype with a PC insert in the processor area—a 2mm thick PC panel that conducted heat better and resisted higher temperatures. This hybrid approach cost 20% less than making the entire prototype from PC.

What Design Steps Ensure Electronic Prototype Success?

Creating the 3D Model for Electronics

Your ABS electronic product prototype starts in digital form. This is where precision matters most, especially for fitting internal components.

Essential Model Requirements for Electronics:

• Wall thickness: 1.2-2.0mm typical for handheld devices
• Boss design: Diameter 1.8-2.0x screw diameter, with support ribs
• Snap features: Cantilever design with 2-3% strain at engagement
• PCB mounting: Standoffs with 0.1-0.2mm clearance for board
• Battery compartment: 0.3-0.5mm clearance around cells
• Port openings: USB, audio jack positions within ±0.1mm
• Draft angles: 0.5-1.0 degree for ejection (if considering molding later)

Software Options for Electronic Product Design:

• SolidWorks: Industry standard, great for assemblies
• NX (Unigraphics): Powerful for complex surfaces
• Catia: Used in high-end consumer electronics
• Fusion 360: Cost-effective for startups
• Pro/E (Creo): Common in medical electronics

A 0.1mm error in your CAD model can make a prototype useless. For example, a ABS smartphone prototype with USB port positioned 0.2mm off won’t align with the actual connector on the PCB—making the whole prototype unusable for functional testing.

Running Design Analysis for Electronics

Here’s a step many teams skip but shouldn’t: simulation before cutting material.

What to Analyze for Electronic Products:

Structural Analysis:

• Drop test simulation (corners, faces, edges)
• Flexure under normal handling
• Button actuation forces
• Snap-fit engagement and retention

Thermal Analysis:

• Heat distribution from processor
• Hot spot identification
• Ventilation effectiveness
• External surface temperatures

Tolerance Analysis:

• Stack-up of component tolerances
• Fit between casing and internal parts
• Assembly sequence feasibility

Real Case: A gaming console company designed a ABS controller prototype with thin walls to reduce weight. FEA analysis showed the casing would flex 0.8mm during normal grip pressure—enough to cause internal PCB contact. They added cross ribs that increased wall thickness by only 0.3mm locally but reduced flex to 0.15mm. The analysis cost $300 and saved $12,000 in tooling revisions later.

Industry Fact: According to electronics prototyping data, 72% of prototype failures have design flaws that could have been caught in simulation. Running basic analysis cuts your iteration cycles in half.

How Do You Program CNC Machines for Electronic ABS Parts?

From CAD to CAM for Electronics

Once your design is finalized, you need to translate it into machine instructions for your ABS electronic product prototype.

CAM Software Options:

• Mastercam: Powerful, widely used in prototyping shops
• SolidCam: Integrated with SolidWorks for seamless workflow
• Fusion 360 CAM: Good for simpler electronic enclosures
• PowerMill: For complex 5-axis work on curved devices

Key Programming Decisions for Electronic Parts:

• Tool selection: Small end mills (1-3mm) for fine features like button holes
• Feeds and speeds: 12,000-18,000 RPM, 40-80 inches/minute feed
• Stepover: 30-40% of tool diameter for roughing, 8-12% for finishing
• Depth of cut: 0.3-0.8mm per pass for ABS (prevents melting)
• Tool paths: Climb milling preferred for better surface finish

Testing Your Program Before Cutting

Before cutting expensive ABS material, simulate everything:

Check For:

• Tool collisions with clamps or fixtures
• Incomplete cutting in tight corners (common in electronic enclosures)
• Excessive air cutting (wasted time)
• Tool paths that could cause melt marks on visible surfaces
• Finish pass strategies for cosmetic areas

Real Case: A South Korean electronics firm programmed a ABS foldable phone prototype with complex hinge geometry. Their CAM simulation revealed a tool holder collision with a deep cavity wall during 5-axis machining. Reprogramming the tool path with a longer reach tool avoided a $3,200 scrap part and four days of lost time.

Data Point: Proper program testing reduces machining errors by 68% on average. The 4-8 hours spent simulating pay back quickly in reduced scrap and rework.

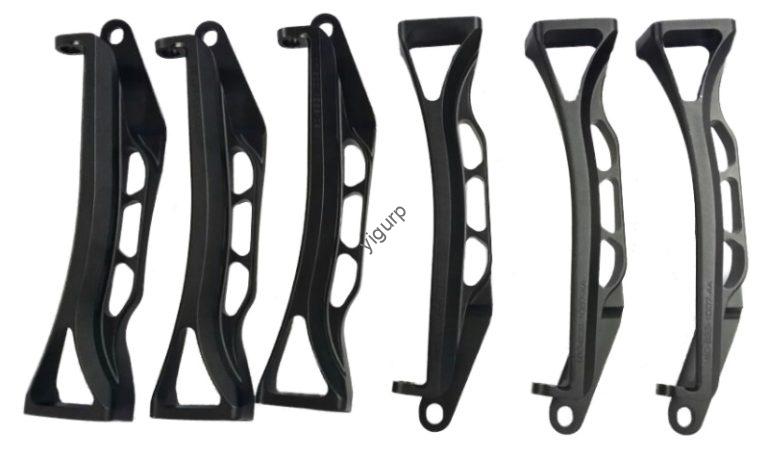

What Machining Process Creates Electronic ABS Prototypes?

Setting Up for ABS Machining

CNC machining remains the preferred method for ABS electronic product prototypes because it delivers:

• Tolerance: ±0.05mm typical for critical features
• Surface finish: Ra 0.8-1.2μm as-machined
• No layer lines (unlike 3D printing)
• Material properties unchanged by process
• Ability to create sharp corners and fine details

Machine Selection for Electronic Parts:

• 3-axis CNC: For simple enclosures, flat panels, basic shapes
• 4-axis CNC: For parts needing rotated features, side holes
• 5-axis CNC: For complex curves, ergonomic shapes, undercuts
• High-speed machining: For thin walls and fine details

3-Axis vs 5-Axis: Making the Choice for Electronics

Real Case: A US-based electronics startup needed a ABS ergonomic mouse prototype with complex curves for user testing. Using 5-axis machining, they completed the part in one day instead of three days with multiple 3-axis setups. The single setup also eliminated alignment errors between top and bottom surfaces.

Real-Time Measurement During Machining

Don’t wait until the end to check dimensions on critical electronic features:

In-Process Checks:

• Use probes to verify critical features after roughing
• Measure thin wall sections before finishing passes
• Check port openings and button holes
• Verify flatness of PCB mounting surfaces before unclamping

Real Case: While machining a ABS smartwatch prototype, a manufacturer used in-process CMM measurements and found a 0.07mm deviation in the display opening width. They adjusted the tool offset for the finishing pass and saved the part. Without real-time measurement, they would have scrapped it after completion—delaying the project by a week.

What Post-Processing Makes Electronic ABS Prototypes Production-Ready?

Mechanical Finishing for Electronics

Your ABS part comes off the CNC machine with visible tool marks. Here’s how electronic products need different finishing:

Deburring Process for Electronics:

1. Remove obvious flashing with sharp knife (careful near fine features)
2. Sand with 320-grit for visible tool marks
3. Progress to 600-grit for smooth finish
4. Finish with 1000-grit for high-gloss areas
5. Wet sand for highest quality (prevents heat buildup)

A ABS smartphone prototype typically needs 20-40 minutes of hand finishing, especially around:

• Button holes (must be smooth for button movement)
• USB port openings (can’t have burrs that block connectors)
• Display edges (must be smooth for screen fit)
• Corners (where users feel the device)

Surface Treatment Options for Electronic Products

Different electronic products need different finishes:

Important: ABS accepts paint well, but always use primer designed for electronics. Some solvent-based paints can attack ABS and cause cracking, especially on thin walls. Water-based acrylics are generally safe. Always test on a sample piece first.

Adding Functional Electronic Features

Sometimes post-processing adds electronic function:

• Conductive coating: Add EMI shielding to internal surfaces
• Selective plating: Create conductive traces on ABS
• Heat-staking: Install threaded inserts for assembly
• Overmolding simulation: Add silicone grips to simulate production
• Bonding: Assemble multi-part enclosures with ABS-compatible adhesives

Real Case: A ABS wireless earbud prototype needed to test RF performance with the casing closed. The prototyping team applied a thin copper foil to the inside of the ABS casing to simulate the EMI shielding that production parts would have. This allowed accurate RF testing months before production tooling was ready.

How Do You Test Electronic ABS Prototypes?

Assembly Verification for Electronics

Before functional testing, verify that everything fits and works together:

Assembly Checklist for Electronic Products:

• PCB fits in designated space without force
• Battery sits correctly with proper clearance
• Buttons align with dome switches
• Display fits opening with proper visibility
• USB and audio ports align with openings
• Screws thread properly into bosses
• Cables route without pinching
• Antenna areas have proper clearance (no metal)

A ABS smart speaker prototype might have 15-20 separate parts: main casing, front grille, button assembly, PCB, power board, and various internal brackets. Assembly testing ensures everything comes together before you invest in functional testing.

Functional Testing Protocols for Electronics

Now test how it performs:

For Smartphones and Tablets:

• Test all button functions
• Verify display fit and touch access
• Check port alignment and connectivity
• Test speaker and microphone openings
• Perform drop tests from specified heights
• Check thermal performance during charging

For Wearables:

• Verify comfort with different wrist sizes
• Test button accessibility during wear
• Check sensor windows (heart rate, etc.)
• Test water resistance if applicable
• Verify band attachment security

For Remote Controls:

• Test all button presses and feel
• Verify IR or RF window alignment
• Check battery door security
• Test drop resistance

For Industrial Controllers:

• Verify all interface elements
• Test in expected environmental conditions
• Check EMI shielding effectiveness
• Verify mounting system works

Data Point: Electronics industry analysis shows that 80% of successful product launches involved at least 2 full rounds of functional testing on prototypes. Products with insufficient testing have a 3x higher field failure rate.

User Experience Testing

Beyond function, electronic products need to feel right:

What to Test with Users:

• Grip comfort and ergonomics
• Button placement and accessibility
• Weight and balance in hand
• Surface feel and texture
• Visual appeal and perceived quality
• Ease of understanding controls

Real Case: A company developing a ABS gaming controller prototype created five variations with different grip textures, button placements, and weights. They gave all five to 20 gamers for blind testing. The feedback showed a clear preference for one design that wasn’t the engineering team’s first choice. User testing prevented a costly mistake.

What to Document During Testing

Keep detailed records for your ABS electronic product prototype:

Documentation Requirements:

• Photos before, during, and after each test
• Measurements at all critical points
• Pass/fail criteria and results
• Observations on unexpected behavior
• User feedback on ergonomics and usability
• Photos of any failures or issues
• Thermal images if applicable
• Electrical test results

This documentation becomes critical when deciding whether to proceed to production or make another iteration.

How Do You Ensure Quality Control for Electronic Prototypes?

Implementing Multiple Checkpoints

Quality isn’t a final inspection—it’s built into every step of ABS electronic product prototype development:

Material Receiving:

• Verify ABS grade matches order
• Check material certificates
• Inspect for contamination or damage
• Confirm UL rating if required

In-Process Checks:

• First article inspection on critical features
• In-process dimensional verification
• Visual inspection after each operation
• Wall thickness verification

Final Inspection:

• Complete dimensional report with critical-to-quality features
• Surface finish verification under proper lighting
• Assembly test with actual components
• Functional check (if applicable)
• Packaging quality check for delicate features

Following Electronics Industry Standards

Your ABS electronic product prototype may need to meet specific standards:

Real Case: A medical electronics company developing a ABS handheld diagnostic device needed ISO 13485 compliance for eventual production. They required their prototyping partner to follow the same documentation standards—creating traceability from the first prototype. This decision saved 8 months during FDA submission because they had complete design history from day one.

How Can You Optimize Cost and Timeline for Electronic Prototypes?

Understanding Cost Drivers for Electronic Products

Timeline Expectations for Electronic Products

Typical ABS Electronic Prototype Timeline:

• Design review and analysis: 1-2 days
• Programming and setup: 1-2 days
• Machining: 1-4 days (depending on complexity)
• Post-processing: 1-3 days
• Inspection: 0.5-1 day
• Assembly and testing: 1-2 days
• Shipping: 1-5 days (depending on location)

Total: 7-15 working days from approved design to delivered prototype.

Speed vs. Quality Trade-offs for Electronics

Sometimes you need a prototype fast. Here’s what speeds up and what slows down:

Speed Accelerators:

• Simpler designs with fewer features
• Standard ABS grades (in stock)
• Fewer surface finish requirements
• Local shipping
• Overtime machining (additional cost)
• Accepting some manual finishing

Speed Reducers:

• Complex 5-axis work
• Multiple material types
• Extensive post-processing (painting, coating)
• International shipping
• Multiple design revisions
• Ultra-tight tolerances

Real Case: A startup needed a ABS smartwatch prototype for a investor presentation in 7 days. They accepted:

• Standard ABS (not the specialty grade they wanted)
• As-machined finish with light sanding (no painting)
• Simplified design with fewer curves
• Overnight shipping

The prototype wasn’t perfect, but it showed the concept at the presentation and helped secure funding. They ordered a finished version later for actual user testing.

Conclusion

ABS electronic product prototype development is a structured process that rewards attention to detail at every step. From selecting the right ABS grade to final quality inspection, each phase offers opportunities to improve your prototype and reduce development risk for your electronic product.

The key takeaways from this guide:

• Material selection matters—choose ABS grades that match your electronic product’s functional needs
• Design analysis catches 72% of potential issues before you cut material
• CAM programming with proper simulation reduces machining errors by 68%
• CNC machining delivers precision and surface finish essential for electronic enclosures
• Post-processing transforms machined parts into production-representative samples
• Functional testing with documentation ensures design issues are caught early
• User testing validates ergonomics and user experience before production
• Quality control with traceability prepares you for production compliance

Remember that successful prototyping isn’t about perfection on the first try. It’s about learning fast, making targeted improvements, and moving closer to a production-ready design with each iteration. ABS’s unique combination of properties makes it the ideal material for this journey—tough enough for repeated testing, machinable enough for quick iterations, cost-effective enough for multiple design cycles, and versatile enough for various surface treatments.

Whether you’re developing the next smartphone, a innovative wearable, or an industrial controller, following this process will help you create prototypes that actually predict production performance—saving time, money, and surprises when you finally go to market.

Frequently Asked Questions

Q: How long does ABS electronic product prototype proofing take from start to finish?
A: Typical timeline is 7-15 working days. Simple parts (like ABS monitor stands) take 5-7 days. Complex prototypes (like foldable phone casings or smartwatches) take 10-15 days including post-processing and shipping.

Q: Can I get an ABS electronic prototype that matches my production color exactly?
A: Yes—through painting with color-matched paint. Provide a RAL number, Pantone reference, or physical sample. Most prototyping services can match within ΔE < 1.0 tolerance. For high-volume production, this painted prototype serves as the color standard.

Q: How many ABS prototypes should I order for electronic product development?
A: Order 4-6 units minimum for handheld electronics. This allows for: assembly testing (1-2 units), drop testing (1-2 units), user testing (2-3 units), and spare parts. For wearables, order more sizes if offering multiple case sizes.

Q: Will my ABS prototype have the same strength as injection-molded production parts?
A: Very close—within 90-95% of molded strength. The main difference is that machined ABS lacks the molecular orientation of molded parts, but for most functional tests, this difference isn’t significant. Impact resistance may be slightly lower in machined parts.

Q: What’s the minimum wall thickness for ABS electronic prototypes?
A: 1.0mm for very small features, 1.2mm for typical smartphone walls, 1.5mm for larger devices. Thinner walls (down to 0.8mm) are possible but require careful machining and risk breakage during handling. Production injection molding may allow thinner walls.

Q: Can I test EMI shielding with an ABS prototype?
A: Yes—by applying conductive coating or copper foil to the interior surfaces. This won’t match production exactly but gives good indication of shielding effectiveness. For accurate RF testing, consider machining the prototype from conductive ABS grades.

Q: Is ABS more cost-effective than other materials for electronic prototypes?
A: Yes—ABS costs about 30-40% less than PC and 50-60% less than specialty engineering plastics. It’s the most cost-effective choice for most electronic prototypes, especially when paired with blends (ABS/PC) for enhanced performance where needed.

Q: What surface finish can I expect on machined ABS electronic prototypes?
A: As-machined ABS has a matte finish with visible tool marks (Ra 0.8-1.2μm). Sanding can achieve a smooth matte finish. With proper priming and painting, you can achieve gloss levels from 10-90 units (gloss meter reading), matching production finishes. Soft-touch coatings are also available.

Q: Can ABS prototypes be used for drop testing?
A: Yes—ABS’s impact resistance makes it suitable for drop testing. Standard ABS handles drops from 1-1.5m well. For higher drops or thinner walls, use ABS/PC blends. Document all drop tests with photos and measurements.

Discuss Your Projects with Yigu Rapid Prototyping

At Yigu Rapid Prototyping, we’ve supported over 400 electronics brands with ABS electronic product prototype proofing. Our approach combines technical precision with practical efficiency:

• Multi-axis CNC capabilities for complex electronic enclosures—from simple remote controls to intricate foldable phone mechanisms
• Material expertise across ABS grades, ABS/PC blends, and complementary materials
• ISO 9001 quality systems with full traceability for regulated industries
• Design analysis support to catch issues before they cost you time
• Flexible finishing options from as-machined to production-matched painting and coating
• Assembly services for complete prototype builds with your components
• Functional testing support to validate your design

We start every electronics project with a design review—identifying potential manufacturing issues before they become problems. For consumer electronics clients, we focus on surface finish and cosmetic quality. For medical device clients, we follow documentation practices that support regulatory submissions. For time-critical projects, we offer accelerated machining options without compromising quality.

Whether you’re prototyping a new smartphone, refining a wearable device, testing an industrial controller, or developing a consumer gadget, we’re ready to help. Contact Yigu Rapid Prototyping to discuss your specific ABS electronic prototype needs. Send us your CAD files for a free quote and feasibility analysis within 24 hours. Let’s turn your electronic product design into a functional prototype that accelerates your path to market.
