Our Two-Shot Injection Molding Services

Yigu Technology’s Two-Shot Injection Molding expertise turns complex multi-material designs into reality—think seamless hard-soft combinations, reduced assembly time, and precision-engineered parts for automotive, electronics, and medical sectors. With custom mold design, advanced machines, and strict quality assurance, we deliver cost-effective, high-performance solutions that boost your product’s functionality and aesthetic appeal.

Get Free Quote

What Is Two-Shot Injection Molding?

Two-Shot Injection Molding (also called Dual material molding, Co-molding, or Sequential injection molding) is an advanced manufacturing process that produces parts with two distinct materials in a single production cycle. Unlike traditional methods that require post-assembly, this Two-step injection process uses a specialized mold and machine to inject two materials sequentially—creating integrated, high-performance components.

Common variations include Two-color molding (for visual contrast) and Overmolding (where a soft material like TPE covers a hard substrate like ABS). This Bi-material molding technique eliminates bonding issues and ensures consistent Integrated molding of parts that need both flexibility and rigidity.

Yigu Technology’s Two-Shot Molding Capabilities

At Yigu Technology, we combine technical expertise with cutting-edge tools to meet your unique multi-material needs. Our core capabilities are designed to deliver reliability, precision, and speed:

Capability Category	Key Offerings
Technical Expertise	Two-shot molding expertise, Project engineering support, material compatibility testing
Mold & Tooling	Custom mold design, High-precision tooling, rapid prototyping for mold validation
Production & Quality	Advanced injection molding machines, Automated production, Quality assurance systems
Solution Design	Multi-material solutions, tailored processes for hard-soft or color combinations

Our team works closely with clients to test material compatibility early in the design phase, ensuring no delays and optimal part performance.

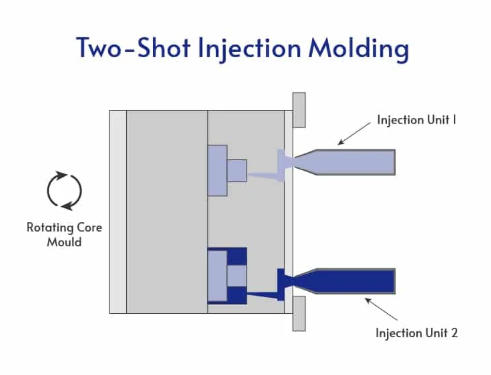

The Two-Shot Injection Molding Process

The Two-stage molding process is a streamlined sequence that requires precise coordination between machine, mold, and materials. Below is a step-by-step breakdown:

First shot injection: The first material (e.g., rigid ABS) is injected into one cavity of the mold.

Mold rotation: The mold rotates (or shifts) to align the partially formed part with a second cavity.

Second shot injection: The second material (e.g., soft TPE) is injected around or onto the first material.

Cooling and solidification: Both materials cool together to form a bonded, integrated part.

Ejection of final part: The completed component is removed, ready for use (no post-assembly needed).

Critical to success are Material synchronization (matching flow rates) and Process control (monitoring temperature and pressure). Our team optimizes Material flow and manages Cycle time to reduce waste—typically cutting production time by 20–30% compared to traditional assembly.

Materials Used in Two-Shot Molding

Choosing compatible materials is key to two-shot molding success. Yigu Technology works with a wide range of Thermoplastics and elastomers, focusing on pairs that bond strongly and meet industry-specific requirements.

Material Type	Examples	Common Applications
Rigid Thermoplastics	ABS, Polycarbonate (PC), Polypropylene (PP), Nylon (PA)	Structural parts (electronics housings, automotive brackets)
Soft Elastomers	TPE (Thermoplastic Elastomers), TPU (Thermoplastic Polyurethane)	Grips, seals, soft-touch surfaces (toys, medical devices)
Specialty Materials	Flame-retardant materials, food-grade plastics	Electrical components, kitchen appliances

We conduct rigorous material compatibility testing to ensure bonds are durable—even in harsh environments (e.g., high temperatures, chemicals).

Surface Treatment for Two-Shot Parts

To enhance both aesthetics and functionality, Yigu Technology offers a range of surface treatment options tailored to two-material parts:

Dual material surface finish: Achieve consistent texture or gloss across both materials (e.g., matte TPE on glossy PC).

Texturing for both materials: Add grip or visual interest (e.g., knurled patterns on TPU grips).

Painting and coating: Apply UV coating for scratch resistance or custom colors (ideal for consumer electronics).

In-mold labeling: Integrate logos or graphics during molding (reduces post-production steps).

Laser etching: Create precise markings (e.g., serial numbers on medical devices) without damaging the material bond.

Our goal is aesthetic integration—ensuring the two materials look and perform as a single, cohesive part.

Tolerances: Ensuring Precision in Two-Shot Molding

Precision is non-negotiable in two-shot molding, especially for parts that fit with other components. Yigu Technology adheres to strict tolerance standards to guarantee consistency:

Tolerance Aspect	Our Approach
Dual material tolerances	Maintain dimensional accuracy (±0.05mm for most parts) across both materials.
Precision alignment	Use high-precision mold rotation systems to avoid misalignment between shots.
Interlocking tolerances	Design molds for parts that “lock” together (e.g., TPE seals on PC housings).
Quality control	Use advanced measurement techniques (3D scanning, coordinate measuring machines) and follow ISO certification standards.

We also manage tolerance stack-up (cumulative errors) to ensure final parts meet your exact specifications—critical for industries like aerospace and medical devices.

Key Advantages of Two-Shot Injection Molding

Compared to traditional single-material molding or assembly, two-shot molding offers transformative benefits:

Advantage	Description
Reduced assembly	Eliminates 2–5 assembly steps (e.g., gluing or screwing parts together), cutting labor costs by 15–40%.
Enhanced functionality	Combine properties (rigidity + flexibility, heat resistance + softness) in one part.
Cost-effectiveness	Lower waste (fewer production steps) and faster cycle times reduce total costs by 10–25%.
Design flexibility	Create complex shapes (e.g., overmolded hinges) that are impossible with single-shot methods.
Improved durability	Chemical bonding between materials is stronger than mechanical fasteners—extending part life by 30% or more.

Industry Applications of Two-Shot Molding

Yigu Technology’s two-shot molding solutions serve a diverse range of industries, each with unique needs:

Industry	Common Two-Shot Parts
Automotive Interiors	Steering wheel grips (TPU over ABS), dashboard buttons (TPE over PC)
Consumer Electronics	Phone cases (soft TPE edges + hard PC back), headphone earcups
Medical Devices	Syringe plungers (TPE seals + PP bodies), surgical tool handles
Household Appliances	Blender grips, iron handles (soft TPE for comfort + heat-resistant plastics)
Toys	Action figure joints (rigid PA + flexible TPE), teething toys

Advanced Manufacturing Techniques at Yigu

To deliver top-tier two-shot parts, we invest in state-of-the-art manufacturing techniques:

Two-shot molding machines: Equipped with dual injection units and precision mold rotation systems.

Hot runner systems: Reduce material waste and ensure consistent flow for both shots.

Sequential valve gating: Control material flow to complex mold cavities (ideal for large parts).

Automated part handling: Robots remove finished parts to improve speed and reduce human error.

Process optimization: Use AI-driven software to monitor and adjust parameters (e.g., temperature, pressure) in real time.

Yigu Technology Case Studies

Our two-shot molding expertise has solved complex challenges for clients worldwide. Here are two standout examples:

Case Study 1: Automotive Interior Component

Challenge: A leading automaker needed a dashboard button with a soft-touch surface (for comfort) and rigid base (for durability)—with zero assembly.
Solution: We used Two-shot molding (TPE for the surface, ABS for the base) and optimized the mold to reduce cycle time by 22%.
Results: 35% lower production costs, 100% bond strength (tested to 10,000 presses), and compliance with automotive safety standards.

Case Study 2: Medical Syringe Plunger

Challenge: A medical device company needed a plunger with a leak-proof TPE seal and food-grade PP body—with strict dimensional accuracy (±0.03mm).
Solution: We conducted material compatibility testing (TPE + PP) and used precision measurement techniques (3D scanning) to ensure tolerances.

Results: 0 defects in 100,000+ parts, compliance with FDA standards, and 28% faster delivery than the client’s previous supplier.

Why Choose Yigu Technology for Two-Shot Molding?

When you partner with Yigu, you get more than a manufacturer—you get a dedicated team focused on your success:

Proven expertise: 10+ years of experience in Two-shot injection molding, with 500+ successful projects across industries.

Advanced technology: In-house custom mold design, AI-powered process control, and high-precision machines.

Tailored solutions: We don’t just build parts—we work with you to optimize design, reduce costs, and meet deadlines.

Quality guarantee: ISO 9001 and IATF 16949 certification, 100% pre-shipment inspection, and a customer satisfaction guarantee.

Global delivery: We serve clients in 20+ countries, with flexible lead times (as fast as 2 weeks for prototypes).

FAQ for Two-Shot Injection Molding

What’s the difference between Two-Shot Molding and Overmolding?

Two-Shot Molding uses a single machine and mold to inject two materials sequentially (in one cycle), creating an integrated part. Overmolding is a type of two-shot molding where a second material (usually soft) is injected over a pre-formed first material (usually rigid). All overmolding is two-shot molding, but not all two-shot molding is overmolding (e.g., two-color rigid parts).

How long does it take to develop a Two-Shot Molding project?

The timeline depends on part complexity and mold design:
Prototyping: 2–4 weeks (includes mold design, testing, and sample production).
Mass production: 4–8 weeks (after prototype approval, including mold fabrication and process optimization).
We offer expedited options for urgent projects (e.g., 1-week prototypes for simple parts).

Can Yigu Technology work with custom materials for Two-Shot Molding?

Yes! We regularly test and use custom materials (e.g., flame-retardant, conductive, or bio-based plastics) for clients. Our team conducts material compatibility testing to ensure the two materials bond strongly and meet your industry’s standards (e.g., FDA for medical, RoHS for electronics). Simply share your material requirements, and we’ll develop a tailored solution.
