Our Transparent Plastics Injection Molding Services

Elevate your products with our premium transparent plastic injection molding services—specializing in optical-grade molding for lenses, light guides, and precision components. We deliver glass-clear molding with >90% light transmission, low haze, and design flexibility that outperforms glass. Partner with experts in clear polymer injection to turn your optical and transparent part needs into reality—from medical cuvettes to VR headset lenses.

Get Free Quote

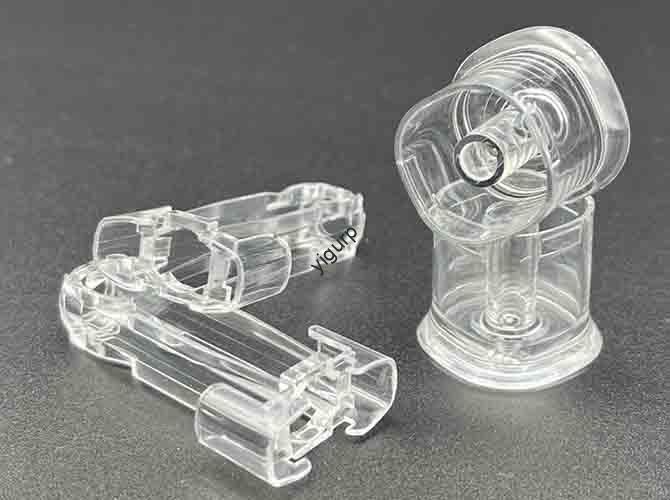

What Is Transparent Plastics Injection Molding?

Transparent plastic injection molding is a specialized manufacturing process focused on creating clear, light-transmitting parts using high-performance polymers. Unlike standard injection molding, which prioritizes strength or cost, optical-grade molding centers on preserving clarity, minimizing defects (like warping or weld lines), and optimizing light transmission.

At its core, clear polymer injection transforms amorphous transparent resins (e.g., PC, PMMA) into precision parts via controlled heating, injection, and cooling. Our transparent thermoplastic service simplifies this technology: we explain how light-transmission molding differs from conventional methods—emphasizing its focus on low shear, uniform cooling, and defect-free surfaces to produce see-through plastic parts with <1% haze and consistent optical performance.

Key terms in precision optic molding include:

Amorphous Transparent Resins: Non-crystalline polymers (e.g., PC, PMMA) that maintain clarity (crystalline resins like nylon become opaque).

Low-Haze Injection: Molding processes that limit light scattering (haze <1%) for sharp, clear optics.

Optical-Grade Molding: Production meeting strict standards for light transmission (>90%) and birefringence (optical distortion <5 nm/cm).

Our Transparent Plastics Molding Capabilities

We offer a comprehensive suite of transparent plastic injection molding capabilities tailored to industries requiring optical clarity and precision. Below is a detailed breakdown of our core strengths:

Capability	Key Features	Typical Applications
High-Clarity Molding	Achieves >92% light transmission (LT); haze <0.5%; weld-line free	Optical lenses, LED light guides, VR headset optics
Multi-Shot Clear Parts	2–3 shot cycles; bonds clear resins (e.g., PC) with soft-touch TPE or colored plastics	Consumer electronics windows, 2-shot mask frames
Insert Molding Transparent	Integrates metal inserts (e.g., threaded pins) or glass fibers into clear parts; no clarity loss	Sensor covers, automotive lens mounts
Clean-Room Molding	Class 7 clean rooms; ISO 13485 compliant; particle count <10,000 particles/ft³	Medical cuvettes, pharmaceutical packaging
Thin-Wall Transparent	Molds parts as thin as 0.3 mm; maintains structural integrity and clarity	Microfluidic chips, thin optical lenses (0.5 mm PC)
Micro-Optic Molding	Produces micro-scale features (50 µm channels); precision ±0.005 mm	COC microfluidic devices, miniaturized sensor optics
Global Clear Supply	Warehouses in 4 regions (NA, EU, APAC, MEA); 3–5 day delivery for high-volume orders	Multi-national LED, automotive, and medical brands

Our over-molding clear windows capability also lets us add protective or functional layers (e.g., anti-scratch coatings) during molding—streamlining production for parts like smartphone screens.

The Transparent Plastics Injection Molding Process

The transparent plastic injection molding process is a highly controlled sequence optimized to preserve clarity and optical performance. Below is a step-by-step overview with critical parameters:

Step 1: Material Preparation

Resin Drying: Amorphous transparent resins (e.g., PC, PMMA) undergo 2–4 hours of drying at 80–100°C to remove moisture (moisture causes cloudiness; critical for >90% LT).

Resin Handling: Stored in sealed, dry containers to prevent reabsorption before molding.

Step 2: Injection Setup

Melt Temperature: 230–320°C (material-dependent: PC = 280–320°C; PMMA = 230–260°C); precise temp control (±5°C) avoids resin degradation.

Mold Temperature: 80–120°C (maintained via water or oil heating); uniform temp prevents warping and ensures clear surfaces.

Screw Design: Low-shear screw design (22:1 L/D ratio) to minimize resin shear (shear causes haze or discoloration).

Step 3: Injection & Monitoring

Hot-Runner Valve Gate: Precise flow control; maintains melt temp to avoid cold spots (cold spots create opaque areas).

Vacuum Venting: Removes trapped air (air bubbles cause clarity defects); reduces scrap rate by 90%.

Injection Strategy: Slow-fill high-pack (fill speed = 20–30 mm/s; pack pressure = 800–1,000 bar) to avoid turbulence (turbulence scatters light).

Step 4: Cooling & Post-Molding

Uniform Cooling: Coolant flow rate optimized (2–3 L/min) to ensure even cooling; prevents stress-induced birefringence.

Stress-Relief Anneal: 1–2 hours at 80–100°C (for PC/PMMA) to reduce internal stress; critical for precision optic molding.

In-Mold Coating: Optional clear protective coating applied during molding (e.g., anti-scratch HC coating); saves post-processing time.

Transparent Plastics Materials: Options for Optical & Functional Needs

The right transparent polymer is key to balancing clarity, performance, and cost. We offer a range of resins tailored to industry requirements:

Material Type	Key Properties	Typical Grades	Ideal Applications
PC Polycarbonate	90% LT; impact-resistant (60 kJ/m²); heat-resistant (130°C HDT)	Lexan™ 121R, Makrolon® 2405	Automotive lenses, consumer electronics windows, VR headsets
PMMA Acrylic	92% LT; high gloss; cost-effective; scratch-resistant (2H)	Plexiglas® GS, Acrylite® FF	LED light guides, cosmetic bottles, signage lenses
COC Cyclic Olefin Copolymer	91% LT; low birefringence; biocompatible	Topas® 5013L, Zeonex® 480R	Microfluidic chips, medical cuvettes, optical sensors
Tritan™ Copolyester	90% LT; BPA-free; dishwasher-safe; impact-resistant	Tritan™ TX1001, Tritan™ EX401	Food containers, baby bottles, reusable drinkware
PSU Transparent	88% LT; autoclavable (121°C, 200+ cycles); chemical-resistant	Ultrason® S 2010, Radel® R-5100	Medical devices (surgical instrument handles), pharmaceutical equipment
PET-G	90% LT; flexible; recyclable; cost-effective	Eastman™ PET-G 6763, Amcor® PET-G	Cosmetic bottles, packaging, thin-wall containers

All materials meet global standards: FDA 21 CFR 177 (food-contact), ISO 10993 (medical), and IATF 16949 (automotive).

Inquiry A project

Surface Treatment for Transparent Plastic Parts

Transparent plastic injection molding parts often need surface treatments to enhance durability, optics, or functionality. Our options are designed to preserve clarity while adding value:

Treatment Type	Key Features	Benefits	Target Industries
Diamond-Polish Clear	Ra < 0.01 μm; mirror-like finish; enhances LT by 2–3%	Sharp optics; reduced light scattering	VR lenses, precision optical components
Anti-Scratch HC Coating	Hardness: 6H (pencil test); resistant to abrasion	Extends part life; no clarity loss after wear	Smartphone windows, automotive lenses
Anti-Reflective (AR) Coating	Reduces reflection from 4% to <0.5%; increases LT by 3–5%	Crisper optics; less glare	VR/AR headsets, camera lenses, LED light guides
Anti-Fog Coating	Hydrophilic; prevents condensation; maintains clarity in humid environments	Clear visibility; ideal for medical/automotive use	Medical masks, automotive headlights, refrigerator shelves
UV-Blocking Layer	Blocks 99% of UVA/UVB rays; no yellowing over time	Protects contents (food, cosmetics) or users	Food containers, cosmetic bottles, outdoor lighting
Laser Engraving Clear	High-resolution (300 DPI); permanent marks; no clarity loss around engravings	Branding, part numbering, safety labels	Medical devices, consumer electronics, automotive parts

Key Advantages of Transparent Plastics Injection Molding

Transparent plastic injection molding offers unmatched benefits over traditional materials like glass or commodity plastics. Here’s how it delivers value:

Advantage	Performance Metric	Why It Matters
Superior Light Transmission	>90% LT (PC/PMMA/COC); haze <1%	Sharp, clear optics for lenses, light guides, and displays
Lightweight vs. Glass	50–70% lighter (PC = 1.2 g/cm³; glass = 2.5 g/cm³)	Reduces weight for portable devices (VR headsets) and automotive parts (fuel efficiency)
Impact Resistance	PC withstands 60 kJ/m² (10x more than glass); no shattering	Safer for high-use or fragile applications (baby bottles, automotive lenses)
Design Freedom	Molds complex shapes (e.g., 1m long PMMA light guides, 50 µm COC channels); no post-machining needed	Custom optics and parts that glass can’t match
Cost-Effective High-Volume	Tooling costs 30% lower than glass; production cycle time 50% faster	Affordable for mass production (500k+ LED optics/yr)
BPA-Free & Recyclable	Tritan™, PET-G, and COC are BPA-free; PC/PMMA are recyclable (PCR grades available)	Meets eco-friendly and safety demands

RFQ New Parts

Industry Applications of Transparent Plastics Injection Molding

Our transparent plastic injection molding services support diverse industries that rely on clarity, precision, and performance:

Optics & Electronics: Optical lenses (0.5 mm thin PC with 92% LT), LED light guides (1m long PMMA), and VR headset lenses (AR-coated for less glare); critical for sharp visuals in devices.

Medical: Medical cuvettes (COC, biocompatible), autoclavable PSU parts (surgical tools), and sensor covers (clear, chemical-resistant); meets strict sterility and clarity standards.

Automotive: Automotive lenses (PC with anti-scratch coating), headlight bezels (multi-shot clear/black), and sensor covers (impact-resistant); withstands road debris and temperature swings.

Food & Beverage: Food containers (Tritan™, BPA-free), cosmetic bottles (PET-G, recyclable), and baby bottles (dishwasher-safe); safe for daily use and compliant with food regulations.

Aerospace: Aerospace canopies (PC, impact-resistant), cockpit displays (anti-glare AR coating), and sensor optics (low birefringence COC); reliable in extreme altitude conditions.

Consumer Goods: Smartphone windows (anti-scratch HC coating), reusable drinkware (Tritan™), and cosmetic packaging (PET-G, high gloss); balances durability and aesthetics.

Case Studies: Success with Transparent Plastics Molding

Our clients trust us to solve their most challenging transparent part needs. Here are 3 standout projects:

Case 1: High-Volume LED Light Guides

Challenge: A global LED manufacturer needed 500k/yr PMMA light guide (1m long) with 92% LT, no weld lines, and uniform light distribution.

Solution: Used low-shear screw design, vacuum venting, and slow-fill high-pack injection; added diamond-polish clear finish to enhance LT.

Result: Light guides achieved 93% LT (1% above target); 99.8% defect-free rate; cost reduced by 20% vs. client’s previous supplier; delivered on time for global LED launch.

Case 2: Medical Microfluidic Chips

Challenge: A biotech firm needed COC microfluidic chip with 50 µm channels (for DNA testing)—required biocompatibility, 91% LT, and no leakage.

Solution: Used Zeonex® 480R (biocompatible COC); implemented micro-optic molding (precision ±0.005 mm); added plasma treatment to improve fluid flow.

Result: Chips passed ISO 10993 biocompatibility tests; channels maintained 50 µm width (no clogging); 100k units delivered for diagnostic kits.

Case 3: BPA-Free Baby Bottles

Challenge: A baby product brand needed Tritan™ bottle (250 mL) that passed 1,000 drop tests (1m height), was BPA-free, and had 90% LT.

Solution: Used Tritan™ TX1001 (BPA-free); optimized mold temperature (100°C) to reduce stress; added anti-scratch HC coating (4H hardness).

Result: Bottles survived 1,200 drop tests (20% above target); met FDA 21 CFR 177.1580 (food-contact); 300k units sold in 6 months.

Why Choose Our Transparent Plastics Injection Molding Services?

We’re more than a supplier—we’re a partner in creating clear, high-performance parts. Here’s what sets us apart:

Optical Expertise: 15+ years in optical-grade molding; our engineers specialize in optimizing LT, reducing haze, and eliminating optical defects (weld lines, birefringence).

Certifications: ISO 13485 (medical), IATF 16949 (automotive), and Class 7 clean rooms—critical for regulated industries like medical and pharmaceutical.

In-House Capabilities: In-house diamond polishing and integrated coating line (AR, HC, anti-fog) let us control quality from molding to finishing.

Simulation & Design: CAE optic simulation predicts light flow and clarity before production; DFM support optimizes designs for cost and performance.

Speed: Rapid clear prototyping (7-day turnaround for samples); 24/7 production lines for high-volume orders (500k+ units/yr).

Sustainability: We offer sustainable clear resins (PCR PC/PMMA, recyclable PET-G) and zero-waste initiatives (recycle 95% of scrap).

Global Support: On-time global logistics (98% on-time rate); warehouses in 4 regions to serve multi-national clients.

Need A Help

FAQ

Can transparent plastic parts replace glass in optical applications?

Yes. High-performance resins like PC, PMMA, and COC offer >90% LT (comparable to glass) while being 50–70% lighter and shatter-resistant. Our diamond-polish clear and AR coating further enhance optics—making them ideal for VR lenses, camera parts, and LED light guides. Glass is only preferred for ultra-high-precision optics (e.g., microscope lenses) where birefringence must be near zero.

Are transparent plastic parts safe for food or medical use?

Absolutely. We use food-grade resins (Tritan™, PET-G, COC) that meet FDA 21 CFR 177 and medical-grade resins (COC, PSU) that comply with ISO 10993. Our Class 7 clean rooms and ISO 13485 certification ensure no contamination—making parts safe for baby bottles, medical cuvettes, and pharmaceutical equipment.

What’s the lead time for custom transparent plastic injection molding?

For prototypes: Our rapid clear prototyping service delivers samples in just 7 days—ideal for validating designs (e.g., optical lens shape, fit of insert molding transparent parts) before mass production. We use fast-turn tooling and prioritize prototype runs to help you iterate quickly.
For mass production: Lead times range from 4–6 weeks, depending on part complexity and volume. This includes mold design (for custom parts like micro-optic molding components or thin-wall transparent containers), tooling fabrication, sampling, and full-scale production. For high-volume orders (e.g., 500k+ LED light guides or Tritan™ bottles), we can expedite to 3–4 weeks using our 24/7 production lines and pre-approved material stock. Our global clear supply network also ensures on-time delivery—with 3–5 day shipping to most regions after production.
