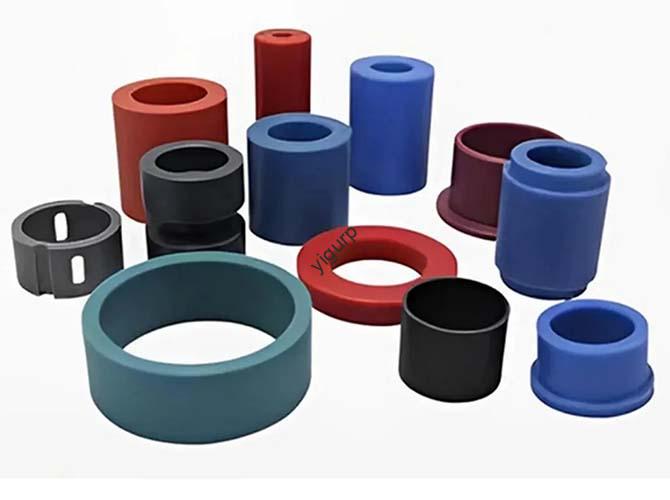

In the fast-paced world of product development, plastic prototype parts are the unsung heroes. They allow engineers to test form, fit, and function long before committing to expensive injection molds. However, machining plastic is vastly different from cutting metal. Plastic is soft, sensitive to heat, and prone to warping.
To bridge the gap between a digital design and a high-performance physical part, Swiss-type machining technology has emerged as the premier solution. This precision-driven process, originally designed for the watchmaking industry, has been adapted to handle the unique “personalities” of high-performance plastics. By using a sliding headstock and a guide bushing, it provides the stability needed to craft high-quality plastic prototype parts with surgical accuracy. This article explores how this technology works and why it is the key to accelerating your market launch.
Why Is Swiss-type Machining Ideal for Plastics?
Many people think Swiss machines are only for tiny metal screws. In reality, their design makes them perfect for the “flexy” nature of polymers. When you machine a long, thin plastic part on a standard lathe, the material often pushes away from the tool, leading to errors. Swiss machines solve this through superior mechanical support.
The Support of the Guide Bushing
The core advantage lies in the guide bushing. In a Swiss-type machine, the plastic bar stock is supported just millimeters away from the cutting tool.
- No Deflection: Because the support is so close to the cut, the plastic cannot bend or vibrate.
- Tight Tolerances: We can routinely achieve micron-level accuracy (±0.01mm) even on soft materials like polypropylene.
- Complex Geometries: Multi-axis machining allows the lathe to turn, mill, and drill simultaneously. This means intricate slots or cross-holes are finished in a single setup.
Specialized Components for Polymer Success
Beyond the guide bushing, several features make CNC Swiss machines a “game-changer” for plastic:
| Component | Role in Plastic Machining | Advantage |
| High-speed Spindles | Controls rotation up to 10,000 RPM | Reduces cutting force; prevents “tearing” of the surface. |
| Chucking Systems | Securely holds the plastic bar | Prevents the bar from “walking” or slipping during high-speed runs. |
| Carbide Inserts | Ultra-sharp cutting edges | Slices through plastic without generating excessive friction heat. |
| Automatic Bar Feeders | Loads 3-meter bars automatically | Enables “lights-out” manufacturing for small prototype batches. |
What Should You Consider Before Machining?
As a senior product engineer, I always tell my clients: “The machine is only as good as the plan.” Before the first chip is cut, you must align your material choice and CAD design with the realities of Swiss-type technology.
The Art of Material Selection
Not all plastics “behave” the same way under a cutting tool. Your choice of thermoplastics should depend on the goal of your prototype:
- ABS: The best all-rounder. It is cheap, rigid, and machines beautifully. Perfect for visual prototypes.
- Polycarbonate (PC): Extremely tough and clear. However, it is heat-sensitive. If the tool gets too hot, the part will turn cloudy or melt.
- Nylon: Excellent for functional gears and wear-resistant parts. Note that Nylon absorbs moisture, which can slightly change its size after machining.
- Polypropylene (PP): Very flexible and chemical-resistant, but “gummy” to machine. It requires very sharp tools and slow feed rates.
Designing for Manufacturability (DFM)
When creating your CAD design, small changes can lead to big savings. For example, plastics are prone to stress cracking. By adding fillets (rounded internal corners) to your design, you distribute the stress and make the part much stronger. Also, avoid overly thin walls (under 0.5mm) unless absolutely necessary, as even the best Swiss machine cannot stop a paper-thin wall from vibrating slightly.
The Step-by-Step Swiss Machining Process
Creating high-quality plastic prototype parts is a sequential journey. Each step is designed to protect the material from its two biggest enemies: heat and vibration.
Step 1: Calibration and Setup
First, we load the plastic bar into the bar feeding system. The most critical part of this step is calibration. We must adjust the spindle speed and tool pressure to match the specific plastic.
Case Study: A medical device startup needed a polycarbonate prototype with a 1mm internal channel. On the first attempt (at standard metal speeds), the plastic melted inside the hole. We recalibrated the CNC to a lower RPM and used a high-pressure coolant mist. The second attempt was perfect, holding a ±0.02mm tolerance across the entire batch.
Step 2: Swiss Turning (Forming the Body)
The machine begins Swiss turning to shape the outer diameter. We use a slow feed rate (roughly 0.1mm per revolution). This ensures the tool “slices” the plastic rather than “pushing” it, which prevents the part from warping or deforming.
Step 3: Multi-axis Secondary Operations
This is where the magic happens. Without stopping the machine, the multi-axis machining head performs:
- Drilling: Creating precise holes for connectors.
- Milling: Adding flats, hex shapes, or button recesses.
- Threading: Cutting internal threads. We use specialized fine-thread tools to ensure the plastic doesn’t “strip” during assembly.
Step 4: Finishing and Quality Control
If the design requires a transparent finish (like a lens), we perform light grinding or polishing. Finally, we move to Quality Control (QC). We use digital calipers and surface roughness testers to ensure the part matches the CAD design exactly.
Recommended Machining Parameters
| Plastic Type | Spindle Speed (RPM) | Feed Rate (mm/rev) | Recommended Tool |
| ABS | 3,000 – 5,000 | 0.1 – 0.2 | Polished Carbide |
| Polycarbonate | 2,500 – 4,000 | 0.08 – 0.15 | High-Speed Steel (HSS) |
| Nylon | 3,500 – 5,500 | 0.12 – 0.22 | Diamond-coated Carbide |
| Polypropylene | 2,000 – 3,500 | 0.07 – 0.13 | Sharp Carbide |
Why Does Expertise Matter in Plastic Machining?
The “Heat Buildup” Challenge
Unlike metals, plastics do not dissipate heat well. In a Swiss-type lathe, the heat generated at the cutting tip stays in the plastic. If the temperature hits the glass transition point, the part will deform. Experts know how to use “interrupted cuts” and specific coolant types to keep the part cool and stable.
Consistency in Small Batches
When you only need 5 or 10 parts, you might think traditional manual machining is cheaper. However, automation in Swiss machining actually lowers the cost. Once the program is set, the machine produces identical parts every time. Manual machining often results in “one good part, two bad ones,” which wastes expensive engineering plastics.
Yigu Technology’s Perspective
At Yigu Technology, we treat plastic with the same respect as titanium. Our team understands that a prototype is the “truth” of your design. We utilize the latest Swiss-type machining technology to ensure that your plastic prototype parts are not just visual models, but functional components ready for real-world stress testing.
We often see clients struggling with “melted” features or warped dimensions from other shops. By using calibrated CNC Swiss machines and custom-ground tooling, we eliminate these issues. For us, efficiency isn’t just about speed; it’s about getting the part right the first time so you can stay on schedule.
Conclusion
Mastering efficient Swiss-type machining for plastics requires a blend of advanced technology and deep material knowledge. By using a sliding headstock to support the part and optimizing machining parameters like spindle speed and feed rate, we can overcome the inherent challenges of polymers.
Whether you are working with the rigidity of ABS or the toughness of Polycarbonate, Swiss technology provides the precision and surface finish necessary for modern product development. When you choose a partner who understands these nuances, you don’t just get a part—you get a reliable data point that proves your design works.
FAQ
Can Swiss-type machining handle complex plastic prototype geometries?
Yes! Because of multi-axis machining, we can create parts with multiple holes, slots, and intricate threads in one single operation. This ensures that the geometry stays perfectly consistent compared to parts moved between different machines.
How do you prevent plastic from melting during the machining process?
The key is to use low spindle speeds and very sharp, polished tools that reduce friction. We also use specialized coolants and “peck drilling” techniques to ensure heat does not build up in a single spot.
Is Swiss-type machining cost-effective for small plastic prototype batches?
Yes, it is very cost-effective for batches of 5 to 50 parts. While the initial setup takes time, the automation and “done-in-one” process reduce manual labor costs significantly. This leads to a lower price per part and much higher quality than traditional methods.
What is the best plastic for a high-strength functional prototype?
For parts requiring high strength and wear resistance, we usually recommend Nylon or Acetal (POM). If you need impact resistance and transparency, Polycarbonate is the superior choice.
What kind of surface finish can I expect?
Straight from the machine, most plastics will have a clean, matte finish with an Ra of 0.8 to 1.6. If you need a “mirror” or transparent finish, we can add a secondary vapor polishing or fine grinding stage.
