Our Polybenzimidazole PBI Injection Molding Services
Elevate your high-stakes applications with our industry-leading PBI injection molding услуги. Specializing in Polybenzimidazole molding для аэрокосмической промышленности, semiconductor, and nuclear sectors, Мы доставляем high-temperature PBI service that meets 427°C heat deflection and vacuum compatibility. Partner with experts in melt-processable PBI to turn complex designs into precision parts that outperform in the harshest environments—from rocket nozzles to semiconductor chambers.

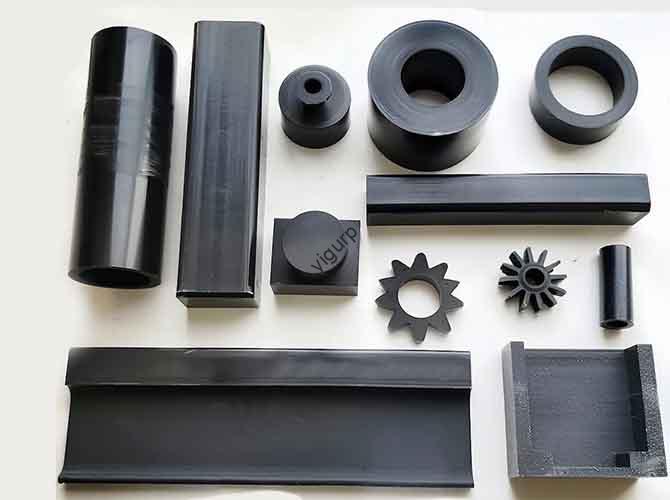

What Is Polybenzimidazole (PBI) Инъекционное формование?
PBI injection molding is a specialized manufacturing process for creating ultra-durable parts using Polybenzimidazole (PBI)—a high-performance polymer renowned for its exceptional thermal and chemical resistance. Unlike standard thermoplastics, Polybenzimidazole molding focuses on melt-processable PBI resins that can withstand extreme temperatures (up to 427°C heat deflection) while maintaining structural integrity.
По своей сути, high-temperature PBI service transforms PBI resin (often reinforced with fibers) into precision components via controlled high-heat injection. Наш PBI resin definition simplifies this technology: we explain how ultra-thermoplastic molding (PBI’s category) differs from conventional processes—emphasizing its ability to produce amorphous PBI molding parts with zero creep at 300°C and ultra-low off-gassing, critical for aerospace and semiconductor use.
Ключевые термины в PBI polymer injection включать:
- Melt-Processable PBI: PBI resins modified for injection molding (против. traditional compression molding).
- Amorphous PBI: Non-crystalline structure that enhances dimensional stability at high temps.
Aerospace PBI Molding: Specialized PBI parts designed for space, авиация, и защитные заявки.
Our Polybenzimidazole (PBI) Molding Capabilities
We offer a comprehensive suite of PBI injection molding capabilities tailored to the unique demands of ultra-high-temperature industries. Below is a detailed breakdown of our core strengths:
| Способность | Ключевые функции | Типичные приложения |
| High-Heat PBI Molding | Processes PBI at 400–430°C melt temp; maintains precision at 300°C+ operating temps | Rocket nozzles, high-temp bushings, nuclear insulators |
| Tight-Tolerance PBI Parts | Achieves ±0.01–0.03 mm tolerance; supported by laser measurement (accuracy ±0.001 mm) | PBI shims (0.01 мм), semiconductor chamber tips, точные датчики |
| Clean-Room PBI | Сорт 100 clean rooms; Iso 13485 соответствие; particle-free processing (< 100 particles/ft³) | Medical PBI sensors, semiconductor PV wafer carriers, UHV chamber parts |
| Micro PBI Molding | Produces parts as small as 0.5 мм; maintains precision at micro-scale | 5G PBI waveguides, miniaturized sensor components, micro-bushings |
| Insert Molding PBI | Integrates metal (титан, Insonel) or ceramic inserts; enhances functionality in high-heat setups | Масло & gas PBI connectors, hybrid PBI/metal valve seats |
| Hybrid PBI/PEEK Tools | Molds PBI and PEEK in single cycles; combines PBI’s heat resistance with PEEK’s impact strength | Aerospace seals, multi-material sensor housings |
| Global PBI Supply | Warehouses in 3 key regions (NA, Евросоюз, APAC); 5–7 day delivery for critical aerospace/nuclear orders | Multi-national aerospace firms, global semiconductor manufacturers |
Наш post-cure PBI machining (Сторонний фрезерование, шлифование) further refines parts to meet exact specifications—critical for applications like Mars rover components.
The Polybenzimidazole (PBI) Процесс литья впрыска
А PBI injection molding process is a highly controlled sequence optimized for PBI’s unique properties (high melt temp, sensitivity to moisture). Below is a step-by-step overview with critical parameters:
Шаг 1: Материал подготовка
- PBI Drying: Raw PBI resin (НАПРИМЕР., Celazole® U-60) подвергается 4 hours of drying at 200°C to remove moisture—critical for avoiding bubbles (PBI absorbs 2% moisture by weight, which causes defects).
- Обработка смол: Stored in sealed, dry containers to prevent reabsorption before molding.
Шаг 2: Injection Setup
- Расплавлять температуру: 400–430°C (hotter than most engineering plastics; requires specialized heating elements).
- Температура формы: 200–230 ° C. (maintained via oil heating to prevent premature cooling).
- Barrel & Screw: Inert-gas barrel (nitrogen-purged) to prevent resin oxidation; low shear screw (20:1 L/D ratio) to avoid thermal degradation.
Шаг 3: Инъекция & Monitoring
- Hot-Runner Valve Gate: Precise flow control; maintains PBI melt temp (410±5°C) to ensure uniform filling.
- Vacuum Venting: Removes trapped air (common in thick-walled parts); reduces defects by 95%.
- Время резиденции: Ограничено до < 5 минуты (short residence time) to prevent PBI degradation.
Шаг 4: Post-Molding
- Отжиг: 24 hours at 250°C to relieve internal stress (критическое для tight-tolerance PBI parts).
Stress-Relief Cycle: Медленное охлаждение (5° C/час) Чтобы избежать деформации; ensures dimensional stability at 300°C.
Polybenzimidazole (PBI) Материалы: Options for Extreme Environments
Право PBI resin is key to performance in ultra-harsh conditions. We offer a range of formulations tailored to industry needs:
| Тип материала | Ключевые свойства | Typical Grades | Идеальные приложения |
| Unfilled PBI Resin | Высокая чистота; 427°C heat deflection; 0.45 N/cm³ LOI | PBI Celazole® U-60 | Semiconductor chamber tips, vacuum-compatible gaskets |
| Glass-Filled PBI | Enhanced compressive strength (450 МПА); 15% higher rigidity | Celazole® U-60 GF30 | Aerospace PBI seals, high-temp bushings |
| Conductive PBI+CF | Электрическая проводимость (10⁻³ ω; см); износостойкость | Celazole® U-60 CF20 | Battery PBI separators, static-dissipative wafer carriers |
| PBI/PEEK Blends | Balances PBI’s heat resistance (350° C.) with PEEK’s impact strength (60 KJ /) | Пользовательские смеси (50/50 к 80/20 PBI/PEEK) | Масло & gas connectors, hybrid aerospace components |
| Ultra-Pure PBI | < 10 ppm extractables; ultra-low off-gassing | Celazole® U-60 Ultra | Nuclear PBI insulators, UHV chamber parts |
| Compression-Molded PBI Blanks | Pre-formed for machining; ideal for large parts | Пользовательские размеры (up to 1m x 0.5m) | Rocket nozzle segments, large industrial bushings |
All materials meet aerospace (AS9100) and semiconductor (SEMI F47) стандарты.
Surface Treatment for PBI Parts
PBI injection molding parts often require specialized surface treatments to enhance performance in critical applications. Our options are designed for PBI’s unique hardness and heat resistance:
| Тип лечения | Ключевые функции | Преимущества | Целевые отрасли |
| Diamond-Turn PBI | Precision turning (Раствор < 0.02 мкм); mirror-like finish | Leak-proof seals; reduced friction | Аэрокосмическая (уплотнения), semiconductor (chamber parts) |
| Precision Grind PBI | CNC grinding (tolerance ±0.005 mm); плоскостность < 0.01 мм/м | Tight-fit components; uniform thickness | PBI shims, Корпуса датчиков |
| Chemical Polish PBI | Acid-based polishing; removes machining marks without warping | Enhanced corrosion resistance; плавные поверхности | Nuclear insulators, chemical-processing parts |
| Plasma Clean PBI | O₂ plasma treatment; removes organic contaminants | Improved adhesion (for coatings, При необходимости); ultra-clean surfaces | Полупроводник (wafer carriers), Медицинские датчики |
| Laser Mark PBI | Постоянный, Высококонтрастные отметки (0.1 mm line width); теплостойкий | Отслеживание (aerospace/nuclear); no ink degradation | Все отрасли (part numbering, compliance marks) |
| Isotropic Super-Finish | Раствор < 0.01 мкм; uniform surface texture | Reduced wear; optimal for sliding parts (втулки, клапаны) | Промышленное (high-speed bushings), аэрокосмическая (moving components) |
Key Advantages of PBI Injection Molding
PBI injection molding offers unmatched benefits for applications where extreme heat, химикаты, or radiation are present. Here’s how it outperforms other materials:
| Преимущество | Performance Metric | Почему это важно |
| Ultra-High Heat Resistance | 427°C heat deflection temp (HDT); continuous use at 300°C | Withstands rocket exhaust, semiconductor plasma, and nuclear reactor temps |
| Пламенная задержка | 0.45 N/cm³ Limiting Oxygen Index (Лой); self-extinguishing | No flame spread in high-heat scenarios (critical for aerospace/aviation) |
| Ultra-Low Off-Gassing | < 0.1% weight loss (ASTM E595); no volatile organic compounds (Вокал) | Safe for vacuum chambers (semiconductor) and space (спутниковые компоненты) |
| Радиационное сопротивление | Withstands 10⁶ Gy gamma radiation (no mechanical degradation) | Ideal for nuclear reactors, космос (cosmic radiation), and medical imaging |
| Прочность на сжатие | 400 МПА (unfilled); 450 МПА (Стекло заполнен) | Resists high pressure (НАПРИМЕР., масло & gas wellheads, клапаны высокого давления) |
| Zero Creep | No deformation under load at 300°C (1,000-hour test) | Maintains shape in structural applications (aerospace seals, reactor insulators) |
Industry Applications of PBI Injection Molding
Наш PBI injection molding services support critical applications across industries that demand performance in extreme conditions:
- Аэрокосмическая & Защита: Aerospace PBI seals (withstand 400°C steam), rocket nozzle PBI (handles exhaust temps), and Mars rover PBI bushings (resist space radiation).
- Полупроводник: Semiconductor chamber tips (1,000 hours of plasma resistance), PV wafer carriers (ultra-pure, no contamination), и UHV chamber PBI manifolds (zero permeation).
- Ядерный: Nuclear PBI insulators (TRIGA reactor-compatible), radiation-resistant sensor housings, and high-temp control valves.
- Масло & Газ: Масло & gas PBI connectors (сопротивляться резким химическим веществам), PBI valve seats (high-pressure/high-temp, HPHT), and downhole tool components.
- Энергия & Электроника: Battery PBI separators (теплостойкий, проводящий), 5G PBI waveguides (low signal loss), and high-temp electrical insulators.
Медицинский: Medical PBI sensors (sterilizable via radiation), high-heat surgical tool components, и имплантируемые устройства (biocompatible grades).
Тематические исследования: Success with PBI Injection Molding
Our clients rely on our PBI injection molding expertise to solve their most challenging high-temperature problems. Вот 3 standout projects:
Случай 1: Semiconductor Plasma Chamber Tip
- Испытание: A leading semiconductor firm needed a PBI wafer tip that could withstand 1,000 hours of plasma exposure (400° C., fluorine-based plasma) without degradation.
- Решение: Used ultra-pure PBI Celazole® U-60; реализовано vacuum venting и short residence time to avoid off-gassing; добавлен diamond-turn PBI finish for leak-proof sealing.
- Результат: Tip lasted 1,200 часы (20% longer than client’s previous ceramic part); no contamination of wafers; 5,000 units delivered annually (global program).
Случай 2: Aerospace Mars Rover Bushing
- Испытание: A space agency needed PBI bushings for the Mars rover—required radiation resistance (10⁶ Gy), zero creep at -150°C to 300°C, and compatibility with Martian dust.
- Решение: Used glass-filled PBI (Celazole® U-60 GF30); добавлен isotropic super-finish to reduce dust adhesion; tested via stress-relief cycle (-180°C to 350°C).
- Результат: Bushings performed flawlessly for 5+ years on Mars; no mechanical failure; met all NASA (JPL) стандарты.
Случай 3: Nuclear Reactor Insulator
- Испытание: A nuclear plant needed PBI insulators for TRIGA reactors—required gamma radiation resistance (10⁶ Gy), 300° C Непрерывное использование, and UL 94 V0 flame rating.
- Решение: Использовал ultra-pure PBI; molded in Class 100 clean room; добавлен chemical polish PBI для коррозионной стойкости; tested per ASTM D695 (compressive strength).
Результат: Insulators passed 10-year accelerated aging tests; Нет деградации; 100 units delivered (on-time for reactor upgrade).
Why Choose Our PBI Injection Molding Services?
We’re the trusted leader in PBI injection molding for industries where failure is not an option. Вот что меня отличает:
- Опыт: 18+ years as a PBI molding leader; our engineers specialize in PBI’s unique processing needs (высокая температура, moisture control) и работали с 9/10 top aerospace firms.
- Сертификаты: Iso 9100 (аэрокосмическая) и ISO 13485 (медицинский) проверенный; Сорт 100 clean rooms meet SEMI F47 (semiconductor) and NASA JPL standards.
- In-House Tooling: In-house high-temp tool-shop designs molds for PBI (430°C melt temp); uses heat-resistant steels (H13) to avoid mold warping.
- Симуляция & Тестирование: CAE flow-thermal simulation predicts PBI flow and cooling (critical for thick-walled parts); in-house testing lab (heat deflection, радиационное сопротивление).
- Скорость: Rapid PBI sampling (2-Недельный поворот для прототипов); 24/7 dedicated PBI cell for high-priority orders (НАПРИМЕР., aerospace emergencies).
- Устойчивость: Sustainable PBI recycle программа (recycles 85% of PBI scrap into secondary parts); reduces waste and costs for clients.
One-Stop Solution: From design to one-stop machining (формование + Поверхностная обработка + упаковка); on-time aerospace logistics (99.5% on-time rate for critical orders).
