Our Polystyrene PS CNC Machining Services
Unlock precision and efficiency with Polystyrene (PS) CNC Machining from Yigu Technology. Our expert team combines advanced technical expertise with custom machining solutions to deliver high-quality PS parts—whether for automotive components, electronic enclosures, or medical devices. Enjoy cost-effective production, tight machining tolerances, and short lead times, all backed by proven success stories and top-tier customer service.
What Is Polystyrene (PS) CNC Machining?
Polystyrene (PS) is a versatile thermoplastic known for its lightweight nature, excellent moldability, and cost-effectiveness. It falls into two main types: General-Purpose Polystyrene (GPPS), which is rigid and transparent, and High-Impact Polystyrene (HIPS), which adds rubber modifiers for improved durability.
CNC Machining (Computer Numerical Control Machining) is an automated manufacturing process that uses pre-programmed software to control machine tools (e.g., mills, lathes, routers). When combined, Polystyrene PS CNC Machining refers to the precise shaping, cutting, and finishing of PS materials into custom parts—leveraging the material’s unique properties and CNC’s accuracy to meet diverse industry needs.
Below is an overview of key Material Properties of PS relevant to machining:
| Material Property | GPPS (General-Purpose PS) | HIPS (High-Impact PS) | Unit |
|---|---|---|---|
| Density | 1.04 – 1.06 | 1.03 – 1.05 | g/cm³ |
| Tensile Strength | 40 – 60 | 25 – 40 | MPa |
| Flexural Modulus | 2,800 – 3,500 | 1,800 – 2,500 | MPa |
| Thermal Expansion (23°C) | 70 – 80 | 80 – 90 | μm/m·K |
| Machinability Rating | Excellent (Low Cutting Force) | Good (Requires Sharp Tools) | – |
Our Capabilities: Yigu Technology’s PS CNC Machining Expertise
At Yigu Technology, we specialize in Polystyrene PS Machining and offer a full range of CNC Machining Capabilities to meet your custom needs. Our team brings decades of experience in precision machining, ensuring every part adheres to your specifications—from simple prototypes to high-volume production runs.
Key capabilities include:
- Precision Machining: Achieve tolerances as tight as ±0.01 mm for critical PS components.
- Custom Machining: Tailor parts to unique designs (e.g., complex geometries, custom holes, or threaded features) using CAD/CAM software.
- Technical Expertise: Our engineers optimize toolpaths and cutting parameters to minimize PS’s tendency to chip or melt during machining.
- End-to-End Machining Services: From material selection to surface treatment and quality control, we handle every step of the process.

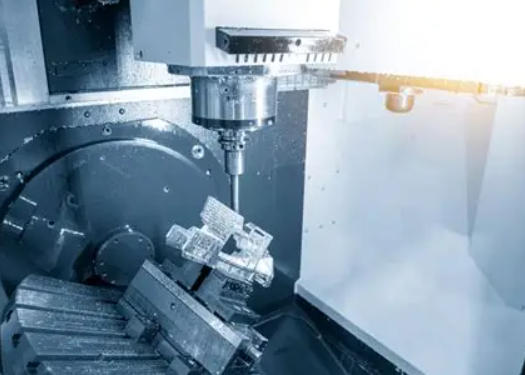

Our equipment lineup supports diverse PS machining needs:
| Machine Type | Maximum Workpiece Size | Spindle Speed Range | Accuracy Rating |
|---|---|---|---|
| 3-Axis CNC Mill | 600 x 400 x 300 mm | 8,000 – 24,000 RPM | ±0.005 mm |
| 5-Axis CNC Router | 1,200 x 800 x 500 mm | 10,000 – 30,000 RPM | ±0.01 mm |
| CNC Lathe | 300 mm (Diameter) | 2,000 – 8,000 RPM | ±0.008 mm |
Process: Step-by-Step Polystyrene PS CNC Machining Workflow
The Polystyrene PS Machining Process at Yigu Technology follows a structured, quality-focused workflow to ensure consistency and precision. Each step is optimized for PS’s material properties to avoid defects (e.g., cracking, burrs) and deliver high-quality results.
Step 1: Design & Tooling Preparation
- Design Finalization: Our team reviews your CAD files to confirm feasibility for PS machining (e.g., wall thickness, feature size).
- Tooling Selection: We use high-speed steel (HSS) or carbide tools with sharp edges to reduce friction—critical for PS, which can soften at high temperatures. Common tools include end mills (for 3D shaping) and drills (for holes).
Step 2: Material Setup & Fixturing
- Material Selection: Choose between GPPS (for transparency/rigidity) or HIPS (for impact resistance) based on your application.
- Fixturing: Secure the PS material to the machine bed using clamps or vacuum chucks to prevent movement during machining—this ensures accuracy and reduces vibration.
Step 3: CNC Machining Execution
- Toolpath Programming: Our software generates optimized toolpaths to minimize cutting time and material waste. For PS, we use lower cutting speeds (1,500 – 3,000 mm/min) to avoid melting.
- Machining Steps: The machine performs cutting, drilling, or milling per the program—with real-time monitoring to adjust parameters if needed.
Step 4: Quality Control (QC)
- In-Process Checks: We measure key dimensions using calipers, micrometers, and coordinate measuring machines (CMMs) to verify compliance with tolerances.
- Final Inspection: Every batch undergoes a visual check for surface defects (e.g., scratches, burrs) and a test of mechanical properties (if required).
Below is a breakdown of typical lead times for each step:
| Process Step | Lead Time (for 100-Part Batch) |
|---|---|
| Design & Tooling | 1 – 2 business days |
| Material Setup | 0.5 – 1 business day |
| CNC Machining | 2 – 3 business days |
| Quality Control | 0.5 – 1 business day |
| Total (Standard) | 4 – 7 business days |
Materials: Choosing the Right Polystyrene for CNC Machining
Selecting the correct Polystyrene PS grade is critical to the success of your CNC machining project. Yigu Technology offers guidance on Material Selection based on your application’s requirements—considering factors like strength, transparency, and environmental conditions.
Key Material Properties to evaluate:
- Density: GPPS and HIPS have similar densities (~1.03 – 1.06 g/cm³), making them lightweight for applications like packaging or consumer goods.
- Thermal Properties: PS has a low glass transition temperature (Tg ~90°C for GPPS), so it’s not suitable for high-heat environments (e.g., engine components).
- Mechanical Properties: HIPS offers better impact resistance than GPPS, making it ideal for parts that need to withstand minor collisions (e.g., automotive interior trim).
Our material options for PS CNC machining:
| PS Grade | Key Feature | Ideal Applications | Machining Considerations |
|---|---|---|---|
| GPPS | Transparent, rigid, low cost | Electronic enclosures, display cases | Prone to chipping—use sharp tools |
| HIPS | Impact-resistant, opaque | Automotive parts, toy components | May produce more dust—use dust collection |
| Flame-Retardant PS | Fire-resistant | Medical devices, electrical parts | Requires slower cutting speeds |
Surface Treatment: Enhancing PS Part Quality
Surface Treatment is essential to improve the aesthetics, durability, and functionality of CNC-machined PS parts. Yigu Technology offers a range of Surface Finishing options tailored to PS’s properties—each designed to enhance Surface Quality and meet industry standards.
Common surface treatments for PS:
- Polishing: Uses abrasive materials (e.g., sandpaper, buffing wheels) to create a smooth, glossy finish. Ideal for GPPS parts where transparency is key (e.g., display covers).
- Coating: Applies a thin layer (e.g., acrylic, UV-resistant coating) to protect against scratches, UV damage, or chemical exposure.
- Painting: Uses solvent-based or water-based paints to add color or branding. PS requires priming to ensure paint adhesion.
- Texturing: Creates a matte or patterned surface (e.g., brushed, embossed) for grip or aesthetics. Common in consumer goods (e.g., remote controls).
Below is a comparison of surface treatment options for PS:
| Surface Treatment | Durability (1-5 Scale) | Cost (1-5 Scale) | Lead Time | Ideal For |
|---|---|---|---|---|
| Polishing | 3 | 2 | 1 day | Transparent GPPS parts |
| Coating | 5 | 4 | 2 days | Outdoor/chemical-exposed parts |
| Painting | 4 | 3 | 1-2 days | Colored or branded components |
| Texturing | 4 | 3 | 1 day | Grip-focused or matte parts |
Tolerances: Achieving Precision in PS CNC Machining
Machining Tolerances refer to the allowable deviation from the intended dimensions of a part. For PS CNC machining, tight tolerances are critical—especially for parts used in electronics, medical devices, or aerospace, where fit and function are non-negotiable.
Yigu Technology specializes in Precision Tolerances for PS, leveraging advanced equipment and skilled operators to meet even the strictest requirements. Our Tolerance Levels are verified using state-of-the-art measurement tools (e.g., CMMs, laser scanners) to ensure Accuracy and Precision.
Typical tolerances for PS CNC machining:
| Part Feature | Standard Tolerance | Precision Tolerance (Custom) | Measurement Tool Used |
|---|---|---|---|
| Linear Dimensions (≤100 mm) | ±0.1 mm | ±0.01 mm | Micrometer/CMM |
| Hole Diameter (≤20 mm) | ±0.05 mm | ±0.005 mm | Pin Gauge/CMM |
| Flatness | 0.1 mm/m | 0.02 mm/m | Surface Plate |
| Threads (M3-M10) | ±0.03 mm | ±0.01 mm | Thread Gauge |
Note: Tolerances may vary based on part size, geometry, and PS grade. Our engineers work with you to define realistic tolerances that balance precision and cost.
Advantages: Why Choose Polystyrene PS CNC Machining?
Polystyrene PS CNC Machining offers numerous benefits for manufacturers and designers—combining the strengths of PS material with the efficiency of CNC technology. Yigu Technology’s solutions amplify these advantages to deliver value for your project.
Key advantages include:
- Precision Machining: CNC automation ensures consistent, repeatable results—critical for high-volume production or parts with complex features.
- Cost-Effective: PS is an affordable material, and CNC machining reduces waste (via optimized toolpaths) and labor costs (via automation).
- High-Quality Finish: With advanced surface treatments and tight tolerances, PS parts have a professional, defect-free appearance.
- Customization: CNC machining supports unlimited design flexibility—from simple brackets to intricate medical components.
- Rapid Prototyping: Our short lead times (as fast as 1-3 days for prototypes) let you test and iterate on PS parts quickly.
- Short Lead Times: Automated processes and in-house tooling reduce production time—even for large batches.
A comparison of PS CNC machining vs. other plastic machining methods:
| Advantage | PS CNC Machining | Injection Molding (PS) | 3D Printing (PS) |
|---|---|---|---|
| Upfront Cost | Low | High (mold fees) | Medium |
| Lead Time (Prototype) | 1-3 days | 2-4 weeks | 1-2 days |
| Tolerance Precision | Excellent (±0.01 mm) | Good (±0.1 mm) | Fair (±0.1 mm) |
| Batch Size Flexibility | Low to High | High (≥1,000 parts) | Low (≤100 parts) |
| Surface Quality | High | High | Medium |
Applications Industry: Where PS CNC Machining Shines
Polystyrene PS CNC Machining is used across diverse industries—thanks to PS’s versatility, cost-effectiveness, and CNC’s precision. Yigu Technology has delivered custom PS parts for the following sectors:
- Automotive: Interior trim (e.g., dashboard panels), air duct components, and sensor housings (uses HIPS for impact resistance).
- Electronics: Enclosures for routers, switches, or LED lights (uses GPPS for transparency or HIPS for durability).
- Medical: Disposable device components (e.g., test tube holders) and diagnostic equipment parts (uses flame-retardant PS for safety).
- Aerospace: Lightweight interior components (e.g., cabin panels) and prototype parts (benefits from CNC’s rapid turnaround).
- Consumer Goods: Toy parts, packaging inserts, and household items (e.g., storage containers) — leverages PS’s low cost.
- Packaging: Custom foam inserts and protective casings (uses PS foam for shock absorption).
Below is a breakdown of industry-specific PS part volumes we’ve produced:
| Industry | Typical Part Type | Annual Volume (Our Clients) |
|---|---|---|
| Automotive | Interior Trim Panels | 50,000 – 100,000 parts |
| Electronics | Router Enclosures | 20,000 – 50,000 parts |
| Medical | Test Tube Holders | 10,000 – 30,000 parts |
| Consumer Goods | Toy Components | 100,000 – 200,000 parts |
Case Studies: Yigu Technology’s PS CNC Machining Success Stories
Our Case Studies demonstrate how we’ve solved complex challenges for clients using Polystyrene PS CNC Machining. Below are two examples of our work:
Case Study 1: Automotive Interior Trim for a Global OEM
- Challenge: A leading automotive manufacturer needed 50,000 HIPS interior trim panels with a textured finish—requiring tight tolerances (±0.05 mm) and a 4-week lead time.
- Solution: We used 3-axis CNC mills with custom texturing tools to produce the panels. Our quality control team inspected 10% of each batch using CMMs to ensure compliance.
- Result: Delivered all parts on time with a 99.8% defect-free rate. The client reduced costs by 15% compared to their previous supplier.
Case Study 2: Medical Device Enclosures for a Diagnostic Company
- Challenge: A medical client needed 10,000 flame-retardant PS enclosures for a new diagnostic tool—with a glossy finish and FDA compliance.
- Solution: We selected FDA-approved flame-retardant PS and used CNC routers to shape the enclosures. Post-machining, we applied a UV-resistant coating for durability.
- Result: The enclosures met all FDA standards and passed impact tests. The client launched their product 2 weeks ahead of schedule.
Customer Testimonial: “Yigu Technology’s expertise in PS CNC machining helped us bring our diagnostic tool to market faster. Their attention to detail and commitment to quality made them a trusted partner.” — Medical Device Client, 2024.
Why Choose Us: Yigu Technology’s PS CNC Machining Difference
When you partner with Yigu Technology for Polystyrene PS CNC Machining, you gain more than a supplier—you gain a team of experts dedicated to your project’s success. Here’s why clients choose us:
Competitive Pricing: We offer transparent pricing with no hidden fees. Our efficient processes (e.g., optimized toolpaths, in-house tooling) help reduce costs without compromising quality.
Expertise: Our engineers have 15+ years of experience in PS machining—knowing how to optimize toolpaths, select the right PS grade, and avoid common defects (e.g., melting, chipping).
Quality: We follow ISO 9001 standards and use rigorous quality control processes (e.g., CMM inspections, batch testing) to ensure every part meets your specifications.
Experience: We’ve served 500+ clients across automotive, electronics, and medical industries—delivering over 1 million PS parts to date.
Customer Service: Our team provides 24/7 support—from design consultation to post-delivery follow-up. We keep you updated at every step of the process.
Custom Solutions: No project is too complex. We tailor our machining services to your unique needs—whether you need a prototype or high-volume production.
