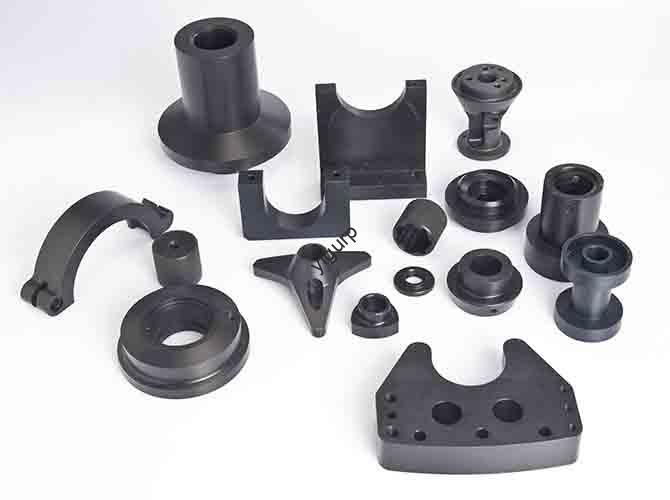

Our Polyoxymethylene POM CNC Machining Services
Looking for high-precision parts that blend strength, low friction, and cost-effectiveness? Our Polyoxymethylene (POM) CNC Machining services deliver top-tier results—from custom prototypes to high-volume production. Whether for automotive components, medical devices, or industrial equipment, we turn durable acetal resin into precise, reliable parts that meet tight tolerances and strict quality standards.
What Is Polyoxymethylene (POM) CNC Machining?
Polyoxymethylene (POM), also known as acetal resin, is a high-performance thermoplastic and engineering polymer prized for its exceptional mechanical properties. Its unique chemical structure—composed of repeating oxymethylene units—gives it high strength, rigidity, and resistance to wear and chemicals.
CNC Machining (Computer Numerical Control Machining) is a subtractive manufacturing process that uses computerized tools to shape materials with unmatched precision. When combined, POM CNC Machining leverages the polymer’s natural advantages to create complex, dimensionally stable parts for diverse industries. Below is a breakdown of POM’s key mechanical properties that make it ideal for CNC machining:
| Mechanical Property | Typical Value (ASTM Standard) | Key Benefit for CNC Machining |
| Tensile Strength | 60 MPa (ASTM D638) | Enables creation of strong, load-bearing parts |
| Flexural Modulus | 2.8 GPa (ASTM D790) | Ensures rigidity in precision components |
| Impact Strength | 6 kJ/m² (ASTM D256) | Resists breakage during machining and end-use |
| Coefficient of Friction | 0.15 (vs. steel, dry) | Reduces wear on tools and finished parts |
| Heat Deflection Temperature (HDT) | 110°C (ASTM D648, 1.82 MPa) | Maintains shape in high-temperature environments |
Our Capabilities: Delivering Precision at Every Stage
At Yigu Technology, our POM CNC Machining capabilities are designed to meet the unique needs of each project—from small-batch prototypes to large-scale production runs. We combine advanced equipment, technical expertise, and strict quality control to ensure consistent, high-quality results. Here’s what we offer:
| Capability | Description | Ideal For |
| Precision Machining | Achieve tight tolerances (down to ±0.005 mm) for complex part geometries | Medical devices, aerospace components |
| Custom Parts Manufacturing | Tailor parts to your exact specifications, including unique shapes and sizes | Custom industrial tools, consumer goods |
| High Volume Production | Efficiently produce thousands of parts with minimal variation | Automotive bulk components, electronics housings |
| Prototyping | Rapidly create functional prototypes for testing and design validation | New product development, design iterations |
| Quality Control | Implement rigorous inspection processes (e.g., CMM testing) to meet industry standards | Critical applications like medical and aerospace |
| Technical Expertise | Our team of engineers provides guidance on material selection and design optimization | Complex projects requiring specialized knowledge |
Process: How We Execute POM CNC Machining
The POM CNC Machining process at Yigu Technology follows a structured, step-by-step approach to ensure precision and efficiency. Each stage is optimized to leverage POM’s properties while minimizing waste and errors:
- Design & Programming: Our engineers convert your 3D models into CNC-compatible code, optimizing tool paths for POM’s machinability. This step ensures programming accuracy to avoid material waste.
- Setup: We prepare the CNC turning or CNC milling machines, installing the appropriate cutting tools (e.g., high-speed steel or carbide tools) for POM. Proper setup is critical to achieving tight tolerances.
- Machining: The machine executes the program, performing drilling, cutting, and other operations to shape the POM material. We monitor the process in real time to address any issues.
Inspection: After machining, parts undergo rigorous inspection using precision tools (e.g., calipers, micrometers) to verify dimensional accuracy and adherence to specifications.
Materials: Choosing the Right POM for Your Project
Not all POM materials are the same—selecting the right type is key to achieving optimal performance. We offer a range of POM (Polyoxymethylene) variants, each with unique properties suited to specific applications:
| Material Type | Key Properties | Ideal Applications |
| Acetal Homopolymer | Higher tensile strength, stiffness, and heat resistance | Automotive gears, precision mechanical components |
| Acetal Copolymer | Better impact resistance, chemical resistance, and processability | Medical devices, food-contact parts (FDA-approved grades) |
| Glass-Filled POM | Enhanced rigidity and dimensional stability (up to 30% glass fiber) | Structural parts, industrial equipment components |
| PTFE-Added POM | Lower friction coefficient (ideal for sliding parts) | Bearings, bushings, conveyor components |
Our team provides material selection guidance, helping you choose the best POM variant based on your project’s requirements (e.g., load, temperature, chemical exposure).
Surface Treatment: Enhancing POM Part Performance & Aesthetics
While POM has excellent natural properties, surface treatment can further enhance its performance, durability, or appearance. We offer a range of surface finishing options tailored to POM’s characteristics:
| Surface Treatment | Purpose | Benefits |
| Polishing | Improve surface smoothness | Reduces friction, enhances aesthetics, easier cleaning |
| Coating (e.g., PTFE coating) | Increase chemical resistance | Protects against harsh chemicals, extends part life |
| Painting | Add color or branding | Improves visual appeal, suitable for consumer goods |
| Plating (e.g., nickel plating) | Enhance conductivity or corrosion resistance | Ideal for electronic components requiring electrical contact |
| Texture (e.g., matte or textured finish) | Improve grip or hide surface imperfections | Useful for handles, knobs, or parts with human interaction |
We work with you to determine if surface finishing is necessary, ensuring the treatment aligns with your part’s end-use.
Tolerances: Meeting the Strictest Precision Standards
Precision is non-negotiable in POM CNC Machining—especially for critical applications like aerospace or medical devices. Our processes are optimized to achieve tight tolerances and exceptional dimensional accuracy, adhering to global quality standards. Below is a comparison of our typical tolerances versus industry averages:
| Tolerance Type | Our Typical Capability | Industry Average | Quality Standard Compliance |
| Dimensional Tolerance | ±0.005 mm (for small parts) | ±0.01 mm | ISO 9001, AS9100 (aerospace) |
| Geometric Tolerance (e.g., flatness) | 0.01 mm/m | 0.02 mm/m | ISO 1302 |
| Position Tolerance | ±0.008 mm | ±0.015 mm | IATF 16949 (automotive) |
We use advanced measurement tools (e.g., Coordinate Measuring Machines, or CMMs) to inspect every batch, ensuring parts stay within tolerance limits and meet your exact specifications.
Advantages: Why Choose POM CNC Machining?
Polyoxymethylene (POM) CNC Machining offers a unique blend of benefits that make it a top choice for manufacturers across industries. Here’s why it stands out:
- High Strength: POM’s tensile and flexural strength rival many metals, making it suitable for load-bearing parts without the weight penalty.
- Low Friction: Its natural lubricity reduces wear on moving parts (e.g., gears, bearings), extending product life.
- Wear Resistance: Resists abrasion even in high-cycle applications, reducing maintenance costs.
- Chemical Resistance: Withstands oils, solvents, and most household chemicals, making it versatile.
- Dimensional Stability: Maintains shape across temperature and humidity changes, critical for precision parts.
- Cost-Effective: Faster machining times and lower material costs compared to metals, ideal for high-volume runs.
Versatility: Compatible with a range of CNC processes (turning, milling, drilling) to create complex geometries.
Applications Industry: Where POM CNC Machined Parts Shine
The versatility and durability of POM CNC Machined parts make them indispensable across multiple industries. Below are key sectors we serve and their common POM applications:
| Industry | Common POM CNC Machined Parts | Key Requirements Met |
| Automotive | Gears, bushings, sensor housings, door locks | High strength, wear resistance, dimensional stability |
| Aerospace | Valve components, fasteners, interior parts | Tight tolerances, lightweight, chemical resistance |
| Electronics | Connector housings, switch parts, cable guides | Low friction, electrical insulation, precision |
| Medical Devices | Surgical instrument components, pump parts, orthopedic accessories | FDA compliance, biocompatibility, precision |
| Consumer Goods | Zipper components, toy parts, kitchen tool handles | Cost-effectiveness, durability, aesthetics |
| Industrial Equipment | Conveyor rollers, pump impellers, gearboxes | Wear resistance, high load capacity, chemical resistance |
Case Studies: Real-World Success with POM CNC Machining
Our POM CNC Machining services have helped clients solve complex challenges and achieve their production goals. Here are two notable examples:
Case Study 1: Automotive Gear Manufacturing
- Client: A leading automotive supplier
- Challenge: Need for high-volume production of durable gear components that withstand high temperatures and friction.
- Solution: We used acetal homopolymer (high strength, heat resistance) and CNC milling to produce 50,000 gears. Implemented strict quality control (CMM testing) to ensure ±0.005 mm tolerance.
- Result: 99.8% part accuracy, 30% faster production time compared to metal alternatives, and reduced maintenance costs for the client.
Case Study 2: Medical Device Prototyping
- Client: A medical startup
- Challenge: Rapid prototyping of a surgical tool component requiring biocompatibility and precision.
- Solution: Used FDA-approved acetal copolymer and CNC turning to create 10 prototypes. Added a polishing surface treatment for smoothness.
Result: Prototypes validated in 2 weeks (50% faster than expected), met all biocompatibility standards, and paved the way for full-scale production.
Why Choose Us for Your POM CNC Machining Needs?
When it comes to Polyoxymethylene POM CNC Machining, Yigu Technology stands out for our commitment to quality, expertise, and customer satisfaction. Here’s why clients trust us:
- Expertise: Our team has 15+ years of experience in engineering polymer machining, with specialized knowledge of POM’s unique properties.
- Quality: We hold ISO 9001, IATF 16949, and AS9100 certifications, ensuring every part meets global standards.
- Reliability: 98% on-time delivery rate, even for high-volume orders, thanks to our advanced equipment and efficient processes.
- Customer Service: Dedicated project managers provide end-to-end support, from design consultation to post-delivery follow-up.
- Innovation: We invest in the latest CNC equipment and machining techniques to stay ahead of industry trends.
Value: Competitive pricing without compromising on quality—we optimize processes to reduce costs for our clients.
