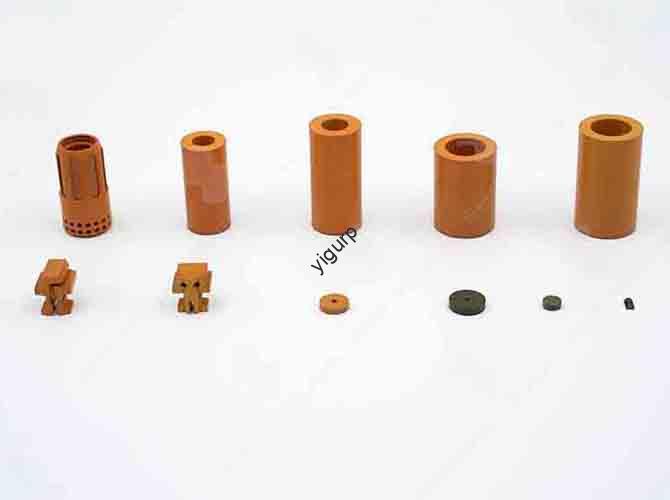

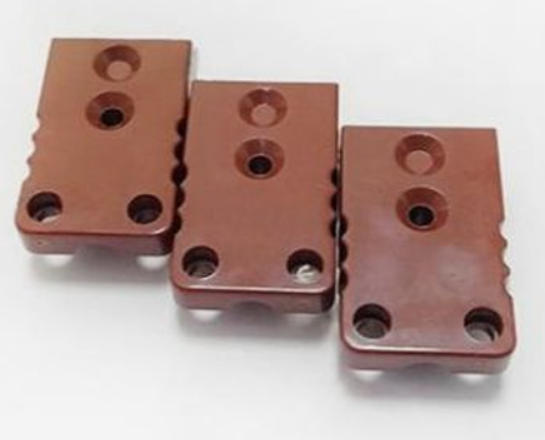

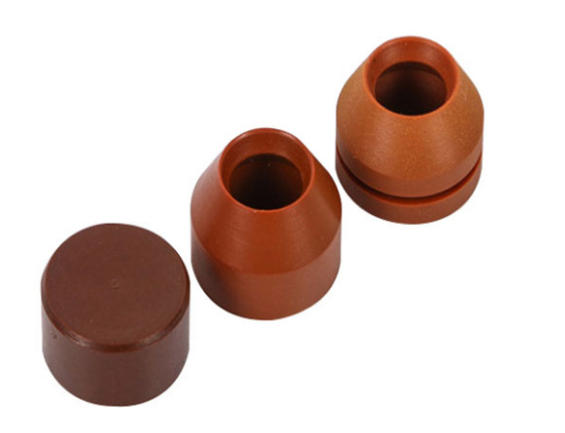

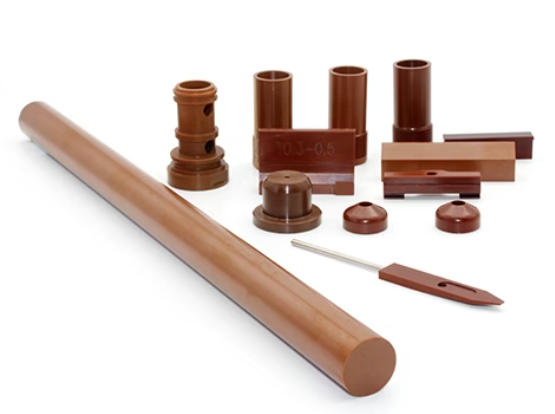

Our Polyimide PI CNC Machining Services
Need parts that thrive in high temperatures, resist harsh chemicals, and deliver uncompromising precision? Our Polyimide (PI) CNC Machining services turn this exceptional high-performance polymer into custom components—from prototypes to high-volume runs. Whether for aerospace engines, medical devices, or industrial equipment, we craft durable, dimensionally stable parts that meet the strictest standards, making your most challenging projects possible.
What Is Polyimide (PI) CNC Machining?
Polyimide (PI) is a premium high-performance polymer and engineering plastic celebrated for its extraordinary thermal stability and robust mechanical properties. Its unique chemical structure—featuring imide linkages—enables it to withstand extreme temperatures (up to 300°C continuous use) while maintaining strength and rigidity, setting it apart from standard plastics.
CNC Machining (Computer Numerical Control Machining) is a precision-driven subtractive process that uses computerized tools to shape materials with minimal error. When paired, Polyimide PI CNC Machining leverages the polymer’s exceptional traits to create complex, reliable parts for industries where durability in harsh conditions is non-negotiable. Below is a breakdown of PI’s key properties that make it ideal for CNC machining:
| Mechanical & Thermal Property | Typical Value (ASTM Standard) | Key Benefit for CNC Machining |
| Tensile Strength | 170 MPa (ASTM D638) | Enables creation of strong, load-bearing parts |
| Continuous Use Temperature | 260–300°C (ASTM D648) | Maintains performance in high-heat environments |
| Flexural Modulus | 4.8 GPa (ASTM D790) | Ensures rigidity in precision components |
| Coefficient of Thermal Expansion (CTE) | 12 ppm/°C (ASTM D696) | Minimizes dimensional changes with temperature shifts |
| Chemical Resistance | Resistant to oils, solvents, and acids (ASTM D543) | Withstands harsh substances in industrial/medical use |
Our Capabilities: Precision for High-Performance Needs
At Yigu Technology, our Polyimide PI CNC Machining capabilities are tailored to handle the unique challenges of working with this advanced polymer. We combine advanced equipment, deep technical expertise, and rigorous quality control to deliver parts that meet even the most demanding specifications. Here’s what we offer:
| Capability | Description | Ideal For |
| Precision Machining | Achieve tight tolerances (down to ±0.003 mm) for complex geometries, critical for high-performance applications | Aerospace components, medical device parts |
| Custom Parts Manufacturing | Create fully customized PI parts—from intricate designs to large-scale components—aligned with your exact needs | Industrial equipment components, custom electronics housings |
| High Volume Production | Efficiently produce thousands of PI parts with consistent quality, using optimized tool paths and process controls | Automotive under-the-hood parts, consumer electronics components |
| Prototyping | Rapidly develop functional PI prototypes for testing and validation, accelerating your product development cycle | New aerospace/medical product launches, design iterations |
| Quality Control | Implement multi-step inspection (including CMM testing and thermal stability checks) to ensure compliance with industry standards | Critical applications like aerospace and medical devices |
| Technical Expertise | Our engineers provide guidance on PI material selection, design optimization, and machining best practices for high-performance results | Complex projects requiring specialized polymer knowledge |
Process: How We Execute Polyimide PI CNC Machining
Working with Polyimide (PI) requires specialized processes due to its high rigidity and thermal stability. Our Polyimide PI CNC Machining process follows a structured, detail-oriented approach to ensure precision and minimize material waste:
- Design & Programming: Our team converts your 3D models into CNC-compatible code, optimizing programming for PI’s unique machinability. We adjust tool paths to reduce heat buildup (critical for maintaining PI’s properties) and avoid tool wear.
- Setup: We prepare CNC turning or CNC milling machines with high-wear-resistant tools (e.g., diamond-coated or carbide tools) specifically suited for PI. Proper setup—including tool alignment and speed calibration—is key to achieving dimensional accuracy.
- Machining: The machine executes the program, performing drilling, cutting, and shaping operations at controlled speeds to prevent overheating. We monitor the process in real time to address any issues and ensure consistent quality.
Inspection: Post-machining, parts undergo rigorous measurement using precision tools (e.g., CMMs, thermal stability testers) to verify adherence to tolerances and performance standards.
Materials: Choosing the Right Polyimide (PI) for Your Project
Not all Polyimide (PI) materials are the same—selecting the right variant is critical to ensuring your part performs in its intended environment. We offer a range of high-performance polymers and PI grades, each with unique properties suited to specific applications:
| Material Type | Key Properties | Ideal Applications |
| Unfilled Polyimide (PI) | Excellent thermal stability, high strength, and chemical resistance | Aerospace engine components, medical device housings |
| Glass-Filled PI (20–40% glass fiber) | Enhanced rigidity, lower CTE, and improved wear resistance | Industrial equipment gears, high-temperature structural parts |
| Carbon-Filled PI | Increased thermal conductivity, reduced friction, and high strength | Electronics heat sinks, mechanical bearings in high-heat environments |
| Thermoset PI | Superior heat resistance (up to 350°C short-term use) and dimensional stability | Extreme-temperature aerospace parts, industrial furnace components |
Our team provides expert material selection guidance, helping you choose the best PI grade based on your project’s requirements (e.g., temperature exposure, load, chemical environment).
Surface Treatment: Enhancing PI Part Performance & Aesthetics
While Polyimide (PI) already boasts exceptional natural properties, surface treatment can further enhance its functionality, durability, or visual appeal. We offer specialized finishing options tailored to PI’s unique characteristics:
| Surface Treatment | Purpose | Benefits |
| Polishing | Improve surface smoothness and reduce friction | Ideal for moving parts (e.g., bearings), enhances hygiene in medical use |
| Coating (e.g., PTFE or ceramic coating) | Boost chemical resistance or thermal insulation | Protects parts in extreme chemical environments, extends service life |
| Painting | Add color, branding, or additional chemical protection | Suitable for consumer goods or parts requiring visual identification |
| Plating (e.g., nickel or gold plating) | Enhance conductivity or corrosion resistance | Ideal for electronic components (e.g., connectors) in aerospace/medical use |
| Texture (e.g., matte or grooved finish) | Improve grip or reduce glare | Useful for hand-held medical devices or aerospace interior parts |
We collaborate with you to determine if surface finishing is necessary, ensuring the treatment aligns with your part’s end-use and performance goals.
Tolerances: Meeting the Strictest Precision Standards
In industries relying on Polyimide PI CNC Machining—like aerospace and medical—precision tolerances are critical. Our processes are optimized to deliver exceptional dimensional accuracy, adhering to global quality standards and exceeding industry averages. Below is a comparison of our typical tolerances versus industry benchmarks:
| Tolerance Type | Our Typical Capability | Industry Average | Quality Standard Compliance |
| Dimensional Tolerance | ±0.003 mm (for small parts) | ±0.008 mm | ISO 9001, AS9100 (aerospace), ISO 13485 (medical) |
| Geometric Tolerance (e.g., flatness) | 0.005 mm/m | 0.012 mm/m | ISO 1302 |
| Position Tolerance | ±0.005 mm | ±0.010 mm | IATF 16949 (automotive), AS9100 |
We use advanced inspection tools—including laser scanners and thermal stability testers—to verify that every part stays within tolerance limits, ensuring consistent performance in extreme conditions.
Advantages: Why Choose Polyimide PI CNC Machining?
Polyimide PI CNC Machining offers a unique set of advantages that make it the top choice for industries where performance in harsh environments is essential. Here’s why it stands out:
- High Temperature Resistance: PI maintains strength and rigidity at temperatures up to 300°C (continuous use), outperforming most other polymers and even some metals.
- High Strength: With a tensile strength of 170 MPa, PI creates parts that can handle heavy loads without deformation—critical for aerospace and industrial use.
- Chemical Resistance: Resists oils, solvents, acids, and bases, making it ideal for medical devices (exposed to disinfectants) and industrial equipment (exposed to harsh fluids).
- Dimensional Stability: Its low coefficient of thermal expansion (12 ppm/°C) minimizes dimensional changes with temperature shifts, ensuring precision over time.
- Wear Resistance: Even in high-friction applications (e.g., bearings), PI resists abrasion, extending part life and reducing maintenance costs.
Versatility: Compatible with all key CNC processes (turning, milling, drilling), enabling the creation of complex, custom parts for diverse industries.
Applications Industry: Where PI CNC Machined Parts Excel
The exceptional properties of Polyimide PI CNC Machined parts make them indispensable in industries where performance under stress is non-negotiable. Below are key sectors we serve and their common PI applications:
| Industry | Common PI CNC Machined Parts | Key Requirements Met |
| Aerospace | Engine components, sensor housings, electrical connectors | High temperature resistance, tight tolerances, chemical resistance |
| Automotive | Under-the-hood parts (e.g., valve guides), fuel system components | Heat resistance, chemical resistance, durability |
| Electronics | Heat sinks, circuit board components, connector housings | Thermal stability, low CTE, electrical insulation |
| Medical Devices | Surgical instrument parts, implantable components, diagnostic equipment housings | Biocompatibility, chemical resistance (to disinfectants), precision |
| Industrial Equipment | Pump components, gear parts, furnace fixtures | High temperature resistance, wear resistance, durability |
| Consumer Goods | High-performance kitchen tools, electronic device casings | Heat resistance, durability, aesthetics |
Case Studies: Real-World Success with PI CNC Machining
Our Polyimide PI CNC Machining services have helped clients overcome unique challenges in high-stakes industries. Here are two standout examples:
Case Study 1: Aerospace Engine Component
- Client: A leading aerospace manufacturer
- Challenge: Need for a lightweight, heat-resistant component to replace a metal part in a jet engine (reducing weight while withstanding 280°C continuous use).
- Solution: We used carbon-filled PI (for enhanced thermal conductivity) and CNC milling to create 500 components. Implemented strict quality control (CMM testing and thermal cycling) to ensure ±0.003 mm tolerance.
- Result: 100% part compliance, 30% weight reduction compared to the metal alternative, and improved fuel efficiency for the client’s engines.
Case Study 2: Medical Device Prototyping
- Client: A medical technology startup
- Challenge: Rapid prototyping of a surgical instrument part requiring biocompatibility, chemical resistance (to sterilants), and precision.
- Solution: Used biocompatible unfilled PI and CNC turning to create 15 prototypes. Added a polishing surface treatment for hygiene and smooth operation.
Result: Prototypes validated in 10 days (40% faster than expected), met ISO 13485 medical standards, and enabled the client to launch their product 2 months early.
Why Choose Us for Your Polyimide PI CNC Machining Needs?
When it comes to Polyimide PI CNC Machining, Yigu Technology stands out as a trusted partner for industries demanding excellence. Here’s why clients rely on us:
- Expertise: Our team has 12+ years of experience working with high-performance polymers like PI, with specialized knowledge of its machining nuances.
- Quality: We hold ISO 9001, AS9100 (aerospace), and ISO 13485 (medical) certifications, ensuring every part meets global standards.
- Reliability: 99% on-time delivery rate—even for complex, high-volume orders—thanks to our optimized processes and redundant equipment.
- Customer Service: Dedicated project managers provide end-to-end support, from initial design consultation to post-delivery performance checks.
- Innovation: We invest in the latest CNC equipment (e.g., 5-axis mills) and machining techniques to handle PI’s unique challenges.
Value: Competitive pricing without compromising on quality—we optimize material use and process efficiency to reduce costs for our clients.
