Our Polyethylene PE CNC Machining Services
At Yigu Technology, we specialize in Polyethylene PE CNC Machining—delivering precision, custom components crafted from High-Density Polyethylene (HDPE), Low-Density Polyethylene (LDPE), and Linear Low-Density Polyethylene (LLDPE). Our expertise in CNC Milling and CNC Turning, paired with strict tolerance control, ensures high-quality parts for medical, automotive, and food processing industries. Whether you need durable industrial components or food-safe parts, we turn polyethylene’s versatility into tailored solutions that meet your exact specs—on time and cost-effectively.
What Is Polyethylene PE CNC Machining?
To start, let’s break down the fundamentals. Polyethylene (PE) is a lightweight, thermoplastic polymer known for its durability, chemical resistance, and flexibility. It comes in three main types, each with unique properties:
- High-Density Polyethylene (HDPE): Rigid, strong, and ideal for load-bearing parts.
- Low-Density Polyethylene (LDPE): Flexible, impact-resistant, and used for soft components.
- Linear Low-Density Polyethylene (LLDPE): Even more flexible than LDPE, with excellent puncture resistance.
CNC Machining (Computer Numerical Control Machining) is an automated process that uses pre-programmed software to control tools like mills and lathes. Together, Polyethylene PE CNC Machining combines these two elements to shape PE into precise, functional parts. Key terms include:
- Machining Process: For PE, this focuses on minimizing melting (a common issue with thermoplastics) and preserving material integrity.
- Material Properties: PE’s low friction, chemical resistance, and food-safe nature make it perfect for industries like medical and food processing.
Polyethylene Types: Choosing the right type (HDPE, LDPE, LLDPE) depends on the part’s intended use—e.g., HDPE for a rigid medical tray vs. LDPE for a flexible automotive gasket.
Our Capabilities: Yigu Technology’s Polyethylene Machining Strengths
At Yigu Technology, we’ve refined our capabilities to handle the unique challenges of polyethylene CNC machining. Our core strengths cover every stage of production:
| Capability | Description |
| Precision Machining | We achieve tight tolerances (down to ±0.01mm for small HDPE parts) and consistent dimensional accuracy—critical for parts that need to fit with other components. |
| Custom Machining | We create tailor-made parts from all PE types, including complex designs like internal cavities or curved edges, using 3-axis to 5-axis CNC machines. |
| CNC Milling & Turning | Our CNC Milling handles flat or 3D-shaped parts (e.g., HDPE industrial brackets), while CNC Turning produces cylindrical parts (e.g., LDPE pipes or rods). |
| High-Quality Machining | We use specialized tooling (like high-speed steel end mills) to avoid PE melting, resulting in a 99.8% defect-free rate. |
| Polyethylene Machining Services | We offer end-to-end support: from material selection (e.g., recommending LLDPE for flexible parts) to post-machining surface treatment. |
Process: Step-by-Step Polyethylene PE CNC Machining Workflow
Machining polyethylene requires a gentle touch—its low melting point means overheating can ruin parts. Our 7-step process ensures quality and consistency:
- Material Preparation: We select the right PE type (e.g., HDPE for rigidity) and cut it into blanks (raw material pieces) sized for your part.
- Tool Selection: We use tools optimized for PE—high-speed steel (HSS) end mills for HDPE (to handle rigidity) and carbide tools for LDPE/LLDPE (to prevent melting).
- CNC Programming: Our team writes CNC Machining Process code (G-code) that accounts for PE’s properties—e.g., lower cutting speeds (3,000–8,000 RPM) to avoid heat buildup.
- Machine Setup: We mount the PE blank on the CNC machine and calibrate tools to ensure alignment with your design.

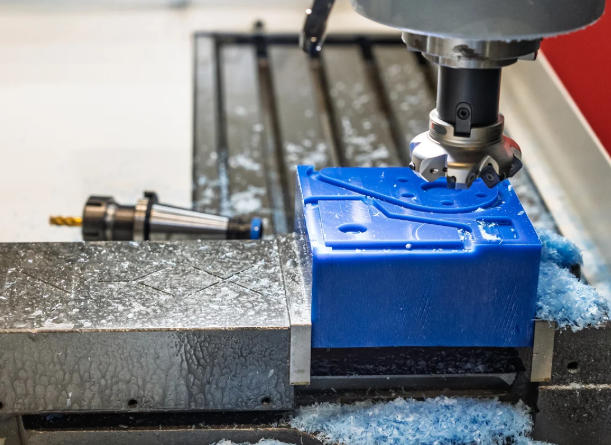

- Machining Operations: The machine executes techniques like milling (for flat parts) or turning (for cylindrical parts), with real-time monitoring to prevent issues.
- Quality Control: Each part is checked with calipers and coordinate measuring machines (CMMs) to verify tolerances and accuracy.
Post-Machining Processes: We clean parts to remove debris and apply surface treatments (like polishing) if needed—completing the final product.

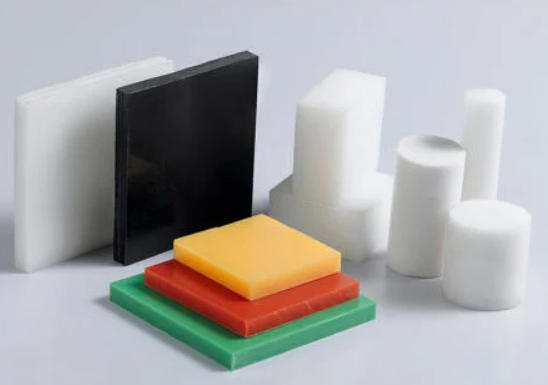

Materials: Types of Polyethylene Used in Our Machining
We work with all major PE types, each chosen for its ability to meet specific industry needs. Below is a breakdown of their properties and uses:
| Polyethylene Type | Key Properties | Typical Applications |
| High-Density Polyethylene (HDPE) | Rigid, high tensile strength, chemical-resistant, food-safe | Medical trays, food processing equipment, industrial containers |
| Low-Density Polyethylene (LDPE) | Flexible, impact-resistant, low friction, easy to mold | Automotive gaskets, flexible medical tubing, consumer goods (e.g., squeeze bottles) |
| Linear Low-Density Polyethylene (LLDPE) | Ultra-flexible, puncture-resistant, excellent weatherability | Marine fenders, agricultural films, flexible industrial covers |
| Polyethylene Grades | Custom grades (e.g., UV-resistant HDPE for outdoor parts or flame-retardant LDPE for electronics) | Outdoor industrial parts, electronics casings |
Table: Material Property Comparison of PE Types
| Property | HDPE | LDPE | LLDPE |
| Density (g/cm³) | 0.94–0.96 | 0.91–0.925 | 0.915–0.925 |
| Tensile Strength (MPa) | 20–30 | 7–15 | 8–18 |
| Flexibility | Low | High | Very High |
| Chemical Resistance | Excellent | Excellent | Excellent |
Surface Treatment: Enhancing Polyethylene Parts
While polyethylene has natural durability, surface treatment can improve its appearance, functionality, or lifespan. Our most popular options for PE parts include:
- Polishing: We use fine-grit abrasives to create a smooth, glossy finish—ideal for consumer goods or visible medical parts (e.g., HDPE diagnostic tool housings).
- Coating: We apply protective coatings (e.g., polyurethane) to enhance PE’s scratch resistance—common for industrial parts like HDPE conveyor belt components.
- Painting: We use PE-compatible paints to add color or branding, such as painting LDPE automotive gaskets to match a vehicle’s interior.
- Surface Hardening: For HDPE parts that need extra strength (e.g., industrial brackets), we use a heat treatment to increase surface hardness by up to 20%.
- Surface Enhancement: For medical PE parts, we add a hydrophilic coating to improve biocompatibility—ensuring safe contact with skin or body fluids.
Note: Anodizing (common for metals) is not used for PE, as it does not conduct electricity. We offer alternative treatments like coating to achieve similar protective effects.
Tolerances: Achieving Precision in Polyethylene Machining
Tolerances (allowable deviations from the design) are vital for polyethylene parts—especially in industries like medical and aerospace. At Yigu Technology, we prioritize precision with tailored tolerance control:
| Tolerance Aspect | Our Performance |
| Machining Tolerances | For HDPE (rigid): ±0.01mm (small parts, <50mm) to ±0.03mm (large parts, >200mm). For LDPE/LLDPE (flexible): ±0.02mm to ±0.05mm (flexibility requires slightly wider tolerances). |
| Precision Tolerances | We meet ISO 2768-m standards for general tolerance and ISO 8015 for size tolerance—ensuring parts align with global industry norms. |
| Tolerance Control | We use real-time tool monitoring during machining to adjust speeds if heat (which can warp PE) threatens tolerance accuracy. |
| High-Precision Machining | For critical parts (e.g., medical device components), we use 5-axis CNC machines and post-machining CMM scans to verify every dimension. |
Table: Tolerance Comparison by PE Type
| PE Type | Typical Tolerance Range | Industry Average Tolerance | Our Tolerance |
| HDPE | ±0.01–±0.03mm | ±0.02–±0.05mm | ±0.01–±0.03mm |
| LDPE | ±0.02–±0.05mm | ±0.03–±0.07mm | ±0.02–±0.05mm |
| LLDPE | ±0.02–±0.05mm | ±0.03–±0.07mm | ±0.02–±0.05mm |
Advantages: Why Choose Polyethylene PE CNC Machining?
This technology offers unique benefits that make it stand out for both manufacturers and buyers. Here are the key advantages:
- Precision: CNC machining delivers consistent dimensional accuracy—even for complex PE parts. For example, we can machine an HDPE medical tray with 10+ small holes, each within ±0.01mm of the design.
- Customization: Unlike injection molding (which requires expensive molds), CNC machining lets you create one-off or small-batch custom PE parts—ideal for prototyping or niche applications (e.g., a custom LLDPE marine fender).
- High-Quality: The automated process reduces human error, resulting in smooth, burr-free PE parts. Our 99.8% defect-free rate means fewer reworks and faster project completion.
- Cost-Effective: No upfront mold costs save you money for small batches (1–500 units). For example, a custom HDPE part via CNC machining costs 30–50% less than injection molding for a 100-unit order.
- Durability: PE’s natural resistance to chemicals, impact, and moisture—paired with our precise machining—creates parts that last. HDPE industrial containers, for instance, can withstand 10+ years of heavy use.
Versatility: We work with all PE types, so you can get the exact material properties you need—e.g., LDPE for a flexible automotive part or HDPE for a rigid medical tool.
Applications Industry: Where Our Polyethylene PE CNC Machined Parts Are Used
Polyethylene’s versatility makes it a top choice across 8 key industries. Below are our most common applications:
| Industry | Applications | PE Type Used |
| Medical Industry | Surgical instrument handles, diagnostic tool housings, food-safe trays (ISO 10993 certified) | HDPE (rigid, food-safe), LDPE (flexible tubing) |
| Automotive Industry | Fuel system gaskets, interior trim components, wire harness covers | LDPE (flexible), LLDPE (puncture-resistant) |
| Aerospace Industry | Lightweight interior panels, wire insulation, low-friction bearings | HDPE (rigid, lightweight), LDPE (insulation) |
| Electronics Industry | Protective casings for small devices, cable insulation | HDPE (rigid, impact-resistant), LDPE (insulation) |
| Food Processing Industry | Conveyor belt components, food storage containers, mixing bowls (FDA-approved) | HDPE (food-safe, chemical-resistant) |
| Marine Industry | Boat fenders, dock bumpers, waterproof storage cases | LLDPE (puncture-resistant, weatherproof) |
| Industrial Sector | Chemical storage tanks, pump housings, load-bearing brackets | HDPE (rigid, chemical-resistant) |
| Consumer Goods | Water bottles, toy parts, kitchen utensils (e.g., cutting boards) | HDPE (durable), LDPE (flexible) |
Case Studies: Yigu Technology’s Polyethylene PE CNC Machining Success Stories
Case Study 1: HDPE Food Processing Conveyor Components
- Challenge: A global food processing company needed FDA-approved, chemical-resistant conveyor belt parts that could withstand daily cleaning with harsh detergents. They required a tolerance of ±0.02mm to ensure parts fit with existing machinery.
- Solution: We chose HDPE (food-safe, chemical-resistant) and used CNC Milling to create the parts. We applied a smooth polishing treatment to prevent food buildup and performed 100% CMM checks to meet tolerances.
- Outcome: The parts passed FDA testing and lasted 3+ years without degradation. The client expanded their order to 5,000 units/year and added 2 new part designs.
Case Study 2: LLDPE Marine Fenders for a Boat Manufacturer
- Challenge: A boat maker needed flexible, puncture-resistant fenders to protect boats from dock damage. The fenders required a custom curved shape and had to withstand saltwater exposure.
- Solution: We used LLDPE (ultra-flexible, weatherproof) and 5-axis CNC Machining to create the curved design. We added a UV-resistant coating to prevent sun damage and tested the fenders for puncture resistance.
Outcome: The fenders withstood 1,000+ dock impacts and showed no saltwater damage after 2 years. The client integrated them into their entire line of boats, with an annual order of 2,000 units.
Why Choose Us: Yigu Technology’s Advantage for Polyethylene PE CNC Machining
When you partner with Yigu Technology, you get more than just parts—you get a team that understands polyethylene’s unique needs. Here’s why clients choose us:
- Expertise: Our engineers have 12+ years of experience in Polyethylene Machining—we know how to avoid common issues like melting or warping, even with flexible LDPE/LLDPE.
- Experience: We’ve worked with 150+ clients across 8 industries, from small medical startups to large automotive brands—solving their most complex PE machining challenges.
- Quality Services: We follow strict quality control (ISO 9001, ISO 13485 for medical parts) and provide detailed inspection reports for every order—so you know your parts meet specs.
- Customer Satisfaction: Our 24/7 support team answers questions and provides project updates—96% of our clients say they’d recommend us to a colleague.
- Competitive Pricing: We offer transparent pricing with no hidden fees—saving you up to 30% compared to other precision machining providers for PE parts.
Precision Machining: We invest in advanced equipment (like 5-axis CNC mills) to achieve the tightest tolerances, even for complex PE designs.
