Our Polyester PBT Injection Molding Services
Unlock precision and efficiency with our Polyester PBT Injection Molding services—where high-performance thermoplastic polymer processing meets custom solutions. From high-volume production to intricate precision parts, we deliver consistent quality that leverages PBT’s unique strengths, backed by rigorous technical specifications and end-to-end expertise.
Definition: Understanding Polyester PBT Injection Molding
Polyester PBT (Polybutylene Terephthalate) is a high-performance thermoplastic polymer renowned for its exceptional mechanical and chemical properties. When combined with injection molding—a versatile manufacturing processing method—PBT transforms into durable, precise components for diverse industries. Below is a breakdown of key technical specifications that define quality Polyester PBT Injection Molding:
| Technical Specification | Standard Range | Key Purpose |
| Melting Point | 225–235°C | Ensures proper material flow during injection |
| Mold Temperature | 40–80°C | Enhances part dimensional stability post-cooling |
| Shrinkage Rate | 1.5–2.5% | Guides mold design for accurate final part size |
| Tensile Strength | 55–70 MPa | Guarantees structural integrity of finished parts |
| Chemical Resistance | Resistant to oils, solvents, and weak acids | Extends part lifespan in harsh environments |
In short, Polyester PBT Injection Molding merges the polymer’s inherent strengths with the molding process’s scalability, making it a top choice for demanding applications.
Our Capabilities: Delivering Excellence in PBT Processing
At Yigu, our PBT Processing capabilities are designed to meet the full spectrum of customer needs—from prototyping to mass production. We pride ourselves on blending advanced technology with industry expertise to deliver unmatched results. Here’s a detailed look at our core strengths:
Core Capabilities Overview
| Capability | Description | Key Benefits |
| Precision Molding | CNC-controlled machines with ±0.005mm tolerance | Creates intricate parts for high-precision industries (e.g., electronics, medical) |
| High Volume Production | 24/7 automated production lines (up to 500,000 parts/month) | Meets large-scale order demands with consistent quality |
| Custom Molding | Tailored solutions for unique part designs (complex geometries, small/large sizes) | Aligns with specific project requirements, no “one-size-fits-all” |
| Tooling Expertise | In-house tool design and maintenance (steel/aluminum molds) | Reduces lead times and ensures mold longevity |
| Quality Control | ISO 9001-certified processes (100% visual inspection, dimensional testing) | Eliminates defects and maintains batch-to-batch consistency |
Our team’s deep understanding of injection molding capabilities ensures that every PBT project—whether simple or complex—meets or exceeds customer expectations.
Process: Step-by-Step Polyester PBT Injection Molding
The injection molding process for PBT is a structured sequence that balances precision and efficiency. Each step is critical to achieving high-quality parts, and we optimize every phase to minimize waste and maximize consistency. Below are the key PBT molding steps:
- Material Preparation: First, we select the right Polyester PBT grade (e.g., reinforced, flame-retardant) based on the application. The material is dried (to <0.02% moisture) to prevent bubbling during injection—moisture can compromise part strength. We then load the dried PBT pellets into the molding machine’s hopper.

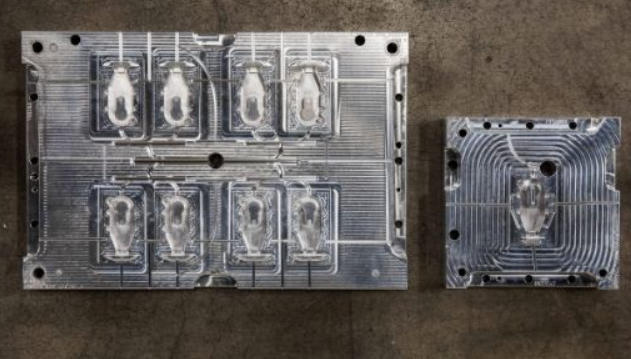

- Mold Design: Our engineers create custom molds (or adapt existing ones) based on part specifications. Mold design focuses on gate placement (for even material flow), cooling channels (to speed up solidification), and ejection systems (to avoid part damage). This step is foundational to precision molding.
- Injection: The dried PBT pellets are melted in a heated barrel (230–250°C) and injected into the mold cavity under high pressure (1000–2000 bar). The pressure ensures the molten polymer fills every detail of the mold, critical for complex part geometries.
- Cooling: The mold is cooled using water or oil circuits, lowering the PBT temperature to below its crystallization point (≈180°C). Cooling time (10–30 seconds, depending on part thickness) directly impacts dimensional stability—too fast, and parts may warp; too slow, and production slows.
- Ejection: Once cooled, the mold opens, and ejector pins push the finished part out. We inspect parts immediately for defects (e.g., flash, short shots) before moving to post-processing.
Post-Processing: Depending on requirements, parts may undergo trimming (to remove excess material), deburring (for smooth edges), or surface treatment (e.g., painting, plating). This step ensures parts meet final aesthetic and functional standards.
Materials: Choosing the Right Polyester PBT for Your Project
Selecting the correct Polyester PBT grade is vital to part performance. PBT is available in various formulations, each tailored to specific industry needs. Below is a comparison of common PBT grades and their ideal applications:
| PBT Grade | Key Properties | Recommended Applications |
| Unreinforced PBT | Good impact resistance, easy processing | Consumer goods (e.g., appliance knobs, toy parts) |
| Reinforced PBT (30% glass fiber) | High strength, stiffness, and heat resistance (up to 150°C) | Automotive components (e.g., sensor housings, connector pins) |
| Flame Retardant PBT (UL94 V0 rated) | Self-extinguishing, low smoke emission | Electronics (e.g., circuit board enclosures, switchgear) |
| Mineral-Filled PBT | Improved dimensional stability, low shrinkage | Industrial components (e.g., pump housings, valve parts) |
| Conductive PBT | Anti-static properties | Medical devices (e.g., diagnostic tool casings) |
We partner with trusted thermoplastic materials suppliers to source high-purity PBT, ensuring consistent quality. Our material selection process involves: (1) understanding your part’s operating environment (temperature, chemicals, load), (2) matching needs to PBT grade properties, and (3) testing samples to validate performance.
Surface Treatment: Enhancing Polyester PBT Part Performance and Aesthetics
Surface treatment elevates both the function and appearance of PBT parts, addressing needs like corrosion resistance, grip, or brand branding. We offer a range of PBT surface treatment options, each with unique benefits:
| Surface Treatment | Process | Key Benefits | Ideal Applications |
| Painting | Spray or electrostatic painting with polyurethane/acrylic paints | Custom colors, UV resistance | Consumer goods (appliances), automotive interior parts |
| Plating | Electroplating (nickel, chrome) or electroless plating | Improved conductivity, wear resistance | Electronics (connectors), decorative parts |
| Texturing | Mold texturing (e.g., matte, brushed) or post-mold sandblasting | Enhanced grip, hiding minor defects | Tool handles, automotive steering wheel components |
| Polishing | Mechanical buffing (for high-gloss finish) | Aesthetic appeal, easy cleaning | Medical devices, cosmetic packaging |
| Coating | Ceramic or Teflon coating | Extreme chemical/heat resistance | Industrial valves, engine components |
| Adhesive Application | Applying pressure-sensitive or structural adhesives | Enables part assembly without fasteners | Electronics (component bonding), automotive modules |
Our team recommends the best treatment based on your part’s use case—for example, flame retardant PBT parts for electronics often get plating for conductivity, while consumer goods prioritize painting for brand consistency.
Advantages: Why Polyester PBT Injection Molding Stands Out
Polyester PBT Injection Molding offers a unique set of advantages that make it superior to other thermoplastic molding processes (e.g., ABS, nylon). These benefits drive its popularity across industries:
- Cost Efficiency: PBT’s fast cooling time (10–30 seconds) reduces cycle times, lowering production costs—critical for high volume production. Additionally, PBT’s low shrinkage rate minimizes material waste, further cutting expenses.
- High Strength: Reinforced PBT grades (e.g., 30% glass fiber) have tensile strength up to 70 MPa, outperforming many thermoplastics. This makes PBT parts durable enough for heavy-load applications (e.g., automotive suspension components).
- Dimensional Stability: PBT’s low shrinkage (1.5–2.5%) and resistance to warping ensure parts maintain their shape—even in extreme temperatures (-40°C to 150°C). This is essential for precision parts like electronics connectors.
- Chemical Resistance: PBT resists oils, solvents, and weak acids, making it ideal for parts exposed to harsh fluids (e.g., industrial pumps, automotive fuel lines). Unlike nylon, PBT doesn’t absorb moisture, so its properties don’t degrade over time.
- Recyclability: PBT is fully recyclable—scrap material from molding can be reprocessed (with minimal property loss) into new parts. This reduces environmental impact and lowers material costs.
Design Flexibility: Injection molding allows for complex PBT part designs (e.g., undercuts, thin walls) that would be impossible with other methods. Combined with custom tooling, this means we can bring even the most intricate designs to life.
Applications Industry: Where Polyester PBT Injection Molding Shines
Polyester PBT Injection Molding serves a wide range of industries, thanks to its versatile properties. Below are the key sectors and their common PBT applications:
| Industry | Key Applications | PBT Grade/Property Used |
| Automotive Industry | Sensor housings, connector pins, door lock components, mirror brackets | Reinforced PBT (high strength), chemical resistance (to oils) |
| Electronics | Circuit board enclosures, switchgear, LED housings, battery connectors | Flame Retardant PBT (UL94 V0), conductivity (plated PBT) |
| Consumer Goods | Appliance knobs, hair dryer casings, toy parts, cosmetic packaging | Unreinforced PBT (impact resistance), painted/textured PBT (aesthetics) |
| Industrial Components | Pump housings, valve bodies, gear wheels, conveyor parts | Mineral-filled PBT (dimensional stability), chemical resistance |
| Medical Devices | Diagnostic tool casings, surgical instrument handles, drug delivery components | Conductive PBT (anti-static), biocompatible PBT |
| Appliances | Washing machine control panels, refrigerator shelf supports, oven knobs | Heat-resistant PBT (up to 150°C), UV-resistant coating |
In each industry, PBT’s unique blend of strength, stability, and cost-effectiveness solves critical engineering challenges.
Case Studies: Success Stories in Polyester PBT Injection Molding
Our Polyester PBT Injection Molding services have helped clients across industries overcome production hurdles and achieve their goals. Below are two standout case studies:
Case Study 1: Automotive Sensor Housing for a Global OEM
- Challenge: A leading automotive OEM needed a sensor housing that could withstand engine bay temperatures (up to 120°C), resist oil exposure, and meet tight dimensional tolerances (±0.01mm). Their previous ABS parts failed after 6 months of use.
- Solution: We recommended reinforced PBT (30% glass fiber) for its heat and chemical resistance. Our precision molding team designed a custom mold with optimized cooling channels to ensure dimensional stability. We also added a thin Teflon coating for extra oil resistance.
- Result: The PBT sensor housings passed 2,000 hours of durability testing (vs. 500 hours for ABS) and met all OEM specifications. Production scaled to 100,000 units/month with zero defects—saving the client 15% in replacement costs.
- Customer Testimonial: “The PBT parts transformed our sensor reliability. The team’s expertise in material selection and precision molding made all the difference.” — Automotive Engineering Manager
Case Study 2: Flame-Retardant Enclosures for a Medical Device Startup
- Challenge: A startup developing a portable diagnostic tool needed enclosures that were flame-retardant (UL94 V0), anti-static, and lightweight. They had a tight 8-week timeline to launch.
- Solution: We used flame retardant PBT with conductive additives (for anti-static properties). Our custom molding team fast-tracked tooling (5 weeks instead of 8) by leveraging existing mold bases. Post-processing included polishing for a sterile finish.
Result: The enclosures passed UL94 V0 testing and weighed 20% less than the client’s original design. We delivered 5,000 units on time, helping the startup launch ahead of schedule.
Why Choose Us: Your Trusted Polyester PBT Injection Molding Partner
When it comes to Polyester PBT Injection Molding, we stand out as a reliable partner—here’s why:
- Expertise: Our team has 15+ years of experience in PBT processing and injection molding. We employ engineers certified in thermoplastic materials, ensuring we solve even the most complex challenges (e.g., ultra-precise parts, high-temperature applications).
- Quality Assurance: We’re ISO 9001 and IATF 16949 (automotive) certified. Our quality control process includes in-line testing (dimensional, tensile, flame resistance) and final inspection by trained technicians—we guarantee a defect rate below 0.1%.
- Customer Service: We assign a dedicated project manager to every client, providing end-to-end support (from design consultation to post-delivery follow-up). We respond to queries within 4 hours and offer 24/7 support for urgent orders.
- On-Time Delivery: Our automated production lines and in-house tooling reduce lead times by 30% compared to competitors. We maintain a 98% on-time delivery rate—even for high-volume orders (500,000+ parts/month).
- Cost-Effective Solutions: We optimize material usage (reducing waste by 15%) and offer competitive pricing for both small runs (100–1,000 parts) and high volume production. We also provide cost-saving recommendations (e.g., material substitutions, design tweaks) without compromising quality.
Innovation: We invest 5% of revenue in R&D, staying ahead of industry trends (e.g., bio-based PBT, 3D-printed mold inserts). This allows us to offer cutting-edge solutions—like lightweight, high-strength parts for electric vehicles.
