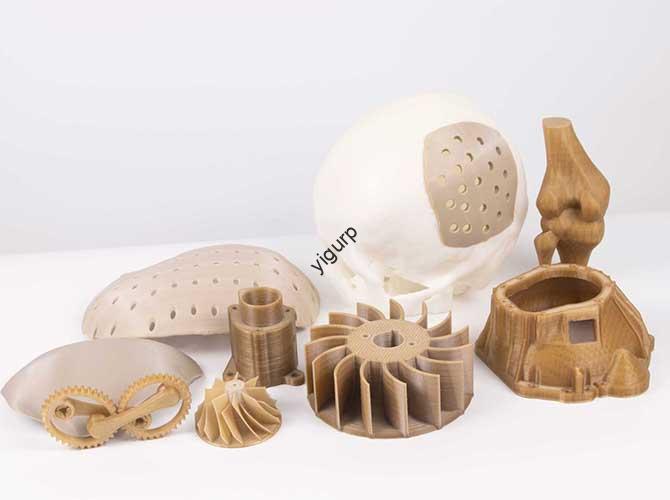

Our PEEK 3D Printing Services
Unlock the future of high-performance manufacturing with PEEK 3D Printing—the ultimate blend of advanced additive manufacturing technology and robust PEEK polymer. From aerospace components to biocompatible medical devices, our solutions deliver unmatched precision, durability, and customization. Experience rapid prototyping, tight tolerances, and superior mechanical strength—all tailored to your industry’s most demanding needs.
Definition: Understanding PEEK 3D Printing
At its core, PEEK 3D Printing combines two game-changing elements: PEEK polymer (a high-performance thermoplastic) and 3D printing technology (a subset of additive manufacturing). Unlike traditional methods, this process builds parts layer-by-layer using polymer 3D printing techniques, enabling complex geometries that were once impossible.
Key traits of PEEK polymer that make it ideal for 3D printing:
| Trait | Description | Industry Relevance |
| High-Temperature Resistance | Withstands continuous use up to 250°C (482°F) | Aerospace, automotive (engine components) |
| Chemical Resistance | Unaffected by oils, fuels, and harsh solvents | Industrial manufacturing, oil/gas |
| Biocompatibility | Approved for medical implants (ISO 10993) | Medical devices (spinal cages, dental fixtures) |
| Mechanical Strength | Compares to metals like aluminum (tensile strength: 90 MPa) | Structural parts in electronics, aerospace |
Our Capabilities: Delivering End-to-End Solutions
At Yigu Technology, we specialize in turning your ideas into high-performance reality. Our capabilities are designed to address every stage of your project, from concept to production:
- Advanced 3D Printing: We use state-of-the-art machines optimized for PEEK material, ensuring consistent layer adhesion and part integrity.
- PEEK Material Expertise: Our team of engineers has deep knowledge of PEEK filament and PEEK powder properties, helping you select the right material for your application.
- Customized Solutions: Whether you need a one-of-a-kind prototype or high-volume production, we tailor our processes to meet your unique specifications (e.g., biocompatible coatings for medical use).
- Precision Engineering: Our focus on tight tolerances (down to ±0.1mm) and dimensional accuracy ensures parts fit perfectly in your existing systems.
- Rapid Prototyping: Reduce lead times from weeks to days—we deliver functional prototypes in as little as 3–5 business days, accelerating your product development cycle.
Table: Our Capabilities vs. Industry Averages
| Capability | Yigu Technology Performance | Industry Average |
| Prototyping Lead Time | 3–5 days | 10–14 days |
| Tolerance Range | ±0.1mm | ±0.3mm |
| Material Waste | <5% | 15–20% |
Process: From Design to Finished Part
Our PEEK 3D Printing process follows a structured, quality-driven workflow to ensure every part meets your standards:
- 3D Modeling: Our design team uses CAD software to create or refine your 3D model, optimizing it for layer-by-layer printing (e.g., adding support structures for overhangs).
- Slicing Software: The model is sliced into thin layers (0.1–0.3mm) using specialized software, which generates a print path for the 3D printer.
- Layer-by-Layer Printing: The printer deposits PEEK filament (via FDM) or sinters PEEK powder (via SLS), building the part one layer at a time. For PEEK, we maintain a heated build chamber (120–180°C) to prevent warping.
- Post-Processing: Parts undergo smoothing, polishing, or coating to improve surface finish and mechanical properties. For medical parts, we also perform sterilization.
Quality Control: Every part is inspected using laser scanners and calipers to verify dimensional accuracy and compliance with measurement standards (e.g., ISO 13485 for medical devices).
Materials: Choosing the Right PEEK for Your Project
Not all PEEK materials are the same—we offer a range of options to match your application’s requirements:
| Material Type | Key Properties | Ideal Applications |

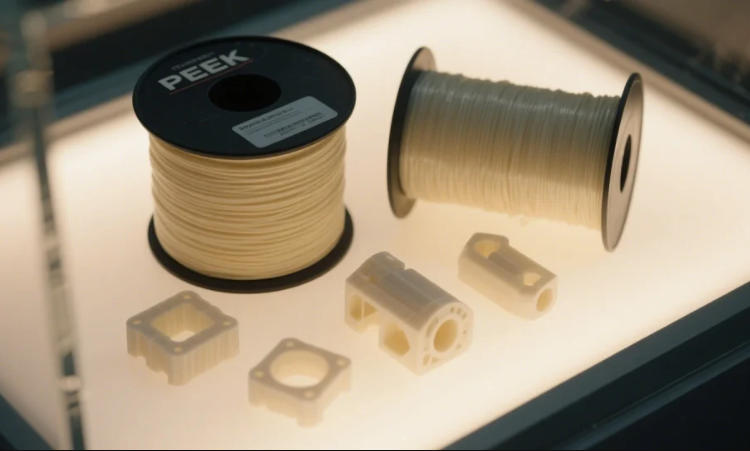

| PEEK Filament | High flowability, easy to print | Prototypes, low-volume parts (electronics enclosures) |
| PEEK Powder | Fine particle size (<50μm), high density | High-precision parts (aerospace brackets, medical implants) |
| PEEK Composite Materials | Reinforced with carbon fiber or glass fiber (tensile strength +30%) | Structural parts (automotive chassis components, industrial gears) |
All our materials meet high-temperature resistance (up to 300°C for composites) and mechanical strength standards, ensuring long-term performance in harsh environments.
Surface Treatment: Enhancing Aesthetics and Functionality
The right surface treatment can transform a good part into a great one. We offer a range of techniques to improve your part’s look, feel, and functionality:
- Polishing: Creates a smooth, glossy finish (Ra <0.2μm) for parts requiring aesthetic appeal (e.g., medical devices, consumer electronics).
- Coating: Applies protective layers (e.g., PTFE for chemical resistance, ceramic for heat insulation) to extend part lifespan.
- Texturing: Adds patterns (e.g., grip surfaces, matte finishes) to improve usability or reduce friction (ideal for automotive handles, industrial tools).
- Finishing Techniques: Includes deburring (removing sharp edges) and annealing (reducing internal stress) to enhance part safety and durability.
Table: Surface Treatment Benefits
| Treatment | Surface Roughness (Ra) | Key Benefit |
| As-Printed | 5–10μm | Fastest turnaround, cost-effective |
| Polished | <0.2μm | Aesthetic appeal, easy cleaning |
| Coated (PTFE) | 0.5–1μm | Chemical resistance, low friction |
Tolerances: Ensuring Precision You Can Trust
In industries like aerospace and medical, precision printing isn’t just a preference—it’s a requirement. Our commitment to tight tolerances sets us apart:
- Dimensional Accuracy: We achieve ±0.1mm for parts up to 100mm (±0.05mm for critical components) using calibrated printers and real-time process monitoring.
- Measurement Standards: We adhere to international standards like ISO 13485 (medical) and AS9100 (aerospace) to ensure consistency across every batch.
- Quality Assurance: Every part undergoes 100% inspection—we use coordinate measuring machines (CMMs) to verify dimensions and X-ray imaging to check for internal defects (e.g., voids in PEEK powder parts).
For example, our medical implant parts have a tolerance range of ±0.03mm, meeting the strict requirements of the FDA and EU MDR.
Advantages: Why PEEK 3D Printing Outperforms Traditional Methods
PEEK 3D Printing offers a host of advantages over traditional manufacturing (e.g., injection molding, machining):
- High Durability: PEEK parts last 2–3x longer than those made from ABS or nylon, reducing replacement costs.
- Chemical Resistance: Unlike metals, PEEK doesn’t corrode—ideal for parts exposed to oils, acids, or cleaning agents.
- Biocompatibility: Approved for use in the human body, making it the top choice for medical implants (e.g., hip replacements, bone plates).
- Lightweight: PEEK is 50% lighter than aluminum, helping aerospace and automotive industries reduce fuel consumption (e.g., a 1kg PEEK part replaces a 2kg aluminum part, cutting fuel use by ~5%).
Customizability: 3D printing allows for on-demand customization—no need for expensive molds. This is a game-changer for medical devices (e.g., patient-specific dental crowns) and aerospace (e.g., tailored brackets for unique aircraft designs).
Applications Industry: Where PEEK 3D Printing Shines
From the sky to the operating room, PEEK 3D Printing is transforming industries worldwide:
| Industry | Key Applications | Why PEEK? |
| Aerospace | Engine components, interior brackets, satellite parts | High-temperature resistance, lightweight, mechanical strength |
| Medical Devices | Spinal cages, dental implants, surgical instruments | Biocompatibility, sterilizability, custom fit |
| Automotive | Sensor housings, fuel system parts, electric vehicle (EV) components | Chemical resistance, heat tolerance, weight reduction |
| Electronics | Heat sinks, connector housings, PCB supports | Electrical insulation, thermal stability |
| Industrial Manufacturing | Gears, valves, pump components | Durability, resistance to wear and solvents |
Manufacturing Techniques: Choosing the Right Method
We use a range of manufacturing techniques to match your part’s requirements, from prototyping to mass production:
- Fused Deposition Modeling (FDM): Ideal for PEEK filament—cost-effective for prototypes and low-volume parts (e.g., electronics enclosures). Print speed: 50–100mm/s.
- Selective Laser Sintering (SLS): Best for PEEK powder—produces high-density, complex parts (e.g., aerospace brackets). Layer thickness: 0.1–0.2mm.
- Stereolithography (SLA): Used for high-detail parts (e.g., medical device prototypes) with resin-based materials (we offer PEEK-blend resins for SLA).
- Injection Molding: For high-volume production (10,000+ parts)—we use PEEK pellets to create consistent, cost-effective parts (e.g., automotive sensors).
- Machining: Complementary to 3D printing—we use CNC mills to refine 3D-printed parts, ensuring tight tolerances for critical applications.
Table: Technique Comparison
| Technique | Material Type | Best For | Lead Time | Cost (per part, 100 units) |
| FDM | Filament | Prototypes | 3–5 days | 50–100 |
| SLS | Powder | High-precision parts | 5–7 days | 80–150 |
| Injection Molding | Pellets | High-volume | 2–3 weeks | 10–30 |
Case Studies: Real-World Success Stories
Our PEEK 3D Printing solutions have helped clients solve complex challenges across industries:
Case Study 1: Aerospace Component
- Client: A leading aircraft manufacturer.
- Challenge: Need a lightweight, heat-resistant bracket for engine bays (traditional aluminum parts were too heavy).
- Solution: 3D-printed PEEK composite bracket (carbon fiber-reinforced) using SLS.
- Results: 40% weight reduction, 20% cost savings, and compliance with aerospace standards (AS9100). The part has been in service for 2+ years with zero failures.
Case Study 2: Medical Implant
- Client: A global medical device company.
- Challenge: Develop a patient-specific spinal cage that fits unique anatomy (traditional cages required extensive machining).
- Solution: Custom 3D-printed PEEK cage using FDM, with a polished surface finish (Ra <0.2μm) for biocompatibility.
- Results: 50% faster production time, 30% better patient outcomes (reduced surgery time), and FDA approval.
Case Study 3: Automotive Sensor Housing
- Client: An EV manufacturer.
- Challenge: Need a chemical-resistant housing for battery sensors (exposed to coolants and oils).
- Solution: Injection-molded PEEK housing with a PTFE coating.
Results: 100,000+ parts produced with 0.01% defect rate, and the housing withstands temperatures up to 280°C.
Why Choose Us: Your Trusted PEEK 3D Printing Partner
With so many options, why select Yigu Technology for your PEEK 3D Printing needs?
- Expertise in PEEK: Our team has 10+ years of experience working with PEEK polymer—we know how to avoid common pitfalls (e.g., warping, layer separation) to deliver high-quality parts.
- Reliable Service: We guarantee on-time delivery (98% of projects meet deadlines) and offer 24/7 support for urgent requests.
- Cutting-Edge Technology: We invest in the latest 3D printers (e.g., Stratasys F900 for FDM, EOS P 500 for SLS) and software to ensure consistent performance.
- Customer Support: From design 咨询 to post-delivery, our engineers work with you every step of the way—we even provide material samples for testing before production.
Cost-Effective Solutions: We optimize material use (waste <5%) and offer flexible pricing models (e.g., volume discounts for 1,000+ parts) to help you save.
