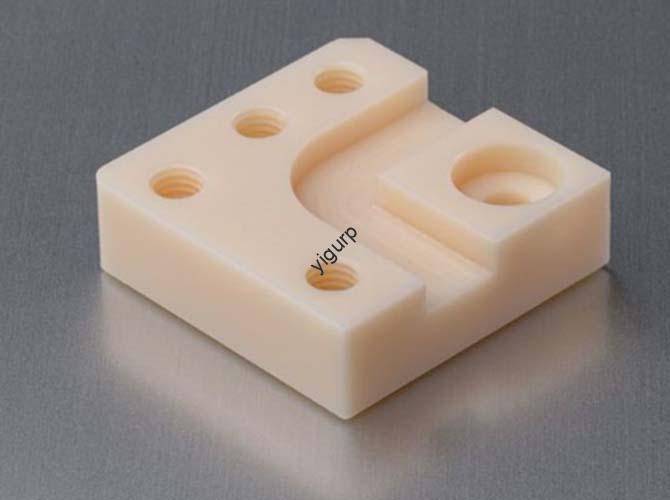

Our Nylon CNC Machining Services
Elevate your component production with our Nylon CNC Machining services! As a leading provider, we excel at crafting high-performance custom machined parts—from rapid prototypes to large-scale production runs—by leveraging the exceptional material properties of nylon (a versatile thermoplastic material and engineering polymer) and state-of-the-art CNC machining technology. Whether you need high-tolerance machining for aerospace components or cost-effective parts for consumer goods, we deliver solutions that align with your industry’s unique needs.
Definition of Nylon CNC Machining
Nylon is a widely used thermoplastic material and engineering polymer renowned for its impressive material properties, including high durability, good flexibility, and resistance to wear and chemicals. CNC Machining is an automated machining process that uses computer programs to control machine tools, ensuring precise and consistent production of parts. When combined, Nylon CNC Machining merges the versatility of nylon with the accuracy of CNC technology, resulting in parts that meet strict quality standards across various applications. A key benefit of this combination is nylon’s compatibility with the CNC machining process—it can be easily shaped into complex forms without losing structural integrity, making it a top choice for diverse industries.
Our Capabilities in Nylon CNC Machining
At Yigu Technology, we offer a comprehensive range of Nylon CNC Machining capabilities to cater to projects of all sizes and complexities. Our services are designed to prioritize precision, efficiency, and quality, supported by robust quality assurance protocols.
| Capability | Key Features | Typical Use Cases |
| Precision Machining | Achieves dimensional accuracy as tight as ±0.005mm for critical components | Medical device parts, aerospace fasteners |
| Custom Machined Parts | Creates parts tailored to specific design requirements (size, shape, functionality) | Industrial equipment brackets, custom enclosures |
| High-Tolerance Machining | Consistently meets strict tolerance standards (ISO 8015) for repeatable performance | Automotive sensors, electronic connectors |
| Complex Part Production | Manufactures parts with intricate features (threads, undercuts, thin walls) using 5-axis CNC machines | Robotics components, high-end consumer goods |
| Rapid Prototyping | Delivers functional nylon prototypes in 1–3 days for design testing and validation | New product development, concept verification |
| Production Machining | Scales seamlessly from small batches (10–50 parts) to high-volume production (10,000+ parts) | Mass-produced industrial tools, consumer goods parts |
| Quality Assurance | Implements multi-step inspections (CMM testing, visual checks) to ensure 100% part compliance | All industries, especially medical and aerospace |
The Nylon CNC Machining Process
Our Nylon CNC Machining process follows a systematic workflow to guarantee consistent quality and efficiency, from initial planning to final part delivery. Each step is optimized to handle the unique characteristics of nylon.
- Design Review & Machine Setup: We start by reviewing your CAD design files to confirm feasibility. Next, our team conducts machine setup—calibrating CNC equipment, selecting the right cutting tools (based on nylon grade), and programming tool paths to match the design.
- CNC Milling: For parts with complex 3D features (such as slots or cavities), we use CNC Milling. This process involves rotating cutting tools to remove material from nylon blocks, ideal for creating flat or irregularly shaped components.
- CNC Turning: For cylindrical parts (like rods or bushings), CNC Turning is employed. The nylon workpiece spins while a stationary cutting tool shapes it, ensuring smooth and precise inner and outer diameters.
- Drilling Operations & Cutting Techniques: We perform drilling operations to create holes (ranging from 0.5mm to 50mm) and use specialized cutting techniques to separate finished parts from raw nylon material, preventing melting and ensuring clean edges.
- Grinding Processes: To achieve ultra-smooth surfaces (Ra < 0.8μm), grinding processes are used to refine part edges and eliminate burrs, which is crucial for parts that require tight fitment.
Inspection: Every nylon part undergoes thorough inspection using advanced measurement techniques (digital micrometers, CMMs) and inspection methods to ensure it meets your specifications.
Nylon Materials Used in CNC Machining
Nylon comes in various grades, each with unique properties suited for different applications. We select the appropriate nylon grade based on your project’s mechanical, thermal, and chemical requirements.
| Material Grade | Key Properties | Density (g/cm³) | Melting Point (°C) | Typical Applications |
| Nylon 6 | High impact resistance, good fatigue strength, easy to machine | 1.14 | 220 | Automotive door handles, industrial gears |
| Nylon 66 | Higher tensile strength, better thermal stability than Nylon 6 | 1.14 | 260 | Aerospace components, high-temperature fasteners |
| Nylon 12 | Low water absorption, excellent chemical resistance, flexible | 1.02 | 180 | Medical catheters, electronic enclosures |
| Glass-Filled Nylon | Enhanced stiffness (3x compared to unfilled nylon), improved dimensional stability | 1.30–1.50 | 220–260 | Structural automotive parts, industrial brackets |
| Flame-Retardant Nylon | Meets UL94 V-0 fire rating, suitable for electrical applications | 1.15–1.40 | 220–260 | Electronic connectors, circuit board housings |
| Recycled Nylon | Sustainable option, retains 90% of virgin nylon’s strength, cost-effective | 1.14–1.15 | 220–260 | Consumer goods (e.g., sporting goods), non-critical industrial parts |
| Specialty Nylon Grades | Customized properties (e.g., biocompatibility, high wear resistance) | 1.05–1.55 | 180–260 | Medical implants, high-wear industrial components |
Surface Treatment for Nylon CNC Machined Parts
Surface treatments enhance the performance, appearance, and durability of nylon parts. We offer a variety of options to meet your specific needs:
- Anodizing: Creates a thin protective oxide layer on nylon parts (a specialized process for nylon) to improve scratch resistance, though less common than on metals.
- Painting: Applies high-adhesion paints in custom colors to enhance aesthetics and protect against UV damage, ideal for consumer goods and automotive exterior parts.
- Plating: Adds a metal coating (e.g., nickel, chrome) to nylon parts to improve conductivity, corrosion resistance, or create a metallic finish, often used in electronic components.
- Polishing: Uses abrasive tools to achieve a smooth, glossy surface (Ra < 0.2μm), perfect for parts where appearance is a priority (e.g., high-end consumer goods).
- Sandblasting: Creates a matte, textured surface to reduce glare or improve grip, commonly used for industrial tools and medical devices.
- Coating: Applies specialized coatings (e.g., PTFE for lubricity, epoxy for chemical resistance) to boost performance in harsh environments.
Heat Treatment: Subjects nylon parts to controlled heating and cooling cycles to reduce internal stress, preventing warping and improving dimensional stability—essential for large or complex parts.
Tolerances in Nylon CNC Machining
Precision tolerances and tight tolerances are essential in Nylon CNC Machining to ensure parts fit and function correctly. We adhere to global tolerance standards (ISO 8015, DIN 16901) to maintain consistency across all projects.
| Tolerance Type | Typical Range for Nylon Parts | Measurement Techniques Used | Industry Relevance |
| Precision Tolerances | ±0.005mm to ±0.02mm | CMM (Coordinate Measuring Machine), laser measurement | Aerospace, medical devices |
| Tight Tolerances | ±0.02mm to ±0.05mm | Digital micrometer, dial caliper | Automotive sensors, electronic connectors |
| General Tolerances | ±0.05mm to ±0.1mm | Vernier caliper, depth gauge | Industrial equipment, consumer goods |
We ensure dimensional accuracy through rigorous inspection methods—every nylon part is measured against your CAD design to detect any deviations. For high-volume production, we use statistical process control (SPC) to monitor tolerance standards and maintain consistency over time.
Advantages of Nylon CNC Machining
Nylon CNC Machining offers numerous benefits that make it a preferred choice for industries worldwide:
- High Strength-to-Weight Ratio: Nylon parts have a strength comparable to some metals but are much lighter, making them ideal for applications where weight reduction is critical (e.g., aerospace, automotive).
- Chemical Resistance: Nylon resists oils, greases, and most solvents (except strong acids), suitable for parts used in harsh chemical environments (e.g., industrial pumps).
- Thermal Stability: Most nylon grades maintain performance at temperatures up to 120°C (continuous use), with Nylon 66 and glass-filled nylon handling up to 150°C—perfect for under-hood automotive parts.
- Cost-Effective Production: CNC machining of nylon is faster than metal machining (lower cutting forces, less tool wear), and nylon raw materials are more affordable than metals like aluminum or stainless steel, reducing overall production costs.
- Design Flexibility: CNC machining allows for the creation of complex nylon part geometries (e.g., internal channels, thin walls) that are difficult to achieve with other processes like injection molding—great for custom prototypes.
- Lightweight: With a density of 1.02–1.50 g/cm³ (vs. 7.87 g/cm³ for steel), nylon parts reduce the overall weight of products, improving fuel efficiency in automotive and aerospace applications.
Durability: Nylon’s resistance to wear and fatigue ensures parts have a long lifespan, reducing maintenance and replacement costs for businesses.
Applications Industry for Nylon CNC Machined Parts
Nylon CNC Machined Parts are used across a wide range of industries due to their versatility and performance:
| Industry | Common Nylon CNC Machined Parts | Key Requirements Addressed |
| Automotive | Gears, sensor housings, door handles, under-hood brackets | Lightweight, heat resistance, cost-effectiveness |
| Aerospace | Fasteners, cable management parts, interior components | High strength-to-weight ratio, tight tolerances, chemical resistance |
| Electronics | Connector housings, circuit board supports, heat sinks | Flame resistance, dimensional accuracy, insulation |
| Medical | Catheter tips, surgical tool handles, device enclosures | Biocompatibility, smooth surfaces, chemical resistance |
| Industrial Equipment | Pump components, gearboxes, conveyor parts | Wear resistance, durability, low maintenance |
| Consumer Goods | Sporting goods (e.g., bike pedals), kitchen tool parts, toy components | Aesthetics, impact resistance, affordability |
| Sporting Goods | Ski bindings, golf club components, protective gear parts | Lightweight, high strength, flexibility |
Case Studies: Success with Nylon CNC Machining
Our Nylon CNC Machining services have helped clients across industries overcome production challenges and achieve their goals. Here are three notable case studies:
Case Study 1: Automotive Gear for a Leading Manufacturer
- Challenge: A major automotive company needed a lightweight gear to replace a metal one, aiming to reduce vehicle weight and improve fuel efficiency. The gear required high-tolerance machining (±0.03mm) and resistance to under-hood temperatures (up to 130°C).
- Solution: We used Glass-Filled Nylon for its enhanced strength and thermal stability, along with CNC milling to create the gear’s intricate teeth. A PTFE coating was added to reduce friction.
- Result: 10,000 gears delivered in 3 weeks, with 0 defects. The gear reduced weight by 35% compared to the metal version, improving the vehicle’s fuel efficiency by 5%. It also lasted 2x longer than the previous gear, reducing maintenance costs.
Case Study 2: Medical Device Enclosure for a Healthcare Firm
- Challenge: A medical device company needed a biocompatible enclosure for a portable diagnostic tool. The enclosure required a smooth surface (Ra < 0.4μm) to meet hygiene standards and precision tolerances (±0.02mm) for component fitment.
- Solution: We selected Nylon 12 for its biocompatibility and low water absorption, using CNC turning and polishing to achieve the desired surface finish. Heat treatment was performed to reduce stress and prevent warping.
- Result: Prototypes delivered in 48 hours, with full production (5,000 units) completed in 2 weeks. The enclosure met all FDA biocompatibility standards and passed rigorous hygiene tests, making it suitable for clinical use.
Case Study 3: Electronic Connector Housing for a Tech Company
- Challenge: A technology firm needed a flame-retardant connector housing for a new smartphone charger. The housing required flame-retardant nylon to meet UL94 V-0 standards and custom machined parts to fit unique internal components.
- Solution: We used Flame-Retardant Nylon and CNC milling to create the housing’s complex internal channels. Painting was done to match the company’s brand color, and quality assurance included flame tests and dimensional checks.
Result: 20,000 housings delivered in 4 weeks. The housing passed all flame tests and fit perfectly with the charger’s internal components, helping the client launch their product on schedule.
Why Choose Us for Nylon CNC Machining
When you partner with Yigu Technology for Nylon CNC Machining, you benefit from our expertise, quality commitment, and customer-centric approach. Here’s why we stand out:
- Expertise in Nylon Machining: Our team has 15+ years of experience working with all nylon grades, including specialty nylon grades. We understand the unique material properties of nylon and how to optimize the CNC machining process for the best results.
- High-Quality Products: We are ISO 9001 and IATF 16949 certified, with strict quality assurance processes (from raw material testing to final part inspection) to ensure every nylon part meets your standards.
- Experienced Machinists: Our machinists have extensive training in Nylon CNC Machining and use advanced equipment (5-axis CNC machines, CMMs) to deliver precise parts consistently.
- Excellent Customer Service: Our dedicated project managers provide 24/7 support, keeping you informed about project progress and addressing any concerns promptly. We collaborate with you to refine designs and find cost-effective solutions.
- Fast Turnaround Times: We offer rapid prototyping (1–3 days) and quick production turnaround (2–4 weeks for high-volume runs) thanks to our streamlined workflow and 20+ CNC machines.
- Competitive Pricing: We leverage bulk purchasing of nylon materials and efficient machining processes to offer competitive rates without compromising on quality. Our transparent pricing ensures no hidden costs.
Commitment to Innovation: We invest in the latest technology (e.g., AI-powered quality assurance tools, advanced cutting tools) to improve efficiency and precision. We also explore sustainable options like recycled nylon to help clients reduce their environmental impact.
