Our Multi Jet Fusion (MJF) 3D Printing Services
Unlock unparalleled speed, precision, and design freedom with Multi Jet Fusion (MJF) 3D Printing—the industrial-grade additive manufacturing solution trusted by aerospace, automotive, and medical leaders. From rapid prototyping to high-volume production of complex geometries, our MJF services deliver cost-effective, high-performance parts with tight tolerances and fast turnaround. Transform your manufacturing workflow today.
What is Multi Jet Fusion (MJF) 3D Printing?
Multi Jet Fusion (MJF) is a revolutionary 3D printing technology that redefines digital fabrication through a layer-by-layer printing process. Unlike traditional methods, MJF combines high-speed sintering with inkjet 3D printing to fuse thermoplastic powders into durable, precise parts—making it ideal for both rapid prototyping and industrial 3D printing applications. As a leading polymer 3D printing technique, MJF eliminates many design limitations, enabling the creation of parts with intricate details that were once impossible to manufacture.
Our MJF 3D Printing Capabilities
At Yigu Technology, we offer end-to-end MJF 3D printing services tailored to meet diverse industrial needs. Our capabilities span from custom 3D printing of one-off prototypes to high-volume production of functional parts, all backed by rigorous quality assurance protocols.
| Capability | Key Benefit | Typical Use Case |
| Industrial Grade Printing | Durable, production-ready parts | Automotive structural components |
| Precision Prototyping | Fast iteration of design concepts | Medical device prototypes |
| Complex Geometry Printing | Intricate internal/external features | Aerospace lightweight brackets |
| Multi-Material Printing | Combined material properties (e.g., rigid + flexible) | Consumer electronics enclosures |
| On-Demand Manufacturing | Reduced inventory costs | Spare parts for industrial equipment |
With a rapid turnaround time (as fast as 24–48 hours for prototypes), we ensure your projects stay on schedule without compromising quality.

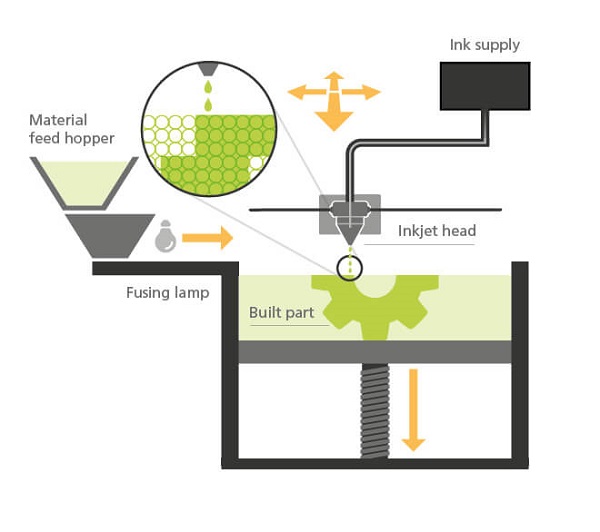

The MJF 3D Printing Process
The MJF workflow is a streamlined, digital-driven cycle that transforms CAD files into physical parts. Below is a step-by-step breakdown:
- Digital Design & CAD Modeling: Engineers create or refine 3D models using CAD software, optimizing for MJF’s capabilities (e.g., complex geometries).
- Slicing Software: The CAD model is sliced into thin layers (50–100 microns) and converted into machine-readable code.
- Build Preparation: Thermoplastic powder (e.g., Nylon 12) is loaded into the MJF printer, and the build chamber is preheated to optimal temperatures.
- Print Execution: The printer performs powder spreading (evenly distributing a thin layer of powder) and inkjet binding (depositing fusing agents).
- Infrared Heating: An infrared lamp applies heat to fuse the bound powder layers together—this is the core of layer fusion.

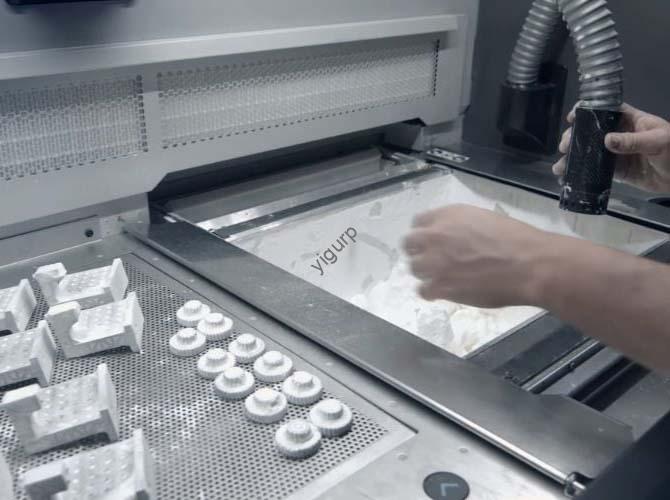

- Post-Processing: Parts are removed from the powder bed, cleaned, and finished (e.g., sanding, coating).
Quality Control: Parts undergo dimensional testing and material property checks to ensure compliance with standards.
MJF Compatible Materials
MJF excels with a range of thermoplastic powders and functional materials, each offering unique properties for specific applications.
| Material | Mechanical Strength | Thermal Resistance | Chemical Resistance | Typical Application |
| Nylon 12 (PA 12) | High | Up to 180°C | Excellent | Aerospace brackets, medical tools |
| High-Density Polyethylene (HDPE) | Medium | Up to 120°C | Good (resists oils/solvents) | Industrial containers |
| Polypropylene (PP) | Medium | Up to 150°C | Excellent | Consumer goods, automotive parts |
| Composite Materials (e.g., PA 12 + glass fiber) | Very High | Up to 200°C | Excellent | Heavy-duty tooling, structural parts |
| Elastomers | Low (flexible) | Up to 100°C | Good | Gaskets, seals, soft-touch components |
All our MJF compatible materials are tested for consistency, ensuring parts meet or exceed industry standards for performance.
MJF Surface Treatment Options
Post-processing is critical to enhancing the aesthetics and functionality of MJF parts. Our MJF surface finishing services include:
- Sanding: Smooths rough surfaces and removes excess powder (ideal for parts requiring a matte finish).
- Polishing: Creates a glossy, professional look for consumer-facing parts (e.g., electronics enclosures).
- Painting/Coating: Adds color, UV protection, or chemical resistance (e.g., anti-corrosion coatings for automotive parts).
- Vapor Blasting/Media Blasting: Uses compressed air and media (e.g., plastic beads) to achieve a uniform, textured surface.
- Chemical Etching: Refines fine details and improves adhesion for coatings.
These treatments not only boost aesthetic improvement but also enhance functional coatings that extend part lifespan.
MJF Tolerances & Precision
MJF precision is a key advantage, making it suitable for parts requiring tight dimensional control.
| Feature | Specification |
| Dimensional Accuracy | ±0.1 mm for parts up to 100 mm; ±0.1% for larger parts |
| Tolerance Levels | Typical: ±0.05 mm (for critical features) |
| Repeatability | <0.03 mm variation across 100+ identical parts |
| Dimensional Stability | Minimal warpage (<0.5%) even under thermal stress |
| Measurement Standards | Compliant with ISO 13485 (medical) and AS9100 (aerospace) |
Our quality inspection processes (e.g., 3D scanning, coordinate measuring machines) ensure every part meets your tight tolerances and maintains consistency batch after batch.
Key Advantages of MJF 3D Printing
MJF outperforms traditional manufacturing and other 3D printing technologies in multiple ways:
- High-Speed Production: Up to 5x faster than selective laser sintering (SLS) for large batches.
- Cost-Effective: Reduces material waste (95% of unused powder is recyclable) and eliminates tooling costs.
- Reduced Lead Time: Cuts production timelines from weeks to days (critical for time-sensitive projects).
- Enhanced Design Freedom: Prints complex structures (e.g., lattice patterns, internal channels) without assembly.
- Lightweight Parts: Creates strong, lightweight components that reduce product weight (e.g., 30% lighter aerospace parts).
Environmental Sustainability: Lower energy use (vs. injection molding) and minimal waste support green manufacturing goals.
MJF Applications by Industry
MJF is transforming manufacturing across sectors, thanks to its versatility and performance:
| Industry | Key Applications | Benefits Gained |
| Automotive Industry | Engine components, interior parts, tooling | Reduced weight, faster prototyping |
| Aerospace Sector | Lightweight brackets, sensor housings | High strength-to-weight ratio, compliance with aerospace standards |
| Medical Devices | Custom implants, surgical tools | Biocompatible materials, precise tolerances |
| Consumer Electronics | Phone cases, heat sinks | Complex designs, fast customization |
| Industrial Equipment | Spare parts, gears | On-demand production, durable materials |
Advanced MJF Manufacturing Techniques
At Yigu Technology, we leverage cutting-edge MJF manufacturing methods to deliver superior results:
- Additive Layering: Optimizes layer thickness (50–100 microns) for balance of speed and precision.
- Sintering Technology: Advanced infrared heating ensures uniform fusion, reducing part defects.
- Inkjet Deposition: Precision nozzles apply fusing agents with <0.1 mm accuracy.
- Thermal Processing: Controlled build chamber temperatures (180–220°C) prevent warpage.
- Hybrid Manufacturing: Combines MJF with CNC machining for ultra-precise critical features.
Post-Processing Techniques: Automated powder removal and robotic finishing for consistency.
MJF Case Studies
Our MJF case examples demonstrate real-world success:
Case 1: Automotive Component Production
A leading automaker needed 500 custom gear housings. Using MJF, we delivered parts in 7 days (vs. 4 weeks with injection molding) at 30% lower cost. The parts met AS9100 standards and reduced vehicle weight by 15%.
Case 2: Medical Device Prototyping
A medical startup required 10 prototypes of a surgical tool. Our MJF service provided parts in 48 hours with ±0.05 mm tolerances, using biocompatible Nylon 12. The client iterated 3 designs in 2 weeks, accelerating FDA approval.
Case 3: Aerospace Bracket Manufacturing
An aerospace firm needed 200 lightweight brackets. MJF’s lattice design reduced weight by 40% while maintaining strength, and our on-demand production eliminated inventory costs. Customer testimonials praised the “exceptional quality and speed.”
Why Choose Yigu Technology for MJF 3D Printing?
When you partner with us, you gain more than MJF 3D printing services—you gain a reliable manufacturing partner:
- Expertise in MJF: 10+ years of experience with 5000+ successful projects.
- Advanced Equipment: State-of-the-art MJF printers (HP Jet Fusion 5200 series) for consistent results.
- Skilled Technicians: Certified engineers and technicians oversee every step of the process.
- Quality Service: 24/7 support and transparent communication (you receive real-time project updates).
- Custom Solutions: Tailored workflows for your industry (e.g., medical-grade materials for healthcare clients).
- Competitive Pricing: No hidden fees—we offer transparent quotes based on your project needs.
Fast Delivery: Prototypes in 24–48 hours; high-volume production in 5–7 days.
