Our Multi-Axis CNC Machining Services

Unlock the potential of complex, high-precision parts with our Multi-Axis CNC Machining services—the gold standard for crafting intricate geometries across aerospace, medical, and automotive industries. From 3-axis milling to 5-axis turning, we deliver unmatched precision, reduced setup time, and consistent results for metals (titanium, stainless steel), composites, and plastics. Whether you need prototypes or high-volume production, our tailored solutions boost efficiency, cut costs, and turn your most ambitious designs into reality.​

Get Free Quote

What Is Multi-Axis CNC Machining?

Multi-Axis CNC Machining is an advanced manufacturing technology that uses computer-controlled machines with multiple axes of motion to shape raw materials into complex parts. Unlike traditional 2-axis machining (limited to length/width), it adds rotational axes to manipulate the part or cutting tool—enabling seamless fabrication of 3D geometries that would be impossible with fewer axes.​

The process overview is intuitive: A CNC (Computer Numerical Control) system interprets design files to guide the machine’s axes, which move the cutting tool (e.g., mill, drill) or the part itself. The number of axes defines the machine’s capability:​

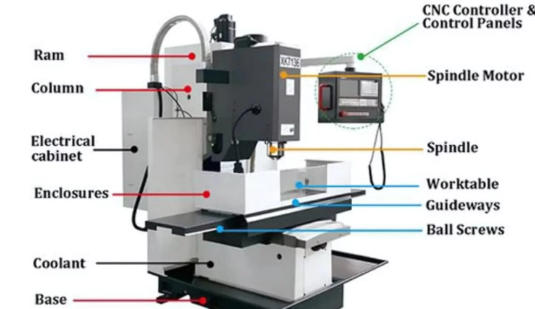

• 3-Axis CNC: Moves along X (left/right), Y (forward/backward), and Z (up/down) linear axes—ideal for simple 3D parts like brackets.​

• 4-Axis CNC: Adds a rotational A-axis (spins the part around the X-axis)—perfect for parts needing features on cylindrical surfaces (e.g., gears).​

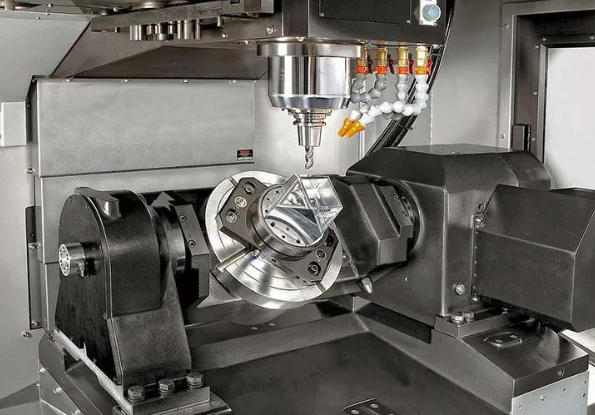

• 5-Axis CNC: Adds two rotational axes (A + B or A + C)—lets the tool approach the part from any angle, making it possible to machine complex shapes like aerospace turbine blades.​

To explain “how it works” simply: Imagine a sculptor who can move their chisel in 5 different directions (not just up/down/left/right, but also twisting the sculpture). The CNC system acts as the sculptor’s “brain,” following a digital design to carve the part with extreme accuracy. This flexibility is the core of Multi-Axis CNC Machining—turning complex blueprints into tangible, precise parts.

Our Multi-Axis CNC Machining Capabilities

We offer comprehensive machining capabilities across 3-axis, 4-axis, and 5-axis systems to meet diverse project needs. Below is a detailed breakdown of our key capacities, including maximum part size, material thickness, precision levels, custom machining, and tolerance achievements:​

​

​

Whether you need a simple 3-axis bracket or a 5-axis turbine blade, our capabilities scale to match your design’s complexity.

The Multi-Axis CNC Machining Process

Our step-by-step process is designed to ensure precision, efficiency, and consistency—from design to finished part. Each phase is optimized to minimize errors and meet your specifications:​

1. Design and CAD Modeling: We start by reviewing your existing CAD (Computer-Aided Design) model or collaborating to create one. Our engineers refine the design for manufacturability—e.g., adjusting undercuts to be accessible by 5-axis tools or simplifying features to reduce machining time. For prototype projects, we offer 3D modeling support to turn sketches into actionable CAD files.​

2. CAM Programming: The CAD model is imported into CAM (Computer-Aided Manufacturing) software, which generates the tool paths (the cutting tool’s movement). For multi-axis parts, we program rotational axes (A/B/C) to ensure the tool approaches the part from optimal angles—avoiding collisions and ensuring smooth cuts.​

3. Setup and Calibration: The raw material is secured in a fixture (custom-made for complex parts) on the machine bed. We calibrate the machine’s axes using laser measuring tools to ensure alignment (critical for multi-axis precision). Cutting tools (e.g., end mills, drills) are loaded, and coolant systems are activated to prevent tool overheating and improve surface finish.​

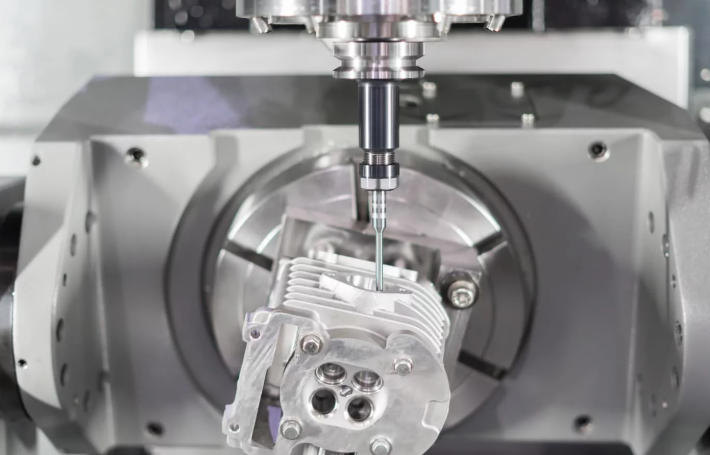

4. Machining Execution: The CNC system takes control, executing the programmed tool paths. For 5-axis parts, the machine synchronizes linear (X/Y/Z) and rotational (A/B/C) axes to machine complex features in one setup (no need to reposition the part). Our operators monitor the process in real time to address any issues (e.g., tool wear).​

Post-Machining Inspection: After machining, each part undergoes rigorous inspection. We use CMMs (Coordinate Measuring Machines) to verify dimensions against the CAD model, check surface finish with profilometers, and ensure tolerances are met. Parts requiring finishing move to deburring or polishing steps.

Materials We Work With

Multi-Axis CNC Machining excels with a wide range of materials—from hard metals to lightweight composites. Below is a breakdown of our supported materials, their key properties, and ideal uses:​

​

​

We test all materials before machining to optimize tool selection and speeds—ensuring consistent quality across every part.

Surface Treatment & Finishing Options

After machining, we offer a range of surface treatment and finishing options to enhance part durability, appearance, and functionality. Our most popular services include:​

• Grinding: Creates a smooth, flat surface (ideal for parts requiring tight fitment, e.g., engine components).​

• Polishing: Delivers a glossy finish for visible parts (e.g., stainless steel medical devices or brass decorative pieces).​

• Painting: Applies a corrosion-resistant coating (available in matte/gloss finishes) for outdoor/industrial parts.​

• Coating: Options include powder coating (thick, scratch-resistant) and PVD (Physical Vapor Deposition) coating for high-wear parts (e.g., tooling).​

• Anodizing: Adds a protective oxide layer to aluminum (improves corrosion resistance; available in custom colors for automotive/aerospace parts).​

• Heat Treatment: Strengthens metals (e.g., titanium implants, steel tooling) by heating/cooling—improving hardness and durability.​

• Deburring: Removes sharp edges (critical for safety, e.g., electronics casings or medical tools).​

The table below compares our finishing options by key factors:​

​

​

Tolerances & Quality Assurance

Tolerances and accuracy standards are the foundation of our service—we understand that even 微小 (tiny) deviations can ruin complex parts (e.g., aerospace turbine blades). Our precision levels and tolerance ranges are tailored to your material and application, backed by rigorous measurement techniques and quality control processes:​

​

​

Our quality control processes include:​

• Pre-machining: Inspecting raw materials for defects (e.g., cracks in titanium, fraying in composites) and verifying dimensions.​

• In-process: Real-time monitoring of tool paths and axis alignment via CNC software; periodic checks with calipers/micrometers.​

• Post-machining: 100% inspection with CMMs (for multi-axis parts) and surface finish testing; critical parts (e.g., medical implants) undergo additional testing (e.g., stress tests, biocompatibility checks).​

Documentation: We provide a detailed quality report with every order, including measurement data, inspection results, and compliance certificates (e.g., ISO 9001, FDA for medical parts).

Key Advantages of Multi-Axis CNC Machining

Compared to traditional 2-axis or 3-axis machining, Multi-Axis CNC Machining offers transformative benefits for complex parts:​

1. High Precision: 5-axis machines achieve tolerances as tight as ±0.005mm—critical for aerospace/medical parts where fitment and performance are non-negotiable.​

2. Complex Geometries: Rotational axes enable machining of undercuts, curved surfaces, and 3D features (e.g., turbine blades, orthopedic implants) that would require multiple setups (or be impossible) with fewer axes.​

3. Reduced Setup Time: Multi-axis machines finish parts in one setup (no need to reposition the part for different features). This cuts setup time by 50–70% compared to 3-axis machining.​

4. Increased Efficiency: Fewer setups mean less operator time and faster production. For high-volume orders (e.g., automotive parts), this translates to 30–40% shorter lead times.​

5. Versatility: One machine handles metals, composites, and plastics—so you can use a single service for diverse projects (e.g., a medical device with aluminum frames and plastic casings).​

6. Cost-Effectiveness: Reduced setup time and fewer errors lower labor costs; one-setup machining reduces material waste (no need to cut extra material for repositioning).​

Consistency and Repeatability: CNC programming ensures every part is identical—critical for mass production (e.g., 10,000 identical brass connectors) or replacement parts (e.g., aerospace components).

Industry Applications

Multi-Axis CNC Machining is used across industries that demand complex, high-precision parts. Here are its most common applications:​

​

​

For example, in the medical industry, our 5-axis machining creates titanium hip implants with complex, patient-specific geometries—ensuring a perfect fit. In aerospace, 5-axis turbine blades are machined to tight tolerances to maximize fuel efficiency.

Advanced Manufacturing Techniques

To deliver exceptional results, we use cutting-edge machining techniques and optimized processes for multi-axis systems:​

• Milling: Uses rotating cutting tools to remove material (ideal for 3D parts). For 5-axis milling, we use “simultaneous 5-axis” (all axes move at once) to machine curved surfaces (e.g., turbine blades).​

• Turning: Rotates the part while a cutting tool shapes it (used for cylindrical parts like shafts). 4-axis turning adds a rotational axis to machine features like slots or holes on the part’s side.​

• Drilling/Boring: Creates precise holes (down to 0.5mm diameter) for electronics or medical parts. 5-axis drilling ensures holes are aligned at complex angles (e.g., aerospace frame components).​

• Tool Path Optimization: CAM software generates efficient tool paths to reduce cutting time—e.g., “high-speed machining” for aluminum (faster speeds, smaller cuts) or “ trochoidal milling” for titanium (reduces tool wear).​

• Cutting Tools: We use carbide tools for hard metals (titanium/steel) and high-speed steel tools for plastics/composites. For 5-axis machining, we use “indexable tools” (replaceable cutting edges) to reduce downtime.​

Coolant Systems: High-pressure coolant (up to 100 bar) is used for metals—reducing heat, improving surface finish, and extending tool life. For plastics, we use mist coolant to prevent melting.

Case Studies: Success Stories

Our Multi-Axis CNC Machining services have helped clients across high-precision industries overcome design challenges and achieve production goals. Below are two successful projects showcasing our expertise in 5-axis machining and custom solutions:​

Case Study 1: Aerospace Turbine Blade Manufacturer​

• Challenge: The client needed 1,000 titanium turbine blades for jet engines—each with complex curved surfaces, undercuts, and a tolerance requirement of ±0.005mm. Their previous supplier used 3-axis machining, which required 5 separate setups (causing misalignment issues) and a 6-week lead time. The blades also failed fatigue tests due to inconsistent surface finish from multiple setups.​

• Solution: We opted for 5-axis CNC machining (simultaneous A+B axes) to machine each blade in one setup—eliminating alignment errors. We used carbide cutting tools (optimized for titanium) and trochoidal milling (a machining technique that reduces tool wear) to maintain precision. High-pressure coolant (100 bar) was used to improve surface finish and prevent tool overheating. Our CAM team also optimized tool paths to reduce cutting time by 30%.​

• Results:​

• 100% of blades met the ±0.005mm tolerance—alignment errors dropped from 0.02mm (previous supplier) to 0.003mm.​

• Fatigue test pass rate increased from 75% to 99% (thanks to consistent surface finish).​

• Lead time shortened from 6 weeks to 3 weeks—helping the client meet their jet engine production schedule.​

• Client Testimonial: “The 5-axis machined blades are far more consistent than what we got before. The one-setup process eliminated our biggest pain points—misalignment and slow delivery. We’ve now made them our sole supplier for turbine blades.” — Raj S., Aerospace Engineering Director.​

• Before and After: 3-axis blades had visible tool marks and inconsistent curves; 5-axis blades featured smooth, uniform surfaces that met aerospace fatigue standards.​

Case Study 2: Medical Device Company (Custom Hip Implants)​

• Challenge: The client needed 500 patient-specific titanium hip implants—each tailored to a patient’s CT scan (unique 3D geometry). The implants required a porous surface (for bone integration) and a polished articulating surface (for smooth movement), with a tolerance of ±0.006mm. The client also needed FDA-compliant documentation for each implant.​

• Solution: We used 5-axis CNC machining to carve each implant’s base geometry from titanium blanks. For the porous surface (critical for bone growth), we added a secondary 5-axis milling step with micro-end mills (0.5mm diameter). The articulating surface was finished with polishing (to a Ra 0.8μm surface roughness). Our quality control processes included 100% CMM inspection (comparing each implant to the patient’s CT-derived CAD model) and biocompatibility testing (per FDA standards). We also provided individual documentation for each implant (including machining parameters and inspection data).​

• Results:​

• All implants met the ±0.006mm tolerance and FDA requirements—no rejections.​

• Surgeons reported a 40% reduction in implant alignment time (due to precise patient-specific geometry).​

• The client’s patient satisfaction score increased by 25% (thanks to better implant fit and faster recovery times).​

Challenge Overcome: Traditional 3-axis machining couldn’t replicate the implant’s complex porous geometry; 5-axis machining allowed us to access all angles of the custom design.

Why Choose Our Multi-Axis CNC Machining Services?

With numerous multi-axis machining providers, here’s what sets us apart as a trusted partner for aerospace, medical, and automotive industries:​

• Expertise in Multi-Axis Machining: Our team has 20+ years of specialized experience in 3-axis, 4-axis, and 5-axis machining. Our engineers are certified in advanced CAM software (Mastercam, SolidWorks CAM) and have deep knowledge of axes of motion synchronization—critical for complex 5-axis parts. We regularly train our team on new machining techniques (e.g., trochoidal milling, high-speed machining) to stay ahead of industry standards.​

• Experience in Various Industries: We’ve served 700+ clients across aerospace (turbine blades, structural parts), medical (implants, surgical tools), automotive (transmission components), and defense (armor parts). This cross-industry experience means we understand sector-specific requirements: FAA compliance for aerospace, FDA regulations for medical devices, and ISO/TS 16949 for automotive.​

• High-Quality Equipment: We invest in state-of-the-art machinery—including 12 5-axis CNC machines (5 with simultaneous axes for complex parts), 8 4-axis machines, and 15 3-axis machines. All machines are equipped with laser calibration tools (calibrated monthly) to maintain precision. We also use automated tool changers (up to 40 tools per machine) to reduce setup time for high-volume orders.​

• Excellent Customer Service: Our team is available 24/7 to support your project—from design consultation to post-delivery. We offer free CAD/CAM reviews (helping you optimize designs for multi-axis machining, e.g., adjusting undercuts to be 5-axis accessible) and free sample parts (so you can verify quality before placing large orders). For medical/aerospace clients, we assign a dedicated project manager to ensure compliance and on-time delivery.​

• Fast Turnaround Times: Our optimized processes and equipment deliver industry-leading lead times:​

• Prototypes (1–10 units): 1–3 days (3-axis/4-axis); 3–5 days (5-axis)​

• Low-volume orders (10–100 units): 5–7 days (3-axis/4-axis); 7–10 days (5-axis)​

• High-volume orders (100+ units): 10–14 days (3-axis/4-axis); 14–21 days (5-axis)​

For urgent projects (e.g., aerospace emergency replacements), we offer rush services—delivering 5-axis parts in as little as 7 days (for small batches) without compromising precision.​

• Cost-Effective Solutions: We help you save costs through:​

• One-setup machining: Reduces labor costs by 40–50% compared to multi-setup 3-axis machining.​

• Tool path optimization: CAM software reduces cutting time by 20–30%, lowering electricity and tool wear costs.​

• Volume discounts: 10% off orders over 500 units, 15% off orders over 1,000 units (ideal for automotive/aerospace high-volume parts).​

• Innovative Techniques: We adopt cutting-edge solutions to solve complex problems:​

• AI-powered CAM programming: Automatically optimizes tool paths for complex geometries (reducing programming time by 50%).​

• Porous surface machining: Specialized 5-axis techniques for medical implants (meets FDA requirements for bone integration).​

Hybrid machining: Combining 5-axis milling with additive manufacturing (for parts with both complex geometries and lightweight structures).
