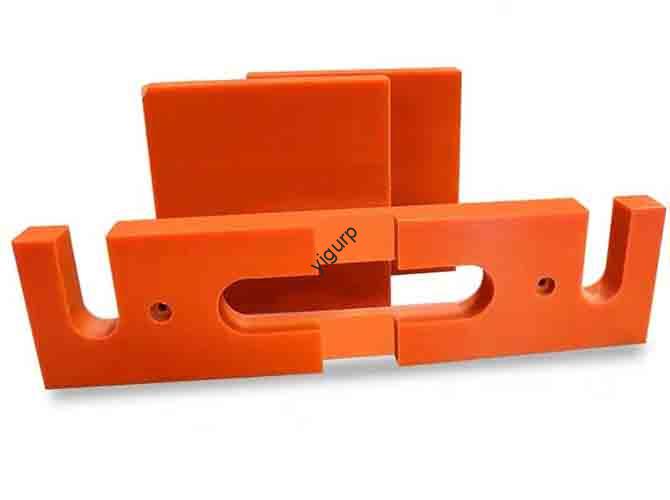

Bachelite (resina fenolo-formaldeide), a classic thermosetting plastic, is a go-to material for sample models in electronics, automobile, and industrial sectors—valued for its exceptional isolamento elettrico, alto Resistenza al calore, and stable mechanical performance. Tuttavia, its hard, brittle nature and low thermal conductivity make it tricky to process; one wrong cut or parameter can lead to cracks, scheggiatura, o superfici irregolari. Swiss lathes, con il loro Ingegneria di precisione and multi-functional capabilities, are perfectly suited to tackle bakelite’s unique challenges—delivering sample models that meet strict dimensional and functional requirements. This article breaks down the complete Swiss lathe processing process for bakelite samples, from technology preparation to quality control.
1. Swiss Lathe Technology: Lay the Foundation for Bakelite Processing
Swiss lathes’ specialized components are key to overcoming bakelite’s processing difficulties. Unlike conventional lathes, they combine stability, automazione, and precision—critical for handling brittle bakelite without damage.
Core Swiss Lathe Components & Their Roles in Bakelite Processing
| Componente | Funzione | Advantage for Bakelite |
| Mandrini ad alta velocità | Rotate bakelite bar stock at controlled speeds (3,000–6,000 rpm) | Low vibration (≤0.001 mm runout) prevents bakelite from cracking during cutting. |
| Boccola di guida | Supports the bar stock 1–2 mm from the cutting tool | Eliminates deflection (bakelite’s low rigidity causes bending) for consistent cuts. |
| Automatic tool changer | Switches between 8–12 tools (rotazione, fresatura, perforazione) in 0.5–1 second | Reduces manual intervention—avoids jarring the bakelite sample during tool changes. |
| Live tooling | Adds milling, perforazione, and threading capabilities without repositioning | Enables “done-in-one” processing—minimizes stress on bakelite (no repeated clamping). |
| Programmazione CNC | Uses G-code to automate toolpaths (via software like Mastercam) | Ensures repeatable precision (± 0,002 mm) for batch bakelite samples. |
| Lathe setup | Calibrates axes, spindle, and tool alignment before processing | Reduces errors from misalignment (which causes uneven material removal on bakelite). |
Per la punta: For bakelite processing, prioritize lathe setup Passi: Clean the guide bushing (dust causes uneven support), lubricate slides with low-viscosity oil (prevents sudden tool movements), and run a dry test (no cutting) to verify spindle stability. A 10-minute setup check can reduce bakelite sample waste by 40%.
2. Bakelite Material Properties: Understand Its “Do’s and Don’ts”
Bakelite’s thermosetting nature (it hardens permanently when cured) and physical properties dictate every processing step. Ignoring these traits leads to failed samples—e.g., overheating causes charring, while excessive force leads to chipping.
Key Bakelite Properties & Processing Implications
| Proprietà | Specifiche | Processing Precaution |
| Thermosetting plastic | Cannot be melted or reshaped after curing | Avoid cutting speeds that generate excessive heat (keep spindle speed <6,000 RPM). |
| Isolamento elettrico | Resistività al volume >10¹⁴ oh · cm | No need for anti-static measures, but keep tools clean (dust affects insulation testing). |
| Resistenza al calore | Continuous use temperature: 120–150 ° C. | Use emulsion coolant (5–10% oil + acqua) to prevent localized overheating (above 180°C causes charring). |
| Resistenza meccanica | Resistenza alla trazione: 40–60 MPa; fragile (allungamento <2%) | Use sharp tools and low feed rates (avoids applying excessive force that causes cracking). |
| Resistenza chimica | Resiste agli oli, solventi, and weak acids | Coolant choice is flexible (avoid only strong alkalis that degrade the surface). |
| Densità | 1.3–1.45 g/cm³ (più leggero dell'acciaio) | Reduce clamping force (15–20 N·m) to avoid crushing thin bakelite samples (PER ESEMPIO., 1 mm thick panels). |
| Durezza | Rockwell M (RM) 100–110 (harder than acrylic) | Usa gli strumenti in carburo (HSS tools wear out 3x faster on hard bakelite). |
Analogia: Bakelite is like a delicate ceramic plate—hard but brittle. You need to handle it gently (low force) and avoid extreme heat (like putting a ceramic plate on a hot stove). Swiss lathes’ precise controls act like “steady hands” for this “ceramic-like” material.
3. Sample Model Design: Optimize for Swiss Lathe Processing
A well-designed bakelite sample model minimizes processing challenges. Focus on simplicity, produzione, and alignment with Swiss lathe capabilities—avoid features that force the machine to make risky cuts (PER ESEMPIO., profondo, narrow slots that cause chipping).
Design Guidelines for Bakelite Samples
| Design Aspect | Recommendations | Perché è importante |
| Software CAD | Use SolidWorks or Fusion 360 to create 3D models. Add clear dimensional specifications (PER ESEMPIO., diametro del foro: 5± 0,02 mm). | Enables accurate Programmazione CNC—the lathe “knows” exactly what to cut. |
| Geometric complexity | Keep features simple: Avoid undercuts, deep grooves (>3x width), or sharp internal corners (radius <0.5 mm). | Complex features require aggressive toolpaths that risk cracking bakelite. |
| Tolerance levels | Set realistic tolerances: ±0.02–±0.05 mm for non-critical features; ±0.01–±0.02 mm for critical ones (PER ESEMPIO., buchi di montaggio). | Overly tight tolerances (± 0,005 mm) increase processing time and waste. |
| Functional requirements | Highlight key functions (PER ESEMPIO., “must insulate 220V electricity”) in design notes. Prioritize these over aesthetic features. | Ensures the sample passes functional tests (PER ESEMPIO., isolamento elettrico) even if minor aesthetic flaws exist. |
| Aesthetic considerations | For visible surfaces, specify a smooth finish (Ra ≤0.8 μm). Avoid glossy finishes (require risky high-speed polishing). | Bakelite’s natural matte surface is easier to achieve without damaging the material. |
| Prototipazione | Create a 3D-printed prototype first (using PLA) to test form and fit. Adjust before finalizing bakelite design. | Saves bakelite material (more expensive than PLA) by fixing design flaws early. |
Caso di studio: A client designed a bakelite sensor housing with a 2 mm largo, 10 mm deep groove (proporzioni 5:1). Il primo 5 samples cracked during milling. By widening the groove to 3 mm (proporzioni 3:1) and adding 0.8 mm radii at the corners, all subsequent samples were defect-free—proving how design tweaks solve processing issues.
4. Tecniche di elaborazione: Step-by-Step Bakelite Machining
Swiss lathe processing for bakelite follows a “gentle but efficient” workflow—prioritizing sharp tools, controlled speeds, and minimal material removal per pass. Below is the step-by-step process, with key techniques for each operation.
Step-by-Step Processing Workflow
- Preparazione del materiale:
- Cut bakelite bar stock to length (add 5–10% extra for machining allowance).
- Clean the bar (remove dust or oil) to ensure secure clamping.
- Lathe Setup & Installazione degli strumenti:
- Install utensili da taglio: Carbide turning inserts (grade K10) per girare; TiAlN-coated carbide end mills (2-flauto) for milling; esercitazioni in carburo (118° point angle) for drilling.
- Calibrate axes via Programmazione CNC—input tool lengths, raggi, and sample dimensions.
- Turning Operations:
- Rough turning: Remove excess material (profondità di taglio: 0.2–0,3 mm; velocità di alimentazione: 0.01–0.015 mm/rev; velocità del fuso: 3,000–4,000 rpm). Use coolant to prevent heat buildup.
- Finish turning: Ottenere dimensioni finali (profondità di taglio: 0.05–0,1 mm; velocità di alimentazione: 0.005–0.01 mm/rev; velocità del fuso: 4,000–5,000 rpm). Focus on smooth surface finish.
- Milling/Drilling (se necessario):
- Utilizzo live tooling for milling slots or flats (velocità di alimentazione: 0.008–0.012 mm/rev; velocità del fuso: 3,500–4,500 rpm). Make shallow passes (0.1–0,2 mm) per evitare di scheggiare.
- Drill holes (velocità di alimentazione: 0.005–0.008 mm/rev; velocità del fuso: 2,500–3,500 rpm). Pausa ogni 1 mm to clear chips (prevents jamming that cracks bakelite).
- Threading (se necessario):
- Use single-point carbide threading tools. Cut threads in 3–4 passes (profondità per passaggio: 0.1–0.15 mm). Velocità del fuso: 2,000–2,500 rpm.
- Lucidare:
- Per superfici lisce, use a soft abrasive wheel (1,000-grinta) a bassa velocità (1,000–1,500 rpm). Avoid aggressive polishing (causes surface scratches).
Key Technique Tips
- Controllo dei chip: Bakelite produces fine, powdery chips (not stringy like steel). Use a vacuum system to remove chips—accumulated chips scratch the sample surface.
- Tool wear monitoring: Check tools every 15–20 samples. Dull tools (visible rounded edges) increase cutting force—replace immediately to avoid cracking.
- Tariffe di alimentazione & spindle speeds: For hard bakelite (RM 110), lower spindle speed by 10% e velocità di alimentazione di 15% compared to standard bakelite.
5. Controllo e ispezione della qualità: Ensure Bakelite Sample Reliability
Bakelite samples often serve critical roles (PER ESEMPIO., isolanti elettrici), so strict quality control is non-negotiable. Inspect for dimensional accuracy, Qualità della superficie, and functional performance to ensure the sample meets design goals.
Inspection Checklist & Metodi
| Inspection Aspect | Standard | Strumenti/Metodi |
| Precisione dimensionale | Meet dimensional specifications: PER ESEMPIO., outer diameter ±0.02 mm; hole position ±0.03 mm. | Digital caliper (precisione ±0,001 mm); Coordinare la macchina di misurazione (CMM) for complex samples. |
| Finitura superficiale | Ra ≤0.8 μm (functional samples); RA ≤0,4 μm (aesthetic samples). No scratches, charring, or chipping. | Surface roughness meter; visual inspection under natural light (hold sample at 45° angle). |
| Defect detection | Nessuna crepa (even hairline), bolle, or charred spots. Edge chipping ≤0.1 mm (non-critical edges). | Test non distruttivi (ultrasonic tester for internal cracks); magnifying glass (10X) per difetti di superficie. |
| Functional performance | For electrical samples: Pass insulation test (≥10¹⁴ Ω·cm); For heat-resistant samples: Withstand 150°C for 1 ora (nessuna deformazione). | Insulation resistance tester; oven (for heat testing). |
| Quality standards | Segui Iso 9001 (Qualità generale) and IPC-4101 (for electrical bakelite parts). | Document inspection results (data, inspector, misurazioni) for traceability. |
Per la punta: For batch production (10+ bakelite samples), use statistical sampling—inspect 20% del lotto (PER ESEMPIO., 2 fuori da 10) per precisione dimensionale, E 100% per difetti di superficie (fast to check visually). This balances thoroughness and efficiency.
Yigu Technology’s View
Alla tecnologia Yigu, we tailor Swiss lathe processing to bakelite’s unique traits. We use high-precision Swiss lathes with guide bushing (±0.001 mm accuracy) and carbide tools to avoid cracking. For setup, we optimize Programmazione CNC to minimize tool paths, cutting sample waste by 30%. Our quality control combines CMM for dimensions and ultrasonic testing for internal defects. Whether it’s an electrical insulator or automotive bakelite part, we deliver samples that meet functional needs—blending precision and efficiency to help clients validate designs fast.
FAQs
- Q: Can Swiss lathes process thin-walled bakelite samples (PER ESEMPIO., 0.5 mm thick tubes)?
UN: SÌ! Usa un guide bushing for support, reduce clamping force to 10–15 N·m, and make shallow cutting passes (0.05 profondità mm). We’ve successfully processed 0.3 mm thick bakelite tubes with ±0.01 mm dimensional accuracy.
- Q: What’s the best coolant for Swiss lathe processing of bakelite?
UN: Emulsion coolant (5–10% mineral oil + acqua) è l'ideale. It cools effectively without damaging bakelite’s surface or affecting its isolamento elettrico proprietà. Avoid solvent-based coolants (they may cause minor surface discoloration).
- Q: Why do my bakelite samples crack during threading?
UN: Cracking often comes from excessive cutting force. Fix it by: 1) Using a sharp single-point carbide threading tool; 2) Cutting threads in 4–5 shallow passes (invece di 2 deep ones); 3) Lowering spindle speed to 2,000 RPM (reduces vibration).
