Qual è il processo di lavorazione rapida del prototipo? Una guida passo passo per uno sviluppo prodotto efficiente

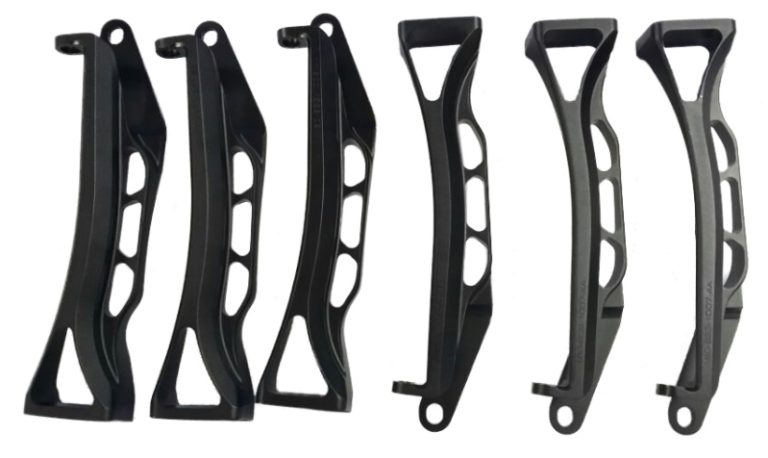

Rapid prototype machining is a core part of modern product development, enabling teams to turn design concepts into physical models quickly. A differenza della prototipazione tradizionale, it emphasizes speed without compromising on verifying design feasibility. Whether you’re developing a new electronic device or an automotive component, understanding the full process of rapid prototype machining helps you avoid delays, ridurre i costi, and ensure the final prototype aligns with your goals. Di seguito è riportato una rottura dettagliata di ogni fase, with practical tips and data to guide your project.

1. Fase di progettazione: Lay the Groundwork for Successful Prototyping

The design phase is where your product idea takes shape digitally—and it directly impacts the efficiency of subsequent machining. Rushing this step often leads to rework later, so investing time here pays off.

Key Tasks in the Design Phase

• Create Detailed CAD Models: Usa professionista Design assistito da computer (CAD) software (come Solidworks, AutoCAD, o fusione 360) to draw 3D models of the product. These models must include every detail: dimensioni, part connections, and even surface textures. According to industry data, accurate CAD models reduce post-machining adjustments by up to 40%.
• Select Materials and Processes Early: Based on your product’s end use (PER ESEMPIO., Resistenza al calore per parti automobilistiche, transparency for display cases), choose suitable materials and machining methods. Per esempio:
• If you need a prototype with high impact resistance for a phone case, Plastica addominali is a good choice.
• If the prototype requires metal-like strength for a mechanical part, 3D printing with metal-infused resin O CNC machining of aluminum works better.

Common Mistakes to Avoid in Design

• Ignoring machining limitations (PER ESEMPIO., designing overly thin walls that 3D printing can’t support).
• Forgetting to add tolerances (critical for parts that need assembly).

2. Preparazione del materiale: Ensure Compatibility with Machining Methods

The right material preparation ensures smooth machining and a prototype that matches your design intent. Different methods require different material forms—using the wrong form can damage equipment or ruin the prototype.

Material Preparation by Machining Method

Material Quality Check

Prima di lavorare, verificare:

• Purezza materiale (PER ESEMPIO., no impurities in metal blocks that could dull CNC tools).
• Material thickness uniformity (critical for consistent 3D print layers).

3. Manufacturing Phase: Choose the Right Method for Speed and Quality

Rapid prototype machining offers three main manufacturing methods, Ognuno con punti di forza unici. Your choice depends on factors like prototype complexity, dimensione batch, and lead time.

Comparison of Rapid Prototyping Manufacturing Methods

Esempio pratico

Se hai bisogno 1 prototype of a complex drone frame (with hollow sections) In 24 ore, 3D Printing (SLA) è l'ideale. Se hai bisogno 10 identical metal brackets for a machine in 3 giorni, MACCHING CNC is more efficient than 3D printing 10 parti separate.

4. Post-elaborazione: Refine the Prototype’s Appearance and Performance

Raw prototypes (right after machining) often have flaws like burrs, superfici ruvide, or uneven colors. Post-processing fixes these issues and makes the prototype look and function like the final product.

Step-by-Step Post-Processing Workflow

1. Cleaning and Deburring:

• Use brushes, carta vetrata (80-120 grit for initial cleaning), or chemical deburring agents to remove excess material. For CNC-machined metal parts, a deburring tool can eliminate sharp edges in 5-10 minuti per parte.

2. Levigare e lucidare:

• Sand the surface with progressively finer sandpaper (da 240 grinta a 2000 grinta) per ridurre la rugosità. Per prototipi di plastica, polishing with a buffing wheel and wax can achieve a glossy finish (surface roughness Ra ≤ 0.2μm).

3. Trattamento superficiale:

• Spruzzatura: Apply paint or powder coating for color and corrosion resistance (common for automotive prototypes). Drying time is usually 2-4 ore a temperatura ambiente.
• Elettroplazione: Aggiungi uno strato di metallo (PER ESEMPIO., cromo, nichel) to metal prototypes to improve wear resistance (extends prototype lifespan by 30% in testing).
• Anodizzante: Per prototipi di alluminio, anodizing creates a durable oxide layer (available in colors like black or silver) that resists scratches.

5. Ispezione e test: Verify Quality and Functionality

A prototype isn’t useful if it doesn’t meet design standards. Inspection ensures dimensional accuracy, while testing confirms it works as intended.

Inspection Methods and Tools

Functional Testing Checklist

• Test meccanici: Per parti in movimento (PER ESEMPIO., cerniere), test the number of smooth operations (aim for ≥ 1000 cycles without jamming).
• Environmental Testing: If the product will be used outdoors, test the prototype’s resistance to water (IPX4 rating or higher) e temperatura (-20°C to 60°C for most consumer products).
• Test di assemblaggio: Se il prototipo ha più parti, check if they fit together without force (gaps should be ≤ 0.2mm).

6. Revision and Optimization: Fix Issues Before Mass Production

Anche con un'attenta pianificazione, prototypes may fail tests. The revision phase turns these failures into improvements—saving you from costly mistakes in mass production.

How to Approach Revisions

1. Analyze Failure Causes: If a prototype cracks during strength testing, the issue could be:

• The wrong material (PER ESEMPIO., PLA instead of ABS for a load-bearing part).
• A design flaw (PER ESEMPIO., a weak joint).

2. Update CAD Models and Processes: Modify the CAD file to fix design issues, and adjust machining parameters if needed (PER ESEMPIO., increasing 3D print layer adhesion for better strength).
3. Re-Machine and Retest: Prioritize critical fixes first—for example, if a part doesn’t fit, fix the dimension before re-testing functionality.

Data on Revision Impact

Industry studies show that each round of prototype revision improves design maturity by 25%. Most projects require 1-2 revisions to meet all requirements.

7. Delivery and Customer Feedback: Close the Loop for Improvement

Once the prototype passes all tests, deliver it to the customer and collect feedback. This step ensures the prototype aligns with the customer’s vision and identifies any unstated needs.

Delivery Best Practices

• Include a test report (with dimensional data and functional test results) to demonstrate quality.
• Package the prototype with protective materials (PER ESEMPIO., schiuma, avvolgimento a bolle) to avoid damage during shipping.

Feedback Collection Tips

• Ask specific questions: “Does the prototype’s weight meet your expectations?” or “Is the button placement easy to use?"
• Record feedback in a shared document (PER ESEMPIO., Google Docs, Trello) to track changes for future iterations.

Yigu Technology’s View on Rapid Prototype Machining

Alla tecnologia Yigu, we believe rapid prototype machining is more than just “making a model”—it’s a bridge between design and market. Diamo la priorità alla velocità senza tagliare gli angoli: our team uses advanced CAD software to optimize designs for machining, selects materials based on real-world use cases, and tests every prototype with CMMs and functional tools. We also offer flexible options, from 24-hour 3D printing for urgent projects to CNC machining for high-precision parts. By focusing on customer feedback, we help turn prototypes into successful products faster—saving time and resources for our clients.

Domande frequenti

Q1: How long does a typical rapid prototype machining process take?

A1: Dipende dal metodo e dalla complessità. A simple 3D-printed prototype (PER ESEMPIO., a small plastic part) può essere fatto in 4-24 ore. A complex CNC-machined metal prototype may take 1-3 giorni. Modanatura in silicone (including mold making) usually takes 3-7 days for small batches.

Q2: Can I use the same material for the prototype and the final product?

A2: Yes—if the material is compatible with rapid machining methods. Per esempio, if your final product uses aluminum, you can CNC machine an aluminum prototype. For materials that are hard to machine (PER ESEMPIO., fibra di carbonio), you can use a similar material (PER ESEMPIO., carbon fiber-infused plastic) for the prototype to simulate performance.

Q3: What should I do if my prototype fails functional testing?

A3: Primo, work with your machining team to find the root cause (PER ESEMPIO., materiale, progetto, or machining error). Poi, update the CAD model or adjust the process—for example, if a 3D-printed part is too brittle, switch to a stronger filament (like PETG) or increase layer adhesion. Retest the revised prototype until it meets your requirements.
