Our Hot Runner Injection Molding Services

Elevate your plastic manufacturing with Hot Runner Injection Molding from Yigu Technology. Our advanced Hot Runner System delivers exceptional precision, reduces waste by up to 30%, and cuts cycle times—all while supporting high-volume production of top-quality parts. Whether you need custom tooling for automotive components or biodegradable plastic solutions for packaging, we combine expertise in Thermoplastic Materials with lean manufacturing practices to turn your ideas into reality.

Get Free Quote

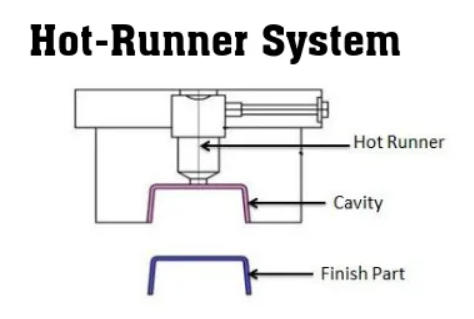

What Is Hot Runner Injection Molding?

At its core, Hot Runner Injection Molding is an advanced Injection Molding Process designed to keep molten plastic (resin) in a liquid state as it travels from the machine’s barrel to the mold cavity. Unlike traditional cold runner systems, this method eliminates the need to trim and reuse solidified runner material—saving time, reducing waste, and improving consistency.

Key components of a typical Hot Runner System include:

Nozzle Design: Ensures precise melt delivery to each cavity, preventing cold spots or material degradation.

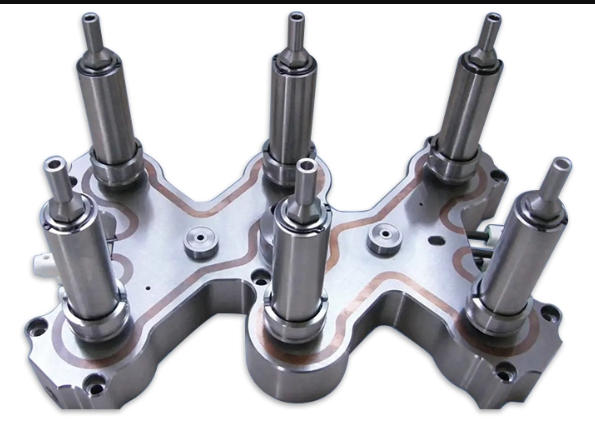

Manifold Configuration: Distributes molten resin evenly across multi-cavity molds, guaranteeing uniform part quality.

Temperature Control Units: Maintain consistent heat to keep Polymer Flow smooth and predictable.

This Hot Runner Technology is ideal for processing a wide range of Thermoplastic Materials, making it a go-to choice for modern Plastic Molding operations.

Yigu Technology’s Hot Runner Injection Molding Capabilities

At Yigu Technology, we leverage decades of experience to offer end-to-end solutions for hot runner injection molding. Our capabilities are tailored to meet the unique needs of high-volume, precision-driven industries.

Capability	Key Benefits	Application Example
Precision Molding	Dimensional accuracy within ±0.005mm	Medical device components (e.g., syringes)
High Volume Production	Capacity to produce 100,000+ parts/month	Consumer goods (e.g., smartphone cases)
Custom Tooling	Tailored mold designs for unique part geometries	Automotive interior trim pieces
Multi-Cavity Molds	Up to 64 cavities for simultaneous part production	Packaging lids or small electronic components
Rapid Prototyping	3–5 day turnaround for functional prototypes	New product development for aerospace parts
Advanced Simulation	Predict and resolve flow or cooling issues pre-production	Complex engineering plastic parts (e.g., PEEK gears)
Quality Control	100% inspection using SPC and GD&T standards	Critical automotive safety components
Lean Manufacturing	20% reduction in production lead times	High-demand household appliances
Value-Added Services	Post-processing (e.g., assembly, coating) under one roof	Telecommunications equipment
Turnkey Solutions	From design to delivery, no third-party involvement	Industrial equipment housings

Our team combines these capabilities to ensure every project meets the highest standards of quality and efficiency.

The Hot Runner Injection Molding Process: Step-by-Step

The success of hot runner molding relies on a well-orchestrated process, from material selection to final ejection. Below is a breakdown of the key stages, along with critical parameters we optimize for each step.

Process Stage	Key Activities	Critical Parameters	Optimization Goals
Material Selection	Choose appropriate Thermoplastics or Engineering Plastics based on part requirements	Resin grade, melt flow rate, heat resistance	Ensure material compatibility with hot runner system
Mold Preparation	Clean mold surfaces, check cavity alignment, install hot runner components	Mold temperature (40–80°C)	Prevent part sticking or defects
Machine Setup	Adjust injection pressure, speed, and barrel temperature	Injection pressure (500–2000 bar), speed (50–200 mm/s)	Achieve full cavity filling without overpacking
Temperature Control	Monitor and adjust hot runner manifold and nozzle temperatures	Manifold temp (180–320°C), nozzle temp (190–330°C)	Maintain consistent Polymer Flow; avoid material burn
Injection & Holding	Inject molten resin into cavities, apply holding pressure to compensate for shrinkage	Holding pressure (30–70% of injection pressure)	Ensure part density and dimensional stability
Cooling Time	Allow part to solidify in the mold	Cooling time (5–60 seconds, depending on part thickness)	Reduce cycle time without compromising part strength
Ejection Mechanism	Use pins or sleeves to remove parts from the mold	Ejection force (10–50 kN)	Prevent part damage during removal
Process Optimization	Analyze cycle time, defect rates, and part quality	Cycle time reduction (5–15%), defect rate (<0.1%)	Maximize efficiency and minimize waste
Automation Integration	Use robots for part handling and inspection	Automation rate (up to 95% for high-volume runs)	Improve consistency and reduce labor costs

By fine-tuning each stage, we achieve Cycle Time Reduction of up to 25% compared to traditional cold runner systems.

Materials Used in Hot Runner Injection Molding

Yigu Technology works with a diverse range of materials to meet the needs of different industries. Our expertise in material selection ensures parts perform as expected in their end applications.

Material Category	Common Types	Key Properties	Typical Applications
Thermoplastics	ABS, Polypropylene (PP)	Impact resistance, low cost, easy processing	Consumer goods (toys, household appliances)
Engineering Plastics	Polycarbonate (PC), Nylon	High strength, heat resistance, dimensional stability	Automotive components (light housings), electronics (circuit boards)
High-Performance Polymers	PEEK, PPS	Extreme heat resistance, chemical stability	Aerospace parts, medical devices (surgical instruments)
Biodegradable Plastics	PLA, PBAT	Eco-friendly, compostable	Packaging (food containers), disposable products

We also offer Material Testing services to verify properties like tensile strength, impact resistance, and thermal stability. Additionally, we can incorporate Additives (e.g., UV stabilizers, colorants) to enhance material performance.

Hot Runner Injection Molding Surface Treatment

The right surface treatment can transform a basic plastic part into a high-performance or visually appealing product. Yigu Technology offers a range of surface treatment options to meet both aesthetic and functional needs.

Surface Treatment	Process Description	Key Benefits	Applications
Texturing	Create patterns (e.g., matte, leather) on mold surfaces	Improve grip, hide scratches	Automotive interior panels, tool handles
Polishing	Buff mold cavities to achieve a glossy finish	Enhance aesthetics, reduce friction	Consumer electronics (phone cases), cosmetic packaging
Coating	Apply thin layers (e.g., UV coating, anti-microbial coating)	Add protection or special properties	Medical devices (anti-bacterial surfaces), outdoor equipment (UV resistance)
Plating	Deposit metal layers (e.g., chrome, nickel) on part surfaces	Improve conductivity, corrosion resistance	Electronics (connectors), automotive trim
Laser Etching	Use lasers to create precise designs or logos	Permanent, high-detail markings	Branding on consumer goods, serial numbers on medical devices
Chemical Etching	Use chemicals to create intricate patterns	Ideal for complex designs on large parts	Industrial equipment panels, decorative parts
Mold Release	Apply coatings to mold surfaces to prevent part sticking	Reduce ejection force, improve part quality	Large or complex parts (e.g., industrial housings)
Surface Hardening	Treat surfaces to increase scratch resistance	Extend part lifespan	High-wear parts (e.g., gears, handles)

These treatments not only enhance Aesthetics but also improve Functional Surface Finishes like durability and conductivity.

Hot Runner Injection Molding Tolerances: Ensuring Dimensional Accuracy

In hot runner injection molding, Precision Tolerances are critical—especially for parts used in industries like automotive and medical. Yigu Technology adheres to strict standards to ensure every part meets or exceeds customer specifications.

Our approach to tolerances includes:

Tight Tolerance Molding: Achieve dimensional accuracy as tight as ±0.001mm for critical components.
Measurement Techniques: Use advanced tools like coordinate measuring machines (CMMs) and laser scanners to verify part dimensions.
Inspection Methods: Implement 100% inspection for high-criticality parts and statistical sampling for high-volume runs.
GD&T (Geometric Dimensioning and Tolerancing): Follow ASME Y14.5 standards to define part geometry and tolerances clearly.
Quality Assurance: Use SPC (Statistical Process Control) to monitor production in real time and prevent defects.
Tolerance Stack-Up Analysis: Identify potential issues from multiple part components to ensure assembly compatibility.

The table below shows typical tolerance ranges for common part types:

Part Type	Typical Tolerance Range	Industry Standard
Medical device components	±0.001–±0.005mm	ISO 13485
Automotive safety parts	±0.005–±0.01mm	IATF 16949
Consumer electronics	±0.01–±0.02mm	ANSI/ESD S20.20
Industrial equipment	±0.02–±0.05mm	ISO 9001

Advantages of Hot Runner Injection Molding

Compared to traditional cold runner systems, hot runner injection molding offers numerous benefits that drive efficiency, quality, and cost savings.

Advantage	Description	Quantifiable Benefit
Reduced Waste	Eliminates solidified runner material, which typically accounts for 15–30% of material use	20–30% reduction in material waste; saves 5,000–50,000/year for high-volume runs
Energy Efficiency	Requires less energy to reprocess runner material	10–15% lower energy consumption compared to cold runner systems
Consistency	Uniform heat distribution ensures consistent part quality	Defect rates reduced to <0.1% for most applications
High-Quality Parts	Prevents material degradation and cold spots	Improved part strength (up to 10% higher tensile strength) and surface finish
Cost Savings	Less material waste, shorter cycle times, and lower labor costs	15–25% lower total production costs
Faster Production	Shorter cooling times (no need to cool runners)	10–25% reduction in cycle time; increases output by 15–20%
Design Flexibility	Supports complex part geometries and multi-cavity molds	Enables production of parts with thin walls, intricate details, or multiple components
Reduced Maintenance	Fewer moving parts and less material buildup	30% reduction in mold maintenance time
Improved Part Performance	Consistent material flow reduces internal stresses	Parts have better dimensional stability and longer lifespan
Enhanced Aesthetics	No runner marks on parts; better surface finish	Reduces post-processing needs (e.g., trimming, polishing)

Hot Runner Injection Molding Applications by Industry

Hot runner injection molding is versatile and widely used across various industries. Yigu Technology has extensive experience serving the following sectors:

Industry	Common Applications	Materials Used	Key Requirements
Automotive	Interior trim, sensor housings, connector pins	PC, Nylon, ABS	High heat resistance, dimensional stability
Electronics	Circuit board components, smartphone cases, charger housings	ABS, PC, Polypropylene	Precision tolerances, flame retardancy
Medical Devices	Syringes, surgical instruments, implant components	PEEK, Medical-grade PP	Biocompatibility, sterilizability
Consumer Goods	Toys, household appliances (e.g., blender parts), cosmetic packaging	PP, ABS, Biodegradable plastics	Aesthetics, durability
Packaging	Bottle caps, food containers, blister packs	PP, PET, Biodegradable plastics	Lightweight, recyclability
Aerospace	Interior panels, sensor components, fasteners	PEEK, High-performance polymers	Extreme temperature resistance, strength
Telecommunications	Router housings, cable connectors	PC, ABS	Impact resistance, weatherability
Industrial Equipment	Gear housings, pump components	Nylon, PPS	Chemical resistance, high load capacity
Toys	Action figures, building blocks	PP, ABS	Non-toxicity, durability
Household Appliances	Washing machine parts, refrigerator shelves	PP, PC	Heat resistance, stain resistance

Manufacturing Techniques: Combining Innovation and Expertise

Yigu Technology uses a range of manufacturing techniques to support hot runner injection molding, ensuring we can handle projects of any complexity.

Technique	Role in Hot Runner Molding	Advantages
Injection Molding Machines	Core equipment for melting and injecting resin	High precision (up to 0.001mm repeatability), energy-efficient
Hot Runner Technology	Maintains molten resin flow	Reduces waste, improves consistency
Mold Design	Custom molds for specific part geometries	Supports multi-cavity production, complex designs
CNC Machining	Creates precise mold cavities and components	High accuracy (±0.002mm), fast turnaround
3D Printing	Used for rapid prototyping of molds or part prototypes	3–5 day turnaround for prototypes, low cost for small batches
Rapid Tooling	Fast production of molds for short-run projects	2–3 week mold lead time, ideal for product testing
Vacuum Forming	Complementary technique for large, thin-walled parts	Low cost for large parts, fast setup
Compression Molding	Used for thermoset materials or large parts	High part strength, suitable for high-heat applications
Assembly Techniques	Joins multiple molded parts (e.g., ultrasonic welding)	Fast, reliable assembly, no additional adhesives
Post-Processing	Trimming, polishing, or coating parts	Enhances part quality and functionality

Case Studies: Real-World Success Stories

At Yigu Technology, we take pride in delivering results for our customers. Below are a few examples of how we’ve used hot runner injection molding to solve complex challenges.

Case Study 1: Automotive Sensor Housing Production

Challenge: A leading automotive manufacturer needed 500,000 sensor housings/month with tight tolerances (±0.005mm) and high heat resistance.
Solution: We designed a 32-cavity hot runner mold using Polycarbonate and implemented Advanced Simulation to optimize flow. We also used SPC for real-time quality control.

Results:

Cycle time reduced by 20% (from 45s to 36s).
Defect rate dropped to 0.05%.
Material waste reduced by 25%, saving the customer $30,000/year.

Case Study 2: Medical Syringe Manufacturing

Challenge: A medical device company required sterile, biocompatible syringes with a smooth surface finish.
Solution: We used Medical-grade PP and a custom hot runner system with precision Nozzle Design. We also added a Coating for anti-microbial protection and implemented 100% Inspection Methods (CMM testing).

Results:

Met ISO 13485 standards for biocompatibility.
Surface finish improved by 30%, reducing friction during use.
Production capacity increased to 1 million syringes/month.

Case Study 3: Biodegradable Packaging for Food Industry

Challenge: A packaging company wanted to switch to Biodegradable Plastics (PLA) for food containers, but faced issues with material flow and part strength.
Solution: We optimized the Hot Runner System temperature (200–220°C) to improve Polymer Flow and added Additives to enhance strength. We also used Rapid Prototyping to test designs quickly.

Results:

Part strength increased by 15%, meeting food safety standards.
Material waste reduced by 30% compared to cold runner systems.

Time-to-market cut by 4 weeks, helping the customer launch ahead of competitors.

Why Choose Yigu Technology for Hot Runner Injection Molding?

When you partner with Yigu Technology, you get more than just a manufacturer—you get a trusted advisor dedicated to your success. Here’s why customers choose us:

Expertise: Our team has 15+ years of experience in Hot Runner Technology and Thermoplastic Materials.
Experience: We’ve completed 1,000+ projects across industries like automotive, medical, and electronics.
Customer Service: Dedicated account managers provide 24/7 support, from design to delivery.
Innovation: We invest 10% of our annual revenue in R&D, introducing 3–5 new features or improvements to our hot runner systems each year.
Advanced Equipment: Our state-of-the-art injection molding machines and CNC machining centers are updated every 3–5 years to ensure we maintain the highest standards of precision.
Quality Management: ISO 9001:2015 and IATF 16949:2016 certifications demonstrate our commitment to quality control.
Sustainable Practices: We’re dedicated to reducing our environmental impact, with a goal of achieving carbon neutrality by 2030. We use recycled materials in our packaging and have implemented energy – saving measures in our production facilities.

FAQ for Hot Runner Injection Molding

What types of plastics are best suited for hot runner injection molding?

Hot runner injection molding is suitable for a wide range of thermoplastics, including ABS, polypropylene (PP), polycarbonate (PC), nylon, and high – performance polymers like PEEK and PPS. Biodegradable plastics such as PLA and PBAT can also be processed effectively. The key is to select a material with a melt flow rate and heat resistance that is compatible with the hot runner system and the part requirements.

How does hot runner injection molding reduce waste?

In traditional cold runner systems, the runner material (the plastic that fills the channels between the injection nozzle and the mold cavities) solidifies and must be trimmed off and recycled. This can account for 15 – 30% of the total material used. Hot runner systems keep the molten plastic in a liquid state throughout the runner system, eliminating the need for this solidified runner material. As a result, material waste is significantly reduced, typically by 20 – 30%.

Can hot runner injection molding be used for small – batch production?

Yes, hot runner injection molding can be used for small – batch production. While it is especially beneficial for high – volume production due to its cost – saving advantages in terms of material waste and cycle time reduction, it can also be adapted for small – batch runs. For small – batch production, we offer options such as rapid tooling and 3D – printed molds, which can be used in conjunction with hot runner systems to quickly produce small quantities of parts with high precision.
