Our Hot Chamber Die Casting Services
At Yigu Technology, our hot chamber die casting solutions redefine speed and precision for high-volume manufacturing. Leveraging decades of casting experience, advanced tooling, and strict quality control, we transform metals like zinc and magnesium into dimensionally stable components—perfect for automotive, electronics, and consumer product industries. Whether you need fast cycle times, exceptional surface quality, or tailored alloy selection, we turn your production goals into reality with reliable, cost-effective solutions.
What Is Hot Chamber Die Casting?
Hot chamber die casting is a specialized die casting concept designed for metals with low melting points, offering rapid production and consistent results. Its core basic principles revolve around a molten metal pool integrated directly into the casting machine—eliminating the need for separate metal transfer steps.

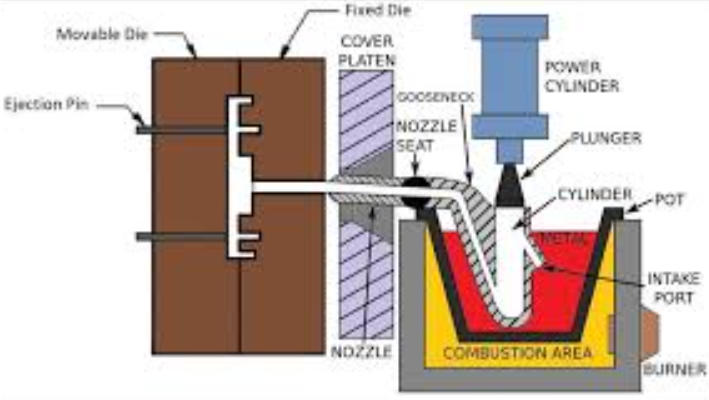

A quick process overview reveals its efficiency: The machine’s gooseneck (a heated tube) dips into the molten metal, then a piston injects the metal into a closed mold at high pressure. This seamless flow reduces waste and speeds up production, making it ideal for high-volume orders. Table 1 compares it to cold chamber die casting (a common alternative):
| Die Casting Type | Metal Compatibility | Melting Point Range | Cycle Time | Ideal Production Volume |
| Hot Chamber Die Casting | Zinc, Magnesium (low-melt) | 380–650°C | 10–30 seconds | High (10,000+ units/ month) |
| Cold Chamber Die Casting | Aluminum, Copper (high-melt) | 600–1,085°C | 20–60 seconds | Medium-High (5,000+ units/ month) |
Yigu Technology’s Hot Chamber Die Casting Capabilities
Our capabilities are rooted in deep expertise and advanced infrastructure, allowing us to meet diverse client needs with precision and speed.
Key Capabilities Breakdown
| Capability Area | Details |
| Production Capacity | 80,000–600,000 units/month (scalable for zinc/magnesium components) |
| Technical Skills | Expertise in mold design, alloy optimization, and process troubleshooting |
| Quality Control | 100% dimensional inspection, ISO 9001 certification, and real-time defect detection |
| Customization | Tailored solutions for unique part geometries, tolerances, and surface finishes |
The Hot Chamber Die Casting Process
The hot chamber die casting process follows a streamlined process flow optimized for speed and consistency, with each step designed to minimize waste and maximize quality.
- Mold Preparation: The two halves of the mold close tightly, and a lubricant is applied to ensure easy ejection later.
- Injection: The machine’s piston (inside the heated gooseneck) pushes molten metal into the mold cavity at high pressure (10–50 MPa), ensuring full mold filling.
- Cooling: The metal solidifies quickly inside the mold (5–20 seconds, depending on part size), maintaining its shape and dimensional accuracy.
- Ejection: The mold opens, and ejector pins push the finished part out. Excess material (flash) is trimmed for a clean finish.
On average, the total cycle time for a small zinc component (e.g., a electronics connector) is just 15–25 seconds—far faster than many other manufacturing methods.
Materials Used in Hot Chamber Die Casting
Choosing the right die casting materials is critical to part performance, and we specialize in metals that thrive in the hot chamber process.
Material Selection Guide
| Material Type | Common Alloys | Key Material Properties | Typical Applications |
| Zinc | Zamak 3, Zamak 5 | Low melting point (380°C), high ductility, excellent surface finish | Electronics housings, hardware, toy parts |
| Magnesium | AZ91D, AM60B | Ultra-light (1.8 g/cm³), good strength-to-weight ratio | Automotive brackets, laptop frames |
| Aluminum | (Limited use) A380 | High strength, corrosion-resistant (used only for specialized low-melt grades) | Small structural components |
| Copper | (Rare use) Brass C36000 | High thermal conductivity (used for niche high-heat applications) | Industrial valves, connectors |
Our team provides expert alloy selection support, helping you choose the material that balances cost, performance, and manufacturability.
Surface Treatment for Hot Chamber Die Cast Components
Surface treatment enhances the durability, appearance, and functionality of hot chamber die cast parts, addressing industry-specific needs from corrosion resistance to aesthetics.
| Treatment Method | Purpose | Advantages | Ideal For |
| Painting | Add color and basic corrosion protection | Fast application, low cost, wide color range | Consumer products, decorative parts |
| Plating | Improve conductivity or appearance | Enhances durability, offers metallic finishes (e.g., nickel, chrome) | Electronics connectors, automotive trim |
| Coating | Provide advanced protection | Resists scratches, chemicals, and UV damage | Outdoor components, industrial parts |
| Polishing | Create a smooth, reflective surface | Elevates aesthetic appeal, hides minor imperfections | Luxury goods, high-end electronics |
| Texturing | Add grip or hide defects | Improves usability, reduces visible wear | Tool handles, automotive interior parts |
Tolerances in Hot Chamber Die Casting
Tolerances and dimensional accuracy are hallmarks of our hot chamber die casting process, with strict tolerance control measures to meet even the most demanding standards.
Typical Tolerance Ranges
| Part Feature | Standard Tolerance | Tight Tolerance (Custom) | Industry Reference |
| Part Dimensions (≤50mm) | ±0.08mm | ±0.04mm | ISO 8062:2018 Class CT5 |
| Hole Positioning | ±0.1mm | ±0.06mm | DIN EN 13920 |
| Flatness | 0.05mm/m | 0.03mm/m | IATF 16949 |
These casting tolerances are achieved through precision mold design, real-time process monitoring, and post-casting machining (when needed).
Advantages of Hot Chamber Die Casting
The advantages of hot chamber die casting make it a top choice for high-volume, cost-sensitive applications across industries.
- High Production Efficiency: Short cycle times (10–30 seconds) enable rapid output—up to 50% faster than cold chamber die casting for compatible metals.
- Good Surface Quality: The process produces parts with smooth surfaces (Ra 1.6–6.3 μm), reducing the need for secondary finishing.
- Dimensional Stability: Tight tolerances and minimal part warpage ensure consistent fit in assemblies.
- Cost-Effectiveness: Reduced material waste (5–10% vs. other methods) and automated production lower per-unit costs for high-volume runs.
Weight Reduction: Lightweight materials like magnesium and zinc cut part weight by 20–40% compared to steel, improving fuel efficiency in vehicles and portability in electronics.
Industry Applications of Hot Chamber Die Casting
Hot chamber die casting serves a wide range of industries and applications, thanks to its speed, precision, and material versatility.
| Industry | Key Applications | Material of Choice | Why Hot Chamber Die Casting? |
| Automotive | Door handles, sensor housings, EV connector parts | Zinc, Magnesium | Fast production, lightweight |
| Electronics | Phone casings, charger components, switchgear | Zinc | Good surface finish, tight tolerances |
| Consumer Products | Toy parts, kitchen utensils, furniture hardware | Zinc | Cost-effective, durable |
| Industrial Machinery | Valve bodies, small gears, pump components | Zinc, Magnesium | Dimensional stability, wear resistance |
| Medical Devices | Small instrument components, device housings | Zinc (medical-grade) | Biocompatibility, precision |
Manufacturing Techniques for Hot Chamber Die Casting
Manufacturing Techniques for Hot Chamber Die Casting
Our manufacturing techniques combine innovation and tradition to deliver consistent, high-quality parts, with a focus on efficiency and reliability.
- Tooling & Mold Design: We use H13 hot-work steel for molds, which withstands repeated exposure to molten metal (150,000+ cycles). Our gating system and venting designs optimize metal flow and reduce defects like porosity.
- Automation: Robotic arms handle part ejection, trimming, and inspection, reducing human error and increasing production speed by 30–40%.
- Process Monitoring: Sensors track temperature, pressure, and cycle time in real time, alerting operators to deviations that could affect quality.
Quality Control: Post-production checks include dimensional measurement (using CMM machines) and surface finish testing to ensure compliance with client specs.
Case Studies: Yigu Technology’s Hot Chamber Die Casting Success Stories
Our case studies showcase how we solve real-world challenges for clients, leveraging the strengths of hot chamber die casting.
Case Study 1: Automotive EV Connector Components
- Challenge: A leading EV manufacturer needed 200,000 zinc connector parts monthly, with a tight tolerance of ±0.05mm and a smooth surface finish (Ra 3.2 μm).
- Solution: Used Zamak 5 alloy in our hot chamber die casting process, with custom mold design and automated inspection.
- Result: Achieved 99.8% defect-free rate, met production targets 2 weeks ahead of schedule, and reduced per-unit cost by 12%.
Case Study 2: Consumer Electronics Phone Casings
- Challenge: A tech company required lightweight, durable phone casings with a textured surface and fast turnaround for a new product launch.
- Solution: Utilized magnesium alloy AZ91D and added post-casting texturing and painting for aesthetics.
Result: Casings were 30% lighter than plastic alternatives, with a 50,000-unit production run completed in 10 days—meeting the launch deadline.
Why Choose Yigu Technology for Hot Chamber Die Casting?
Why Choose Yigu Technology for Hot Chamber Die Casting?
When you partner with us for hot chamber die casting, you gain more than a supplier—you gain a trusted collaborator focused on your success. Here’s why clients choose us:
- Quality: Our strict quality control processes ensure consistent, defect-free parts that meet or exceed industry standards.
- Service: A dedicated account manager provides end-to-end support, from design to delivery, with 24/7 responsiveness to your needs.
- Reliability: We maintain 98% on-time delivery rates, thanks to our scalable production capacity and proactive process monitoring.
- Innovation: We invest in R&D to improve processes—like AI-powered mold maintenance alerts—that reduce downtime and costs.
Partnership: We work closely with your team to optimize designs for manufacturability, ensuring the best possible results at the lowest cost.
