Our Fluorinated Ethylene Propylene FEP Injection Molding Services
Elevate your components with our premium Fluorinated Ethylene Propylene FEP Injection Molding services—where exceptional chemical resistance, optical clarity, and high-temperature stability meet micro-precision and high-volume production. From medical devices to aerospace parts, we deliver FEP molded solutions that redefine reliability.
What Is FEP Injection Molding?
FEP injection molding is a manufacturing process that shapes FEP (Fluorinated Ethylene Propylene), a thermoplastic fluoropolymer, into custom parts using injection molding technology. Unlike other plastics, FEP combines the flexibility of polyethylene with the chemical inertness of PTFE (Teflon), making it ideal for harsh environments.
To simplify its core meaning, here’s a breakdown of key terms:
| Term | Explanation |
| FEP thermoplastic molding | The process of melting FEP resin (a thermoplastic) and injecting it into molds to form parts. |
| Fluorinated Ethylene Propylene molding meaning | Creating functional components from FEP, a material prized for non-stick, heat-resistant, and electrically insulating properties. |
| FEP plastic molding overview | A versatile method for producing both small, intricate parts (e.g., micro sensors) and large, high-volume components (e.g., wire insulation). |
In short, FEP injection molding turns raw FEP resin into tailored parts that thrive in applications where other plastics fail.
Our FEP Injection Molding Capabilities: Precision You Can Trust
At Yigu Technology, our FEP injection molding capacity is designed to meet diverse project needs—from low-volume prototypes to high-volume production runs. We pride ourselves on holding tight FEP molding tolerances and offering specialized services that set us apart.
Below is a detailed look at our core capabilities:
| Capability | Specification | Application Fit |
| FEP molding tolerances we hold | ±0.001” (0.025mm) for micro parts; ±0.005” (0.127mm) for standard parts | High-precision components like semiconductor wafer carriers. |
| Micro FEP molding capability | Molding parts as small as 0.5mm (0.02”) with complex geometries | Medical catheters, micro-sensors, and electronic connectors. |
| High-volume FEP production | 100,000+ parts/month per production line | Automotive wire insulation, food-contact fittings. |
| Clean-room FEP molding service | Class 8 (100,000) cleanrooms compliant with ISO 14644-1 | Medical devices (e.g., surgical tools) and pharmaceutical components. |
| Multi-cavity FEP tooling | Up to 32-cavity molds for cost-efficient high-volume runs | Small, uniform parts like FEP couplings or valve cores. |
| Insert & over-molding FEP | Bonding FEP to metals (e.g., stainless steel) or other plastics | Sensor housings, where FEP’s insulation protects internal components. |

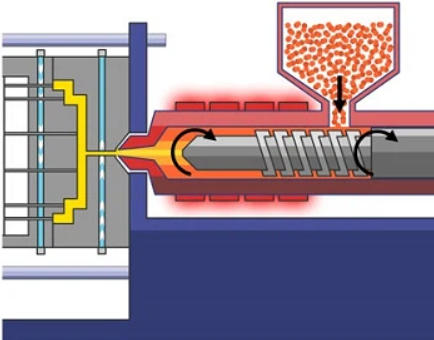

The FEP Injection Molding Process: Step-by-Step Excellence
Achieving high-quality FEP parts requires strict control over every process step. Unlike common plastics (e.g., PP or ABS), FEP has unique melting and cooling needs—our expertise ensures consistency.
Key Process Steps & Parameters
| Step | Description | Critical Parameter | Target Value |
| 1. Resin Preparation | Dry FEP resin grades for molding to remove moisture (moisture causes defects). | Drying Time/Temperature | 4 hours at 120°C |
| 2. Melting | Heat resin in the injection unit. | FEP melt temperature window | 290°C – 380°C (554°F – 716°F) |
| 3. Injection | Force molten FEP into the mold. | Injection Pressure | 800 – 1,200 bar |
| 4. Cooling | Solidify FEP in the mold. | In-mold cooling for FEP | 10 – 15 seconds (varies by part size) |
| 5. Demolding | Remove the part from the mold. | FEP degating technique | Automated cold degating (minimizes part damage) |
| 6. Finishing | Trim excess material and inspect. | FEP mold shrinkage control | 2.5% – 3.5% (controlled via mold design) |
Other critical factors:
- FEP screw & barrel design: Specialized hard chrome-plated barrels prevent FEP degradation (FEP is abrasive at high temps).
FEP molding cycle time: 30 – 60 seconds for small parts; 2 – 5 minutes for large, thick-walled components.
FEP Materials: Choosing the Right Resin for Your Project
The performance of your FEP part starts with the right resin. We offer a range of FEP resin grades for molding, each formulated to meet specific industry needs. Below is a comparison of our most popular options:
| Resin Type | Key Feature | Compliance | Ideal Application |
| FDA-compliant FEP compounds | Non-toxic, food-safe | FDA 21 CFR 177.1550 | FEP food-contact molded parts (e.g., beverage fittings) |
| Pigmented FEP pellets | Custom colors (black, blue, red) | RoHS, REACH | Consumer electronics (e.g., optical windows) |
| Anti-static FEP formulations | Surface resistance: 10⁶ – 10⁹ Ω | SEMI F47 | FEP molded semiconductor parts (prevents electrostatic damage) |
| High-purity FEP resin | < 10 ppm metal impurities | ISO 10993 | Medical devices (e.g., catheter components) |
| Bondable FEP modifiers | Improved adhesion to metals/plastics | ASTM D3359 (adhesion test) | Insert & over-molding FEP (e.g., sensor housings) |
| FEP copolymer vs homopolymer | – Copolymer: Better flexibility (Tg = -100°C)- Homopolymer: Higher rigidity (Tg = -90°C) | N/A | Copolymer: Aerospace hoses; Homopolymer: Chemical processing valves |
FEP Surface Treatment: Enhancing Functionality
FEP’s natural non-stick surface is ideal for many apps, but some projects require improved bonding or printability. Our FEP surface treatment services solve this challenge:
| Treatment Method | Purpose | Result |
| Plasma treatment for FEP | Increase surface energy | Surface energy: 38 – 45 dynes/cm (from 20 dynes/cm untreated) |
| Chemical etching FEP parts | Create micro-roughness for adhesion | Bond strength: 15 – 20 N/cm (tested per ASTM D1002) |
| FEP surface activation | Break down fluorine bonds to promote bonding | Improved compatibility with adhesives (e.g., epoxy) |
| FEP printability enhancement | Allow ink adhesion | UV ink retention: 95% after 1,000 hours of UV exposure |
These treatments are critical for applications like FEP over-molded sensor housing (where FEP must bond to metal) or labeled medical devices (where print must stay legible).
Advantages of FEP Injection Molding: Why Choose FEP?
FEP’s unique properties make it superior to many plastics for demanding applications. Here’s how its advantages translate to real value:
| Advantage | Technical Spec | Benefit for Your Project |
| FEP chemical resistance benefit | Resists acids, bases, solvents (even at 200°C) | Parts last longer in chemical processing plants. |
| FEP optical clarity advantage | Transmittance: 95% (400 – 700 nm wavelength) | Ideal for FEP optical window molding in sensors. |
| Low-friction FEP molding | Coefficient of friction: 0.15 (dry) | Parts like FEP impellers run smoothly with less wear. |
| FEP high-temperature stability | Continuous use temp: -200°C to 200°C | Suitable for FEP aerospace injection molding (engine components). |
| FEP non-stick properties | Surface tension: 18 mN/m | Easy release for food-contact parts (e.g., FEP fittings). |
| FEP electrical insulation value | Volume resistivity: >10¹⁸ Ω·cm | Perfect for FEP wire & cable insulation in high-voltage apps. |
| FEP UV resistance advantage | No degradation after 5,000 hours of UV exposure | Outdoor parts (e.g., FEP photovoltaic connectors) maintain performance. |
FEP Injection Molding Applications by Industry
FEP’s versatility makes it a top choice across industries. Below are key use cases where our services excel:
| Industry | Key Applications | Our Service Fit |
| Semiconductor | FEP molded semiconductor parts (wafer carriers, chamber liners) | Clean-room molding, anti-static FEP formulations |
| Medical | FEP medical device components (catheters, surgical tool handles) | FDA-compliant resins, Class 8 cleanrooms |
| Aerospace | FEP aerospace injection molding (wire insulation, hydraulic fittings) | High-purity FEP, temperature-stable formulations |
| Chemical Processing | FEP chemical processing fittings (valve bodies, pump impellers) | Chemical-resistant resins, tight tolerances |
| Food & Beverage | FEP food-contact molded parts (filling machine components) | FDA-compliant compounds, non-stick properties |
| Electronics | FEP wire & cable insulation, connectors | Electrical insulation, pigmented FEP pellets |
| Renewable Energy | FEP photovoltaic connectors, solar panel parts | UV resistance, high-temperature stability |
Case Studies: Real-World FEP Molding Success
Our expertise isn’t just theoretical—here are three projects where we delivered results:
Case 1: High-Precision FEP Wafer Carrier for Semiconductor
- Challenge: A semiconductor client needed wafer carriers with ±0.001” tolerance to protect 300mm wafers from electrostatic damage.
- Solution: Used micro FEP molding capability with anti-static FEP resin and multi-cavity tooling.
- Result: 99.9% yield, 50% faster production than competitors, and compliance with SEMI F47 standards.
Case 2: FEP Catheter Molded Component for Medical Devices
- Challenge: A medical company required flexible, biocompatible catheter tips that could withstand sterilization (autoclaving at 134°C).
- Solution: Molded with FDA-compliant FEP compound and used plasma treatment for bonding to nylon shafts.
- Result: Parts passed ISO 10993 biocompatibility tests; 100,000+ units produced monthly with zero defects.
Case 3: FEP Impeller Anti-Corrosion Study for Chemical Processing
- Challenge: A chemical plant’s metal impellers failed after 3 months in acidic solutions.
- Solution: Replaced with FEP-molded impellers using high-purity FEP resin and optimized mold shrinkage control.
Result: Impeller lifespan increased to 18 months; maintenance costs reduced by 65%.
Why Choose Our FEP Injection Molding Services?
We don’t just mold FEP—we partner with you to solve problems. Here’s what sets us apart:
- ISO-certified FEP molding plant: Certified to ISO 9001:2015 and ISO 13485 (for medical parts) for consistent quality.
- 24/7 FEP production support: Our team is available around the clock to address production delays or design tweaks.
- In-house FEP tool design: We design and manufacture molds in-house, cutting lead times by 30%.
- Rapid FEP prototyping service: Get functional prototypes in 5 – 7 days (vs. 2+ weeks from competitors).
- Competitive FEP part pricing: Our high-volume capacity and efficient tooling reduce costs by 15 – 20% for large runs.
- Full PPAP & FAI documentation: We provide complete Production Part Approval Process (PPAP) and First Article Inspection (FAI) reports for automotive/aerospace clients.
Global FEP logistics network: Deliver parts to 30+ countries with door-to-door shipping and customs clearance support.
