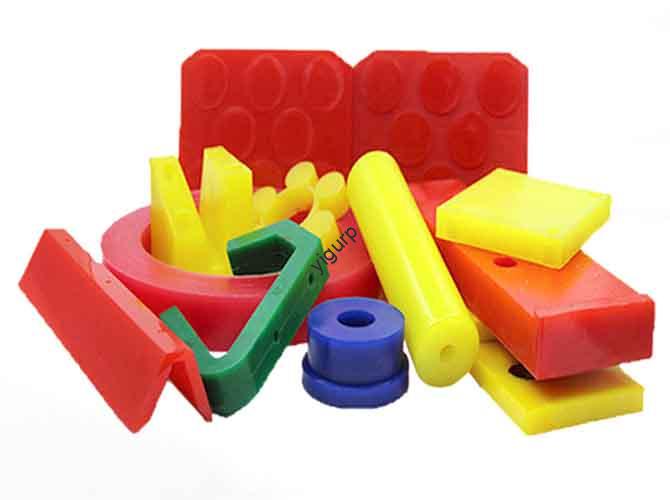

Our Polyurethane PU Injection Molding Services

Elevate your components with our Polyurethane Injection Molding services—where versatile thermoset polyurethane meets tailored liquid injection molding (LIM) y reaction injection molding (RIM) soluciones. From flexible footwear midsoles to rigid automotive fascias, we deliver precision, durabilidad, and design freedom that outperforms rubber and metal, backed by decades of PU chemistry expertise.​

Obtenga una cita gratis

Definición: Understanding Polyurethane Injection Molding

Polyurethane Injection Molding (often called PU Molding) is a manufacturing process that transforms liquid polyurethane (PUS) materials into custom-shaped parts. A diferencia de los termoplásticos, PU is a thermoset polyurethane—it cures (hardens permanently) when reactive components mix, making it ideal for parts needing flexibility, durabilidad, or insulation. Two primary methods dominate this field: RIM vs LIM (Reaction Injection Molding vs. Liquid Injection Molding), each suited to different applications. Below are key technical specifications that define quality PU injection molding:​

​

​

En breve, Polyurethane Injection Molding leverages PU’s unique chemistry to create parts that blend strength, flexibilidad, and design versatility—filling gaps where traditional materials fall short.

Nuestras capacidades: Mastering PU Injection Molding Solutions

En yigu, nuestro PU Injection Molding Capacity covers every stage of production, Desde la creación de prototipos hasta la fabricación de masas. We specialize in both RIM Molding y LIM Molding, plus advanced techniques to meet complex project demands. Here’s a detailed breakdown of our core capabilities:​

Descripción general de las capacidades básicas

​

​

Our team’s deep expertise in PU Injection Molding ensures we select the right process for your project—whether you need a single prototype or a million parts monthly.

Proceso: Step-by-Step Polyurethane Injection Molding

El Polyurethane Molding Steps vary slightly by method (RIM vs. LIM) but follow a core sequence focused on precise mixing and controlled curing. Below is a universal breakdown of the process, optimized for quality and efficiency:​

1. Meter-Mix-Dispense: The foundation of PU molding—two reactive components (isocyanate and polyol, de TDI/MDI Prepolymers o polyether/polyester polyols) are measured in exact ratios (via computer-controlled meters) and mixed in a static/dynamic mixer. For RIM, mixing happens at low pressure; for LIM, it’s pre-metered to ensure consistency.​

2. Preparación de moho: El molde (aluminum for prototypes, steel for high-volume) is preheated to the target temperature (40–120 ° C) and coated with a release agent (to prevent sticking). If the part has inserts (P.EJ., metal threads, electrónica), they’re placed in the mold cavity at this stage.​

3. Sujeción de moho: The mold is closed and clamped with enough force to resist injection pressure (5–200 bar). Clamping force depends on part size—large RIM parts need 50–200 tons of force; small LIM parts need 5–50 tons.​

4. Inyección & Curing Cycle: The mixed PU is injected into the mold cavity. For RIM, low pressure ensures even filling of large cavities; for LIM, faster injection works for small parts. El curing cycle begins immediately—PU reacts chemically (not just cools) para endurecer. Cure time varies: 10–30s for LIM, 30–120s for RIM.​

5. Fundamento: Una vez curado, El molde se abre, y la parte se elimina (manually for large RIM parts, automatically for small LIM parts). No cooling step is needed (unlike thermoplastics) because curing generates heat.​

6. Posterior a (Si es necesario): For parts requiring maximum strength (P.EJ., load-bearing industrial components), post-curing in an oven (60–80 ° C durante 1–2 horas) enhances chemical cross-linking. This step boosts abrasion resistance by 15–20%.​

7. Controles de calidad: Every part undergoes inspection—dimensional testing (via calipers/CMM), prueba de dureza (Shore durometer), and visual checks (for bubbles, destello, or defects). Failed parts are recycled (PU is 100% recyclable into regrind for non-critical parts).​

Optimización de procesos: We analyze cycle times, uso de material, and defect rates monthly to tweak parameters (P.EJ., mix ratio, temperatura del molde) for better efficiency. This keeps costs low and quality high.

Materiales: Choosing the Right PU for Your Project

PU Systems are highly customizable, with formulations tailored to specific hardness, flexibilidad, y necesidades de rendimiento. The choice depends on your part’s function—whether it needs to flex, insulate, or resist impact. Below is a guide to common PU materials and their applications:​

​

​

Guía de selección de materiales

1. Define Core Needs: List your part’s must-have properties (P.EJ., “needs to resist oil” or “must be soft to the touch”).​

2. Match to PU Type: Use the table above to narrow options (P.EJ., oil resistance = polyester-based PU; soft touch = flexible polyether PU).​

3. Test Prototypes: We create 3–5 prototypes with different PU grades to validate performance (P.EJ., impact testing for sports gear).​

4. Optimize for Cost: Para carreras de alto volumen, we recommend standard grades (P.EJ., polyether flexible PU) Para mantener los costos bajos; Para necesidades especializadas (P.EJ., médico), we use FDA-compliant formulations.​

We source PU materials from top suppliers (P.EJ., Basf, Covestro) to ensure consistency—every batch meets ISO 9001 standards for purity and performance.

Tratamiento superficial: Enhancing PU Part Performance & Estética

PU Surface Finishing adds functionality and visual appeal to parts, addressing needs like UV resistance, agarre, or branding. We offer a range of treatments tailored to PU’s unique properties (it bonds well with coatings and adhesives):​

​

​

Our team recommends treatments based on your part’s use case—for example, Revestimiento resistente a los rayos UV para piezas al aire libre, y plasma treatment for parts that need to bond with other materials.

Ventajas: Why Polyurethane Injection Molding Outperforms Other Methods

PU Molding Benefits make it a top choice for industries ranging from automotive to medical. Compared to rubber, metal, and thermoplastics, PU offers a unique blend of flexibility, fortaleza, y rentabilidad:​

• Libertad de diseño: PU flows easily into complex molds (even with undercuts, paredes delgadas, o detalles intrincados) that metal/rubber can’t match. Molduras de múltiples disparos adds more versatility—create parts with mixed hard/soft zones in one step. This is ideal for custom components (P.EJ., ergonomic tool handles).​

• Thick-Wall Parts Made Easy: A diferencia de los termoplásticos (which warp when thick), PU cures uniformly—perfect for large, piezas de paredes gruesas (P.EJ., automotive bumper fascias, 50mm de grosor) without shrinkage or defects. RIM molding makes these parts cost-effective, too.​

• Ligero: PU parts are 30–50% lighter than metal and 10–20% lighter than rubber. For automotive applications, this cuts fuel consumption by 2–3% per vehicle; for portable medical devices, it improves user comfort.​

• Superior Impact & Resistencia a la abrasión: Flexible PU absorbs impacts (it bounces back after being compressed 50%)—better than rubber for high-impact parts (P.EJ., sports padding). Reinforced PU resists abrasion 2x better than thermoplastics, making it ideal for industrial rollers.​

• Químico & Resistencia ambiental: PU resists oils, solventes, y temperaturas extremas (-40° C a 120 ° C). It also stands up to UV radiation (con Revestimiento resistente a los rayos UV) and humidity—perfect for outdoor/marine parts.​

• Thermal Insulation: Rigid PU has an R-value (aislamiento) of 3.6–4.0 per inch—better than fiberglass (R-3.2) and foam plastic (R-2.8). This makes it the top choice for refrigeration, construcción, and HVAC parts.​

• Short Lead-Time: PU tooling (moldes de aluminio) is cheaper and faster to make (2–4 weeks vs. 6–8 weeks for steel thermoplastic molds). LIM molding’s fast cycle times (10–30s) also speed up production.​

Cost vs Rubber/Metal: PU parts cost 15–20% less than rubber (no vulcanization needed) and 30–40% less than metal (fewer secondary operations like machining). Low-Cost Tooling for RIM/LIM further reduces upfront costs.

Industria de aplicaciones: Where PU Injection Molding Excels

PU Injection Molding Uses abarca casi todas las industrias, thanks to PU’s adaptability. Below are key sectors and their most common PU components:​

​

​For example, in automotive manufacturing, nuestro RIM Molding produces bumper fascias that are 40% lighter than metal, while in medical devices, nuestro LIM Molding creates precision housings that meet FDA Class I/II standards.

Estudios de caso: Real-World Success with PU Injection Molding

Nuestro PU Molding Success Stories demonstrate how we solve complex challenges for clients—from reducing costs to improving part performance. Below are three detailed case studies with measurable results:​

Estudio de caso 1: Automotive Bumper Fascias for a Global OEM​

• Desafío: A leading car manufacturer needed to replace metal bumper fascias with a lighter alternative to improve fuel efficiency. The new part required impact resistance (to pass 5mph crash tests), Estabilidad UV (no fading for 5+ años), and a sleek, paintable finish. Their previous thermoplastic fascias cracked in cold weather (-30° C).​

• Solución: Recomendamos RIM Molding with rigid PU (Orilla D 50) reinforced with 10% fibra de vidrio. We added an in-mold UV-resistant coating to prevent fading and optimized the mold design for uniform curing (avoiding cold spots that cause cracking).​

• Resultado: The PU fascias weighed 3.2kg vs. 5.5kilos (metal), cutting vehicle weight by 2.3kg and improving fuel efficiency by 2.1%. Pasaron 10+ cold-impact tests (-30° C) without cracking and maintained color consistency after 2,000 hours of UV exposure. We scaled production to 50,000 units/month with a 99.8% tasa sin defectos.

• Testimonial de clientes: “The PU fascias exceeded our performance goals—they’re lighter, más duro, and cheaper than metal. The team’s expertise in RIM molding made the transition seamless.” — Automotive Materials Engineer​

Estudio de caso 2: Medical Device Grips for a Diagnostic Company​

• Desafío: A medical tech startup needed ergonomic grips for handheld diagnostic tools. The grips required a soft, superficie sin deslizamiento (for wet hands), biocompatibilidad (FDA Class II), and compatibility with autoclave sterilization (121° C, 30 minutos). Their initial rubber grips degraded after 10 Ciclos de esterilización.

• Solución: Usamos multi-shot LIM Molding—injecting a rigid PU core (Orilla D 60) for structural support and a soft, flexible PU overmold (Costa a 30) para agarrar. We formulated the soft PU with medical-grade additives to ensure biocompatibility and resistance to autoclave heat.​

• Resultado: The grips survived 50+ autoclave cycles without cracking or hardening. Nurses reported a 40% reduction in hand fatigue (due to the ergonomic design), and the non-slip surface reduced tool drops by 25%. Entregamos 10,000 unidades en 6 semanas (3 weeks faster than the client’s timeline) via our prototype to high-volume capability.​

• ROI Analysis: The PU grips cost 18% more than rubber upfront but lasted 5x longer, cutting the client’s annual replacement costs by $75,000.​

Estudio de caso 3: Industrial Roller Replacement for a Logistics Firm​

• Desafío: A warehouse logistics company’s steel conveyor rollers were causing damage to fragile packages (due to hard surfaces) and rusting in humid conditions. They needed rollers that were durable (último 2+ años), no abrasivo, and corrosion-resistant—at a cost similar to steel.​

• Solución: We manufactured rollers using filled/reinforced PU (Orilla D 70) with carbon black additives (para resistencia a los rayos UV) y un suave, acabado pulido. Usamos high-pressure molding to ensure the PU bonded tightly to steel cores (preventing slippage) and added a bonding primer for extra adhesion.​

Resultado: The PU rollers reduced package damage by 60% (thanks to the non-abrasive surface) y no mostró óxido después 2 years in humid warehouses. They weighed 30% menos que acero, reducing conveyor motor wear by 15%. At ​25/roller(Vs.22 para acero), el 13% price premium was offset by lower maintenance costs—delivering a 22% ROI in 1 año.

Por qué elegirnos: Your Trusted Polyurethane Injection Molding Partner

Cuando se trata de PU Injection Molding, we don’t just make parts—we deliver tailored solutions that align with your goals. Here’s why clients across industries choose Yigu:​

1. Experiencia inigualable & Certifications​

Con 30-Year PU Expertise, our engineers specialize in both RIM and LIM molding—we’ve solved over 1,200 unique PU challenges (from ultra-precise medical parts to large automotive components). We’re ISO 9001 & Iatf 16949 Certified, ensuring compliance with strict industry standards (automotor, médico, electrónica). Nuestro equipo incluye 5 engineers with PU chemistry certifications, so we can formulate custom materials for even the most niche needs.​

2. End-to-End Design & Engineering Support​

Nuestro In-House Design & Ingeniería team offers Design-for-Manufacture (DFM) Apoyo—we review your 3D models (CAD/CAM) to optimize part geometry for molding (P.EJ., adding draft angles to reduce defects). We also use simulation software to test mold filling and curing, eliminating design flaws before tooling begins. This cuts lead times by 15–20% and reduces tooling costs by up to 10%.​

3. Flexible Production & Fast Tooling​

We handle everything from 1–100 prototypes (using low-cost aluminum molds) a 100,000+ monthly parts (with high-durability steel molds). Nuestro Fast Tooling Modifications (in-house tool room) let us adjust molds in 1–2 days (VS. 1–2 weeks for external suppliers)—critical for quick design iterations. Para proyectos urgentes, we offer expedited production (20% faster than standard lead times) sin comprometer la calidad.

4. Sostenible & Customizable Solutions​

We prioritize sustainability with Bio-Based PU opción (30–50% renewable content) y 100% recyclable scrap material. We also offer fully customizable PU formulations—whether you need a specific Shore hardness (Shore 00 10 a la orilla D 80), color, or additive (P.EJ., anti-microbial, retraso de las llamas). Our material team works with top suppliers (Basf, Covestro) to source high-quality PU systems that meet your performance needs.​

5. Global Logistics & 24/7 Support​

Enviamos a 25+ countries with optimized logistics (aire, sea, ground) to ensure on-time delivery (98% on-time rate). Nuestro 24/7 Apoyo técnico team is available for urgent issues—whether you need to adjust a production run or troubleshoot a part performance problem. We also assign a dedicated account manager to every client, so you always have a single point of contact.​

6. Fijación de precios competitivos & Transparent Costs​

Ofrecemos Fijación de precios competitivos by optimizing material usage (desperdiciar <5%) and leveraging economies of scale. We provide detailed, transparent quotes (No hay tarifas ocultas) and help you reduce costs—for example, recomendación low-pressure molding for parts with inserts (avoids expensive secondary operations). Para carreras de alto volumen, we offer volume discounts that can lower costs by 10–15%.

Preguntas frecuentes
