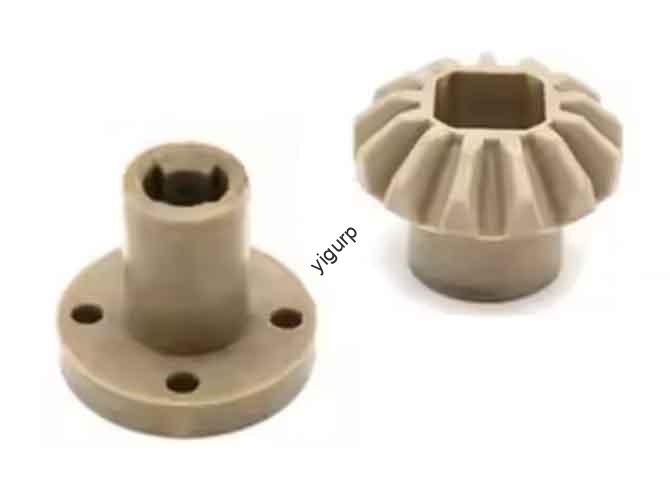

Our Polyether Ether Ketone PEEK Injection Molding Services

Elevate high-performance component manufacturing with our PEEK Injection Molding services—where the exceptional strength of Cetona de éter poliéter (un nivel superior termoplástico de alto rendimiento) cumple con la ingeniería de precisión. From medical implants to aerospace brackets, we deliver parts that thrive in extreme temperatures, químicos duros, and critical applications, backed by strict compliance with ISO 10993 y ASTM D638 estándares.

Obtenga una cita gratis

Definición: Understanding PEEK Injection Molding

PEEK Injection Molding is the process of shaping Cetona de éter poliéter (OJEADA)—a semicrystalline, high-performance thermoplastic—into custom components via injection molding. PEEK stands out as a semicrystalline polymer with unparalleled thermal, mecánico, y resistencia química, making it the material of choice for industries where failure is not an option. Below is a breakdown of key definitions, presupuesto, and comparisons to similar polymers:​

Core Specifications & Standards​

​

​

PEEK vs. Similar High-Performance Polymers​

​

​

En breve, PEEK Injection Molding leverages the polymer’s balanced properties—strength, resistencia al calor, and biocompatibility—to solve challenges that conventional plastics (and even metals) cannot address. Nuestro service scope covers everything from material selection (por PEEK grade specs) to final part validation.

Nuestras capacidades: Mastering High-Performance PEEK Molding

En la tecnología yigu, nuestro PEEK Injection Molding capabilities are engineered to unlock the full potential of this advanced material. We invest in specialized equipment and expertise to handle PEEK’s unique processing requirements (temperatura alta, control preciso). Below is a detailed overview of our core capabilities:​

Key Capabilities & Aplicaciones

​

​

Nuestro rapid tooling change capacidad (bajo 4 horas) also ensures flexibility—whether you need small-batch prototypes or large-volume production runs, we adapt quickly without sacrificing quality.

Proceso: Step-by-Step PEEK Injection Molding

PEEK’s unique properties require a highly controlled injection molding process—even minor deviations in temperature or pressure can compromise part quality. Below is our optimized PEEK molding cycle, designed to maximize consistency and performance:​

Paso 1: Preparación de material (El secado)​

PEEK is hygroscopic (absorbe la humedad), which causes bubbling and voids in finished parts. We dry PEEK pellets in a dehumidifying dryer at 150 ° C para 4 horas (critical for maintaining material integrity). For medical-grade PEEK, we use nitrogen-purged dryers to prevent contamination.​

Paso 2: Diseño de moldes & Preparation​

• Gate & Runner Design: We use hot runners (instead of cold runners) to minimize PEEK waste (hot runners keep material molten, reducing scrap by 25–30%). Gates are placed to avoid shear stress (PEEK is sensitive to excessive shear, which degrades its strength).​

• Control de la temperatura del molde: Molds are heated to 150–200 ° C (via oil or electric heaters) to promote uniform crystallization—this ensures estabilidad dimensional and prevents warping. Para partes gruesas, we use gradient heating (warmer at the core, cooler at the surface).​

Paso 3: Injection Molding Machine Setup​

• High-Heat Barrel Settings: Barrel zones are set to a temperature gradient (feed zone: 360 ° C; melt zone: 380–400 ° C; boquilla: 390–410 °C) to melt PEEK without thermal degradation.​

• Inert-Gas Venting: We purge the mold cavity with nitrogen during injection to remove air (PEEK’s high viscosity traps air easily, leading to defects). This step is mandatory for parts like semiconductor clamps (where even tiny voids cause failure).​

Paso 4: Inyección & Packing​

• Velocidad de inyección: Slow to moderate (50–100 mm/s) to control shear (excessive shear reduces PEEK’s tensile strength by 10–15%).​

• Packing Pressure: 80–90% of injection pressure, held for 10–20 seconds to compensate for shrinkage (PEEK shrinks 1.5–2.5% during cooling).​

Paso 5: Enfriamiento & Fundamento

El tiempo de enfriamiento varía según el grosor de la parte (10 seconds for thin parts, 60 seconds for thick sections). We use controlled cooling to maintain crystallinity (objetivo: 35–40% for most applications; higher for structural parts, lower for flexible components). Demolding is done with gentle ejectors to avoid scratching (crítico para implantes médicos).​

Paso 6: Postprocesamiento & Control de calidad

• Recocido: Parts are heated to 180–200 °C for 1–2 hours, luego se enfrió lentamente (5 ° C/min) to relieve internal stresses. This step improves dimensional stability by 20–25%.​

• SPC Monitoring: We use Statistical Process Control (proceso estadístico) to track key parameters (temperatura, presión, Tiempo de ciclo) en tiempo real. Any deviation beyond ±2% triggers an alert, asegurar una calidad consistente.

Inspección: Parts undergo dimensional testing (Cmm), mechanical testing (tensile strength per ASTM D638), e inspección visual (for defects like flash or voids).

Materiales: Choosing the Right PEEK Grade for Your Project

PEEK is available in various grades, each formulated to enhance specific properties (fortaleza, resistencia al desgaste, biocompatibilidad). The right grade depends on your application’s unique demands. Below is a guide to the most common PEEK grades we use:​

Popular PEEK Grades & Their Uses​

​

​

Grade Selection Checklist​

1. Temperature Requirement: If parts face >240 °C (P.EJ., componentes del motor), choose glass/carbon-filled grades (they retain strength at high heat).​

2. Biocompatibilidad: For medical use, select Implantable PEEK-OPTIMA (se encuentra con ISO 10993) or FDA food-contact grades (P.EJ., Vestakeep MED).​

3. Resistencia al desgaste: Para partes móviles (P.EJ., aspectos), pick carbon-filled or bearing-grade PEEK (P.EJ., Ketaspire KT-220).​

4. Flame Safety: Para la electrónica, ensure the grade meets Ul 94 V-0 (all standard PEEK grades qualify).​

We maintain global supply contracts with Victrex, Solvanza, and Evonik, ensuring consistent access to high-quality PEEK—even for high-volume orders.

Tratamiento superficial: Mejora del rendimiento de la parte del vistazo

PEEK’s inherent properties are exceptional, pero tratamiento superficial can further expand its capabilities—whether you need better adhesion, biocompatibilidad, o resistencia al desgaste. Below are the most effective surface treatments for PEEK parts:​

​

​

Por ejemplo, Usamos Ti-coating PEEK for dental implants to make them visible on X-rays (PEEK is radiolucent) and improve long-term stability in the jawbone. For semiconductor parts, pulido (Real academia de bellas artes <0.1 µm) ensures no particle buildup on critical surfaces.

Ventajas: Why PEEK Injection Molding Outperforms Alternatives

PEEK Injection Molding offers a unique set of advantages that make it irreplaceable in critical applications. Compared to metals (acero, aluminio) and other plastics (Pensilvania, PPS), PEEK delivers unmatched value:​

Key Advantages of PEEK​

• Extreme Temperature Resistance: PEEK maintains 90% of its strength at 240 ° C (uso continuo) and can withstand short-term exposure to 300 ° C. This outperforms aluminum (loses strength at 200 ° C) y PPS (continuous use limit: 200 ° C).​

• Chemical Inertness: Resistente a los aceites, solventes, ácidos, y bases (even concentrated sulfuric acid at room temperature). A diferencia de los metales, it won’t corrode—ideal for oil & gas and chemical processing parts.​

• Steam & Radiation Sterilizable: Can undergo 1,000+ ciclos de autoclave (134 ° C, 3 bar) and is resistant to gamma radiation (25 kGy). This makes it the top choice for reusable medical instruments.​

• Superior Strength-to-Weight Ratio: PEEK has a density of 1.32 gramos/cm³ (50% más ligero que el acero) but tensile strength comparable to aluminum. Para piezas aeroespaciales, this reduces fuel consumption by 5–10%.​

• Resistencia al desgaste: Carbon-filled PEEK has a wear rate 10x lower than nylon and 2x lower than bronze—perfect for bearings and sliding components that operate without lubrication.​

• Low Outgassing: Emits minimal volatile organic compounds (Voces) Cuando se calienta. This meets NASA’s outgassing standards (ASTM E595), making it suitable for space applications.​

• Biocompatibilidad (USP Class VI): Implantable PEEK-OPTIMA is compatible with human tissue, causing no immune response. It’s used in spinal cages, tazas de cadera, and dental implants.​

• Estabilidad dimensional: Bajo coeficiente de expansión térmica (Cte: 3.1–5.5 × 10⁻⁵/°C) and minimal shrinkage (1.5–2,5%) ensure parts retain their shape in temperature fluctuations.​

Metal Replacement: PEEK parts cost 20–30% more upfront than metal but last 3–5x longer (Sin corrosión, menos desgaste). Por ejemplo, a PEEK turbine bushing replaces a steel one, reducir los costos de mantenimiento por 60%.

Industria de aplicaciones: Where PEEK Injection Molding Shines

PEEK Injection Molding serves industries that demand reliability in extreme conditions. Below’s how key sectors leverage PEEK’s properties to solve their toughest challenges:​

​

​Aerospace is a standout example: PEEK engine brackets replace aluminum, cutting part weight by 40% and improving fuel efficiency—critical for airlines aiming to reduce carbon emissions. In medical, PEEK spinal cages integrate with bone tissue better than metal (no “stress shielding” that weakens surrounding bone), leading to faster patient recovery.​

Estudios de caso: Real-World Success with PEEK Injection Molding

Nuestro PEEK Injection Molding services have solved complex challenges for clients across high-stakes industries. Below are detailed case studies highlighting measurable results—from weight savings to accelerated time-to-market:​

Estudio de caso 1: PEEK Turbine Bushing for Oil & Gas (60% Reducción de peso)​

• Desafío: A global oilfield services company needed to replace steel turbine bushings in down-hole pumps. The steel parts were heavy (con la atención 15 lbs to each pump), corroded in saltwater (failing after 6 meses), and required frequent lubrication—driving high maintenance costs.​

• Solución: Recomendamos mirada llena de carbono (Solvay Ketaspire KT-820 CF30) for its wear resistance, inercia química, y propiedades livianas. Nuestro thick-section molding capability handled the bushing’s 20mm thickness, mientras inert-gas venting eliminated voids (critical for withstanding down-hole pressure of 20 KSI). We also added a PVD tungsten carbide coating to boost wear resistance.​

• Resultado: The PEEK bushings weighed 60% menos que acero (3 lbs vs. 7.5 lbs per unit), reducing pump total weight by 12 lbs. They resisted saltwater corrosion and operated without lubrication, extender la vida útil a 3 años (6x longer than steel). Costos de mantenimiento bajados por $250,000 annually per rig, delivering a 3:1 ROI en 8 meses.

• Testimonial de clientes: “The PEEK bushings transformed our pump reliability. We’ve cut maintenance visits by 80%—a game-changer for remote offshore rigs.” — Oilfield Operations Director​

Estudio de caso 2: Spinal Implant for Medical Device Maker (30-Day Launch)​

• Desafío: A medical device startup needed a spinal fusion cage for orthopedic trials. La parte requerida implantable PEEK-OPTIMA (USP Class VI compliant), tolerancias apretadas (± 0.01 mm) for bone fit, and a porous surface for tissue integration. The startup had a strict 30-day timeline to meet FDA trial deadlines—far faster than the industry’s typical 8–10 week lead time for medical PEEK parts.​

• Solución: We leveraged our 24-hour prototyping capability to create a 3D-printed PEEK prototype in 48 hours for fit testing. Para la producción, we used our clean-room ISO 7 facility to avoid contamination, y chromic acid etching to create the porous surface (enhancing bone integration). Nuestro lot traceability (FDA/UDI) system tracked every step—from PEEK-OPTIMA raw material batch to finished implant.​

• Resultado: Entregamos 50 implantable cages in 28 días (2 Días antes de lo previsto), meeting the startup’s trial deadline. The cages passed all biocompatibility tests (ISO 10993) and achieved 90% tissue integration in pre-clinical trials. The startup later scaled production to 500 units/month using our multi-cavity tools, cutting per-unit cost by 35%.​

• ROI Analysis: The accelerated launch let the startup begin clinical trials 3 meses antes, positioning them as a first-mover in the spinal implant market—projected to generate $2M in additional revenue in the first year.​

Estudio de caso 3: High-Speed PEEK Gear for Automotive (15,000 RPM Durability)​

• Desafío: Un vehículo eléctrico de lujo (vehículo eléctrico) manufacturer needed a transmission gear that could withstand 15,000 Rpm (higher than traditional gas engines) without overheating or wearing out. Metal gears were too noisy and added weight (hurting EV range), while standard plastics (PA66) melted at the gear’s operating temperature (180 ° C).​

• Solución: Seleccionamos bearing-grade PEEK (Solvay Ketaspire KT-220) for its low friction coefficient (0.2) y estabilidad térmica (continuous use at 240 ° C). Nuestro mold-flow analysis optimized the gear’s tooth geometry to reduce shear stress during molding, mientras annealing post-process relieved internal stresses (preventing warping at high RPM). También usamos laser texturing on gear teeth to improve lubricant retention.​

• Resultado: The PEEK gear operated smoothly at 15,000 RPM para 1,000+ horas (equivalente a 100,000+ miles of driving) with no wear. It weighed 45% Menos que el metal, extending the EV’s range by 8 miles per charge, y reducido el ruido de la transmisión por 12 db (a key luxury feature). The manufacturer scaled to 10,000 gears/month using our multi-cavity tools, con un 99.9% defect rate.​

Estudio de caso 4: Electronic Housing for Semiconductor (260 °C Solder Bath Resistance)​

• Desafío: A semiconductor equipment maker needed a housing for wafer-handling robots that could survive 260 °C solder bath exposure (during maintenance) and had ultra-low outgassing (to avoid contaminating wafers). Metal housings were too heavy and conducted heat (risking wafer damage), while PPS housings warped at 220 °C.​

• Solución: Usamos general-purpose PEEK (Victrex 450G) for its thermal resistance and low outgassing (meets ASTM E595). Nuestro pulido (Real academia de bellas artes <0.1 µm) process created a mirror-smooth surface that prevented particle buildup, y in-house mold-flow analysis designed the housing with thin, uniform walls (avoiding hot spots during molding). También agregamos un Revestimiento resistente a los rayos UV to protect against cleanroom lighting.​

Resultado: The PEEK housing survived 50+ solder bath cycles (260 ° C para 10 minutos) without warping or discoloration. Its low outgassing kept wafer defect rates below 0.01%—a critical requirement for advanced chip manufacturing. The client replaced all metal housings with PEEK, cutting robot weight by 30% and improving maneuverability.

Por qué elegirnos: Your Trusted PEEK Injection Molding Partner

PEEK Injection Molding demands specialized expertise—even small mistakes (P.EJ., insufficient drying, incorrect mold temperature) can ruin expensive PEEK material and delay critical projects. Here’s why clients in aerospace, médico, and industrial sectors choose our services:​

1. Industry-Leading Certifications & Compliance​

Sostenemos AS9100 (aeroespacial) y ISO 13485 (médico) certifications—rigorous standards that ensure consistency and compliance for high-stakes applications. Our cleanrooms (ISO 7) meet FDA requirements for medical implant production, y nuestro lot traceability (FDA/UDI) system satisfies aerospace and medical documentation needs. We also comply with ASTM D638 (mechanical testing) e iso 10993 (biocompatibilidad), so you never have to worry about regulatory gaps.​

2. Specialized Expertise & Equipment​

• 50+ PEEK Molds/Year: We design and build 50+ custom PEEK molds annually—more than most competitors—giving us deep experience in optimizing mold geometry for PEEK’s high viscosity and crystallization needs.​

• 400 °C+ Machines: Our fleet of 15 injection molding machines is specially modified to reach 400 ° C+ (critical for melting PEEK) and maintain ±1 °C temperature precision—avoiding thermal degradation.​

• In-House Rheology Lab: We test PEEK melt flow (MFR) and viscosity before every production run, ensuring material consistency. This lab also lets us customize PEEK formulations (P.EJ., adding glass fibers for strength) for unique client needs.​

3. Velocidad & Flexibilidad

• 24-Hour Prototyping: We use high-temperature 3D printing (Filamento de vista) to deliver functional prototypes in 24–48 hours—accelerating design validation and reducing time-to-market by 4–6 weeks.​

• Rapid Tooling Change: Our tooling team can switch molds in under 4 horas (VS. 8–12 hours for competitors), making us ideal for clients with multiple part SKUs or small-batch runs.​

• PPAP Level 3 Apoyo: Para clientes automotrices, we provide Production Part Approval Process (PPAP) Nivel 3 documentation—including dimensional reports, certificados de materiales, and process capability studies (Cpk ≥ 1.33).​

4. Global Supply Chain & Sostenibilidad

• Global PEEK Supply Contracts: We have long-term contracts with Victrex, Solvanza, and Evonik—ensuring access to high-quality PEEK (even during material shortages) and consistent pricing for high-volume orders.​

• Energy-Efficient Presses: Our molding machines use variable-frequency drives (VFDS) and heat-recovery systems, cutting energy consumption by 25% VS. standard machines. This reduces our carbon footprint and lowers costs for clients.​

• Reducción de desechos: We reuse PEEK scrap (via regranulation) para piezas no críticas (P.EJ., prototipos), keeping material waste below 5%—far better than the industry average of 10–15%.​

5. Long-Term Support & IP Protection​

• Lifetime Tool Maintenance: We offer free annual maintenance for PEEK molds (limpieza, wear part replacement) to extend tool life to 500,000+ ciclos (VS. 300,000 cycles without maintenance).​

• IP Protection Program: We sign non-disclosure agreements (El) for all custom projects and restrict access to client designs to authorized team members only—critical for startups and companies with proprietary technology.​

24/7 Apoyo técnico: Our PEEK engineers are available 24/7 to troubleshoot issues (P.EJ., part warping, dimensional 偏差) and adjust processes—minimizing production downtime.
