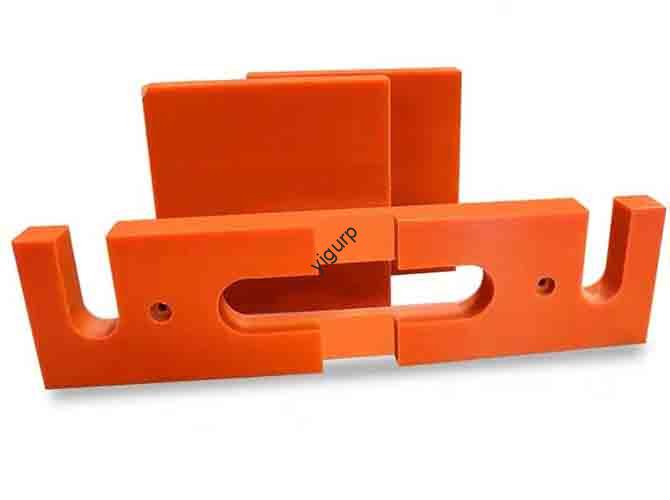

Our Phenolic Resin Bakelite injection molding Services
Elevate your industrial components with Yigu Technology’s Phenolic Resin Bakelite Injection Molding services—the trusted solution for high-performance, heat-resistant thermoset parts. From UL-rated switchgear to food-safe cookware handles, we combine advanced multi-cavity tooling, clean-room production, and specialized phenolic formulations to deliver parts that excel in extreme conditions. Backed by ISO 9001/IATF 16949 certifications and 24/7 apoyo, we turn your Bakelite molding challenges into reliable, Soluciones rentables.
What Is Phenolic Resin Bakelite Injection Molding?
Phenolic Resin Bakelite Injection Molding is a specialized manufacturing process that shapes phenol-formaldehyde (PF) resina—commonly known as Bakelite—into durable parts via high-pressure injection into precision molds. Unlike thermoplastics that soften when heated, Bakelite is a thermoset phenolic; once cured, it retains its shape and properties even at extreme temperatures, making it ideal for applications needing long-term stability.
En su núcleo, Bakelite plastic molding leverages the material’s unique cross-linked molecular structure. During molding, the phenolic resin cures (hardens permanently) under heat and pressure, creating parts with unbeatable heat resistance and electrical insulation. Por eso PF (phenol-formaldehyde) moldura is the go-to choice for industrial, automotor, and electrical components that face harsh conditions.
Key Traits of Phenolic Resin Molding
| Rasgo | Descripción | Relevance to Molding |
| Thermoset Behavior | Cures irreversibly; no re-melting after forming | Ensures parts retain shape in high-heat environments |
| Cross-Linked Structure | Molecular bonds form a rigid, 3D network during curing | Delivers exceptional dimensional stability and creep resistance |
| High Heat Tolerance | Typical continuous use temp: 150–200 ° C (up to 300°C short-term) | Ideal for cookware, automotor, and industrial heat-exposed parts |
| Aislamiento eléctrico | Low dielectric constant (3.5–5.0) and high volume resistivity | Perfect for switchgear, conectores, and electrical housings |
Our Phenolic Resin Bakelite Injection Molding Capabilities: Power Meets Precision
Tecnología de Yigu Bakelite injection molding capacity is built to handle diverse industrial needs—from small-batch prototypes to high-volume production—while maintaining strict quality standards. Our facility specializes in thermoset challenges, with a focus on tight tolerances and versatile molding techniques.
Desglose de capacidades centrales
| Capacidad | Especificación | Aplicaciones ideales |
| Control de tolerancia | ±0.02 mm for standard parts; ±0.01 mm for precision components | Electrical connector housings, RF terminals |
| Multi-Cavity Phenolic Tooling | Up to 64-cavity molds (for small parts like knobs) | High-volume cookware handles, appliance controls |
| Producción de alto volumen | 5–8 million parts/year (via automated lines) | Automotive commutators, brake-pad backings |
| Clean-Room Phenolic Service | Clase 8 (100,000) certified rooms | Food-contact cookware, Componentes del dispositivo médico |
| Insert & Over-Molding Bakelite | Compatible with metals (latón, acero) and plastics | Motor end-caps, clutch cylinders with metal inserts |
| Post-Mold Machining & Ritmo | CNC drilling, enhebrado (up to M12 size) | Industrial bobbins, switchgear mounting brackets |
The Phenolic Resin Bakelite Injection Molding Process: Precisión paso a paso
Thermoset phenolic molding requires careful control of heat, presión, and curing time—mistakes here can ruin parts. Our optimized process ensures consistent, high-quality Bakelite components every time.
Paso 1: Resin Preparation
We start with dry resina fenólica bandear (contenido de humedad <0.1% para evitar burbujas). Para piezas especializadas, we blend additives: glass fibers (para la fuerza), pigments (para el color), or flame retardants. Glass-filled Bakelite compounds are mixed in a twin-screw extruder to ensure even distribution.
Paso 2: Mold Setup & Temperature Control
The mold is preheated to the Bakelite cure temperature window (160–190°C) using cartridge heaters. Usamos cold-runner & hot-pot mold design—the hot pot keeps resin molten, while cold runners prevent premature curing, reducing waste by 25% VS. traditional designs.
Paso 3: Inyección & Curado
Resin is injected into the mold at 800–1,500 bar pressure. The key is thermoset cycle time optimization: we hold pressure for 30–90 seconds (Dependiendo del grosor de la parte) to let the resin cure fully. Thicker parts (P.EJ., brake-pad backings) need longer hold times (60–90s) to avoid internal cracks.
Paso 4: Fundamento & Deflashing
Después de curar, parts are demolded gently (Bakelite is brittle when cool). We use automated degating & flash control—trim robots remove runners, y phenolic deflashing media (pellets de plástico) bordes suaves. Para piezas de alta precisión, we add Bakelite vibratory tumbling (10–15 minutos) to eliminate micro-flash.
Paso 5: Post-Mold Finishing & Inspección
Parts go through post-mold machining & ritmo si es necesario (P.EJ., threading for mounting holes). We then inspect 100% de piezas: controles dimensionales (via CMM), heat-resistance tests (200° C para 24 horas), and electrical insulation checks (per UL standards).
Phenolic Resin Bakelite Materials: Formulations for Every Need
The right phenolic formulation makes or breaks a part. Ofrecemos una gama de phenolic resin grades tailored to industry-specific demands—from heat-resistant automotive parts to food-safe kitchen tools.
Popular Phenolic Formulations We Offer
| Formulation Type | Propiedades clave | Target Applications |
| General-Purpose Phenolic Resin | Buena fuerza, rentable, temp resistance up to 150°C | Industrial bobbins, perillas |
| Glass-Filled Bakelite Compounds | 30–50% higher tensile strength (50–70 MPA), resistencia al impacto | Brake-pad backings, motor end-caps |
| Electrical-Grade Phenolic Molding | Ul 94 V0 rated, low dielectric loss, high insulation resistance | Aparejo, electrical connector housings |
| Heat-Resistant Phenolic Resin | Continuous use temp up to 200°C, short-term up to 300°C | Toaster bases, steam-iron thermostats |
| Low-Emission PF Formulations | <0.1% formaldehyde emission, RoHS compliant | Indoor electrical components, consumer appliances |
| Food-Contact Approved Phenolic | FDA 21 CFR 177.2420 obediente, no tóxico | Cookware handles, food processor parts |
Phenolic Resin Bakelite Surface Treatment: Enhancing Function & Estética
Bakelite’s natural surface is smooth but can benefit from treatment to boost durability, printability, or bonding. Our surface services ensure parts meet both functional and visual requirements.
Common Surface Treatments for Bakelite
| Método de tratamiento | Propósito | Beneficio |
| Phenolic Shot-Blast Finish | Crea un mate, superficie uniforme; removes residual flash | Mejora el agarre (for knobs); enhances paint adhesion |
| Surface Sealant for Phenolic | Seals porous areas in the resin | Prevents moisture absorption; increases chemical resistance |
| Bakelite Pad-Printing Primer | Prepares surface for ink adhesion | Enables clear, long-lasting logos/text (for appliances) |
| Plasma Treat for Bonding | Increases surface energy | Improves bonding with adhesives (for over-molded parts) |
| Phenole Lacquer Coating | Adds a glossy, protective layer | Mejora la estética; Resiste los rasguños (for visible parts) |
Advantages of Phenolic Resin Bakelite: Why It Outperforms Other Materials
Bakelite stands out among thermosets and thermoplastics for its unbeatable combination of durability, rentabilidad, y rendimiento. Here’s why it’s the top choice for tough applications:
- Phenolic Heat Resistance Benefit: Handles 150–200°C continuous use (VS. 80–120°C for ABS plastic)—perfect for toasters, componentes del motor, and industrial ovens.
- Bakelite Dimensional Stability: Shrinks only 0.5–1.5% during curing (VS. 2–5% for nylon), ensuring parts fit perfectly even after years of use.
- Phenolic Electrical Insulation: Acts as a reliable insulator in high-voltage environments (up to 10kV)—critical for switchgear and power connectors.
- Low-Smoke Bakelite Advantage: Emits minimal smoke when heated (per UL 94 estándares), making it safe for enclosed spaces like aircraft cabins.
- Cost-Effective Thermoset Value: 20–30% cheaper than PEEK (un termoplástico de alto rendimiento) while offering similar heat resistance.
- Phenolic Creep Resistance: Maintains shape under constant stress (P.EJ., brake-pad backings under pressure), outlasting rubber or plastic alternatives.
Bakelite Chemical Inertness: Resiste los aceites, solventes, and most household chemicals—ideal for automotive and industrial settings.
Phenolic Resin Bakelite Applications: Across Key Industries
Bakelite’s versatility makes it indispensable in industries where reliability under stress is non-negotiable. Our clients trust our molding expertise to create parts that solve their toughest challenges.
Industry-by-Industry Applications & Solutions
| Industria | Aplicaciones clave | Our Molding Solution |
| Eléctrico | Phenolic molded switchgear, electrical connector housings, RF terminals | Electrical-grade resin, Ul 94 V0 compliance, tolerancias apretadas (± 0.01 mm) |
| Accesorios | Bakelite cookware handles, toaster bases, steam-iron thermostats | Food-contact approved resin, heat-resistant formulations (200° C) |
| Automotor | Phenolic automotive commutators, brake-pad backings, clutch cylinders | Glass-filled Bakelite, Iatf 16949 certified production, insert molding |
| Industrial | Phenolic industrial bobbins, componentes de la bomba, protector de máquinas | High-strength formulations, post-mold machining, chemical-resistant sealants |
| Aeroespacial | Phenolic aerospace terminal blocks, avionics housings | Low-emission PF, flame-retardant grades, full traceability |
Estudio de caso: UL-Rated Circuit-Breaker Case for an Electrical Manufacturer
A leading electrical supplier needed a UL-rated circuit-breaker case that could withstand high voltage (600V), resist heat (180° C), and meet strict dimensional standards. Their previous plastic case (Abdominales) failed UL testing due to poor heat resistance.
Nuestra solución:
- Selección de material: Elegir electrical-grade phenolic molding resin with UL 94 V0 flame rating and high dielectric strength (20 kV/mm).
- Diseño de moldes: Used a 16-cavity cold-runner mold to reduce waste and ensure uniform curing. Added precision pins to meet the ±0.01 mm tolerance for mounting holes.
- Optimización de procesos: Set mold temperature to 180°C, injection pressure to 1,200 bar, and cure time to 45 artículos de segunda clase. Agregado post-mold tapping for terminal connections.
Resultados:
- The case passed UL 489 pruebas (600V, 10kA short-circuit rating) with no failures.
- Dimensional accuracy stayed within ±0.008 mm (exceeding the client’s ±0.01 mm requirement).
- Production cost was 25% lower than using PEEK (the client’s initial alternative).
The client scaled up to 500,000 units/year with our high-volume lines.
Why Choose Yigu Technology for Phenolic Resin Bakelite Injection Molding?
Cuando se trata de phenolic resin Bakelite injection molding, Yigu Technology stands out for our deep thermoset expertise, Control de calidad estricto, y enfoque centrado en el cliente. Here’s why clients worldwide trust us:
- Certified Quality: Our plant holds ISO 9001 (calidad general) e IATF 16949 (automotor) certifications—ensuring compliance with global industry standards.
- End-to-End Expertise: De in-house Bakelite tool design (using SolidWorks and MoldFlow) to global logistics, we handle every step of your project.
- Prototipos rápidos: Get functional Bakelite prototypes in 7–10 days (VS. 2–3 weeks from competitors) to speed up your product development.
- 24/7 Phenolic Production Support: Our team is available around the clock to resolve issues—critical for high-volume automotive and electrical clients.
- Competitive Bakelite Part Pricing: We leverage bulk resin purchasing and efficient cold-runner molds to offer prices 15–20% below market averages.
- Full Traceability: Provide PPAP documentation (para automotriz) and UL traceability (for electrical parts) to simplify your compliance process.
Global Reach: Nuestro global phenolic logistics network delivers JIT (just-in-time) a 40+ countries—reducing your inventory costs.
