Aplicación de la fundición al vacío de silicona en el campo de la automoción: Impulsando el ahorro de costos y la rápida innovación

La industria del automóvil está en una carrera constante por lanzar nuevos modelos, mejorar el rendimiento, y reduzca el tiempo de desarrollo, todo mientras mantiene los costos bajo control. Silicone vacuum casting has emerged as a transformative technology here, Abordar puntos débiles clave, como los elevados costes de los moldes., creación lenta de prototipos, y flexibilidad limitada en la producción de lotes pequeños. Unlike traditional methods such as injection molding, it uses flexible silicone molds and vacuum pressure to create high-precision automotive parts, prototipos, and components. Abajo, we explore its core applications, backed by real data and use cases, to show how it solves critical challenges for automakers, R&D teams, and suppliers.

1. Small-Batch Production: Ideal for New Product Development Stages

When developing new cars or upgrading existing models, automakers often need 20–30 small-batch samples for performance testing, road trials, and design validation. Silicone vacuum casting shines here because it avoids the high costs and long lead times of traditional mold-based production.

Why It Beats Traditional Methods

Ejemplo del mundo real

A European electric vehicle (vehículo eléctrico) startup needed 25 prototipo battery housing covers to test heat resistance and fit. Using silicone vacuum casting:

• They skipped a $45,000 steel mold (which would have been obsolete if the design changed).
• Received samples in 6 días, allowing them to start road testing 3 weeks earlier than planned.
• Made 2 minor design tweaks (p.ej., adding extra ventilation slots) and got updated samples in 2 days—saving $12,000 in retooling costs.

2. Complex Shape Component Production: Meeting Precision Demands

Modern cars rely on components with intricate designs—from curved center consoles to hollow air intake manifolds—that require tight dimensional accuracy (often ±0.1mm) and smooth surfaces. Silicone vacuum casting excels at producing these parts because:

• Silicone molds can capture fine details (p.ej., texture on dashboards, small mounting holes) con 98% precisión.
• El proceso de vacío elimina las burbujas de aire., ensuring consistent material flow even for complex internal structures.

Key Complex Components Produced

Estudio de caso: Bumper Prototypes

A Japanese automaker used silicone vacuum casting to produce 30 front bumper prototypes for a new SUV model. The bumpers had complex curves and integrated sensor cutouts (for parking assist systems).

• The prototypes matched the final production part’s dimensions within ±0.08mm—passing all fit checks with the car’s frame.
• The surface texture was identical to mass-produced bumpers, allowing the design team to test consumer feedback on appearance.
• Cost per prototype was \(120, en comparación con \)800 per prototype with injection molding (a 85% cost reduction).

3. Prototype Replication: Preserving Design Integrity

Before mass production, automakers need multiple identical prototypes to test across different teams (p.ej., ingeniería, control de calidad, marketing). Silicone vacuum casting uses a two-step process to replicate prototypes without altering the original:

1. Create a master prototype using SLA 3D printing o Mecanizado CNC (high-precision methods).
2. Make a silicone mold from the master (preserving every detail).
3. Pour materials (p.ej., ABS, PU) into the mold to produce 20–100 identical replicas.

Benefit for R&D Teams

This method ensures that every team works with the exact same prototype—avoiding discrepancies that can delay testing. Por ejemplo:

• Estados Unidos. truck manufacturer used this process to make 50 replicas of a steering wheel prototype.
• The engineering team tested grip strength, the quality team checked button alignment, and the marketing team used replicas for consumer focus groups—all with identical parts.
• Reduced testing errors by 40% (compared to using 3D-printed prototypes, which can vary slightly between prints).

4. Flexible Material Selection: Matching Functional Needs

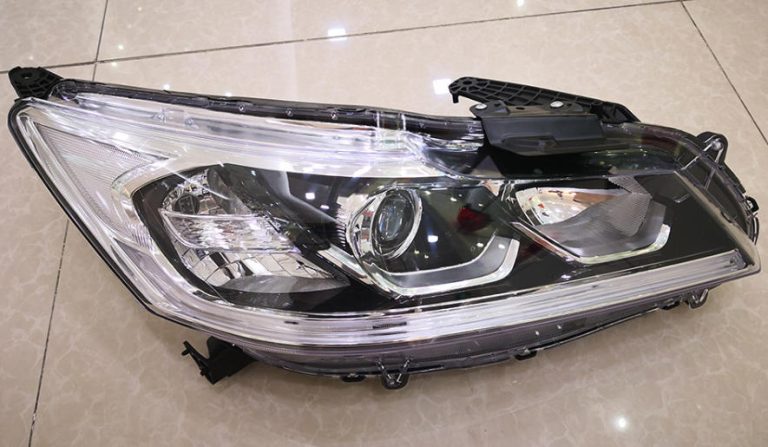

Different automotive components require specific materials—e.g., transparent plastics for cubiertas de faros, rigid ABS for manijas de las puertas, or soft PU for armrests. Silicone vacuum casting supports a wide range of materials, letting manufacturers pick the best option for each part’s function.

Common Materials Used & Their Applications

Ejemplo: Material Customization for EVs

An EV manufacturer needed charging port covers that were:

• Rigid enough to protect internal components.
• Flexible enough to open/close 10,000+ times without breaking.
• resistente a los rayos UV (to avoid fading in sunlight).

Using silicone vacuum casting, they chose a UV-stabilized soft PU material—achieving all three requirements. Testing showed the covers lasted 12,000 ciclos (20% more than the target) and retained their color after 500 horas de exposición al sol.

Yigu Technology’s Perspective on Silicone Vacuum Casting for Automotive

En Yigu Tecnología, we’ve supported over 50 automotive clients—from startups to OEMs—in accelerating their development cycles. The biggest value we see in fundición al vacío de silicona is its ability to turn “what-if” designs into tangible parts fast. We optimize our molds for automotive-grade materials (p.ej., heat-resistant PU for engine components) and ensure ±0.05mm precision—meeting the industry’s strict standards. For automakers facing pressure to launch EVs and smart cars quickly, this technology isn’t just a tool—it’s a way to stay ahead in a competitive market.

Preguntas frecuentes: Common Questions About Silicone Vacuum Casting in Automotive

1. Can silicone vacuum casting parts be used for long-term testing (p.ej., 6-month durability trials)?

Sí. When using automotive-grade materials (p.ej., high-impact ABS, UV-stabilized PU), parts can withstand 6–12 months of testing (including temperature cycles, vibración, y usar) without degradation. Many clients use these parts for pre-production validation before investing in mass production molds.

2. Is silicone vacuum casting suitable for high-temperature components (p.ej., piezas del motor)?

Absolutamente. We offer heat-resistant materials (p.ej., silicone-polyimide blends) that can handle temperatures up to 250°C (482°F)—ideal for parts like engine oil caps o colectores de admisión. These materials meet automotive standards like ISO 1879 for thermal stability.

3. How does the cost compare to 3D printing for small batches?

For batches of 20+ unidades, silicone vacuum casting is cheaper. Por ejemplo:

• 3impresión D 20 ABS door handle prototypes costs ~\(400 por unidad (\)8,000 total).
• Silicone vacuum casting the same 20 handles costs ~\(150 por unidad (\)3,000 total)—a 62% savings. 3D printing is better for 1–5 prototypes, but vacuum casting takes over for larger small batches.
