Our CNC Wire EDM Services
Unlock precision manufacturing with CNC Wire EDM services from Yigu Technology. Our advanced Electro Discharge Machining solutions deliver unmatched accuracy for complex parts, handling even hardened metals with zero cutting forces. Whether you need tight tolerances for aerospace components or custom machining for medical devices, we turn your designs into high-quality reality—fast, reliably, and cost-effectively.
What Is CNC Wire EDM?

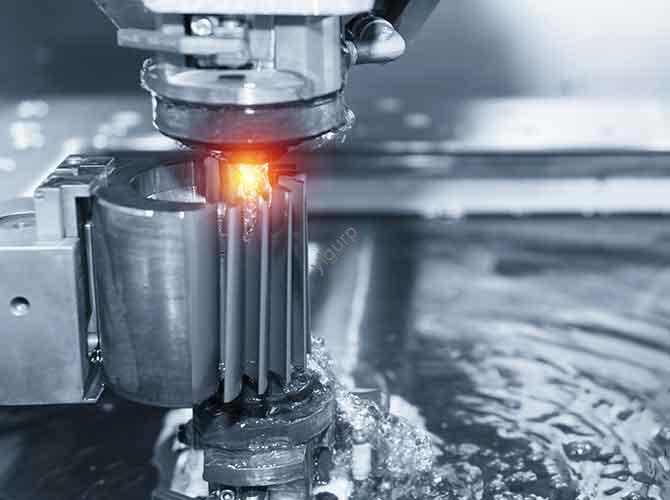

CNC Wire EDM (Computer Numerical Control Wire Electrical Discharge Machining) is a revolutionary Non-Contact Machining method that shapes conductive materials using controlled electrical sparks. Unlike traditional cutting tools, it uses a thin, energized wire (typically brass or copper) to erode material, making it ideal for Precision Machining of intricate shapes.
At its core, Wire Cutting (a key part of the EDM Technology) avoids physical contact with the workpiece, eliminating tool wear and deformation. This Machining Process excels at Metal Cutting tasks where accuracy and complexity are critical—from small electronic components to large industrial parts.
Our CNC Wire EDM Capabilities
Yigu Technology’s CNC Wire EDM Capabilities are designed to meet the most demanding manufacturing needs. We combine advanced equipment with expert engineering to deliver:
| Capability | Key Advantage | Typical Application Example |
| Complex Shapes | Creates 2D/3D geometries with sharp corners | Mold cavities, aerospace brackets |
| Tight Tolerances | Achieves ±0.0001 inch (0.0025 mm) accuracy | Medical implants, precision gears |
| High Aspect Ratios | Machines deep, narrow features (up to 100:1) | Fuel injector nozzles |
| Thin Wall Machining | Handles walls as thin as 0.005 inches (0.127 mm) | Electronic enclosures |
| Multi-Axis Machining | 5-axis control for undercuts and complex angles | Automotive engine parts |
| Large Part Machining | Processes parts up to 100” x 60” x 30” | Industrial machinery frames |
We also offer Custom Machining Solutions and High-Speed Machining to reduce lead times without compromising quality.
The CNC Wire EDM Process
The Wire EDM Process follows a structured sequence to ensure precision and consistency. Below is a step-by-step breakdown of our Electro Discharge Machining Process:
- Design & Programming: We import your CAD file and generate a Wire Path Control program to define the cutting route.
- Workpiece Setup: The conductive material is secured to a table, and the dielectric fluid (typically deionized water) is filled to cool the wire and flush away debris.

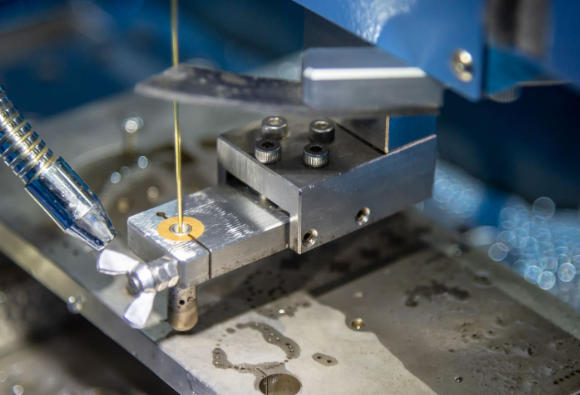

- Wire Preparation: A thin electrode wire (0.004”–0.012” diameter) is threaded through the workpiece, and Wire Tension Control is calibrated to prevent breakage.

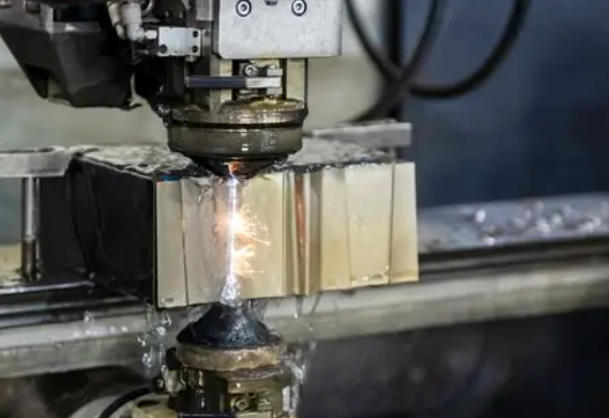

- Spark Erosion: The machine sends electrical pulses between the wire and workpiece, creating tiny sparks that erode material. This happens at up to 100,000 pulses per second.
- Machining Cycle: The wire moves along the programmed path, shaping the part. Our team monitors Machining Parameters (voltage, current, speed) in real time.
Finishing: The part is removed, cleaned, and inspected for accuracy.
Materials Compatible with CNC Wire EDM
EDM Materials must be conductive, but our process handles a wide range of metals and alloys—even those too hard for traditional machining. Below are common Machinable Materials we work with:
| Material Type | Examples | Key Characteristics |
| Hardened Steels | A2, D2, H13 tool steels | High strength; ideal for molds/dies |
| Stainless Steel | 304, 316, 17-4 PH | Corrosion-resistant; used in medical/aerospace |
| Titanium | Ti-6Al-4V | Lightweight, high-temperature resistance |
| Non-Ferrous Metals | Copper, Brass, Aluminum | Excellent conductivity; for electrical parts |
| Exotic Metals | Inconel, Hastelloy | Extreme environment resistance (energy sector) |
| Composite Materials | Conductive composites | Lightweight alternatives to metals |
Note: Non-conductive materials (e.g., plastics) can be machined if coated with a conductive layer.
Surface Treatment for CNC Wire EDM Parts
After machining, Surface Treatment enhances the part’s performance, appearance, and durability. We offer a range of options to achieve your desired Surface Finish and Surface Quality:
| Treatment Method | Purpose | Surface Roughness (Ra) Achieved |
| Polishing | Reduce friction; improve aesthetics | 0.02–0.1 μm |
| Grinding | Achieve flatness or tight dimensional control | 0.05–0.2 μm |
| Anodizing | Add corrosion resistance (aluminum parts) | N/A (coating thickness: 5–25 μm) |
| Plating | Enhance conductivity (copper/nickel) | 0.03–0.1 μm |
| Heat Treatment | Increase hardness (steels) | N/A (hardness up to 60 HRC) |
| Surface Texturing | Create non-slip or decorative patterns | Custom Ra (0.5–5 μm) |
Our team ensures Surface Integrity by minimizing the heat-affected zone (HAZ) during machining—a key advantage of wire EDM.
Tolerances: How Precise Is CNC Wire EDM?
Tolerances are the backbone of precision manufacturing, and our CNC Wire EDM services set industry standards for Dimensional Accuracy. Below is a comparison of our typical Tolerance Range vs. traditional machining:
| Machining Method | Typical Tolerance | Repeatability | Consistency |
| Yigu CNC Wire EDM | ±0.0001 inch (±0.0025 mm) | ±0.00005 inch | 99.9% |
| Traditional Milling | ±0.001 inch (±0.025 mm) | ±0.0005 inch | 98.5% |
| Laser Cutting | ±0.0005 inch (±0.0127 mm) | ±0.0002 inch | 99.2% |
We use advanced Tolerance Control software and regular calibration to maintain High Precision—critical for industries like aerospace and medical, where even tiny deviations can cause failures.
Key Advantages of CNC Wire EDM
Advantages of CNC Wire EDM make it the top choice for complex, high-precision parts. Here’s why manufacturers trust this technology:
- No Tool Wear: The wire is replaced periodically, so there’s no dulling—ensuring consistent results across 100+ parts.
- No Cutting Forces: Eliminates workpiece deformation, perfect for Thin Wall Machining or fragile materials.
- Heat Affected Zone (HAZ) Minimization: The dielectric fluid cools the area, reducing stress and cracking.
- Cost-Effectiveness: Faster setup than custom tooling, saving 30–50% on small-batch production.
- Short Lead Times: Our High-Speed Machining cuts cycle times by 20% compared to standard EDM.
Repeatability: Programmed paths ensure every part matches the design—critical for assembly lines.
CNC Wire EDM Applications by Industry
Applications of CNC Wire EDM span nearly every manufacturing sector. Below are key uses in major industries:
| Industry | Common Applications | Key Requirements Met |
| Aerospace | Turbine blades, fuel system components | ±0.0001 inch tolerance, titanium machining |
| Automotive | Mold inserts, transmission gears | High volume, cost-effectiveness |
| Medical | Surgical instruments, implant components | Biocompatible materials, smooth surface finish |
| Electronics | Microchips, connector pins | Small part machining, high precision |
| Mold Making | Injection mold cavities, die cores | Complex shapes, hardened steel compatibility |
| Defense | Weapon components, sensor housings | Durability, tight tolerances |
| Energy | Turbine parts, solar panel components | Exotic metal machining, high aspect ratios |
Advanced Manufacturing Techniques
At Yigu Technology, we combine CNC Wire EDM with cutting-edge Manufacturing Techniques to optimize efficiency and quality:
- Tool Path Optimization: Our software reduces wire travel by 15%, cutting machining time and wire usage.
- Automation: Robotic load/unload systems run 24/7, increasing output by 40% for high-volume orders.
- Process Control: Real-time monitoring of Machining Speed and voltage ensures consistent results.
- Quality Control: Post-machining inspections use CMM (Coordinate Measuring Machines) for ±0.00005 inch accuracy.
Machining Strategies: We use “roughing + finishing” cycles—fast material removal followed by precision refinement—to balance speed and quality.
Case Studies of CNC Wire EDM
Our Case Studies demonstrate how we solve complex manufacturing challenges. Here are two highlights:
Case Study 1: Aerospace Turbine Blade Machining
- Challenge: A leading aerospace client needed 50 titanium turbine blades with ±0.0002 inch tolerance and a 0.05 μm surface finish.
- Solution: We used 5-axis CNC Wire EDM with a 0.006-inch brass wire and optimized tool paths. Post-machining, we applied polishing and heat treatment.
- Result: All blades met tolerance requirements; lead time was reduced by 25% compared to the client’s previous supplier.
Case Study 2: Medical Implant Production
- Challenge: A medical device company required 100 stainless steel spinal implants with thin walls (0.008 inches) and no deformation.
- Solution: Our non-contact EDM process avoided cutting forces, and we used dielectric fluid to minimize HAZ.
Result: 100% of implants passed biocompatibility tests; the client renewed their contract for a 500-unit order.
Why Choose Yigu Technology for CNC Wire EDM?
When you partner with us, you get more than just machining—you get a trusted manufacturing partner. Here’s why clients choose Yigu:
- Expertise: 15+ years of experience in CNC Wire EDM; our engineers hold certifications in precision machining.
- Quality: ISO 9001 and AS9100 certified, with 99.8% on-time delivery and 99.9% part acceptance rate.
- Customer Service: Dedicated account managers provide 24/7 Technical Support—from design review to post-delivery.
- Innovation: We invest in the latest EDM equipment (e.g., Sodick, Makino) to offer cutting-edge Custom Solutions.
Cost-Effective Solutions: Our process optimization reduces material waste by 10–15%, lowering your overall costs.
