Our CNC Turning Services
At Yigu Technology, our CNC Turning Service delivers unmatched precision for custom parts and high-volume production. Leveraging advanced machining processes, tight tolerances (as low as ±0.001), and a wide range of material options—from aluminum to titanium—we meet the needs of industries like aerospace, medical, and automotive. Whether you need complex geometries or fast lead times, our expert team ensures consistency, cost-effectiveness, and top-tier quality. Choose Yigu for CNC turning that turns your ideas into reliable, high-performance components.
What Is CNC Turning?

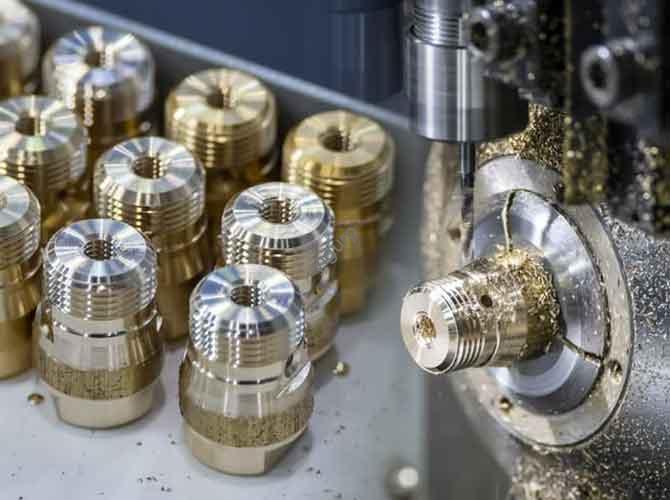

CNC Turning is a computer-controlled machining process used to create cylindrical or rotational parts. It falls under the broader category of lathe operation, where a cutting tool removes material from a rotating workpiece to shape it into the desired form. Unlike manual lathe work, CNC (Computer Numerical Control) turning uses pre-programmed software to control tool movement, ensuring precision and repeatability.

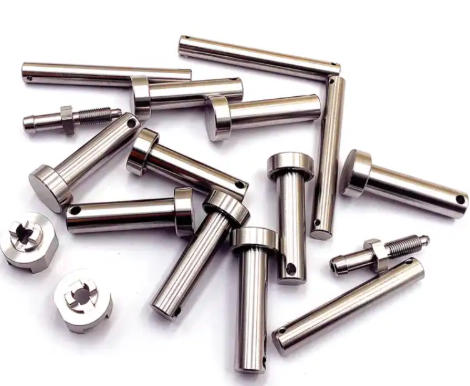

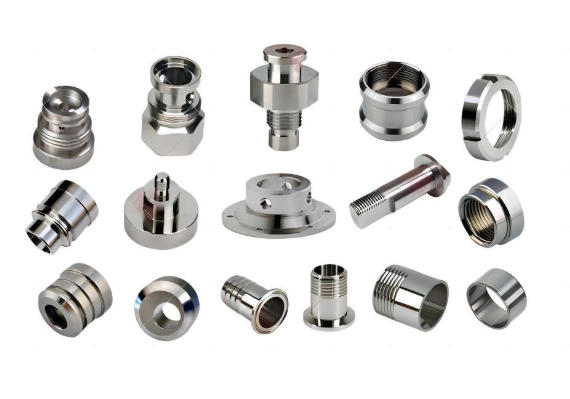

The core of rotary cutting in CNC turning involves two main components: the workpiece (held in a chuck and rotated) and the cutting tool (moved along multiple axes to carve out features like threads, grooves, or tapers). This process is ideal for producing symmetrical parts, such as shafts, bolts, bushings, and cylindrical housings.
Our CNC Turning Capabilities
At Yigu Technology, we pride ourselves on a versatile set of CNC turning capabilities to meet diverse industry needs. Below is a breakdown of our key strengths:
| Capability | Description |
| Precision Machining | Achieve ultra-tight tolerances (±0.001 to ±0.005 mm) for critical components. |
| High Volume Production | Efficiently handle large batch orders with consistent quality and short lead times. |
| Custom Parts | Create one-of-a-kind or low-volume custom parts tailored to your exact specifications. |
| Complex Geometries | Produce parts with intricate features (e.g., internal holes, threads, tapers) using multi-axis technology. |
| Tight Tolerances | Maintain dimensional accuracy for parts requiring strict performance standards (e.g., medical devices, aerospace components). |
We also offer design support to optimize your part for CNC turning, ensuring manufacturability and cost savings.
Process: Step-by-Step CNC Turning Workflow
The CNC turning process at Yigu Technology follows a structured, quality-focused workflow to deliver reliable results. Here’s a detailed breakdown:
- Setup: Prepare the CNC lathe by mounting the workpiece in a chuck and securing the appropriate cutting tools. This step ensures stability and alignment.
- Programming: Develop a G-code program (using CAD/CAM software) that defines the tool path, cutting speed, and feed rate based on your part’s design.
- Tool Selection: Choose the right cutting tools (e.g., carbide, high-speed steel) based on the material (e.g., aluminum, stainless steel) and desired finish.
- Material Loading: Load the raw material (e.g., metal bar, plastic rod) into the lathe, ensuring it is centered and secured.
- Cutting: The lathe rotates the workpiece, and the cutting tool moves along pre-programmed axes to remove material and shape the part.
- Inspection: After cutting, parts undergo thorough inspection using tools like calipers, micrometers, and CMM (Coordinate Measuring Machines) to check dimensions.
Quality Control: Final quality checks ensure parts meet all specifications (tolerances, finish, material properties) before delivery.
Materials: Options for CNC Turning
We work with a wide range of materials to suit different application requirements, from lightweight plastics to high-strength metals. Below is a table of common materials and their key uses:
| Material | Type | Key Properties | Typical Applications |
| Aluminum | Metal | Lightweight, corrosion-resistant, easy to machine | Automotive parts, electronics housings |
| Stainless Steel | Metal | High strength, corrosion-resistant | Medical devices, aerospace components |
| Brass | Metal | Excellent machinability, conductive | Electrical connectors, plumbing parts |
| Copper | Metal | High conductivity, malleable | Heat sinks, electrical wires |
| Titanium | Metal | Ultra-strong, lightweight, biocompatible | Orthopedic implants, aerospace parts |
| Polymers | Plastic | Low cost, chemical-resistant | Consumer goods, industrial components |
Our team can recommend the best material for your project based on factors like strength, cost, and environmental conditions.
CNC turning Surface Treatment: Enhancing Part Performance
Surface treatment is a critical step in CNC turning, as it improves a part’s durability, appearance, and functionality. Here are the most common treatments we offer:
- Finishing: Basic processes to smooth rough edges and remove burrs, ensuring safety and fit.
- Grinding: Uses abrasive tools to achieve a precise surface finish (e.g., Ra 0.8 μm) for high-precision parts.
- Polishing: Creates a shiny, reflective surface for aesthetic or sanitary applications (e.g., medical equipment).
- Coating: Applies layers like powder coating or PTFE (Teflon) to enhance corrosion resistance or reduce friction.
- Painting: Adds color and protection against environmental damage (common in consumer goods).
- Anodizing: An electrochemical process that forms a protective oxide layer on aluminum, improving durability and appearance.
Electroplating: Coats parts with metals like chrome or nickel to enhance conductivity, corrosion resistance, or aesthetics.
CNC turning Tolerances: Ensuring Precision in Every Part
Tolerances measure the allowable variation in a part’s dimensions, and tight tolerances are critical for parts that need to fit or function perfectly. At Yigu Technology, we specialize in achieving some of the industry’s strictest tolerances:
| Tolerance Range | Precision Level | Typical Applications |
| ±0.001 mm | Ultra-high | Medical implants, aerospace components |
| ±0.005 mm | High | Precision gears, electrical connectors |
| ±0.01 mm | Medium | Automotive parts, industrial components |
| ±0.05 mm | Standard | Non-critical consumer goods |
We use advanced inspection tools (e.g., CMMs) to verify dimensional accuracy and ensure every part meets your specified tolerance requirements. Our commitment to precision and accuracy means you can trust your parts to perform as intended.
Advantages: Why Choose CNC Turning?
CNC turning offers numerous benefits over traditional machining methods, making it a top choice for modern manufacturing. Here are the key advantages:
- High Precision: Computer control eliminates human error, ensuring consistent, accurate parts every time.
- Consistency: Even for high-volume production, CNC turning delivers identical parts with minimal variation.
- Efficiency: Automated processes reduce cycle times, allowing for faster production and shorter lead times.
- Cost-Effective: While initial setup costs may be higher, CNC turning reduces labor costs and material waste in the long run.
- Reduced Human Error: Pre-programmed software minimizes mistakes, lowering the risk of defective parts.
Short Lead Times: Efficient workflows and automated tools let us deliver parts quickly, even for complex designs.
Applications Industry: Where CNC Turning Is Used
CNC turning is a versatile process used across a wide range of industries. Below is a breakdown of its key applications:
| Industry | Common CNC Turning Parts | Why CNC Turning? |
| Automotive | Shafts, bolts, bushings, fuel system components | High volume, tight tolerances, cost-effectiveness |
| Aerospace | Engine parts, landing gear components, fasteners | Ultra-high precision, durability |
| Medical | Implants, surgical tools, instrument housings | Biocompatible materials, strict tolerances |
| Electronics | Connectors, heat sinks, sensor housings | Small size, high precision |
| Industrial | Pumps, valves, gear shafts | Durability, resistance to wear |
| Consumer Goods | Toy parts, kitchen utensils, furniture hardware | Low cost, fast production |
| Defense | Weapon components, communication parts | High strength, reliability |
Manufacturing Techniques: Tools for CNC Turning
We use state-of-the-art techniques and equipment to deliver top-quality CNC turning results. Here are the key methods we employ:
- CNC Lathe: The core tool for turning, available in 2-axis (for simple parts) and multi-axis (for complex geometries) models.
- Turning Centers: Advanced machines that combine turning with milling or drilling, allowing for one-stop production of complex parts.
- Multi-Axis Machining: Uses 4 or 5 axes to create parts with intricate features (e.g., off-center holes, angled surfaces) in a single setup.
- Live Tooling: Integrates rotating tools (e.g., drills, mills) into the lathe, enabling simultaneous turning and milling for faster production.
Swiss Screw Machining: Specialized for small, long parts (e.g., medical pins, electronic connectors), using a guide bushing to ensure precision.
CNC Turning Case Studies with Yigu Technology
Our CNC turning service has helped clients across industries solve complex manufacturing challenges. Here are two notable examples:
Case Study 1: Medical Implant Component
- Challenge: A medical device company needed a titanium femoral stem (for hip implants) with a tolerance of ±0.002 mm and a biocompatible anodized finish.
- Solution: We used Swiss screw machining with live tooling to achieve the tight tolerance, followed by anodizing to meet biocompatibility standards.
- Result: Delivered 500 parts in 4 weeks, with 100% inspection pass rate. The client reported improved implant performance and reduced patient recovery time.
Case Study 2: Automotive Sensor Housing
- Challenge: An automotive manufacturer needed 10,000 aluminum sensor housings with a polished finish and a lead time of 2 weeks.
- Solution: We used high-volume CNC lathes with automated material loading, followed by polishing to achieve the desired finish.
- Result: Met the 2-week deadline, reduced material waste by 15%, and delivered parts that exceeded the client’s dimensional requirements.
“Yigu’s CNC turning service helped us reduce production time by 30% while maintaining the precision we need for our aerospace components.” — John D., Aerospace Engineer
Why Choose Us: CNC Turning Competitive Edge
When you partner with Yigu Technology for CNC turning, you get more than just a machining service—you get a trusted manufacturing partner. Here’s why clients choose us:
- Expertise: Our team has over 10 years of experience in CNC turning, with specialists in aerospace, medical, and automotive industries.
- Experience: We’ve completed over 5,000 CNC turning projects, from small custom parts to high-volume production runs.
- Quality: We are ISO 9001 certified, with strict quality control processes to ensure every part meets your specifications.
- Customer Service: Our dedicated team provides 24/7 support, from design consultation to post-delivery follow-up.
- Fast Delivery: We offer lead times as short as 1 week for urgent orders, thanks to our efficient workflows and automated equipment.
- Competitive Pricing: We optimize our processes to reduce costs, passing savings on to our clients without compromising quality.
Innovation: We invest in the latest CNC technology (e.g., 5-axis lathes, AI-powered inspection tools) to stay ahead of industry trends.
