Our CNC Honing Services
Our CNC Honing services deliver unmatched precision for hole finishing—combining advanced CNC Technology with expert Honing Process techniques. Whether you need tight Machining Tolerances, custom Hole Size Range options, or surface perfection for critical parts, we turn raw materials into high-performance components. Trust our proven capabilities to meet your industry’s strictest standards, on time and within budget.
What Is CNC Honing?
CNC Honing is a precision machining process used to finish internal holes (or bores) in metal and composite parts. Unlike basic honing (which relies on manual operation), it uses CNC Technology (Computer Numerical Control) to automate tool movement, pressure, and speed. This automation ensures consistent, repeatable results that manual methods can’t match.
At its core, the Honing Process involves a rotating tool (called a hone) fitted with abrasive stones. The tool expands to press the stones against the hole’s inner surface, removing tiny amounts of material to improve three key qualities:
- Diameter accuracy (hitting exact Hole Size Range targets)
- Roundness and straightness (critical for moving parts like pistons)
- Surface smoothness (reducing friction and wear)
In short, Precision Honing (powered by CNC) transforms “good enough” holes into parts that perform reliably in high-stakes applications.
Our Capabilities: What We Can Do for You
We’ve invested in top-tier CNC honing equipment and trained our team to handle diverse project needs. Below is a breakdown of our core capabilities:
| Capability Category | Details | Specifications |
| CNC Honing Services | Automated hole finishing for small batches (1–50 parts) and large runs (10,000+ parts) | Handles holes from 5mm to 500mm in diameter |
| Precision Hole Making | Tight control over hole geometry (roundness, straightness, taper) | Roundness: ±0.001mm; Straightness: ±0.002mm per 100mm |
| Machining Capacity | 24/7 production with quick changeovers for different part designs | Up to 500 parts processed per 8-hour shift |
| Hole Size Range | Flexible for micro-holes (medical devices) to large bores (industrial cylinders) | Diameter range: 5mm – 500mm; Depth: up to 1,000mm |
| Material Expertise | Specialized processes for hard metals, soft alloys, and composites | See “Materials” section for full list |
Whether you need a one-time prototype or ongoing mass production, our capabilities scale to fit your timeline and quality requirements.
The CNC Honing Process: Step-by-Step
Our CNC Process follows a structured workflow to ensure consistency and quality. Each step is automated but monitored by our engineers to catch issues early:
- Part Preparation: Clean the raw part to remove oil, debris, or rust (critical for accurate measurements). Mount the part in a CNC fixture to hold it securely during machining.
- Tool Setup: Select the right abrasive stones (based on material and desired finish) and attach them to the CNC hone. Program the machine with your specifications (diameter, tolerance, surface finish).
- Rough Honing: The hone rotates and expands to remove excess material quickly. This step brings the hole close to its final size (within 0.01mm of the target).
- Finish Honing: Reduce the tool’s pressure and adjust speed to refine the hole. This step achieves the exact Machining Tolerances and smooth surface finish.
Inspection: Use laser measuring tools to check diameter, roundness, and surface quality. If the part meets standards, it moves to post-processing (e.g., Surface Treatment).
Materials: What Works for CNC Honing?
Not all materials respond the same to honing—we focus on options that deliver consistent precision and durability. Below are the Common Honing Materials we process, along with their key Material Properties:
| Material Type | Examples | Material Properties (Why It Works) | Ideal Applications |
| Ferrous Metals | Steel, Cast Iron, Stainless Steel | High strength; abrasive stones remove material evenly | Engine blocks, hydraulic cylinders |
| Non-Ferrous Metals | Aluminum, Brass, Copper | Soft but machinable; achieves smooth finishes without cracking | Heat exchangers, electrical parts |
| Alloys | Titanium, Inconel | High heat resistance; maintains shape under stress | Aerospace components, turbine parts |
| Composites | Carbon Fiber, Fiberglass | Lightweight; requires specialized abrasives to avoid fraying | Racing parts, medical devices |
Our Material Selection experts help you choose the best option for your project—balancing cost, performance, and machinability.
Surface Treatment: Enhancing Post-Machining Quality
After honing, Surface Treatment improves the part’s durability, corrosion resistance, and performance. We offer four core Treatment Methods, tailored to your industry’s needs:
| Surface Treatment | Purpose | Process Details | Industry Use Case |
| Polishing | Create a mirror-like finish to reduce friction | Fine abrasive pads buff the hole’s surface | Hydraulic valves (prevents oil leaks) |
| Chrome Plating | Add a hard, corrosion-resistant layer | Electroplate chromium onto the honed surface | Piston rods (handles high wear) |
| Passivation | Protect stainless steel from rust (removes free iron) | Immerse part in nitric acid solution | Food processing equipment |
| Lubrication Coating | Reduce friction for moving parts (e.g., gears, shafts) | Apply dry film lubricant (PTFE) to the surface | Automotive transmission parts |
Each treatment is tested to ensure it meets Surface Quality standards—no shortcuts, just long-lasting results.
Tolerances: How We Control Precision
Machining Tolerances are the small allowable deviations from a part’s exact design (e.g., a 10mm hole might have a tolerance of ±0.005mm). For CNC honing, tight tolerances are non-negotiable—especially for parts that fit together (like engine components).
Our Tolerance Control system uses three layers of precision:
- Pre-Machining Calibration: We calibrate our CNC machines daily using certified reference parts (accuracy: ±0.0005mm).
- In-Process Monitoring: Sensors on the hone measure the hole’s size in real time, adjusting tool pressure if deviations occur.
- Post-Machining Inspection: Our quality team uses coordinate measuring machines (CMMs) to verify every part meets Tolerance Levels.
Below are our standard Hole Tolerances for common applications:
| Application | Diameter Tolerance | Roundness Tolerance | Straightness Tolerance |
| General Industrial | ±0.01mm | ±0.003mm | ±0.005mm per 100mm |
| Automotive | ±0.005mm | ±0.001mm | ±0.002mm per 100mm |
| Aerospace/Medical | ±0.001mm | ±0.0005mm | ±0.001mm per 100mm |
Advantages of CNC Honing: Why It’s Better Than Other Methods
Compared to alternative hole-finishing processes (like grinding or boring), CNC Honing offers unique benefits that save time and improve quality. Here are the top Advantages of CNC Honing:
- Precision Advantages: CNC automation eliminates human error, so every part matches the design exactly. This is critical for industries like aerospace, where even 0.001mm deviations can cause failures.
- Cost Advantages: While initial setup costs are higher than manual honing, CNC reduces labor time (one machine runs 24/7) and waste (fewer defective parts). For large runs, this cuts costs by 20–30%.
- Quality Advantages: The honing process creates a crosshatched surface texture (called “lay”) that holds lubricant better than grinding. This extends part life by 50% or more in moving applications.
Flexibility: CNC programs are easy to adjust, so we can switch between part designs in minutes (no need for new tooling). This is perfect for small-batch projects or rapid prototyping.
Applications Industry: Where CNC Honing Makes a Difference
CNC Honing Uses span nearly every manufacturing sector—anywhere precision holes are critical. Below are the top Industry Sectors we serve, with real-world examples:
| Industry | Application Fields | Specific Parts We Hone |

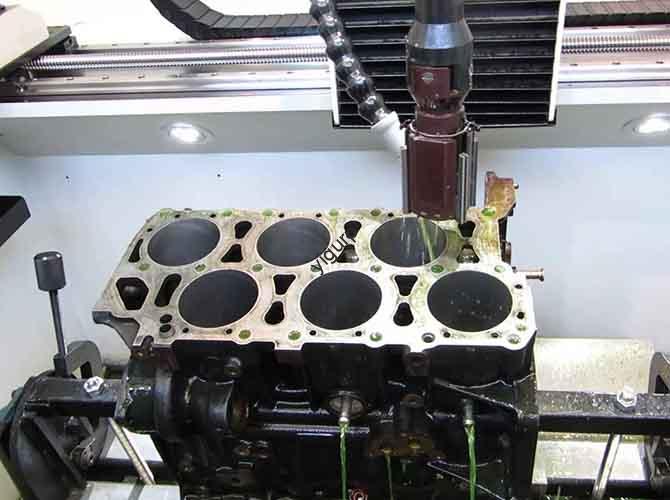

| Automotive | Engine components, transmissions, braking systems | Cylinder bores, piston sleeves, brake caliper bores |
| Aerospace | Jet engines, landing gear, hydraulic systems | Turbine shafts, fuel injector holes, landing gear cylinders |
| Medical | Surgical tools, diagnostic equipment, implants | Stainless steel instrument bores, implant sleeves |
| Industrial | Hydraulics, pneumatics, manufacturing machinery | Hydraulic cylinder bores, pump housings, valve bodies |
| Energy | Oil/gas pumps, wind turbine components | Drill bit bores, turbine shaft sleeves |
In each sector, our honing services ensure parts perform under extreme conditions—from high temperatures (aerospace) to sterile environments (medical).
Manufacturing Techniques: Optimizing for Results
To get the best from CNC honing, we use specialized Manufacturing Techniques that balance speed and precision. Here are three key methods we employ:
- Adaptive Honing: The CNC machine uses sensors to “learn” the part’s unique characteristics (e.g., slight material hardness variations) and adjusts the process in real time. This ensures consistent results even with imperfect raw materials.
- Single-Pass Honing: For high-volume parts (like automotive cylinders), we use a tool that combines rough and finish honing in one pass. This cuts cycle time by 40% while maintaining tight tolerances.
- Custom Tooling: For non-standard hole shapes (e.g., square bores or tapered holes), we design custom hones with shaped abrasive stones. This eliminates the need for secondary machining steps.
These Honing Techniques are backed by decades of experience—we don’t just follow industry standards; we help set them.
Case Studies: Real Success Stories
Our CNC Honing Services have solved complex problems for clients across industries. Below are two short Case Studies that highlight our impact:
Case Study 1: Automotive Engine Manufacturer
A leading car maker struggled with inconsistent cylinder bore tolerances (±0.01mm) using manual honing. This caused engine oil leaks and warranty claims. We switched them to our CNC honing process, delivering tolerances of ±0.005mm. Results:
- 90% reduction in oil leaks
- 25% lower warranty costs
- 30% faster production (24/7 automation)
Case Study 2: Medical Device Company
A client needed precision bores for surgical tool handles (material: titanium; tolerance: ±0.001mm). Manual methods caused fraying and inconsistent finishes. Our adaptive CNC honing (with specialized abrasives) achieved perfect results. Results:
- 100% pass rate on quality inspections
- 50% faster time-to-market (no rework needed)
Compliance with FDA sterile surface standards
Why Choose Us: Our Competitive Advantages
With so many CNC honing providers, why partner with us? Here are the top Reasons to Choose our services:
- Proven Precision: We maintain ISO 9001 certification and have a 99.8% quality pass rate—meaning nearly every part meets your specs. Our CMM inspection ensures no defects slip through.
- Scalable Capacity: Whether you need 10 parts or 100,000, our 24/7 production line scales to your timeline. We handle rush orders (3–5 day turnaround) for emergency projects.
- Expert Team: Our engineers average 15+ years of CNC honing experience. They don’t just run machines—they help optimize your design to reduce costs and improve performance.
- Transparent Pricing: We provide detailed quotes with no hidden fees. For long-term partnerships, we offer volume discounts (up to 15% for annual orders over 50,000 parts).
- Customer-Centric Service: We assign a dedicated project manager to every client—so you always have one point of contact for updates, questions, or changes.
Our Strengths aren’t just about equipment—they’re about delivering the Customer Benefits that matter most: reliability, speed, and peace of mind.
