Our CNC Grinding Services

Looking for top-tier CNC Grinding Services that deliver unmatched precision, wide material compatibility, and industry-leading surface quality? Yigu Technology combines advanced Grinding Technology with decades of Grinding Expertise to meet your tightest manufacturing needs—from automotive components to aerospace parts. Our tailored CNC Grinding Solutions ensure every project meets strict Precision Tolerances, making us your trusted partner for all grinding requirements.

Get Free Quote

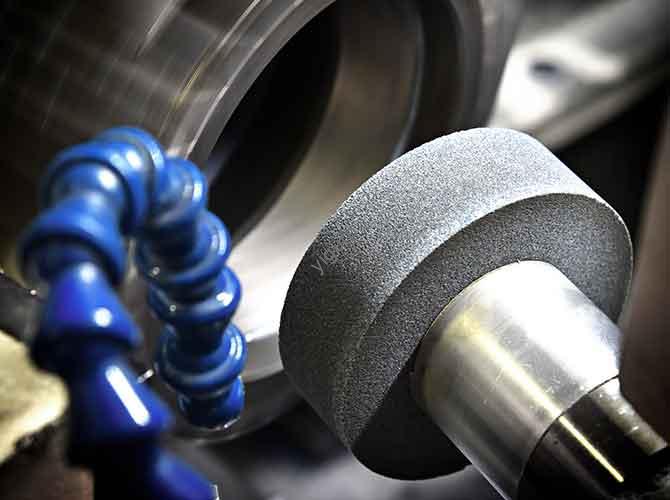

What is CNC Grinding?

CNC Grinding is a computer-controlled precision machining process that uses abrasive wheels to remove material from workpieces, achieving exceptional surface finish and dimensional accuracy. Unlike manual grinding, CNC Grinding Machine systems use pre-programmed software to control wheel movement, ensuring consistency across high-volume production runs.

At its core, Precision Grinding transforms raw materials into finished parts with minimal error, while the broader Grinding Process encompasses various techniques to address different part geometries and material types. Below is a breakdown of key terms in CNC Grinding Definition:

Term	Description
CNC Grinding Machine	Computerized equipment that automates grinding wheel movement for consistent results.
Precision Grinding	A subset of grinding focused on achieving tight dimensional accuracy (often ±0.001mm).
Grinding Technology	The integration of software, hardware, and abrasive materials to optimize grinding efficiency.
Grinding Process	The step-by-step workflow of material removal, from setup to final surface treatment.

Our CNC Grinding Capabilities

Yigu Technology’s CNC Grinding Capabilities cover a wide range of applications, backed by state-of-the-art equipment and certified technicians. We don’t just offer standard Grinding Services Offered—we customize solutions to match your unique project requirements.

Our core capabilities include:

Precision Grinding: Achieve Tight Tolerances (down to ±0.0005mm) for critical components.

Material Versatility: Process metals (steel, aluminum, titanium) and plastics (PVC, PEEK) with specialized Grinding Materials.

Complex Geometries: Handle cylindrical, surface, and internal grinding for parts up to 1,200mm in length.

High-Volume Production: Support batch sizes from 10 to 10,000+ units with consistent quality.

Below is a snapshot of our service range:

Capability	Details
CNC Grinding Services	Cylindrical, surface, internal, and centerless grinding.
Grinding Expertise	15+ years of experience in automotive, aerospace, and medical industries.
CNC Grinding Solutions	Custom programming for unique part designs and material requirements.
Precision Grinding Capabilities	ISO 9001-certified processes with SPC (Statistical Process Control) monitoring.

The CNC Grinding Process

The CNC Grinding Process follows a structured workflow to ensure accuracy and efficiency, from initial setup to final inspection. Each step is optimized to minimize waste and maximize part quality, aligning with our commitment to excellence.

Key Grinding Steps:

Workpiece Setup: Secure the material in a fixture compatible with the CNC Grinding Machine, ensuring proper alignment.

Wheel Selection: Choose the right abrasive wheel based on material type (e.g., diamond wheels for hard metals).

Programming: Input part dimensions and grinding parameters into the CNC system to define Grinding Operations.

Rough Grinding: Remove excess material quickly while maintaining basic dimensional control.

Finish Grinding: Refine the surface to achieve desired Surface Roughness and Precision Tolerances.

Inspection: Use calibrated tools (e.g., micrometers, CMMs) to verify part accuracy against specifications.

Our CNC Grinding Workflow is designed for transparency—clients receive real-time updates on project progress, and all steps are documented for quality assurance.

Materials Compatible with CNC Grinding

Not all materials respond the same to grinding, which is why Yigu Technology specializes in processing a wide range of Grinding Materials—from common metals to high-performance plastics. Our team selects the optimal Grinding Techniques and abrasive tools to ensure material integrity and finish quality.

Below is a table of CNC Grinding Materials we regularly process, along with key considerations:

Material Type	Examples	Grinding Considerations
Grinding Metals	Steel, stainless steel, aluminum, titanium, brass	Use coolant to prevent overheating; select abrasive grit based on material hardness.
Grinding Plastics	PVC, PEEK, nylon, acrylic	Lower grinding speeds to avoid melting; use diamond or cubic boron nitride (CBN) wheels.
Composite Materials	Carbon fiber-reinforced polymer (CFRP)	Specialized wheels to prevent fiber fraying; precise dust collection systems.

We also test new Grinding Compatible Materials regularly, ensuring we can support emerging industry needs (e.g., lightweight alloys for electric vehicles).

Surface Treatment in CNC Grinding

Grinding Surface Treatment is a critical final step that enhances part performance, durability, and aesthetics. Our goal is to deliver Surface Finishing that meets or exceeds your specifications, whether you need a smooth, mirror-like surface or a textured finish for improved grip.

Key aspects of our Grinding Surface Quality control:

Surface Roughness (Ra): We achieve Ra values as low as 0.02μm for precision components (e.g., hydraulic valves) and up to 2μm for functional parts (e.g., brackets).

Surface Enhancement: Post-grinding treatments like passivation (for stainless steel) or deburring to remove sharp edges and improve corrosion resistance.

Consistency: Our CNC Grinding Machine systems maintain uniform surface finish across all parts in a batch, with less than 5% variation in Ra values.

Below is a comparison of common surface finishes we provide:

Surface Finish Type	Ra Value (μm)	Typical Applications
Mirror Finish	0.02 – 0.05	Medical devices, optical components
Fine Finish	0.1 – 0.2	Automotive engine parts, aerospace fasteners
Functional Finish	0.8 – 2.0	Industrial gears, structural brackets

Tolerances: Achieving Precision in CNC Grinding

Grinding Tolerances are the backbone of precision manufacturing—and at Yigu Technology, we excel at delivering Tight Tolerances that meet the most demanding industry standards. Our CNC Grinding Accuracy is verified through rigorous testing, ensuring every part adheres to your design specifications.

Key facts about our Precision Tolerances:

Dimensional Accuracy: We consistently achieve tolerances of ±0.0005mm for small parts (e.g., watch components) and ±0.002mm for larger parts (e.g., turbine shafts).

Geometric Tolerances: Control of flatness (≤0.001mm/m), roundness (≤0.0008mm), and parallelism (≤0.0015mm) for critical applications.

Quality Assurance: 100% inspection of critical dimensions using coordinate measuring machines (CMMs) with an accuracy of ±0.0003mm.

The table below highlights how our tolerances compare to industry averages:

Tolerance Type	Yigu Technology Capability	Industry Average
Linear Tolerance	±0.0005mm	±0.002mm
Roundness	≤0.0008mm	≤0.003mm
Surface Roughness (Ra)	0.02μm	0.1μm

Advantages of CNC Grinding Services

Choosing CNC Grinding Services over traditional machining methods offers numerous benefits—from improved precision to cost savings. At Yigu Technology, we leverage these advantages to deliver value to our clients across industries.

Key Benefits of CNC Grinding:

Superior Precision: Advantages of Precision Grinding include tighter tolerances and better surface finish than milling or turning, reducing the need for secondary operations.

Efficiency: CNC Grinding Benefits include faster setup times and higher production speeds for high-volume runs—we can process up to 500 small parts per hour.

Material Versatility: Unlike some machining processes, grinding works well with both soft and hard materials, from aluminum to hardened steel (up to 65 HRC).

Cost Savings: Reduced material waste (typically <5% scrap rate) and lower labor costs due to automation, leading to 15-20% lower total project costs compared to manual grinding.

Consistency: Precision Grinding Advantages include minimal part-to-part variation, critical for industries like aerospace and medical where consistency is non-negotiable.

Applications of CNC Grinding by Industry

Grinding Applications span nearly every manufacturing sector, with CNC Grinding Uses tailored to each industry’s unique needs. Yigu Technology has deep experience supporting clients in key sectors, delivering solutions that meet industry-specific standards (e.g., AS9100 for aerospace, IATF16949 for automotive).

Grinding in Manufacturing by Industry:

Automotive: Engine components (crankshafts, camshafts), transmission parts, and brake rotors—we meet IATF16949 standards and support just-in-time (JIT) production.

Aerospace: Turbine blades, aircraft fasteners, and landing gear components—our Precision Grinding ensures compliance with AS9100 and tight weight-to-strength ratios.

Medical: Surgical instruments, implant components (e.g., hip stems), and diagnostic equipment parts—we maintain ISO 13485 certification and use biocompatible materials.

Electronics: Heat sinks, connector pins, and semiconductor components—our grinding processes avoid damage to delicate electronic parts.

Below is a breakdown of our industry-specific projects:

Industry	CNC Grinding Uses	Volume Range
Automotive	Engine and transmission parts	1,000 – 10,000+ units
Aerospace	Turbine blades, fasteners	10 – 500 units
Medical	Surgical instruments, implants	50 – 2,000 units
Electronics	Heat sinks, connectors	500 – 5,000 units

Advanced Manufacturing Techniques in CNC Grinding

Yigu Technology stays at the forefront of Grinding Techniques and Manufacturing Techniques to deliver cutting-edge solutions. Our team regularly trains on new CNC Grinding Techniques and invests in advanced equipment to improve efficiency and quality.

Key Grinding Methods We Use:

Cylindrical Grinding: For parts with circular cross-sections (e.g., shafts, pins)—uses a rotating workpiece and a reciprocating grinding wheel.

Surface Grinding: For flat surfaces (e.g., plates, dies)—the wheel rotates while the workpiece moves linearly.

Internal Grinding: For holes or bores (e.g., hydraulic cylinders)—uses a small-diameter wheel inserted into the workpiece.

Centerless Grinding: For long, thin parts (e.g., dowels)—the workpiece is supported by a rest blade, not a center, for faster processing.

We also integrate Grinding Technology like:

Adaptive Control: The CNC system adjusts grinding parameters in real-time to compensate for material variations.

Coolant Optimization: High-pressure coolant systems reduce heat and extend wheel life by up to 30%.

Automated Loading/Unloading: Robotic systems reduce setup time and labor costs for high-volume runs.

CNC Grinding Case Studies

Our Grinding Case Studies demonstrate how we solve complex manufacturing challenges for clients across industries. These CNC Grinding Projects highlight our ability to meet tight deadlines, strict tolerances, and unique material requirements.

Case Study 1: Aerospace Turbine Blade Grinding

Challenge: A client needed 200 titanium turbine blades with a Ra of 0.05μm and a roundness tolerance of ±0.001mm.

Solution: We used a 5-axis CNC Grinding Machine with CBN wheels and adaptive control to maintain precision. Coolant was optimized to prevent titanium oxidation.

Result: All blades met AS9100 standards, with 0% scrap rate. Delivery was completed 5 days ahead of schedule.

Case Study 2: Automotive Brake Rotor Production

Challenge: A major automaker required 10,000 stainless steel brake rotors with a flatness tolerance of ±0.002mm and a functional surface finish (Ra 1.2μm).

Solution: We implemented centerless grinding with automated loading/unloading, reducing cycle time to 2 minutes per rotor. SPC monitoring ensured consistency.

Result: Cost per unit was reduced by 18%, and all rotors passed IATF16949 inspection.

These Grinding Success Stories are just a few examples of how we turn client goals into reality—contact us to learn more about our Grinding Case Examples.

Why Choose Yigu Technology for CNC Grinding Services

With so many providers offering CNC Grinding Services, why should you choose us? At Yigu Technology, we combine technical expertise, advanced equipment, and customer-centric service to deliver results that exceed expectations. Here’s why clients trust us:

Proven Expertise: 15+ years of Grinding Expertise in high-precision industries (aerospace, medical, automotive) with 98% client retention rate.

Quality Commitment: ISO 9001, AS9100, and ISO 13485 certifications ensure compliance with global standards. Our Precision Tolerances and Surface Quality are verified through 100% inspection.

Custom Solutions: We don’t offer one-size-fits-all services—our team works with you to design CNC Grinding Solutions that match your budget, timeline, and specifications.

Efficiency: Advanced Grinding Technology (5-axis machines, adaptive control) reduces lead times by 20-30% compared to competitors.

Transparency: Real-time project tracking, detailed inspection reports, and dedicated account managers keep you informed every step of the way.

When you Choose Our Grinding Services, you’re not just hiring a vendor—you’re partnering with a team that cares about your success.

FAQ CNC Grinding

What is the typical lead time for CNC Grinding Services at Yigu Technology?

Lead times vary based on project complexity and volume. For small batches (10-50 parts), lead times are 3-5 business days. For high-volume runs (1,000+ parts), lead times are 7-14 business days. Rush orders (24-48 hour turnaround) are available for critical projects—contact our team for details.

Can Yigu Technology handle custom part designs for CNC Grinding?

Yes! We specialize in custom CNC Grinding Solutions for unique part geometries. Our team will review your 2D/3D CAD files, recommend optimal Grinding Techniques, and create a prototype (if needed) before full production. We’ve successfully processed parts with complex features like internal grooves, tapers, and non-circular cross-sections.

What quality certifications does Yigu Technology hold for CNC Grinding?

We maintain three key certifications to ensure quality: ISO 9001 (general manufacturing), AS9100 (aerospace), and ISO 13485 (medical devices). All our CNC Grinding Services follow SPC (Statistical Process Control) guidelines, and we provide detailed inspection reports (including CMM data) for every project. This commitment to quality ensures your parts meet the strictest industry standards.
