Our Acrylic CNC Machining Services
At Yigu Technology, we excel in Acrylic CNC Machining—transforming premium Polymethyl Methacrylate (PMMA) (also known as Transparent Plastic) into precision parts for industries from display to medical. Our expertise in CNC Milling, CNC Turning, and specialized surface treatment (like flame polishing) ensures your custom components deliver unrivaled optical transparency, tight tolerances, and durability. Whether you need rapid prototypes or large-scale production, we turn your designs into clear, high-quality solutions that stand out.
What Is Acrylic CNC Machining?
Acrylic CNC Machining is a computer-controlled manufacturing process that shapes Acrylic (scientifically called Polymethyl Methacrylate (PMMA))—a versatile Engineering Plastic and Transparent Plastic—into custom, precise parts. Unlike manual cutting, it uses automated tools to follow digital blueprints, ensuring consistency in Material Properties like high clarity and impact resistance.
This Machining Process is ideal for PMMA because it avoids common issues like cracking or clouding that can ruin the material’s transparency. By leveraging tools like CNC mills and lathes, it transforms raw acrylic stock (sheets, rods, or blocks) into parts ranging from tiny electronic components to large display cases—all while preserving the material’s unique advantages, such as light transmission (up to 92%, nearly matching glass).
Our Acrylic CNC Machining Capabilities
Yigu Technology’s Acrylic CNC Machining services are tailored to meet the diverse needs of modern industries. We combine advanced equipment with skilled craftsmanship to deliver parts that meet even the strictest standards. Below is a detailed breakdown of our core capabilities:
| Capability | Key Features | Typical Applications |
| Precision Machining | Achieves Precision Tolerances as tight as ±0.01mm; preserves acrylic’s transparency | Medical device lenses, optical components |
| Custom Machined Parts | Creates fully customized designs (from 2D sketches to 3D CAD models); supports low-to-high volumes | Custom display cases, branded signage |
| High-Tolerance Machining | Complies with ISO 9001 and ANSI Y14.5 Tolerance Standards; verified via rigorous inspection | Aerospace interior panels, automotive lighting parts |
| Complex Part Production | Handles intricate geometries (undercuts, thin walls, curved edges) without damaging acrylic | Electronic enclosure windows, decorative consumer goods |
| Rapid Prototyping | Turns designs into physical acrylic parts in 1–2 days; ideal for design testing | Product prototypes, trade show displays |
| Production Machining | Scales to 50,000+ units/month; maintains consistent quality across batches | Mass-produced lighting fixtures, retail signage |
| Quality Assurance | In-line checks (optical scanners, CMM) and post-production inspections; 99.9% defect-free rate | All industries, especially medical and display |
The Acrylic CNC Machining Process
Our Acrylic CNC Machining process is a structured, quality-focused workflow designed to protect acrylic’s transparency while ensuring precision. Each step is optimized to minimize waste and deliver reliable results:
- Design & File Preparation: We convert customer CAD files (STEP, IGES) into machine-readable G-code, accounting for acrylic’s brittleness to avoid cracking during cutting.
- Machine Setup: Technicians select Tool Selection (high-speed steel or carbide endmills) and secure acrylic stock with non-marring clamps to prevent surface scratches.

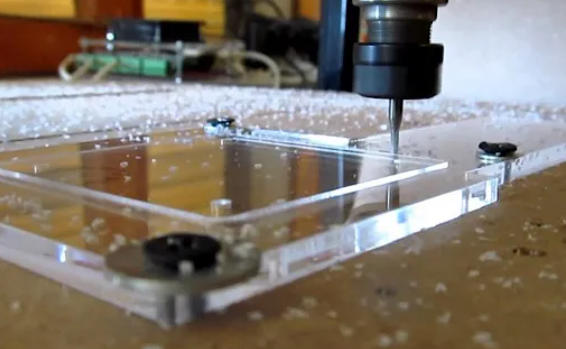

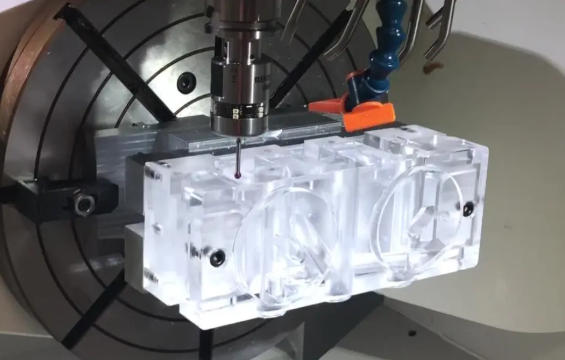

- CNC Milling/Turning: CNC Milling shapes flat or 3D parts (e.g., display case frames), while CNC Turning creates cylindrical components (e.g., lighting diffusers).
- Drilling Operations: Drilling Operations create precise holes (as small as 0.3mm) with slow feed rates to prevent chipping at hole edges.
- Cutting Techniques: We use low-speed, high-feed cutting for thick acrylic and high-speed cutting for thin sheets—both with compressed air cooling to avoid melting (which clouds transparency).
- Grinding Processes: Optional Grinding Processes smooth rough edges, preparing parts for surface treatment.
- Surface Treatment: Final steps like flame polishing or sandblasting refine the finish (see Section 5).
- Inspection: Every part undergoes Measurement Techniques (optical scanners for transparency checks, CMM for dimensions) to ensure compliance.
Below is a table of key process parameters for different acrylic types:
| Acrylic Type | Optimal Cutting Speed (m/min) | Feed Rate (mm/min) | Coolant Type |
| Cast Acrylic | 80–120 | 100–200 | Compressed air |
| Extruded Acrylic | 100–150 | 150–250 | Compressed air |
| UV-Resistant Acrylic | 90–130 | 120–220 | Compressed air |
Materials Used in Acrylic CNC Machining
Choosing the right acrylic grade is critical to part performance—each type offers unique benefits for specific applications. We work with a range of high-quality acrylic materials:
| Material | Key Properties | Typical Industry Applications |
| Acrylic (PMMA) | 92% light transmission, high clarity, impact resistance | All industries (base material) |
| Cast Acrylic | Uniform thickness, minimal internal stress, ideal for complex machining | Medical lenses, high-end displays |
| Extruded Acrylic | Cost-effective, consistent width, good for flat parts | Signage, basic display cases |
| Colored Acrylic | Vibrant, fade-resistant hues (customizable colors) | Consumer goods, decorative lighting |
| UV-Resistant Acrylic | Blocks 99% of UV rays, prevents yellowing over time | Outdoor signage, automotive windows |
| Specialty Acrylic Grades | Customized (e.g., anti-glare, scratch-resistant, conductive) | Optical devices, touchscreen panels |
Surface Treatment for Acrylic CNC Parts
Surface Treatment enhances acrylic parts’ appearance, durability, and functionality—critical for maintaining transparency or adding texture. Our key offerings include:
- Polishing: Creates a mirror-like finish (Ra 0.01–0.05μm) to maximize light transmission; ideal for optical components or display cases.
- Flame Polishing: Uses controlled heat to melt and smooth acrylic edges, eliminating scratches without reducing clarity—perfect for signage or lighting fixtures.
- Coating: Applies protective layers (e.g., anti-scratch, anti-glare, or anti-fingerprint coatings) to extend part life; common in touchscreen panels.
- Painting: Uses acrylic-specific paints for colored accents (e.g., branded logos on display cases); ensures paint adheres without peeling.
- Sandblasting: Creates a matte, frosted surface (Ra 1.0–3.0μm) for privacy (e.g., medical device windows) or decorative effects.
- Heat Treatment: Reduces internal stress in thick acrylic parts to prevent warping over time—critical for large display cases.
Surface Finishing: Final steps like deburring (removing small plastic burrs) ensure parts are ready for immediate use or assembly.
Tolerances: Ensuring Precision in Acrylic Parts
In Acrylic CNC Machining, Tolerances are critical—even small dimensional variations can ruin a part’s fit (e.g., an electronic enclosure window) or transparency (e.g., a medical lens). We adhere to strict standards and use advanced Inspection Methods to guarantee accuracy:
Key Tolerance Metrics for Acrylic Parts
| Tolerance Type | Typical Range | Measurement Tool | Industry Requirement Example |
| Precision Tolerances | ±0.01–±0.05mm | Coordinate Measuring Machine (CMM) | Medical optical lenses (must align with other components) |
| Tight Tolerances | ±0.05–±0.1mm | Digital calipers | Aerospace interior panels (fit with metal frames) |
| Dimensional Accuracy | ±0.1–±0.5mm | Optical scanners | Display case frames (must assemble seamlessly) |
Our Inspection Methods include:
- Optical comparators (to check transparency and edge straightness)
- CMM (for 3D dimensional checks on complex parts)
- Surface roughness testers (to verify finish quality)
UV light testing (for UV-resistant acrylic grades)
Advantages of Acrylic CNC Machining
Acrylic CNC Machining offers unique benefits over other manufacturing methods (e.g., injection molding, 3D printing) that make it ideal for acrylic parts:
- High Clarity & Optical Transparency: Acrylic’s 92% light transmission is preserved during machining—unlike 3D printing, which can create layer lines that cloud transparency.
- High Strength-to-Weight Ratio: Acrylic is 10x stronger than glass but 50% lighter—perfect for automotive or aerospace parts where weight matters.
- Chemical Resistance: Acrylic resists most acids, alcohols, and detergents—suitable for medical devices (sterilizable) or industrial equipment (exposed to chemicals).
- Thermal Stability: Acrylic maintains shape at temperatures up to 80°C (176°F)—ideal for lighting fixtures or automotive interior parts.
- Dimensional Stability: Low thermal expansion (half that of glass) ensures parts don’t warp in temperature changes—critical for outdoor signage.
- Cost-Effective Production: No expensive molds (unlike injection molding) makes it affordable for low-to-medium volumes (1–10,000 units).
Design Flexibility: Handles complex geometries (curves, undercuts, thin walls) that are hard to achieve with glass or other plastics.
Industry Applications of Acrylic CNC Machining
Our Acrylic CNC Machined parts power critical operations across 9 major industries, each leveraging acrylic’s transparency and durability:
| Industry | Key Applications | Acrylic Grade Used | Why Acrylic CNC? |
| Automotive | Interior lighting diffusers, dashboard panels, window trim | UV-Resistant Acrylic, Colored Acrylic | Lightweight, shatterproof, UV-resistant |
| Aerospace | Cockpit display covers, interior decorative panels | Cast Acrylic, UV-Resistant Acrylic | High clarity, dimensional stability |
| Electronics | Electronic enclosure windows, touchscreen panels, sensor covers | Specialty Acrylic (anti-glare), Cast Acrylic | Transparency, scratch resistance |
| Medical | Diagnostic device lenses, surgical tool handles, equipment windows | Cast Acrylic (biocompatible) | Sterilizable, high clarity for visibility |
| Industrial Equipment | Machine safety guards, control panel covers | Extruded Acrylic, UV-Resistant Acrylic | Impact resistance, chemical resistance |
| Consumer Goods | Phone cases, cosmetic organizers, toy components | Colored Acrylic, Extruded Acrylic | Cost-effective, customizable colors |
| Display Industry | Retail display cases, museum exhibit stands, trade show booths | Cast Acrylic, Clear PMMA | High clarity, aesthetic appeal |
| Signage | Outdoor billboards, storefront signs, LED backlit signs | UV-Resistant Acrylic, Colored Acrylic | Fade-resistant, light transmission |
| Lighting | LED fixture diffusers, chandelier shades, task light covers | Clear PMMA, Frosted Acrylic (via sandblasting) | Light diffusion, heat resistance |
Case Studies: Success with Acrylic CNC Machining
Case Study 1: Medical Diagnostic Device Lenses
- Challenge: A medical client needed biocompatible, high-clarity lenses for diagnostic scanners (tolerances ±0.02mm, must withstand sterilization).
- Solution: We used Cast Acrylic (biocompatible, low stress) and CNC Milling with flame polishing to preserve transparency. Post-production, we tested lenses for UV resistance and dimensional accuracy.
- Result: Lenses passed 500+ autoclave cycles without yellowing; 100% compliance with medical standards (ISO 10993); delivered in 3 days.
Case Study 2: Outdoor LED Signage for a Retail Chain
- Challenge: A retail client needed 500 UV-resistant acrylic signs (1m x 0.5m) with custom branding—must resist fading and harsh weather.
- Solution: Extruded Acrylic (cost-effective for large parts) with UV-Resistant Acrylic coating and CNC Milling for precise logo cutting. We used sandblasting for a frosted background.
- Result: Signs showed 0 fading after 2 years of outdoor use; production completed in 10 days (20% faster than competitors); 0 defects.
Case Study 3: Automotive Interior Lighting Diffusers
- Challenge: An automotive client needed thin (2mm) acrylic diffusers for interior LED lights—must be lightweight, shatterproof, and evenly distribute light.
- Solution: CNC Turning of Clear PMMA with a micro-textured coating (for light diffusion). We used tight feed rates to avoid cracking the thin material.
Result: Diffusers reduced weight by 40% vs. glass alternatives; light distribution uniformity reached 95%; 10,000 units produced with 99.9% quality rate.
Why Choose Yigu Technology for Acrylic CNC Machining?
When you partner with Yigu Technology for Acrylic CNC Machining, you get more than just parts—you get a partner who understands acrylic’s unique properties and your industry’s needs. Here’s why clients trust us:
- Expertise in Acrylic Machining: 12+ years of focus on Acrylic (PMMA) machining; our engineers know how to preserve transparency and avoid common issues like cracking.
- High-Quality Products: 99.9% defect-free rate; ISO 9001 and medical-grade certifications; every part undergoes optical and dimensional checks.
- Experienced Machinists: Our team has an average of 7+ years in acrylic machining; trained on specialized equipment (e.g., flame polishing tools, optical scanners).
- Excellent Customer Service: Dedicated account managers; 24-hour response time for queries; free design consultations to optimize parts for machining.
- Fast Turnaround Times: Prototypes in 1–2 days; production runs in 3–7 days (30% faster than industry averages); rush orders available.
- Competitive Pricing: No hidden fees; volume discounts for 1,000+ units; material waste reduced by 18% via optimized toolpaths (passing savings to you).
Commitment to Innovation: We invest in new technologies (e.g., 5-axis CNC for complex acrylic parts) and test new acrylic grades yearly to expand capabilities.
